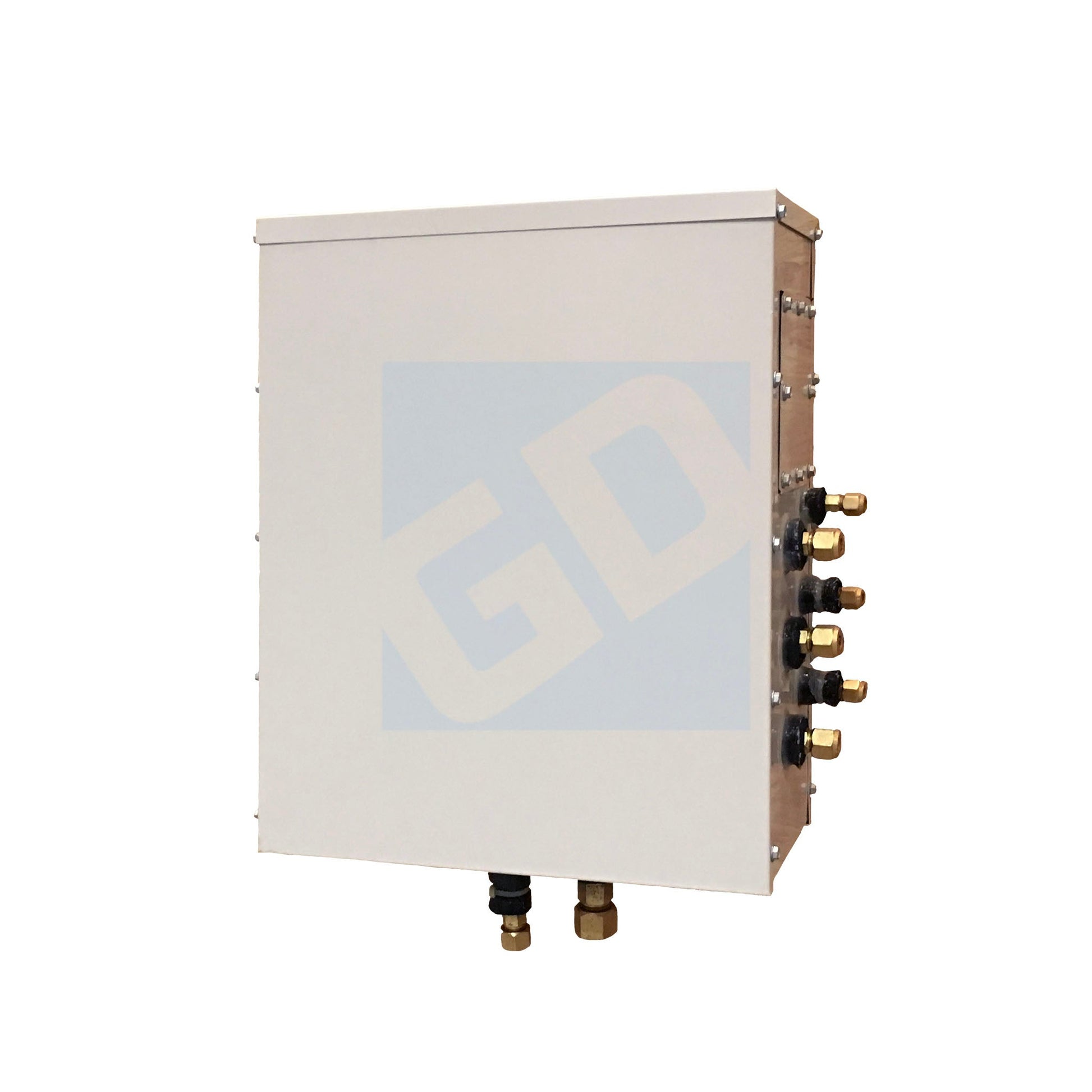

Mitsubishi Branch Box Enclosure For Outdoor Installation - BBE-1
Adjustable for 3-port or 5-port Branch Boxes
20 ga galvanized steel enclosure
Polyester powder coat
Color matches MXZ outdoor units
Part # BBE-1
What our Experts Think
-
Powerful Multi‑Zone Outdoor System: The Mitsubishi MXZ‑5C42NA 42,000 BTU 5‑Zone Heat Pump Outdoor Unit is a robust choice for multi‑room climate control, capable of powering up to five indoor units for personalized heating and cooling across several zones.
-
Strong Seasonal Efficiency: With high SEER2 (up to ~19.7) and HSPF2 (~10.3) ratings, it delivers efficient performance that helps reduce energy costs compared with traditional systems.
-
Balanced Cooling & Heating Output: Rated around 40,500 BTU cooling and 45,000 BTU heating with capacity peaks up to about 43,000 BTU (cool) and 53,600 BTU (heat) depending on indoor/outdoor conditions, offering reliable comfort year‑round.
-
Flexible Indoor Pairing: Designed for multi‑zone setups, it pairs with a range of indoor unit types (wall mounts, cassettes, ducted or floor units) giving you flexibility to tailor each zone’s comfort level.
-
Quiet & Durable Operation: Built with variable‑speed inverter compressor technology and a low‑noise outdoor footprint (~56–58 dB), it balances performance with quieter operation in residential settings.
-
Reliable Protection Features: Includes built‑in safeguards like high‑pressure protection, thermal protection, and automatic restart, enhancing system durability and reliability.
-
Long Line Length Support: Allows extended piping lengths and individual line runs (up to ~82 ft per indoor unit), offering flexibility for complex installations.
-
Classic R410A System: Uses tried‑and‑true R410A refrigerant, suitable for existing installations where R410A units are being replaced or expanded — though newer R454B systems are now common for new builds.
-
Ideal for Zoned Comfort: A top pick when you want customized climate control across multiple rooms or zones with one outdoor unit managing efficiency and performance for the entire system.
Q&A
Q: What is this Mitsubishi BBE‑1 accessory?
A: It’s a protective branch box enclosure designed for Mitsubishi MXZ multi‑zone heat pump systems. It houses and protects the branch box when installed outdoors or where environmental exposure is a concern.
Q: What does a branch box enclosure do?
A: A branch box enclosure surrounds the branch box that splits refrigerant lines to multiple indoor units, shielding it from moisture, debris, and weather when located outside.
Q: What equipment is it compatible with?
A: Designed for use with three‑port or five‑port Mitsubishi MXZ series branch boxes, giving flexibility in multi‑zone HVAC configurations.
Q: Can it be installed in different orientations?
A: Yes — the enclosure can be mounted vertically or horizontally, and the piping direction is reversible to suit installation needs.
Q: What construction and protection standards does it meet?
A: Built from 20 gauge galvanized steel with a polyester powder‑coated finish and rated NEMA 3R for outdoor protection against rain, sleet, and external conditions.
Q: Why use a branch box enclosure?
A: It allows the branch box to be installed outdoors safely, protecting electrical and refrigerant connections while improving system longevity and maintaining a clean installation.
Q: Does the enclosure match the outdoor unit’s appearance?
A: Yes — its finish and color are designed to match Mitsubishi MXZ outdoor units, making installations visually cohesive.
Maintenance Tips
-
Weatherproof NEMA 3R protective enclosure for Mitsubishi branch boxes, enabling safe outdoor installation when required.
-
20 ga galvanized steel construction with polyester powder‑coat finish for durability and corrosion resistance.
-
Designed to fit both 3‑port and 5‑port branch boxes, offering installation flexibility.
-
Can be mounted vertically or horizontally, and piping direction is reversible for ease of setup.
-
Color‑matched to MXZ series outdoor units for a cohesive appearance.
-
Dimensions: approx. 18 5/8″ H x 14 13/16″ W x 7 3/16″ D; weight: ~13 lb.
