Pioneer 24,000 BTU 19 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V - RYB024GMFILDAD-10
- Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
- Cooling capacity: 23,000 BTU/H with 19 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 11.2 HSPF2 / 3.61 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
-
Ceiling Concealed Ducted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Customizable length copper line set with flare connections
-
Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $147.00
- Heating: $464.00

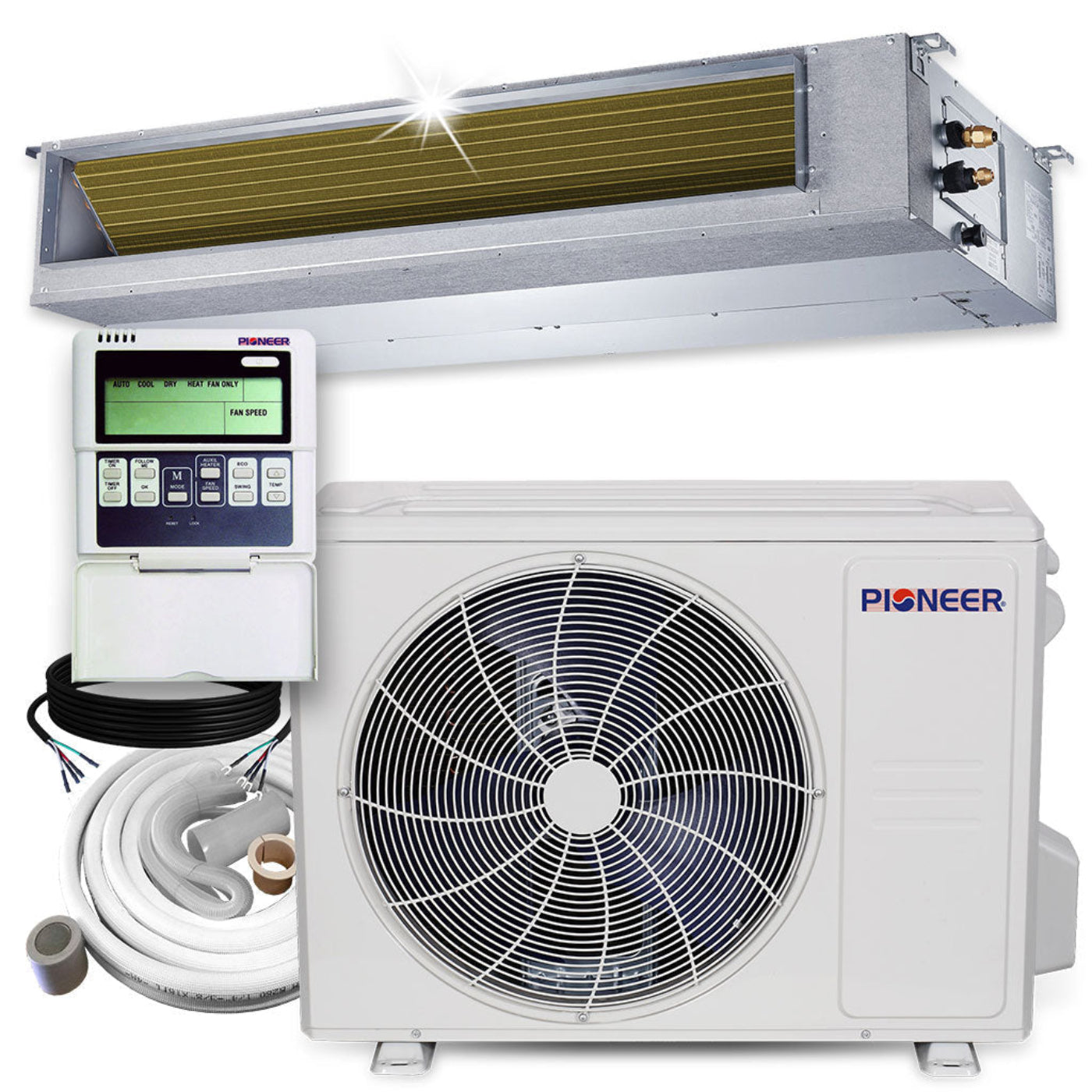

Included
- Indoor Unit
- Outdoor Unit
- Wire Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
Manuals
What our Experts Think
-
Reliable high‑capacity comfort for larger homes
This 24,000 BTU ceiling‑concealed ducted mini‑split delivers balanced cooling and heating to larger interior spaces (≈600–950 sq ft) through hidden ductwork—ideal when you want a clean look with powerful performance.
-
Solid seasonal efficiency with Energy‑Star
Rated at 19 SEER2 with 12.5 EER2 and Energy‑Star certification, it offers good energy savings compared with baseline HVAC systems—helping reduce operating costs even with heavy use.
-
Inverter++ DC technology for smooth control
Advanced variable‑speed inverter ensures precise temperature regulation, quieter cycling, and quicker comfort recovery than fixed‑speed designs—enhancing daily performance and comfort.
-
Built‑in condensate pump & high static pressure
Includes a built‑in drain pump with strong lift capacity and supports higher static pressure duct runs, giving flexibility for various duct layouts without sacrificing airflow.
-
All‑season heat pump performance
Provides efficient cooling and heating with a 19 SEER2 cold‑climate heat pump, including dependable operation down to lower ambient conditions and good HSPF2 heating efficiency.
-
Comprehensive system package
Comes with indoor and outdoor units, wired remote control, manuals, warranty, and installation accessory options (line sets, control wiring, drain hose, etc.), simplifying installation planning.
-
Quiet, comfortable airflow
Indoor unit operates at 37–44 dB across fan speeds, keeping noise low in living spaces, while outdoor sound stays around 61 dB—suitable for residential settings.
Q&A
Q: What room size is this 24,000 BTU ducted mini split ideal for?
A: Perfect for medium to large rooms (approx. 900–1,200 sq. ft.), such as offices, living areas, or commercial spaces requiring ceiling-concealed airflow.
Q: Does it provide both cooling and heating?
A: Yes, this inverter++ heat pump delivers efficient year-round cooling and heating.
Q: How energy-efficient is the 19 SEER2 rating?
A: With 19 SEER2, it provides strong energy efficiency while lowering electricity costs.
Q: Is this unit Energy Star certified?
A: Yes, it is Energy Star certified for reliable, energy-saving performance.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What is included in the full set?
A: Includes ceiling-concealed indoor unit, outdoor condenser, and pre-charged installation kit for convenient setup.
Q: Does it support Wi-Fi or smart control?
A: Wi-Fi support may be available with compatible modules for remote operation and scheduling.
Q: How quiet is the indoor unit?
A: Operates quietly, typically 30–40 dB, ideal for offices, bedrooms, or living spaces.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow.
Q: Is professional installation required?
A: Yes, professional installation is recommended; ductwork and proper refrigerant connections are required for optimal performance.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 19 SEER2 Energy Star efficiency for 700–900 sq ft areas
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the ceiling-concealed unit
-
Keep indoor & outdoor units dust- and debris-free – Ensures consistent airflow and peak heat exchange
-
Check and clear condensate drain line – Prevents leaks and ceiling/floor damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity
-
Use ECO, Sleep & Wi-Fi smart modes (if available) – Reduces compressor wear and lowers energy consumption
-
Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
