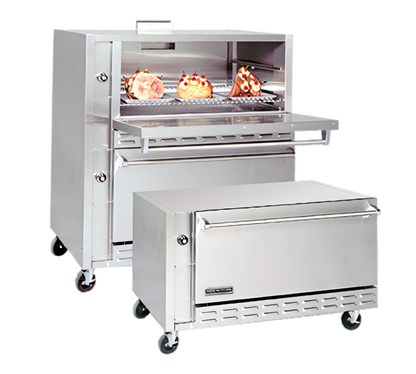

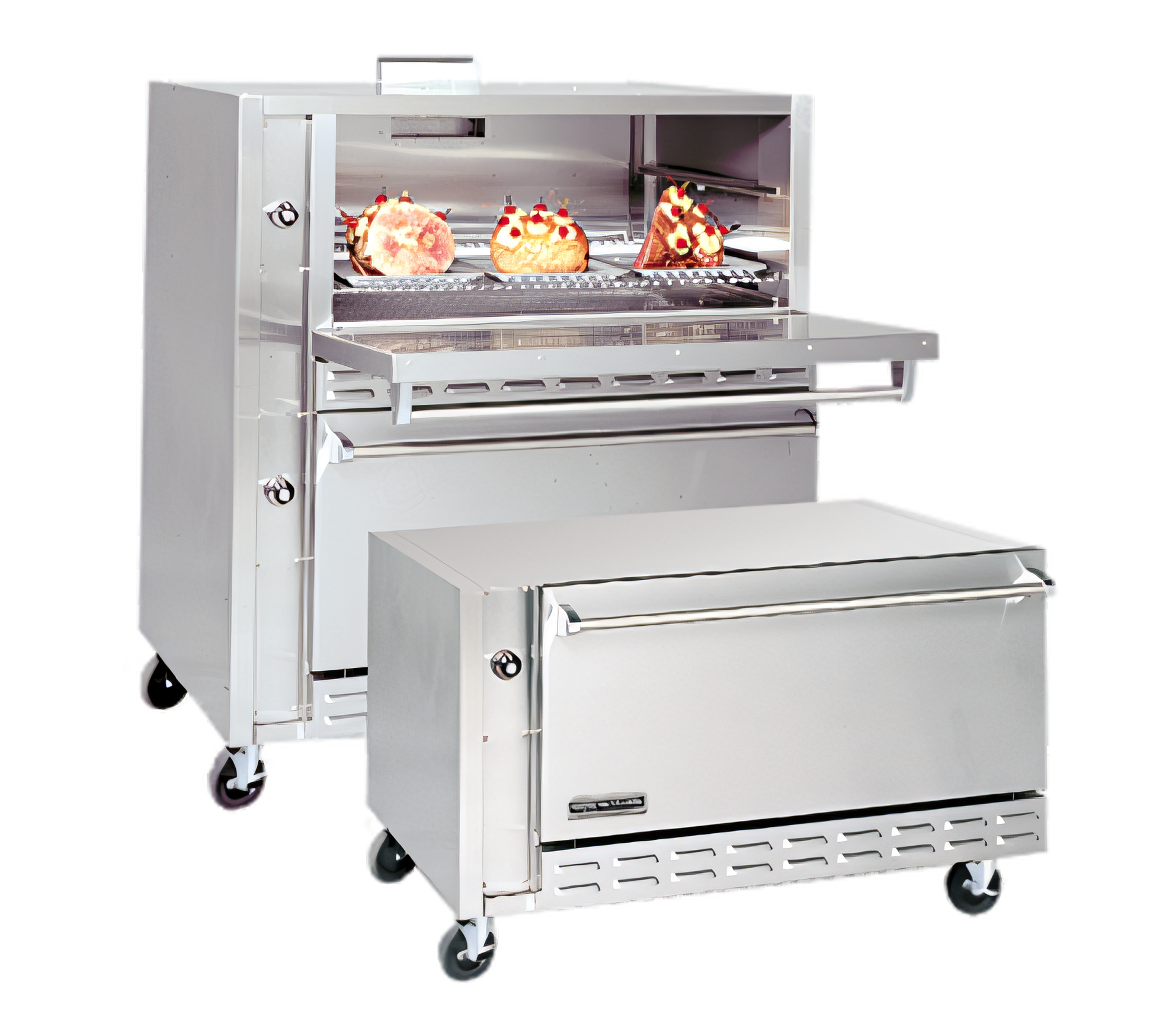

American Range Specialty Ovens - ARLM-1
Single deck • 42"-wide cavity • 40,000 BTU • Made in USA
Purpose-built for high-volume kitchens that roast whole lamb, pork, beef and other large cuts, the American Range ARLM-1 delivers powerful, even heat in an ultra-rugged, all-stainless package that’s proudly engineered and manufactured in the United States.
Features
- Extra-large standard oven cavity: 42" W × 33 ½" D × 17" H (24 cu ft).
- High-output 40,000 BTU burner (≈ 12 kW) with 150 °F – 500 °F thermostat.
- All-stainless-steel construction—interior liner, door and exterior panels.
- Heavy-gauge welded frame for maximum stability and service life.
- Specially designed cavity & baffle system for uniform temperature throughout.
- Matchless push-button (Piezo) pilot ignition and 100 % automatic gas safety shut-off.
- Removable stainless-steel door for easy cleaning; supplied with 1 chrome wire rack (2 positions).
- 6" adjustable stainless-steel legs for non-combustible floor installation.
- ETL sanitation & safety listed.
Specifications
| Model |
ARLM-1 (Single Deck) |
| Oven Type |
Standard radiant gas oven |
| Interior Capacity |
42" W × 33.5" D × 17" H (24 cu ft) |
| Burner Output |
40,000 BTU / 12 kW |
| Temperature Range |
150 °F – 500 °F (66 °C – 260 °C) |
| Exterior Dimensions |
52" W × 37.5" D × 32" H |
| Gas Connection |
¾" NPT, 5" WC Natural / 10" WC LP |
| Rack Positions / Included Racks |
2 positions / 1 chrome rack |
| Leg Height |
6" (adjustable) |
| Country of Origin |
Designed & built in the USA |
What our Experts Think
-
Versatile 60″ Commercial Workhorse – The American Range AR‑12G‑8B‑126L‑SBR combines 8 high‑output open burners, a 12″ griddle, a standard oven, and a storage base in one compact unit — ideal for restaurants, cafés, and mid‑volume foodservice kitchens that need all‑around performance.
-
Balanced Top‑Cooking Layout – Eight 32,000 BTU burners provide robust flame power for sautéing, boiling, and pan cooking, while the 12″ manual griddle with a thick steel plate adds flat‑top versatility for breakfast items, burgers, and sides.
-
Productive Standard Oven – The left‑side standard oven with a porcelain enamel interior and adjustable racks expands cooking capacity for baking, roasting, and finishing menu items, helping streamline back‑of‑house prep.
-
Smart Storage Base – Right‑side storage base cabinet keeps sheet pans, pots, and tools organized and within easy reach — improving kitchen workflow and reducing clutter.
-
Durable Commercial Construction – Stainless steel front and sides, cast‑iron grates, adjustable legs, and removable drip trays make this range easy to clean and built to withstand tough daily use.
-
Certified for Professional Kitchens – Designed to meet commercial safety and sanitation standards with cETLus and ETL‑Sanitation certifications, giving operators confidence in reliability and compliance.
-
Efficient Kitchen Footprint – The compact design fits medium kitchens where space is at a premium but performance can’t be compromised.
-
Expert Verdict: A well‑rounded, space‑efficient commercial range that delivers dependable burner heat, griddle flexibility, oven capacity, and smart storage — perfect for busy restaurants and foodservice operations needing versatile cooktop performance in one rugged unit.
Q&A
Q: What is the American Range AR‑12G‑8B‑126L‑SBR?
A: The American Range AR‑12G‑8B‑126L‑SBR is a 60″ commercial gas restaurant range combining a 12″ left‑side manual griddle, eight powerful open burners, a standard oven, and a storage base — built for busy professional kitchens.
Q: What cooking surfaces does it include?
A: It features a 12″ griddle with a 1″ thick steel plate for consistent heat and eight 32,000 BTU lift‑off open burners for versatile stovetop cooking.
Q: What oven and storage features are included?
A: The range includes a 26½″ standard oven on the left with two chrome racks and a 26½″ storage base on the right for sheet pans and prep tools.
Q: How much total heat output does it deliver?
A: This model provides about 311,000 BTU total heat output, ensuring strong, continuous performance for multi‑station cooking.
Q: What materials and construction quality does it offer?
A: Built with commercial‑grade stainless steel front and sides, with adjustable chrome‑plated legs and optional backsplash riser configurations for durable, easy‑to‑clean daily use.
Q: Is the AR‑12G‑8B‑126L‑SBR certified for commercial kitchens?
A: Yes — it is cETLus and ETL‑Sanitation certified and Made in the USA for professional foodservice safety and sanitation compliance.
Q: What kitchens is this range best suited for?
A: Ideal for restaurants, hotel kitchens, catering facilities, and institutional operations that need powerful burners, a griddle, and versatile oven plus storage — all in one unit.
Maintenance Tips
-
Clean burners and grates regularly: Remove burner heads and brush debris to maintain strong 32,000 BTU flames and consistent cooking performance.
-
Maintain griddles and cooking surfaces: Scrape food residue after each use, wipe with warm water, and lightly oil to prevent rust and ensure even heat distribution.
-
Empty grease trays and drip pans: Clean frequently to reduce buildup, smoke, and fire hazards.
-
Wipe stainless steel surfaces: Use a soft cloth with mild detergent to keep the exterior sanitary and corrosion-resistant.
-
Clean oven interior weekly: Remove racks and wipe the porcelain-lined cavity to maintain even heat and prevent grease accumulation.
-
Inspect gas connections and controls: Check valves, fittings, and ignition components periodically for safe and reliable operation.
-
Ensure proper ventilation and leveling: Maintain adequate clearance around the range for safe high-BTU commercial use.
