EDWARDS Oversize Punch Assembly For 65 Ton Ironworkers (2013 & Older) - ED9-AC1024-S3

EDWARDS Oversize Punch Assembly For 65 Ton Ironworkers (2013 & Older) - ED9-AC1024-S3

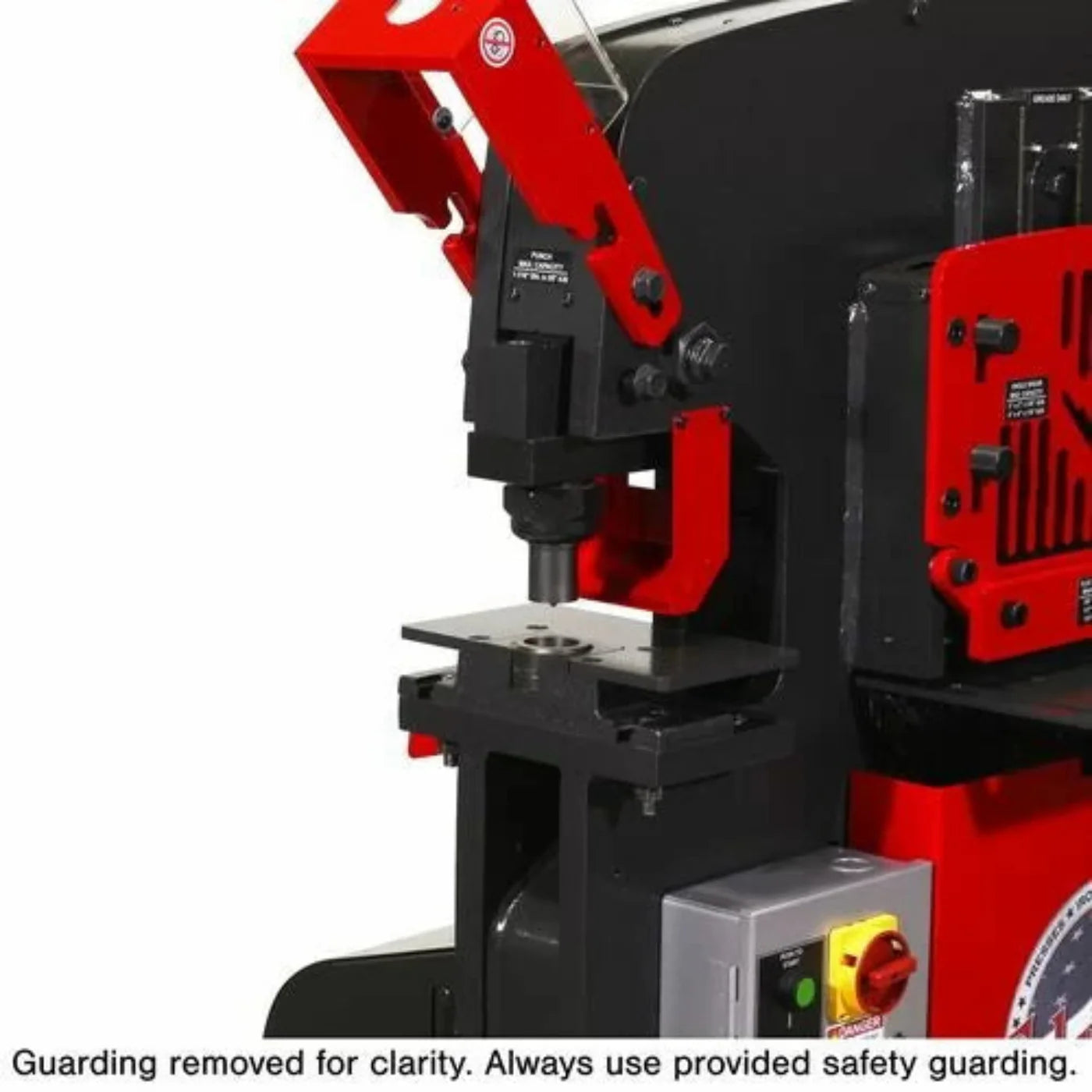

The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16". Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.

Features

• Fits Edwards 65 Ton Ironworkers (2013 and prior).
• Replaces Standard Punch Assembly or can be used as a secondary Punch Workstation.
• Requires Oversize Punch & Die sets (contact Edwards for pricing and availability).
• The Oversize Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 1-9/16".
