EDWARDS 241 Punch Assembly For 100 Ton Deluxe Ironworkers - ED9-AC1055-3

EDWARDS 241 Punch Assembly For 100 Ton Deluxe Ironworkers - ED9-AC1055-3

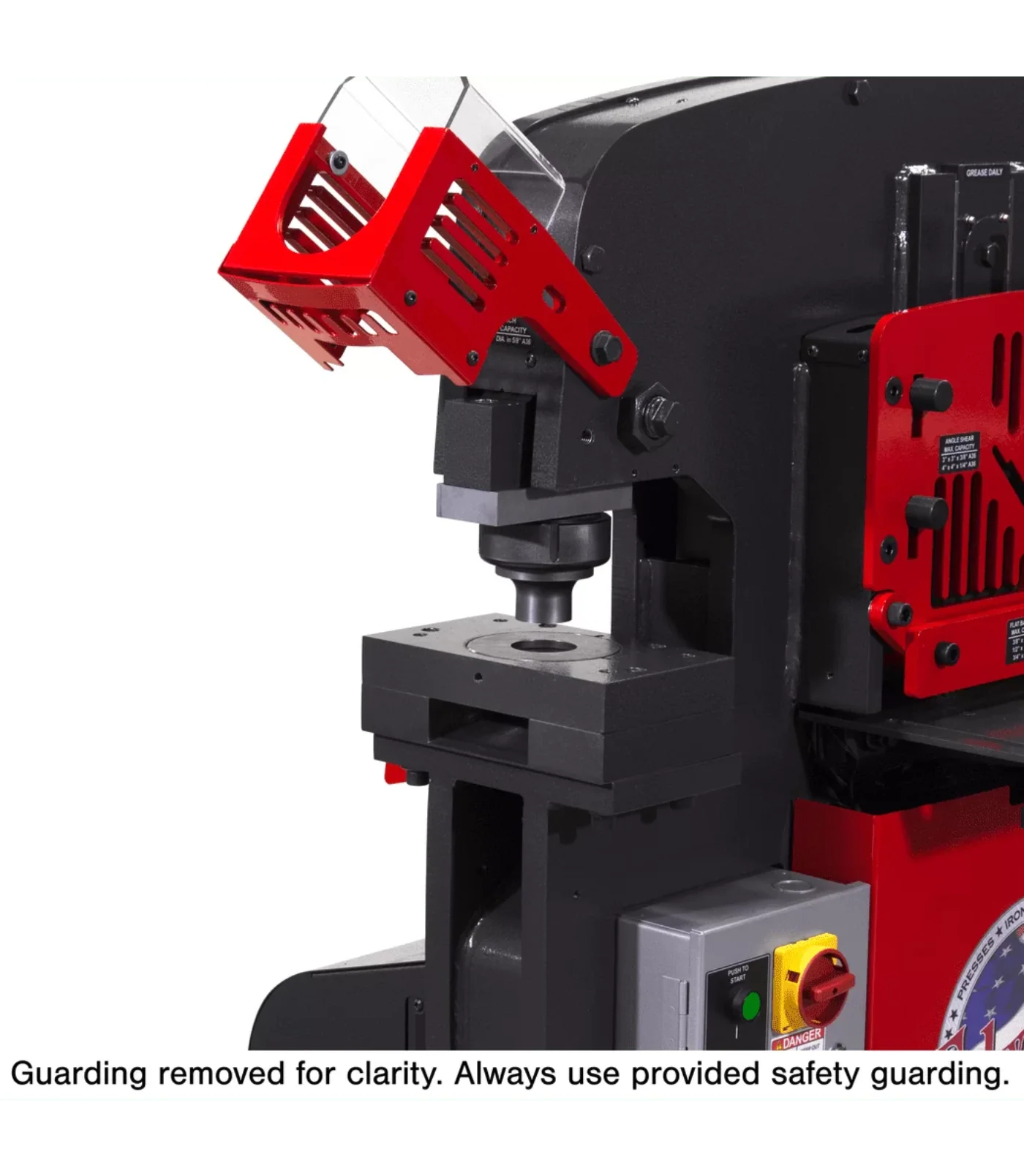

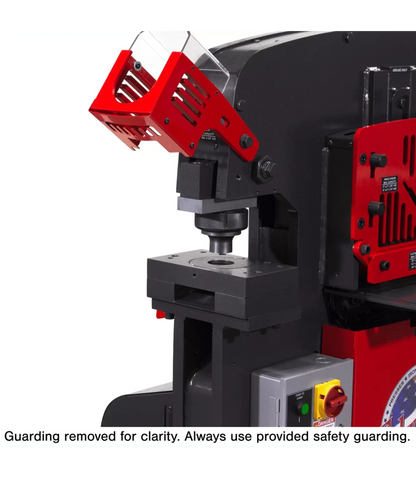

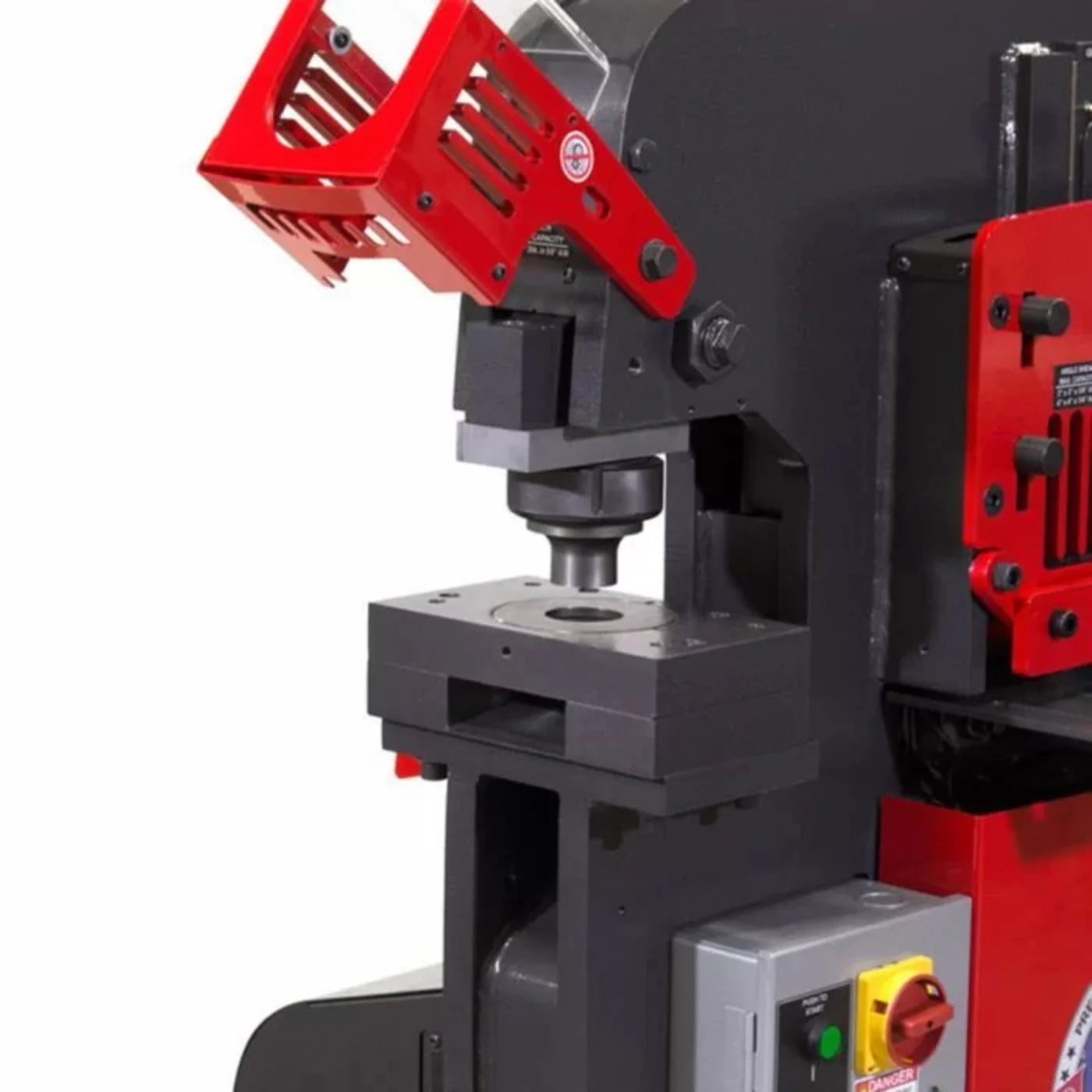

The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.

Features

• Punch large holes and slots in anything from heavy sheet metal to steel beams.
• Replaces the installed Punch Assembly on the 100 Ton Deluxe Ironworkers.
• Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
• 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".

What our Experts Think

• High‑capacity punching tailored for 100 ton ironworkers
  Engineered to deliver clean, precise holes in heavy structural steel — ideal for demanding fabrication workflows and larger jobs.
• Durable punch/die assembly
  Built from hardened, precision‑machined tool steel for extended life and consistent performance in high‑volume use.
• Optimized productivity
  Efficient punch geometry and smooth material flow reduce setup time and improve cycle speed, helping increase throughput.
• Seamless fit with EDWARDS deluxe ironworkers
  Direct‑fit design ensures quick installation and reliable operation on 100 ton deluxe units without modification.
• Enhanced alignment & repeatability
  Improves accuracy across repeated punches — reducing rework and material waste in production environments.

Q&A

Maintenance Tips

• Clean After Each Use: Remove metal shavings, dust, and oil to maintain sharp punch edges and precision.
• Inspect for Damage: Check punch and die for cracks, chips, or wear; replace or sharpen as needed.
• Lubricate Moving Components: Apply light machine oil to guides and moving parts to reduce friction and prevent corrosion.
• Ensure Proper Alignment: Verify the punch and die are correctly seated in the ironworker to avoid uneven wear or tool damage.
• Use Within Rated Capacity: Always punch material within the 100-ton rating to prevent breakage or excessive stress.
• Secure Mounting Hardware: Tighten all bolts and clamps to maintain stability and repeatable performance.
• Protect from Rust: Store in a dry environment and apply light anti-corrosion coating on steel surfaces.
