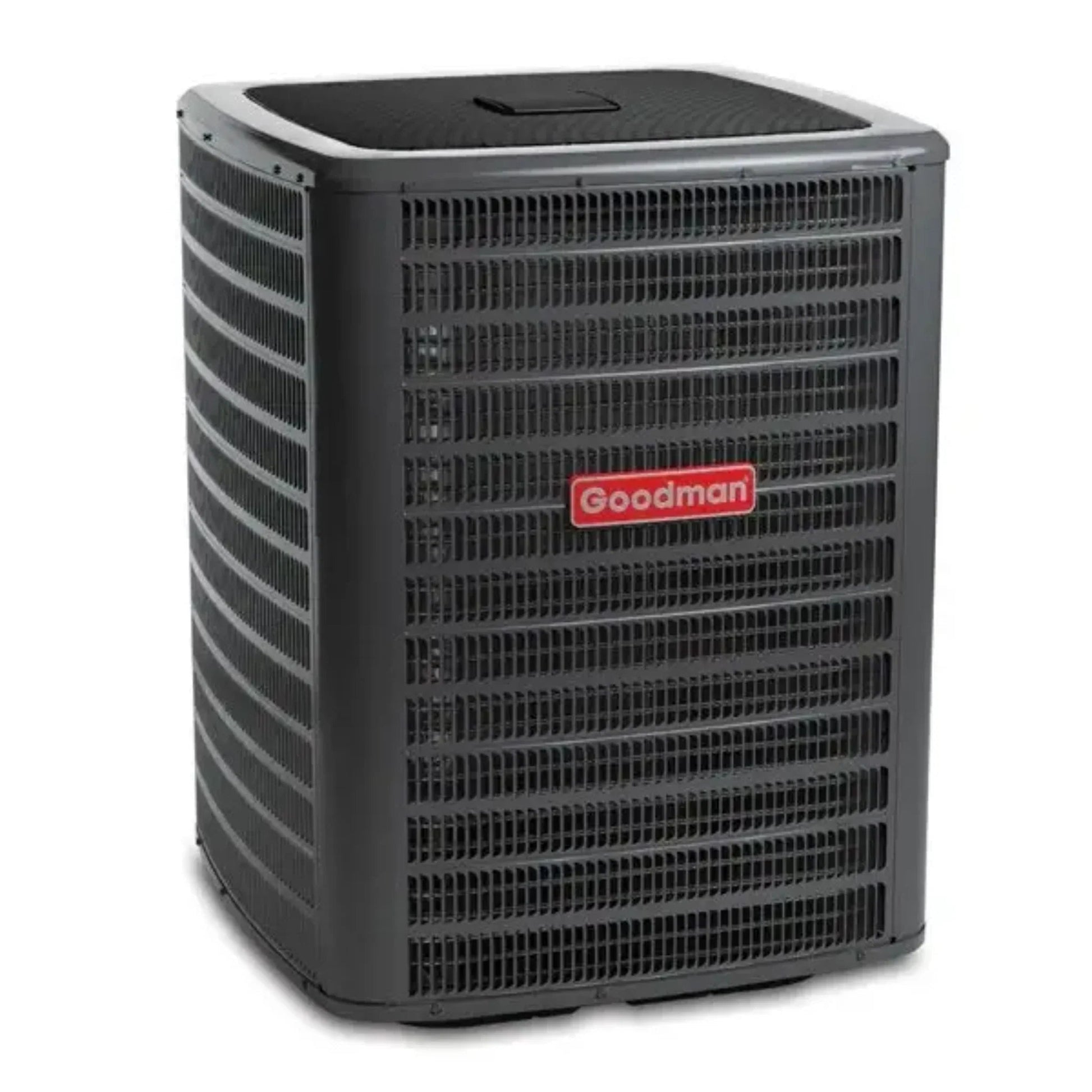

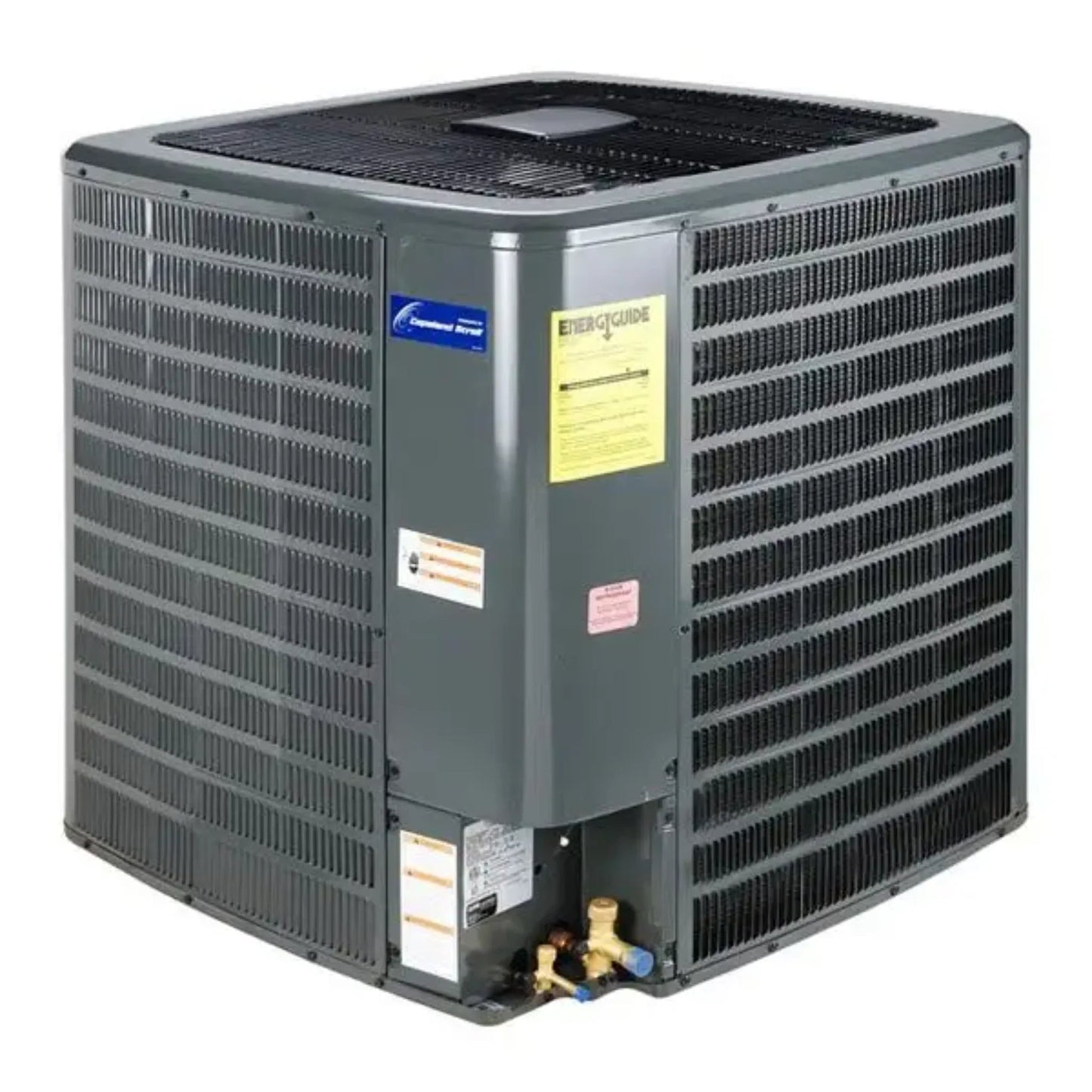

Goodman - 1.5 Ton/18,000 BTU Multi-Family Air Conditioner Condenser - SEER2 14.3 - Single Stage - R32 - NGLXS4MA1810
The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4MA1810 air conditioner condenser is a popular choice for homeowners around the United States.
Features
- High-Efficiency Scroll Compressor
- High-pressure switch
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- ETL Listed
Specifications
| Model Number(s) |
GLXS4MA1810 |
| Brand |
Goodman |
| Type |
Air Conditioning |
| Category |
Condensers |
| Ton |
1.5 Ton |
| SEER |
14.3 |
| Cooling Btu |
18,000 |
| Cooling Stage(s) |
1 |
| Compressor Stage |
Single |
| Voltage |
208/230V |
| Electrical Phase(s) |
1-Phase |
| Decibel Level (dB) |
73 |
| Refrigerant Type |
R-32 |
| Suction Valve Size (Inches) |
3/4 |
| Liquid Valve Size (Inches) |
3/8 |
| Height (Inches) |
27 |
| Width (Inches) |
26 |
| Depth (Inches) |
26 |
| Total Shipping Weight (lbs.) |
144 |
| UPC # |
663051692091 |
Manual
What our Experts Think
-
Perfect for Small Spaces: The Goodman NGLXS4MA1810 Air Conditioner Condenser delivers 1.5 tons (18,000 BTU) of cooling, making it ideal for apartments, condos, and small homes.
-
Energy-Efficient SEER2 14.3 Performance: Designed to meet modern efficiency standards, helping reduce electricity consumption while maintaining reliable cooling performance.
-
Single-Stage Cooling Reliability: The single-stage compressor provides consistent, dependable cooling with a straightforward design that is easy to maintain and service.
-
Next-Generation R32 Refrigerant: Uses R32 refrigerant, which offers improved efficiency and lower environmental impact compared to older refrigerants.
-
Multi-Family Friendly Design: Built specifically for multi-family housing applications, making it a great solution for property managers, builders, and residential installations.
-
Durable Outdoor Construction: Goodman’s heavy-gauge steel cabinet and protective coil design help ensure long-lasting durability in outdoor environments.
-
Strong Value Cooling Solution: Combines compact capacity, dependable performance, and energy efficiency, making it a smart choice for cost-effective residential cooling systems.
Q&A
Q: What size space can a 1.5 ton (18,000 BTU) AC condenser cool?
A: A 1.5 ton / 18,000 BTU air conditioner typically cools 600–1,000 sq ft, depending on insulation, climate, ceiling height, and sun exposure.
Q: What does SEER2 14.3 mean?
A: SEER2 14.3 measures seasonal cooling efficiency under updated testing standards. A higher SEER2 rating means better energy efficiency and lower electricity costs.
Q: What is a single-stage air conditioner?
A: A single-stage AC condenser runs at full cooling capacity when operating, providing simple, reliable cooling and cost-effective performance.
Q: Is this unit suitable for multi-family housing?
A: Yes. The Goodman NGLXS4MA1810 is designed for multi-family applications such as apartments, condos, and townhomes, offering compact and efficient cooling.
Q: What refrigerant does this air conditioner use?
A: This condenser uses R32 refrigerant, a newer refrigerant designed to improve efficiency and reduce environmental impact compared to older refrigerants.
Q: Can this condenser work with an existing indoor coil or air handler?
A: Yes, it can be paired with compatible indoor evaporator coils or air handlers to create a complete central air conditioning system.
Q: Is the Goodman 1.5 ton AC energy efficient?
A: Yes. With 14.3 SEER2 efficiency, this unit meets modern energy standards while providing dependable cooling performance.
Q: Is this condenser good for replacement installations?
A: The compact design and standard connections make it suitable for new installations or replacing older central AC condensers.
Maintenance Tips
-
Clean the Outdoor Condenser Coil: Remove dirt, leaves, and debris from the coil and surrounding area regularly to maintain efficient heat transfer and cooling performance.
-
Maintain Proper Clearance: Keep at least 2–3 ft of open space around the condenser for unrestricted airflow.
-
Inspect Refrigerant Lines: Check the 3/8" liquid line and 3/4" suction line insulation for damage to prevent energy loss.
-
Wash the Condenser Fins: Gently rinse fins with a garden hose to remove dust buildup that can reduce efficiency.
-
Check Electrical Connections: Ensure wiring, disconnect box, and power supply (208/230V) remain secure and corrosion-free.
-
Monitor Noise & Performance: This single-stage scroll compressor unit normally runs around 73 dB; unusual noise or weak cooling may signal maintenance needs.
-
Schedule Annual HVAC Service: A licensed technician should inspect refrigerant charge, compressor, fan motor, and system pressure for optimal performance.
