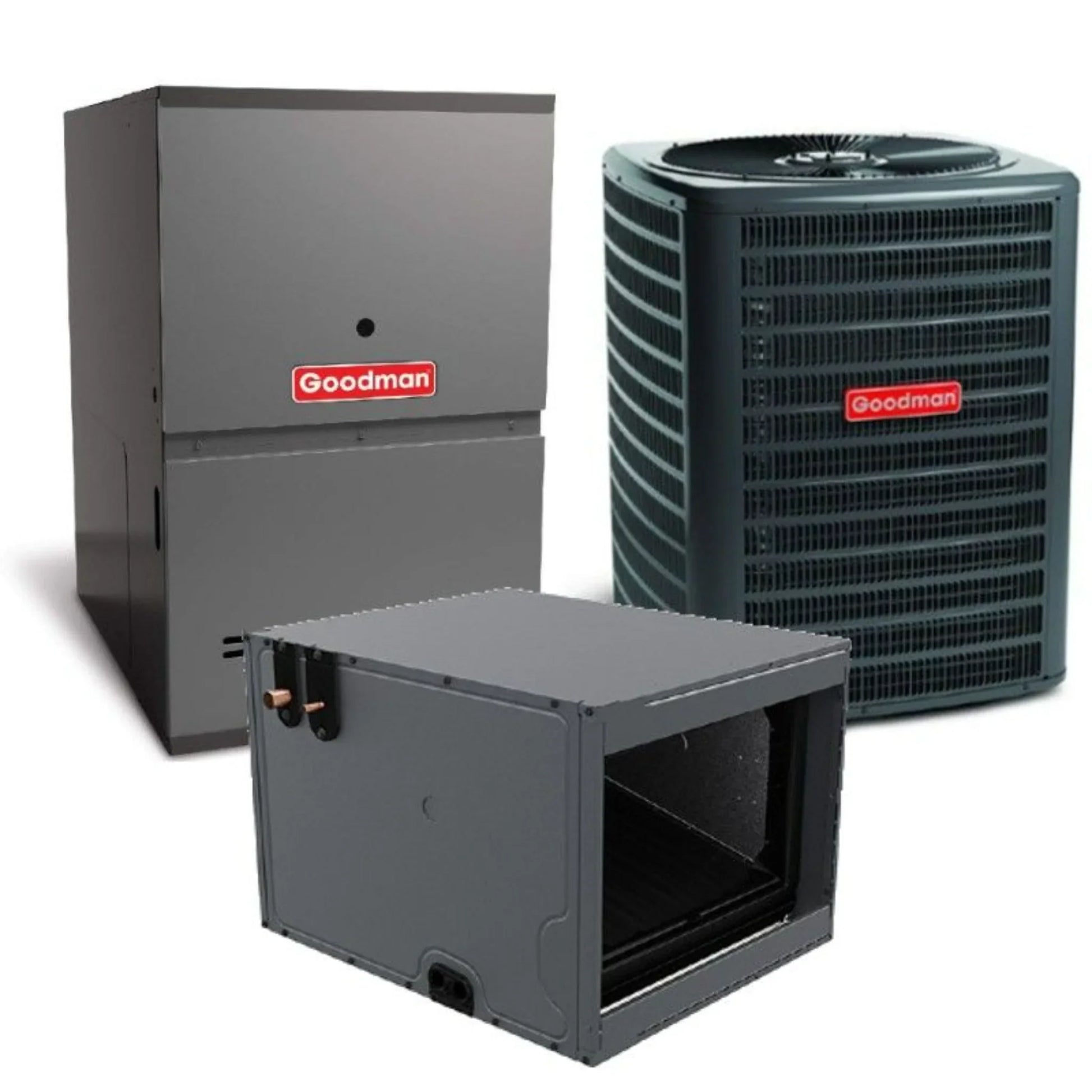

Goodman - 1.5 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA2426B3
A Goodman gas furnace and air conditioner system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a medium-sized house
- 1.5 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
- 2 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-size house (in average climate conditions)
- 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| 1.5 Ton 13.4 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS3BN1810 |
| Weight |
130.000000 |
| Manufacturer |
Goodman |
| Replaces |
Add GSX130181 and GSXN3N1810 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
18,000 |
| Decibel Level (dBA) |
73 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
1.5 Ton |
| Connection |
Sweat |
| Height |
27 1/2" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
Complete Comfort Package: The Goodman CHPTA2426B3 HVAC System combines an 80% AFUE gas furnace with a 1.5 ton (60,000 BTU) air conditioner for year‑round heating and cooling.
-
Reliable Heating: 80% AFUE provides steady, dependable warmth for moderate‑climate homes with everyday heating needs.
-
Efficient Cooling: 14.5 SEER2 cooling performance helps lower summer energy use while maintaining comfortable indoor temperatures.
-
Horizontal Installation: Designed for horizontal duct setups, ideal for crawlspaces, attics, or compact utility areas.
-
R32 Refrigerant: Uses R32, offering better heat transfer and a reduced environmental footprint versus older refrigerants.
-
Matched System Benefits: Coordinated furnace + AC design ensures consistent airflow, balanced performance, and reliable seasonal comfort.
-
Great Value Choice: Blends solid efficiency, practical performance, and installation flexibility into a cost‑effective whole‑home HVAC solution.
Q&A
Q: What components come in this HVAC system?
A: This matched system includes a 1.5 ton 14.5 SEER2 R32 air conditioner condenser, a 60,000 BTU 80% AFUE gas furnace, and a horizontal evaporator coil (CHPTA2426B3) designed to work together for efficient year‑round comfort.
Q: What cooling capacity and efficiency does the system deliver?
A: The AC provides 1.5 tons of cooling (~18,000 BTU) with 14.5 SEER2 efficiency, offering balanced performance and reduced seasonal energy costs.
Q: What does 80% AFUE mean for the furnace?
A: 80% AFUE means about 80 ¢ of each dollar spent on fuel becomes usable heat, making it a standard‑efficiency furnace that’s cost‑effective for everyday heating.
Q: What refrigerant does this system use?
A: Uses R32 refrigerant, a modern, energy‑efficient refrigerant with a lower environmental impact than older alternatives.
Q: Is this system ideal for horizontal installation?
A: Yes — the CHPTA2426B3 horizontal coil and compatible furnace make this system suited for attics, closets, or crawlspaces with horizontal duct runs.
Q: Why choose a matched HVAC system?
A: Matched components ensure optimized airflow, increased efficiency, enhanced reliability, and better warranty performance versus mismatched parts.
Q: Who is this system best for?
A: Best for small to medium homes or apartments where efficient cooling and dependable standard‑efficiency heating are needed.
Maintenance Tips
-
Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even heating and cooling.
-
Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.
-
Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.
-
Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for proper operation.
-
Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate service is needed.
-
Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
