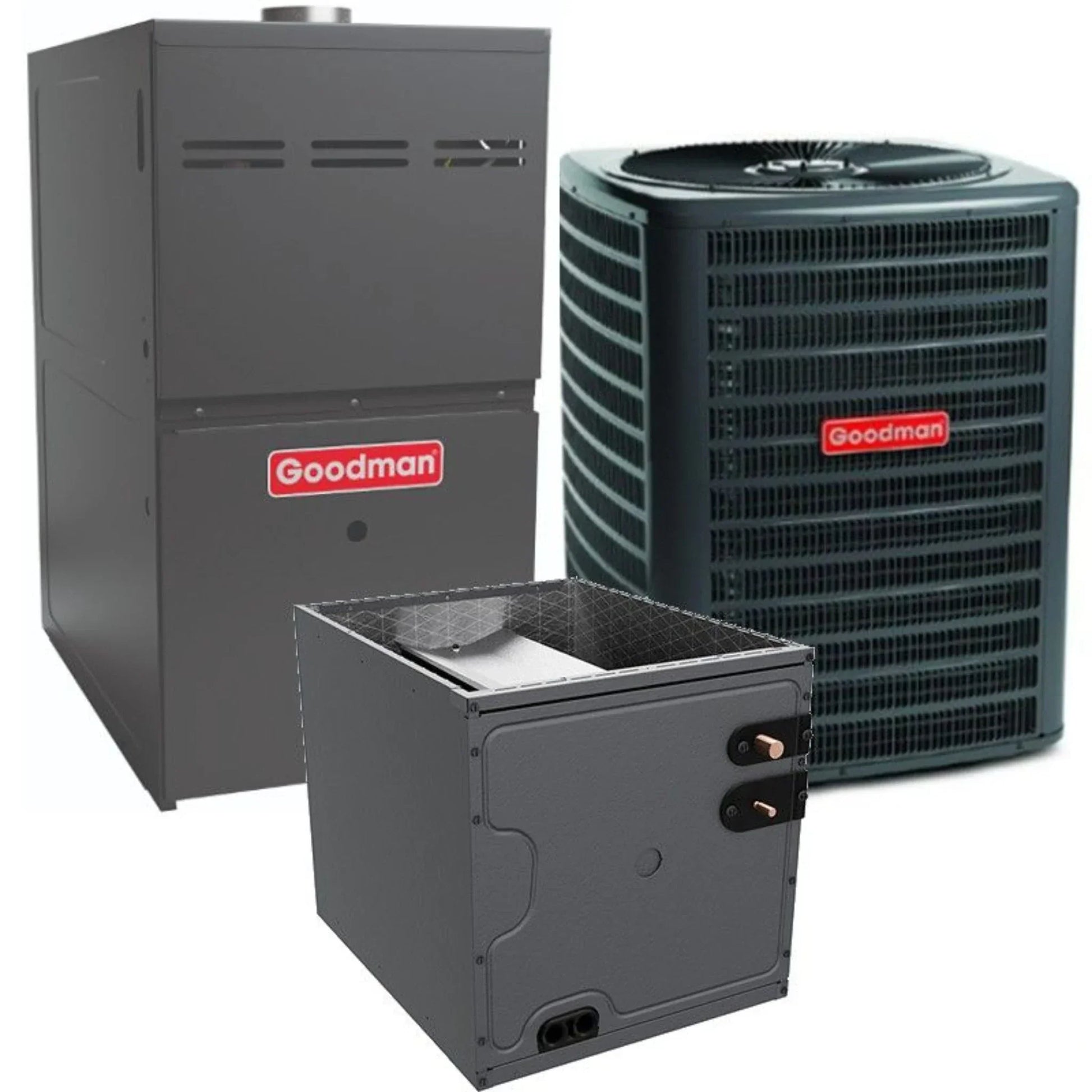

Goodman - 1.5 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS4BA1810
A Goodman gas furnace and air conditioner system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates

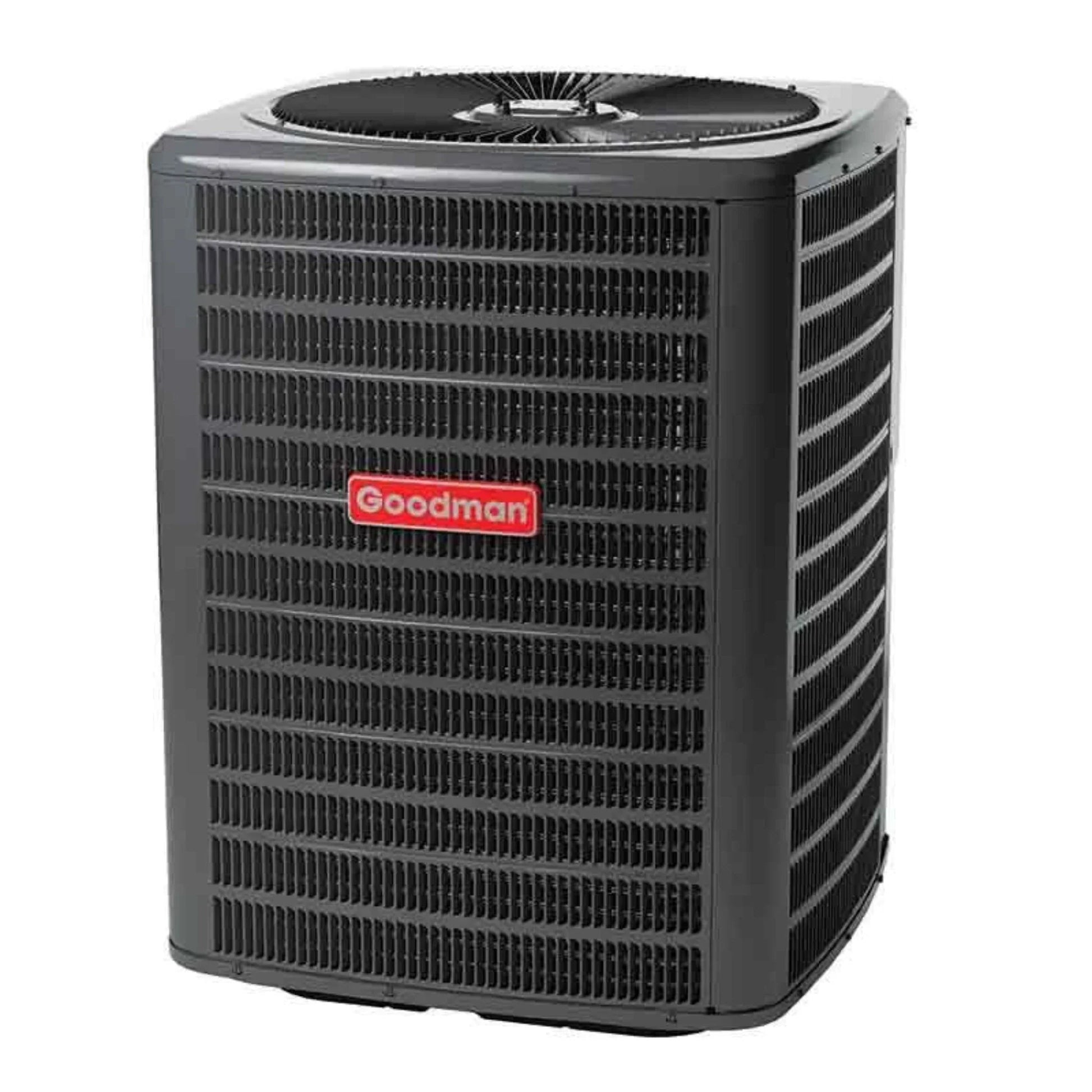

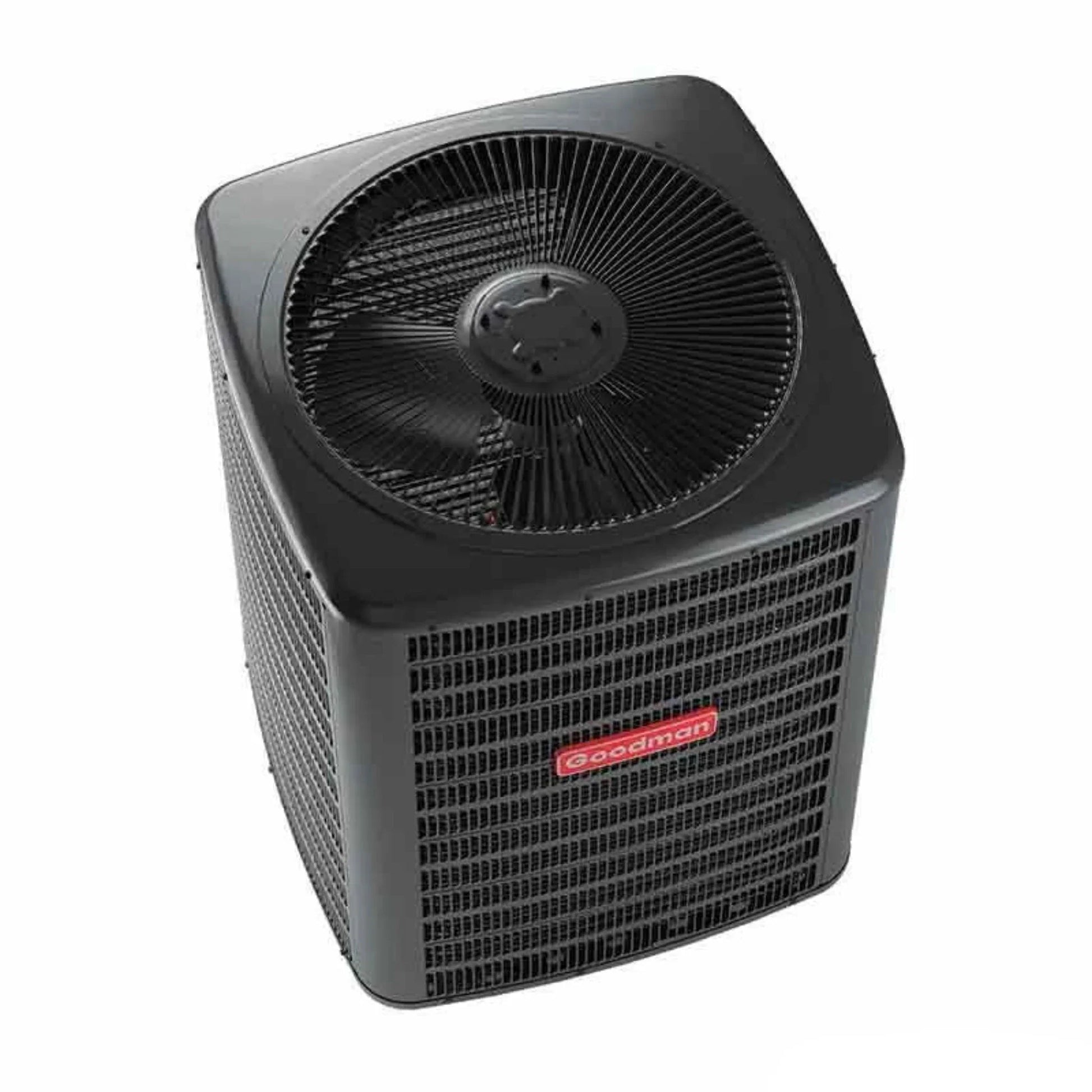

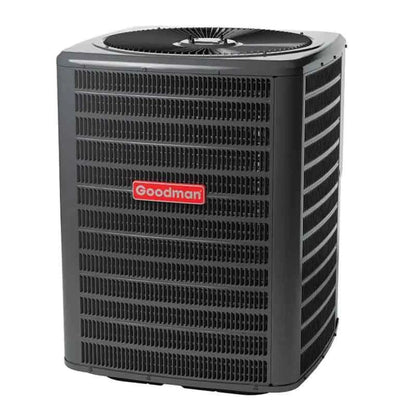

- 1.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier

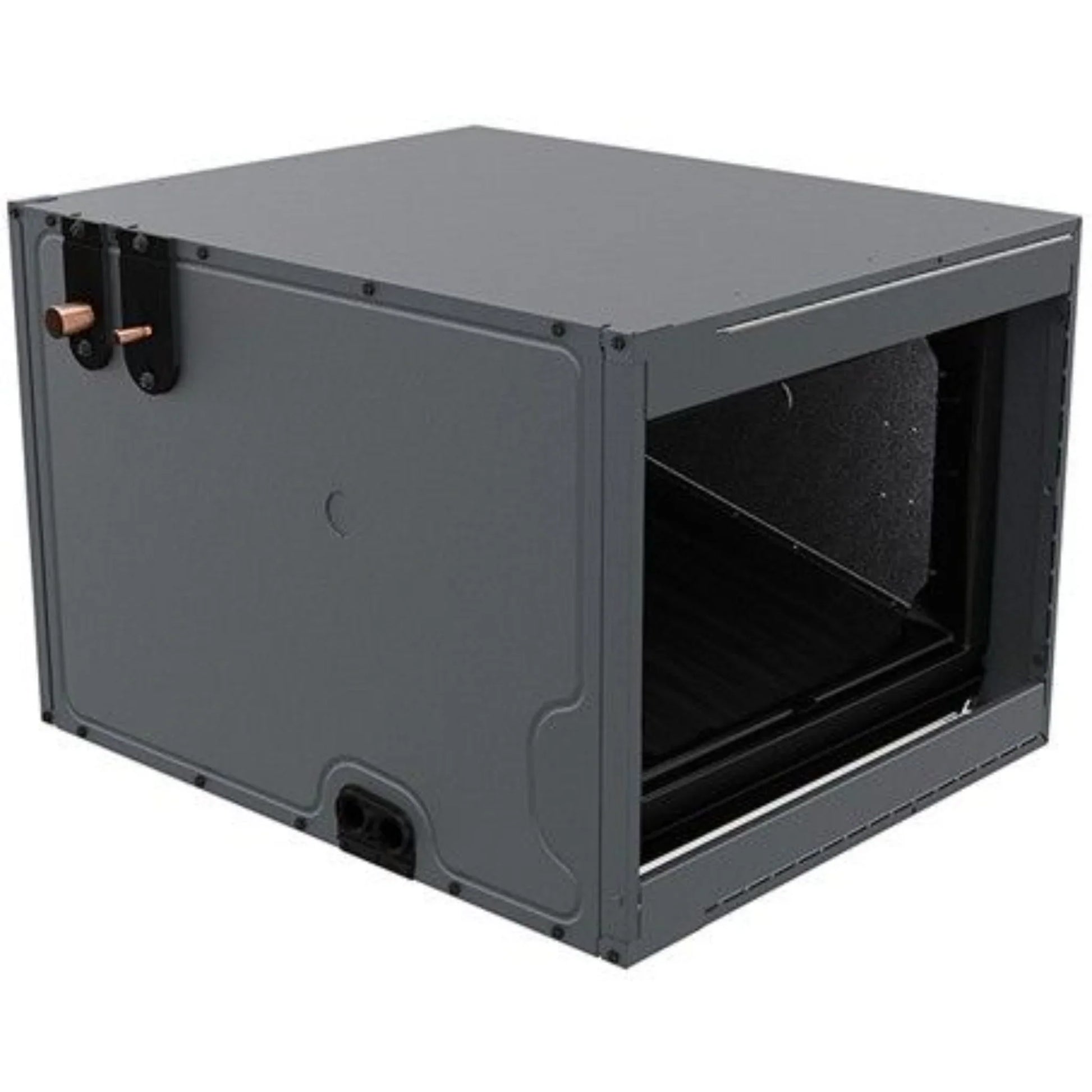

- 1.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-size house (in average climate conditions)

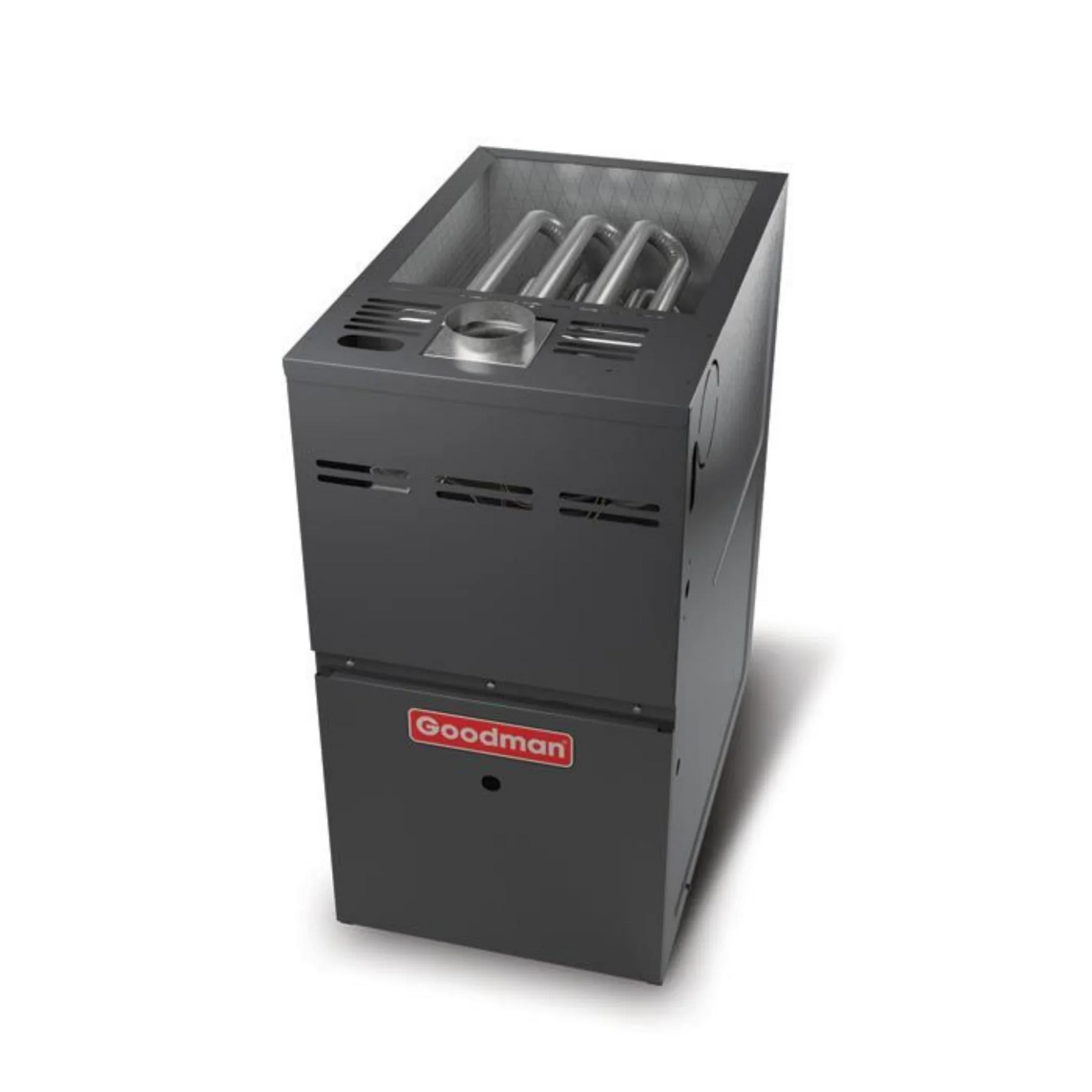

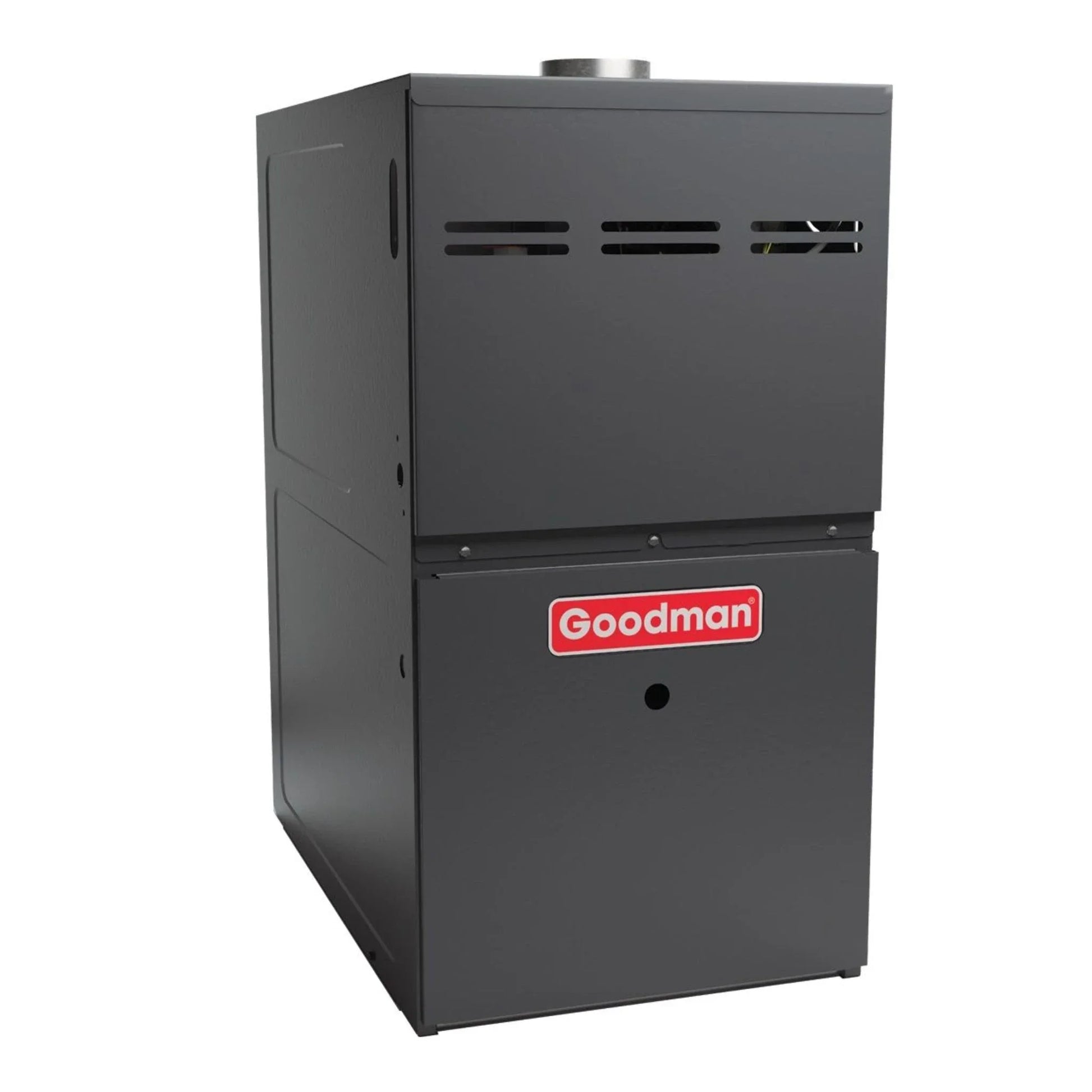

- 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| 1.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS4BA1810 |
| Weight |
132.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN401810; GSX140181 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
18,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
1.5 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
Balanced Year‑Round Comfort System – A matched HVAC package combining a 1.5 ton air conditioner with a 60,000 BTU, 80% AFUE gas furnace for dependable cooling in summer and heating in winter.
-
14.5 SEER2 Cooling Efficiency – Meets modern efficiency standards to help reduce electricity use and improve overall comfort compared with older systems.
-
80% AFUE Gas Furnace Performance – Provides solid heating performance at a value‑focused price point, ideal for everyday residential use.
-
Horizontal Installation Ready – Designed for attic or crawl‑space applications with horizontal duct layouts, increasing installation flexibility in tighter spaces.
-
R‑32 Refrigerant Compliance – Built to work with modern, lower‑impact R‑32 refrigerant, keeping the system aligned with current HVAC environmental standards.
-
Factory‑Matched Components – Engineered to optimize airflow, refrigerant balance, and reliability—reducing mismatches that can compromise performance.
-
Reliable, Simple Operation – Single‑stage cooling and heating operation ensures consistent comfort with straightforward maintenance and serviceability.
-
Goodman Durability & Support – Backed by Goodman’s parts network and warranty options, supporting long‑term reliability and peace of mind.
Q&A
Q: What’s included in this HVAC system?
A: A complete matched cooling and heating package featuring a Goodman 1.5 ton R32 air conditioner condenser (GLXS4BA1810) with ~14.5 SEER2 efficiency, a 60,000 BTU 80% AFUE gas furnace, and a horizontal evaporator coil (CHPTA2426B3) designed for R32 refrigerant compatibility.
Q: What size space is this system suitable for?
A: The system is ideal for small to medium homes or apartments (~700–1,200 sq ft), balancing reliable cooling and heating for typical residential use.
Q: What does 14.5 SEER2 mean?
A: 14.5 SEER2 indicates seasonal energy efficiency for cooling performance, helping reduce electricity use and lowering cooling costs compared with older or lower‑rated systems.
Q: What does 80% AFUE mean?
A: 80% AFUE means 80% of the furnace’s fuel turns into usable heat, providing dependable, cost‑effective home heating.
Q: Why is R32 refrigerant important?
A: R32 is a modern, more efficient refrigerant with lower environmental impact and improved heat transfer compared with older refrigerants.
Q: What installation orientation does this support?
A: This system is engineered for horizontal installation, perfect for attics, closets, or mechanical rooms requiring a sideways unit orientation.
Q: What are typical noise and performance features?
A: The air conditioner runs around ~74 dBA sound level, and the matched components help deliver smooth cooling and reliable heat transitions.
Q: Is professional installation recommended?
A: Yes — licensed HVAC professionals should install and size the system for optimal performance, safety, and warranty compliance.
Maintenance Tips
-
Replace Air Filters Every 1–3 Months: Maintains airflow, protects furnace and AC components, and ensures efficient operation.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Clean Outdoor AC Condenser: Rinse coils every 3–6 months to preserve SEER2 efficiency and prevent debris buildup.
-
Annual Professional Inspection: Have a certified technician check burners, heat exchanger, gas pressure, and airflow for safe and efficient furnace operation.
-
Inspect Refrigerant Lines & Insulation: Ensure lines are intact and insulation is in good condition for optimal R32 performance.
-
Maintain Condensate Drains: Keep furnace and AC drain lines clear to prevent water issues or system shutdowns.
-
Schedule Yearly Professional Service: Inspect electrical connections, airflow, and overall system performance.
-
Monitor for Unusual Signs: Strange noises, odors, or inconsistent heating/cooling require prompt professional attention.
