Goodman - 1.5 Ton/60,000 BTU 92% AFUE Gas Furnace and Air Conditioner System - Horizontal - 15.2 SEER2 - R32 - CHPTA2426B3
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features
- This furnace is ideal to heat a smaller house (depending on climate)

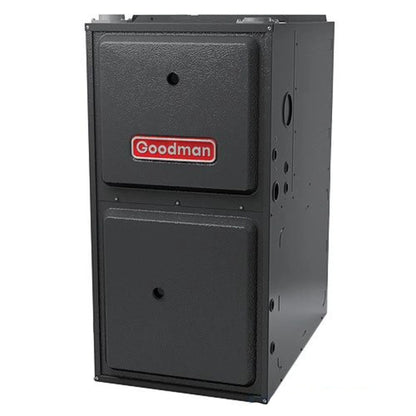

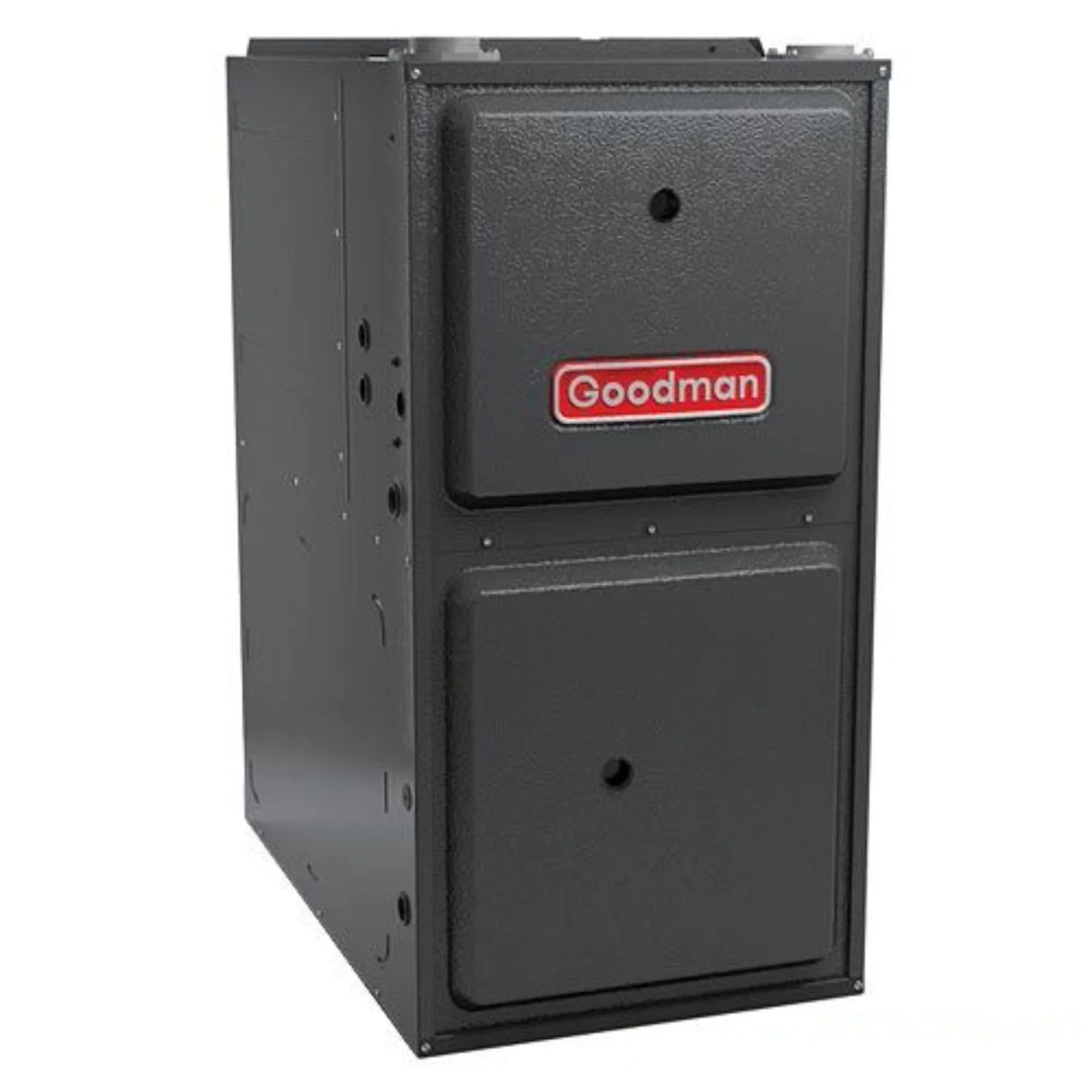

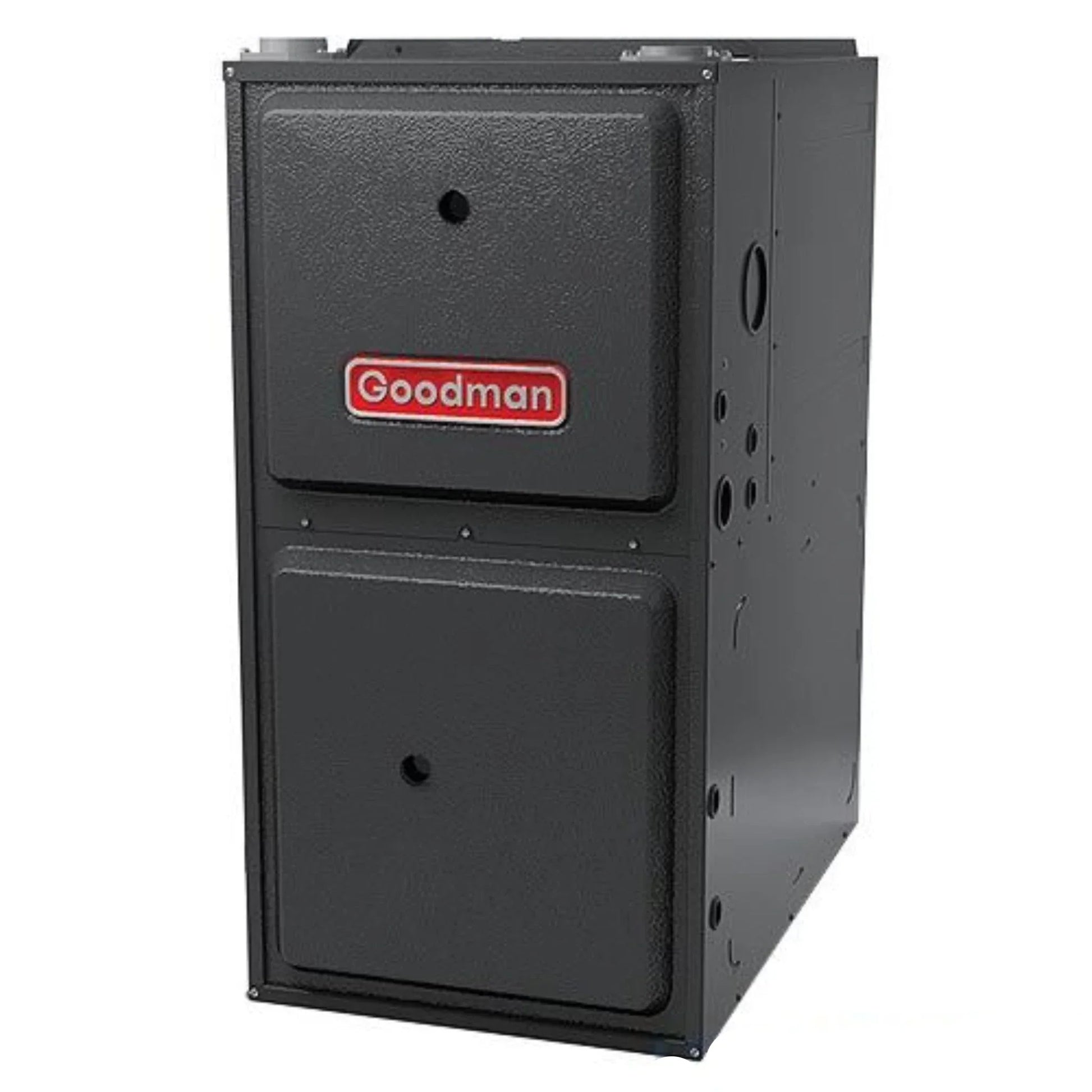

- 60,000 BTU 92% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
- Ideal size to cover a small house in ideal climates

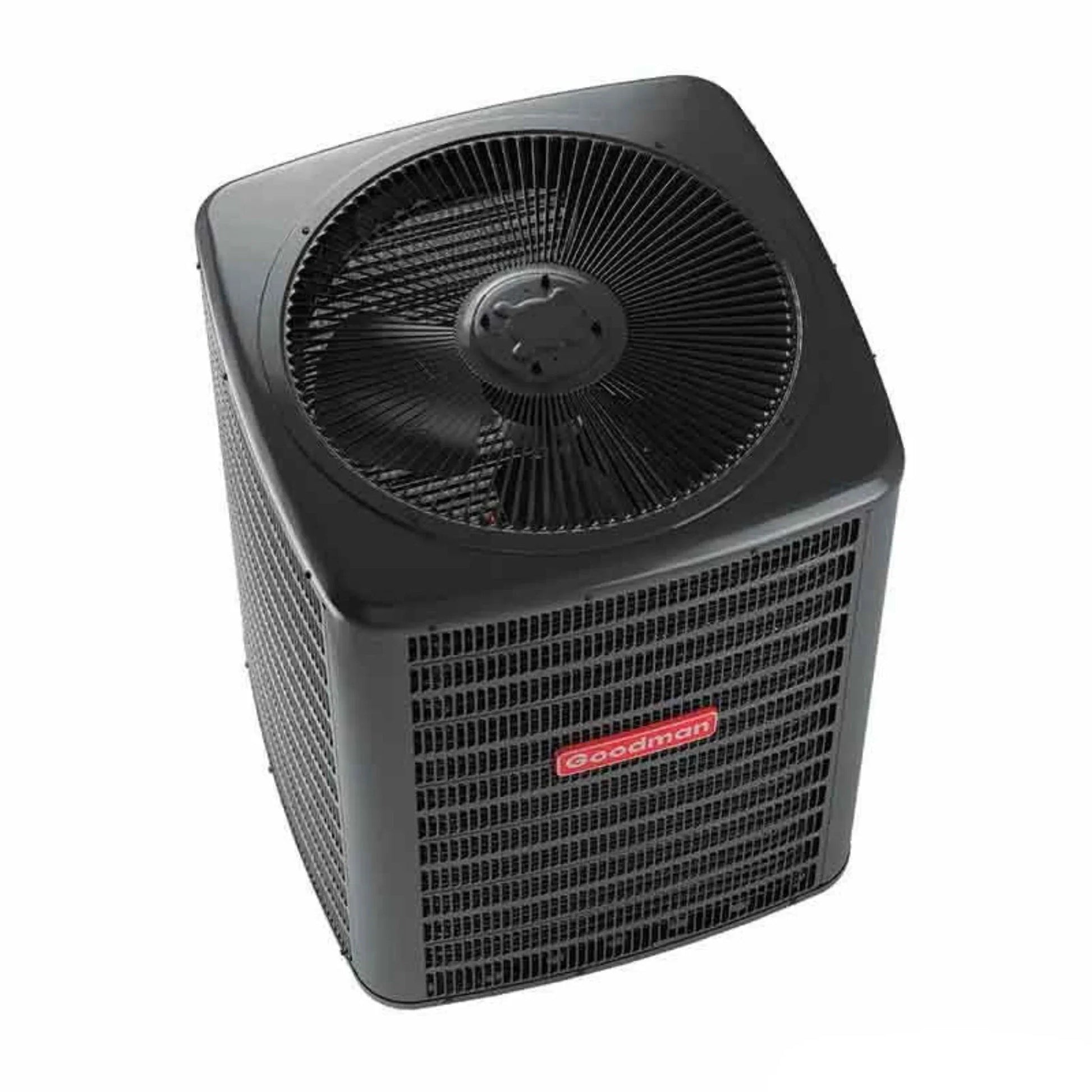

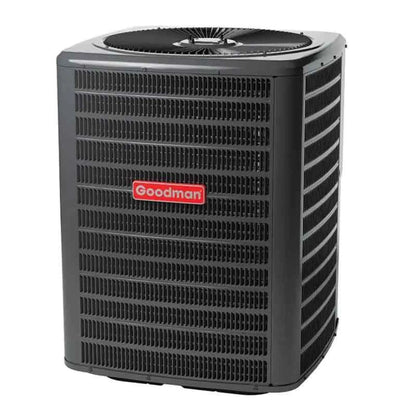

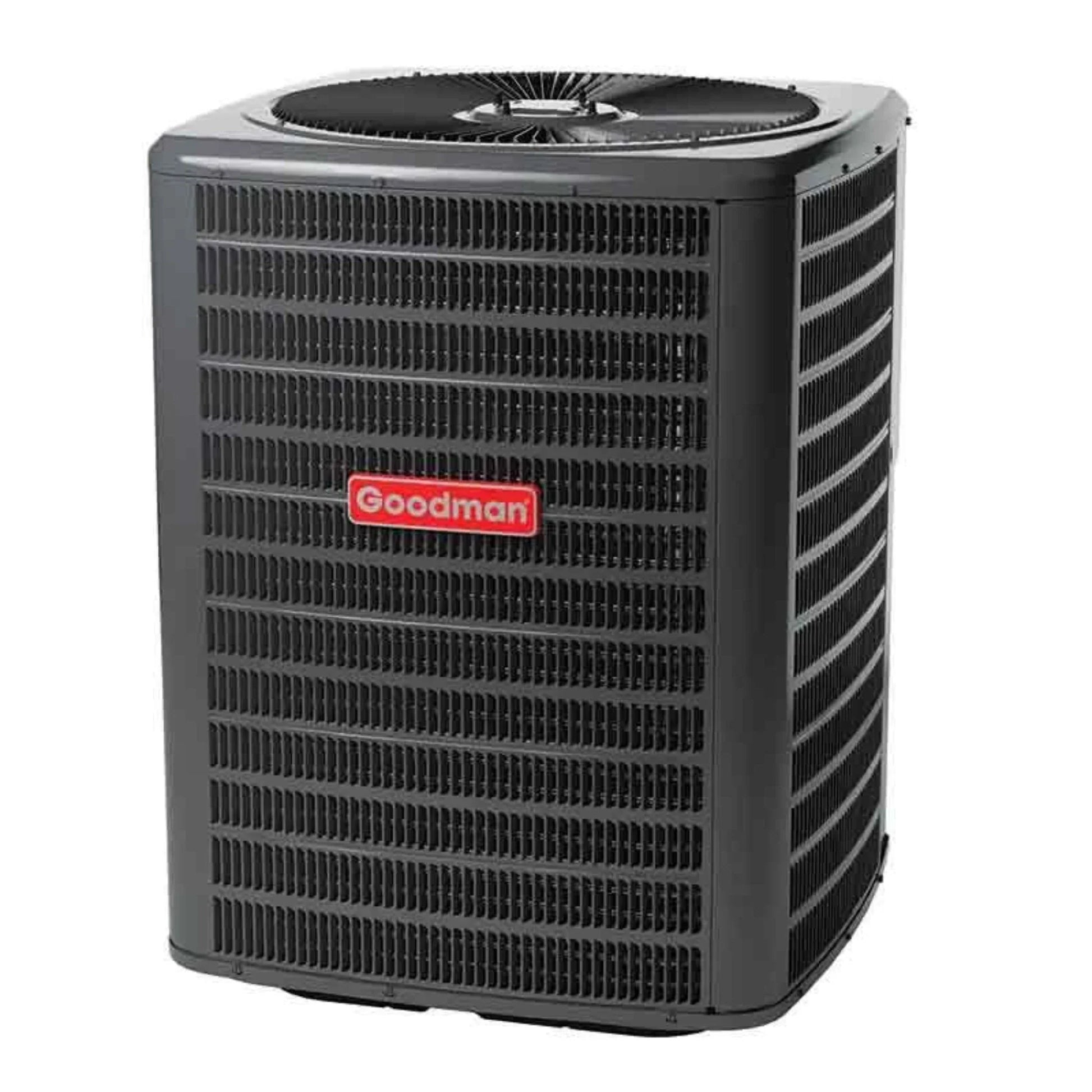

- 1.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier

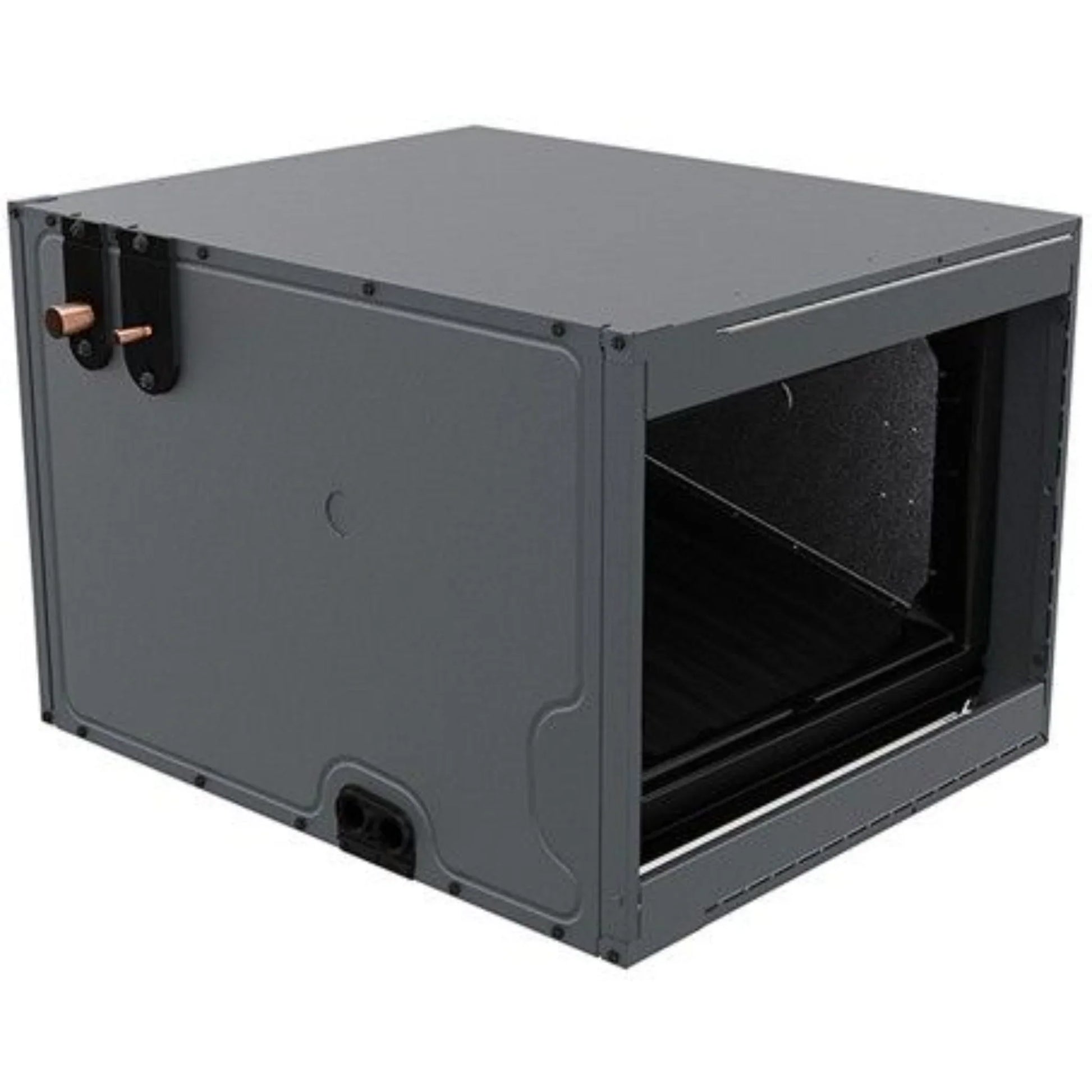

- 2 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 1.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser |
| SKU |
GLXS4BA1810 |
| Weight |
136.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX130181 |
| Cooling BTU |
18,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
71 |
| Horsepower |
0.125 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
8.3 Amps |
| Tonnage |
1.5 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
Complete Comfort System – Combines a 1.5 ton AC with a 60,000 BTU, 92% AFUE gas furnace for dependable year‑round heating and cooling in smaller to medium homes.
-
92% AFUE Heating Efficiency – High furnace efficiency means more heat for less fuel, reducing winter energy costs compared to standard‑efficiency units.
-
15.2 SEER2 Cooling Performance – Meets modern efficiency standards for cooling that helps lower electricity bills and improve overall comfort.
-
Horizontal Configuration – Designed for attic or crawl space installations with horizontal duct layouts, improving installation flexibility.
-
R‑32 Refrigerant Compatibility – Uses next‑generation R‑32 refrigerant for improved environmental performance and system efficiency.
-
Matched System Design – Factory‑matched components deliver optimized airflow, stability, and reliable operation when installed by a qualified HVAC pro.
-
Durable Construction & Support – Built with sturdy materials and backed by Goodman’s parts network for long‑term dependability.
-
Balanced Performance & Value – Ideal for homeowners seeking efficient heating and cooling without the premium cost of ultra‑high‑efficiency systems.
Q&A
Q: What’s included in this Goodman HVAC system?

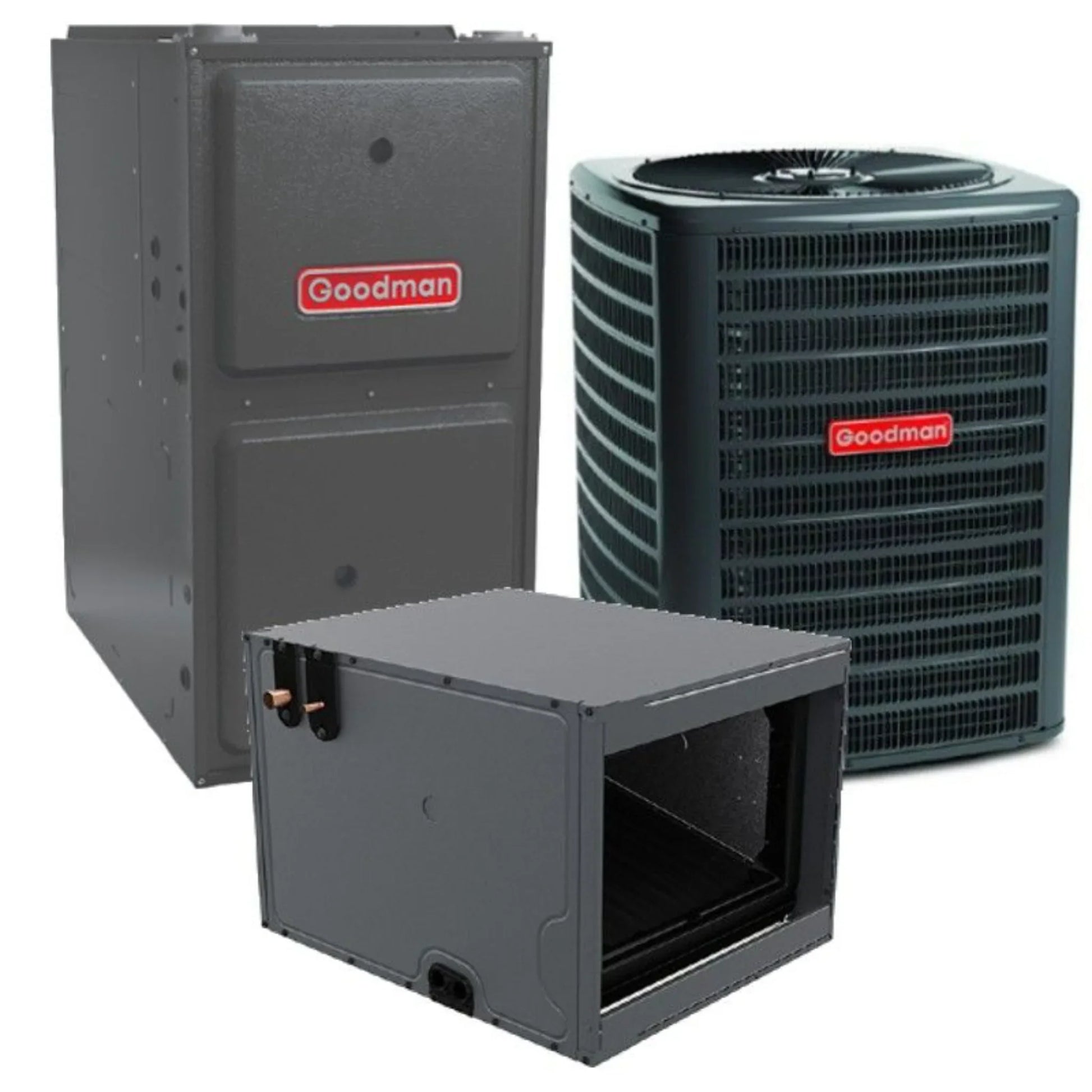

A: This matched system includes a 1.5 ton 15.2 SEER2 R32 air conditioner condenser, a 60,000 BTU 92% AFUE single‑stage gas furnace, and a horizontal CHPTA2426B3 evaporator coil with TXV designed for complete cooling and heating comfort.
Q: What size home is this system best suited for?
A: Ideal for small to medium homes (~700–1,300 sq ft) depending on insulation, layout, and local weather conditions.
Q: What does a 15.2 SEER2 rating mean for cooling?
A: 15.2 SEER2 represents modern seasonal energy efficiency that helps reduce cooling electricity costs and improve performance compared to older, lower‑SEER systems.
Q: What does 92% AFUE mean for heating performance?
A: A 92% AFUE rating means 92% of the gas energy is converted to heat for your home, offering efficient, dependable heating with lower fuel usage.
Q: Why is R32 refrigerant important?
A: R32 refrigerant is more energy‑efficient and environmentally friendly with lower global warming potential than older refrigerants.
Q: What is the purpose of the CHPTA2426B3 coil with TXV?
A: The evaporator coil with factory‑installed TXV ensures precise refrigerant control, improving cooling efficiency and consistent comfort.
Maintenance Tips
-
Replace Air Filters Every 1–3 Months: Maintains airflow, efficiency, and protects both furnace and AC components.
-
Keep Vents Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Clean Outdoor AC Condenser: Rinse coils every 3–6 months to preserve SEER2 efficiency and prevent debris buildup.
-
Inspect Furnace Components Annually: Technicians should check burners, heat exchanger, gas pressure, and airflow for safe operation.
-
Check Refrigerant Lines & Insulation: Ensure lines are intact and insulation is in good condition for optimal R32 efficiency.
-
Maintain Condensate Drains: Keep furnace and AC drains clear to prevent water issues or system shutdowns.
-
Schedule Professional Service Yearly: Inspect electrical connections, airflow, and overall system performance.
-
Watch for Unusual Signs: Strange noises, odors, or inconsistent heating/cooling require prompt professional attention.
