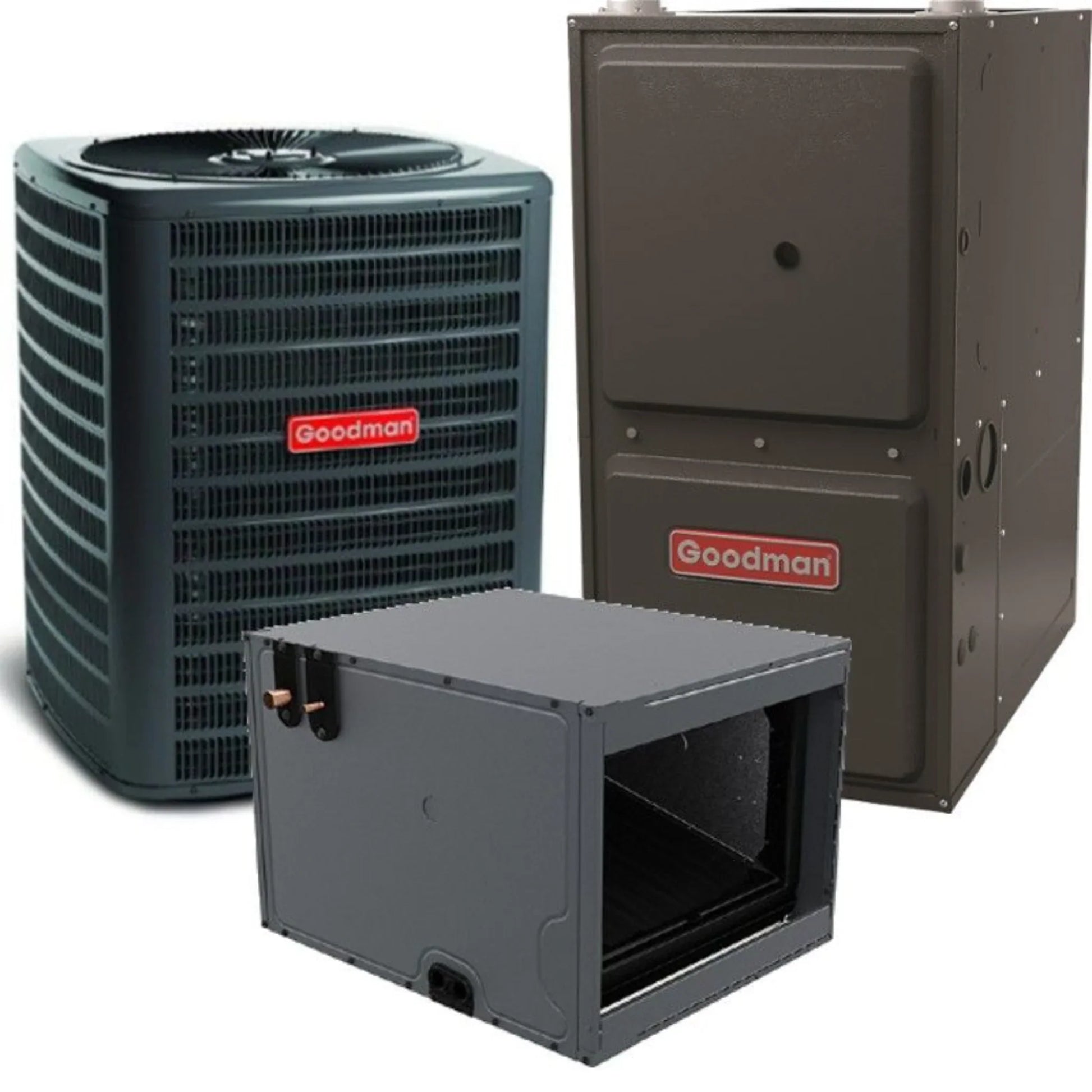

Goodman - 1.5 Ton/60,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 13.4 SEER2 - R32 - GLXS3BN1810 / CHPTA1822B3 / GCVC960603BN

Features

• Ideal size to cover a medium-sized house
• 1.5 ton, 13.4 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Low sound output
• Fully charged for up to 15' of line set
• Factory-installed filter drier
• 1.5 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit
• This furnace is ideal to heat a medium-sized house (in average climate conditions)
• 60,000 BTU 96% AFUE two stage variable speed natural gas furnace
• Requires plastic/PVC flue venting
• Can be used in the downflow or horizontal orientation
• Can be converted to propane with an LP conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output


Specifications

Owner's Manual

• GLXS3B Specifications
• GLXS3B Installation Manual
• Warranty Information
• CHPTA Installation Manual
• CHPTA Specifications Sheet
• Evaporator Coil Warranty
• GCVC96 Installation Manual
• GCVC96 Brochure
• GCVC96 Specifications

What our Experts Think

• Right‑sized comfort for smaller homes: This 1.5‑ton system blends a 13.4 SEER2 R‑32 air conditioner with a 60,000 BTU 96% AFUE gas furnace, making it a good fit for small to medium homes where balanced heating and cooling matters.

• Superior heating efficiency: With 96% AFUE, nearly all the fuel is converted into usable heat, which trims energy waste and lowers winter heating costs compared with standard 80% furnaces.

• Solid cooling performance: The GLXS3BN1810 condenser uses R‑32 refrigerant and delivers dependable cooling at 13.4 SEER2, striking a practical balance of efficiency and upfront cost.

• Modern furnace features: The GMVC960603BN furnace incorporates a variable‑speed ECM blower and two‑stage gas valve, which smooths airflow and enhances comfort consistency across seasons.

• TXV‑equipped evaporator coil: The included CHPTA1822B3 coil with a TXV regulates refrigerant flow more precisely, boosting performance and humidity control.

• Flexible installation: Horizontal or multi‑position design fits attic, crawlspace, or tight utility locations, aiding versatile system placement.

• Long‑term confidence: Standard 10‑year parts warranty + lifetime heat exchanger coverage (with registration) offers peace of mind and supports lower long‑term ownership costs.

• Strong value choice: Experts see this as a high‑efficiency, budget‑friendly HVAC package delivering solid performance and modern refrigerant tech without the premium cost of ultra‑high SEER systems.

Q&A

Q: What type of HVAC system is this?
A: This is a complete Goodman high-efficiency central heating and cooling system that includes a 1.5‑ton air conditioner (GLXS3BN1810), 60,000 BTU 96% AFUE gas furnace (GCVC960603BN), and CHPTA1822B3 cased evaporator coil, providing year‑round comfort.

Q: What size home is a 1.5‑ton system suitable for?
A: A 1.5‑ton AC (18,000 BTU) system is ideal for small homes or apartments around 600–1,000 sq. ft., depending on insulation, climate, and layout.

Q: How energy efficient is this Goodman system?
A: The system delivers 13.4 SEER2 cooling efficiency and a 96% AFUE gas furnace, meaning nearly all fuel is converted into usable heat, offering high-efficiency heating and cooling.

Q: What refrigerant does the AC use?
A: The condenser uses R‑32 refrigerant, a modern, eco-friendly refrigerant designed for higher energy efficiency and lower environmental impact.

Q: Does the furnace include advanced technology?
A: Yes. The GCVC960603BN furnace features a variable-speed ECM blower motor and high-efficiency design for quieter operation, consistent airflow, and precise temperature control.

Q: Can this system be installed horizontally?
A: Yes. Both the furnace and coil support horizontal airflow installation, making it suitable for attics, crawl spaces, or closets where horizontal placement is required.

Q: What components are included in this system?
A: The package includes:

• GLXS3BN1810 – 1.5 Ton 13.4 SEER2 outdoor AC condenser

• CHPTA1822B3 – 60,000 BTU cased evaporator coil

• GCVC960603BN – 96% AFUE gas furnace

Maintenance Tips

• Replace air filters every 1–3 months: Clean filters prevent dust buildup, maintain airflow, and protect the ECM blower motor.

• Keep the outdoor condenser clear: Remove leaves, debris, and maintain 2–3 ft clearance for optimal cooling and energy efficiency.

• Inspect and clean the evaporator coil and drain pan: The CHPTA aluminum coil should be checked for dirt or clogs to avoid water leaks or reduced efficiency. (hvacdirect.com)

• Check refrigerant line insulation: Ensure suction line insulation is intact to maintain system efficiency.

• Inspect vents and airflow: Keep supply and return vents clear of furniture or dust for balanced air distribution.

• Annual professional service: Have a certified HVAC technician inspect the furnace heat exchanger, blower motor, refrigerant levels, and safety controls yearly.

• Maintain a clean furnace area: Clear surrounding space for proper airflow and safe operation of the 96% AFUE gas furnace. (thefurnaceoutlet.c
