Goodman - 1.5 Ton/60,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 15.2 SEER2 - R32 - GLXS4BA1810
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features
- This furnace is ideal to heat a smaller house (depending on climate)

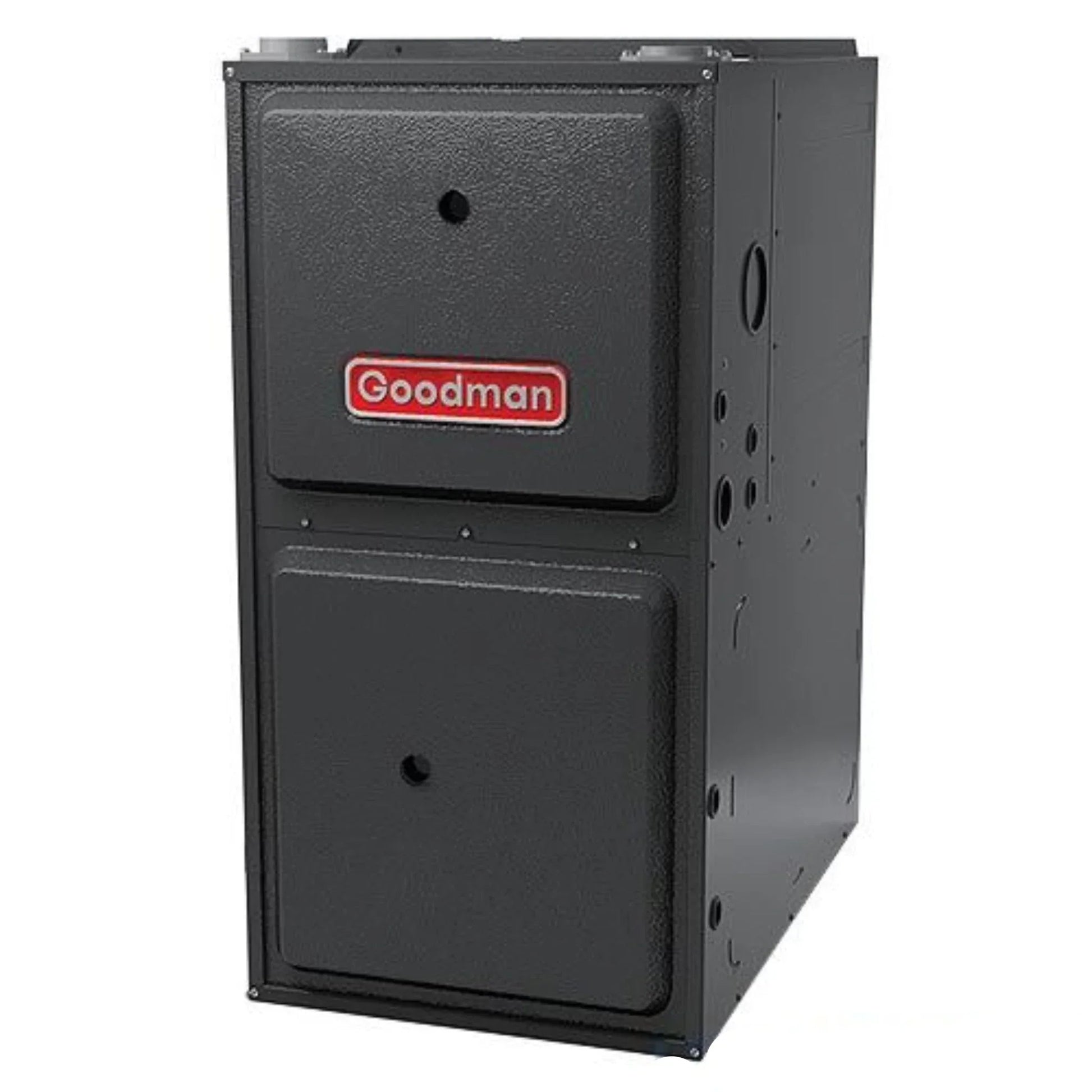

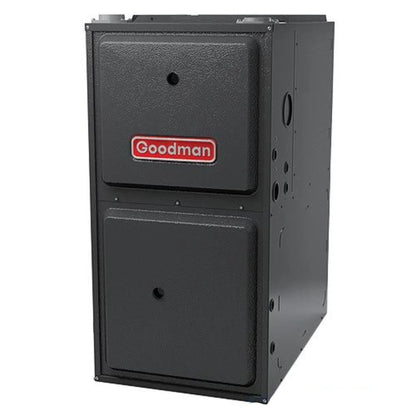

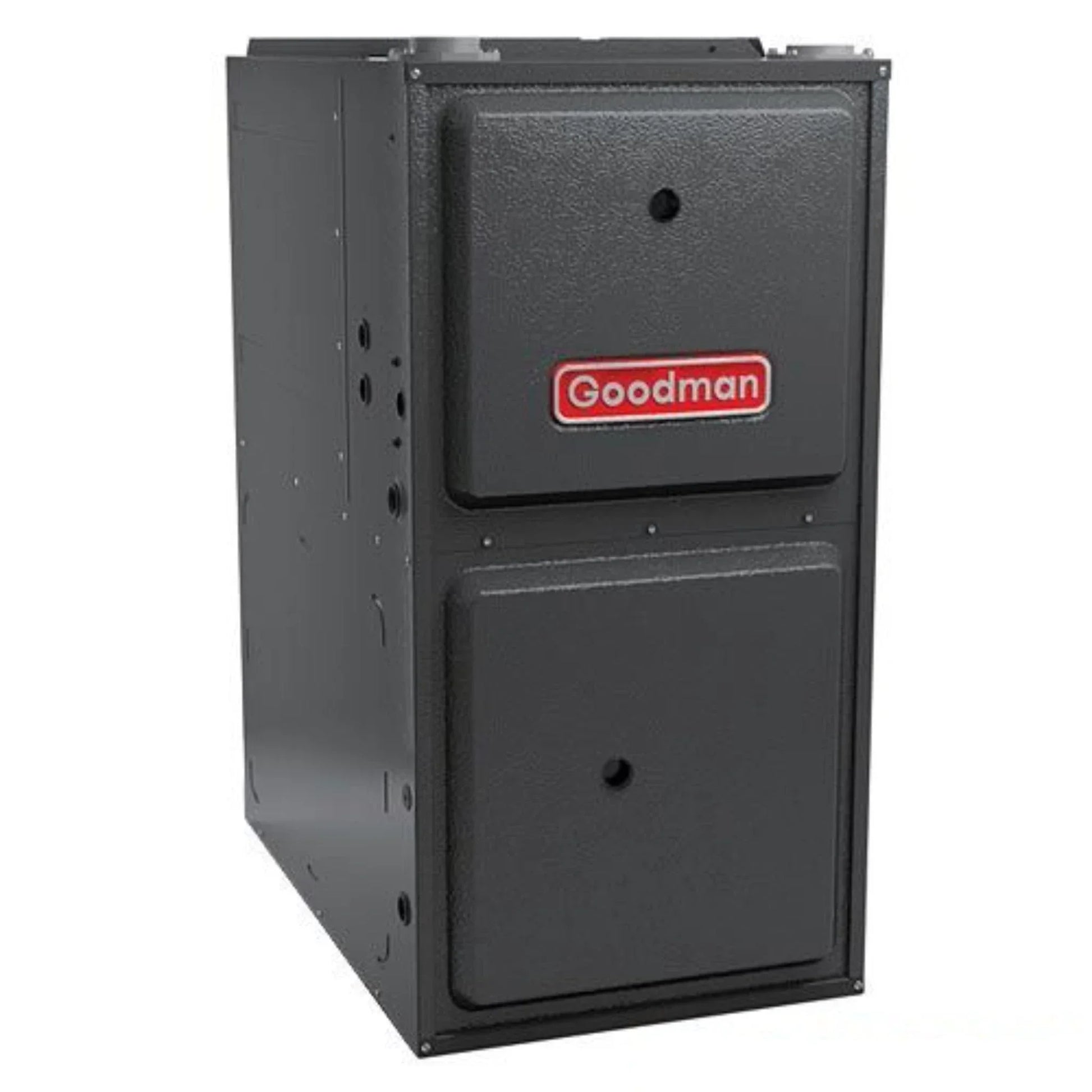

- 60,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
- Ideal size to cover a small house in ideal climates

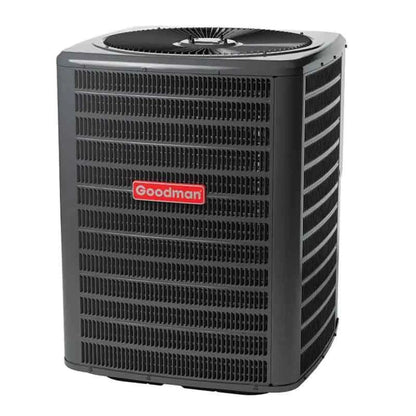

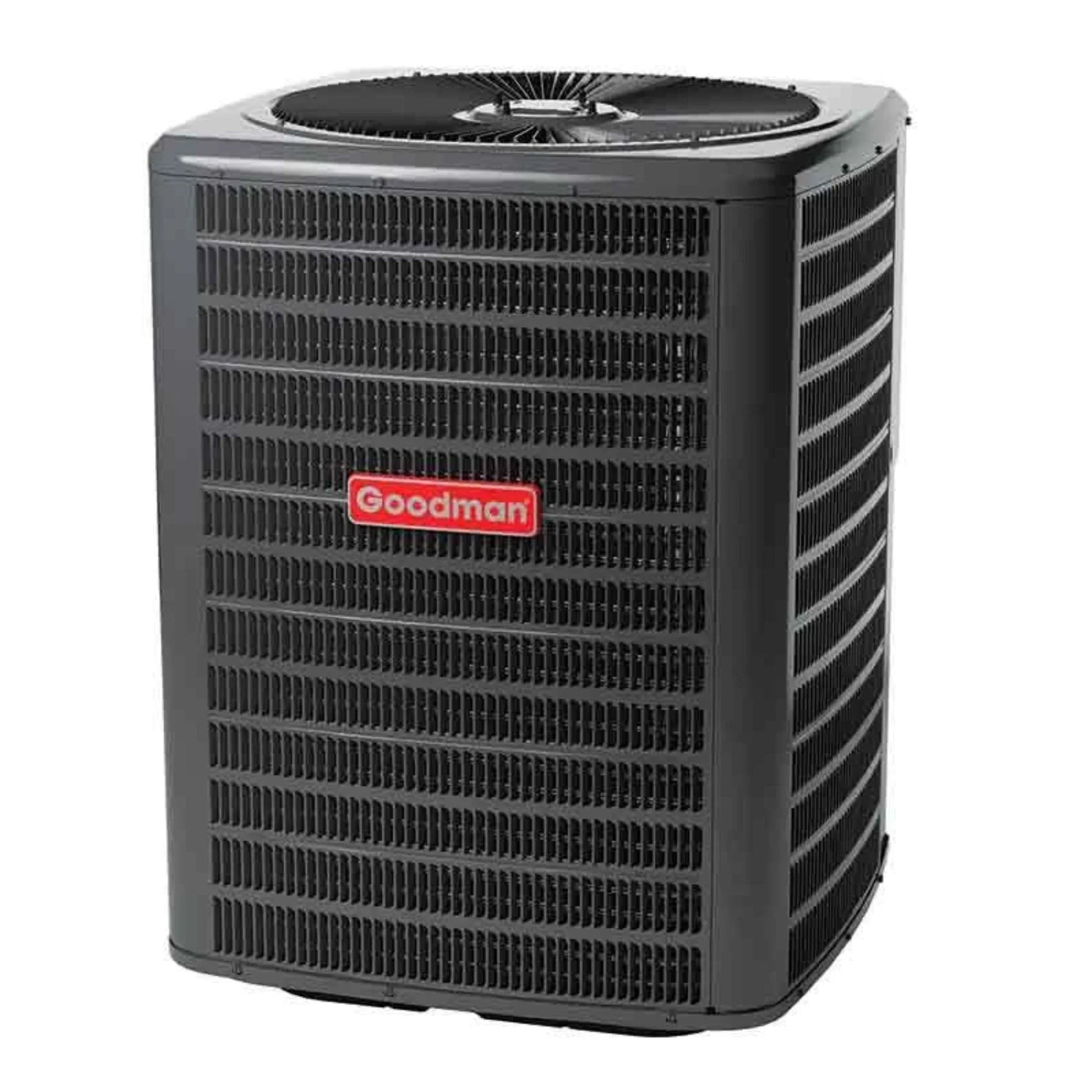

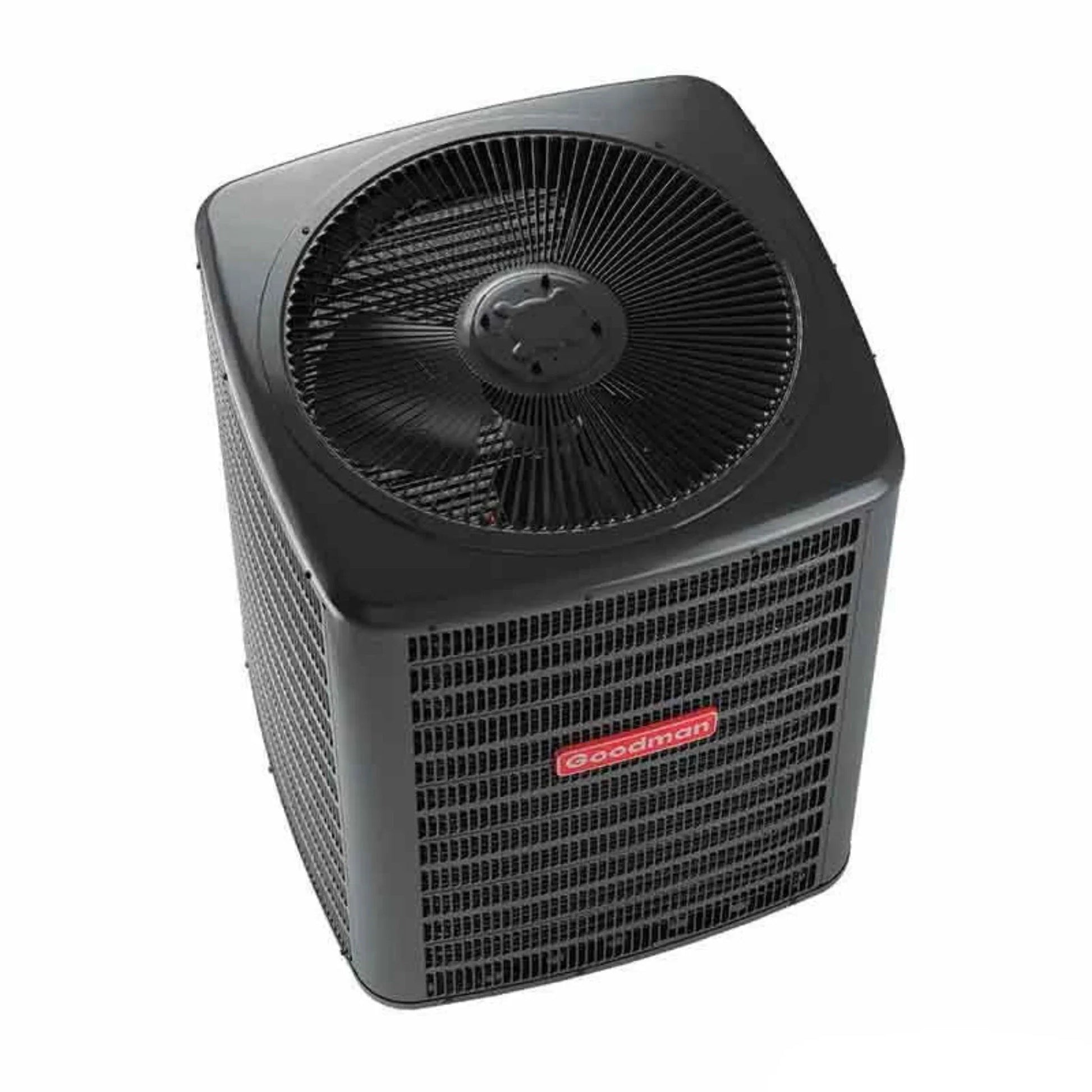

- 1.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier

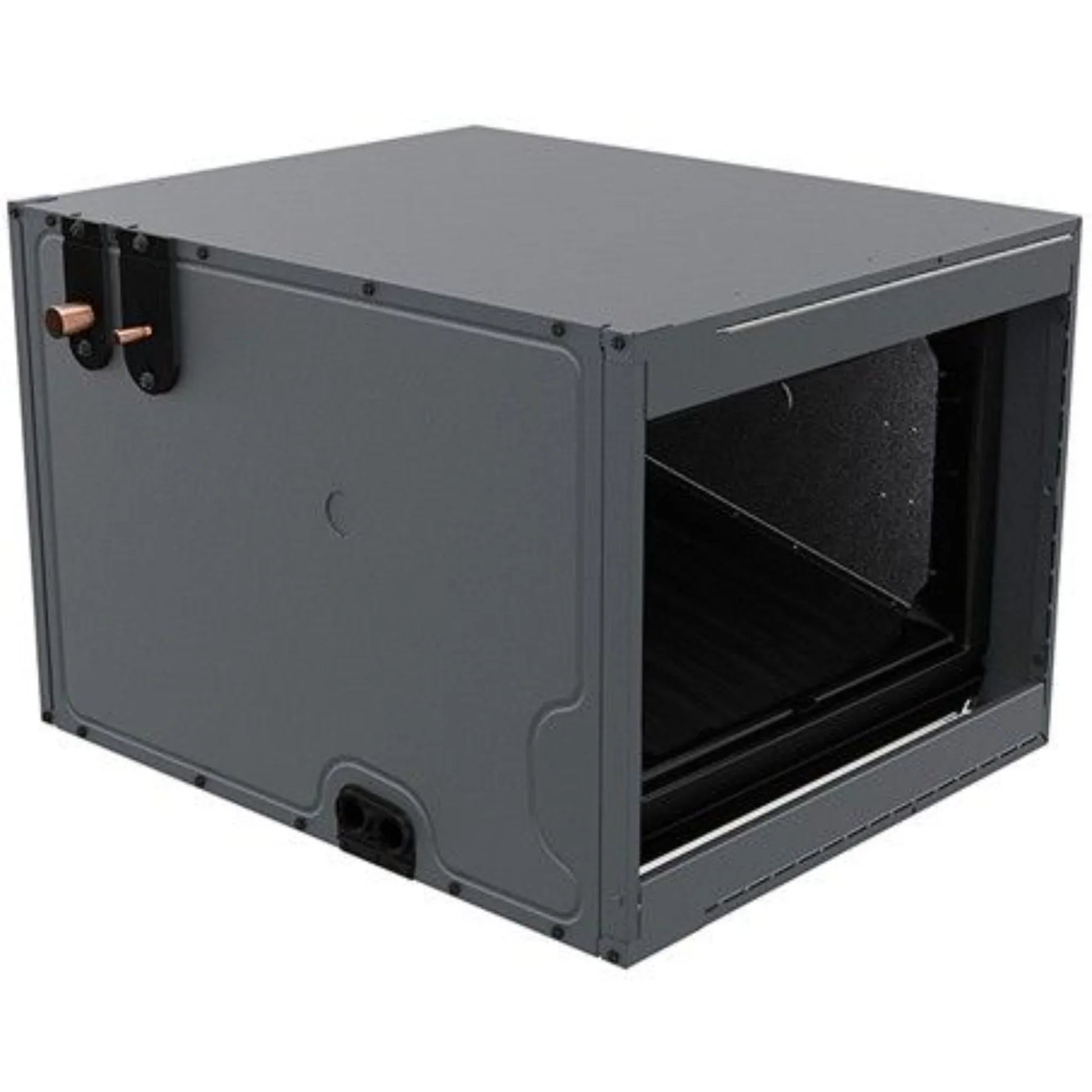

- 2 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 1.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser |
| SKU |
GLXS4BA1810 |
| Weight |
136.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX130181 |
| Cooling BTU |
18,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
71 |
| Horsepower |
0.125 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
8.3 Amps |
| Tonnage |
1.5 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
All‑Season Matched System: The Goodman GLXS4BA1810 HVAC System pairs a 96% AFUE gas furnace with a 1.5 ton (≈60,000 BTU) air conditioner in a horizontal‑ready configuration for year‑round comfort and balanced performance.
-
High‑Efficiency Heating: The furnace’s 96% AFUE rating means most fuel becomes usable heat, helping reduce winter energy costs while providing dependable warmth.
-
Efficient Cooling: ≈15.2 SEER2 cooling performance delivers energy‑smart summer comfort and can help lower electricity bills compared with lower SEER2 units.
-
R32 Refrigerant: Designed for R‑32 refrigerant, offering excellent heat transfer and a smaller environmental footprint compared with older refrigerants.
-
Horizontal Installation Flexibility: Built for horizontal duct configurations, making it suitable for crawlspaces, attics, and compact mechanical spaces where vertical units won’t fit.
-
Matched System Benefits: A coordinated furnace + AC package ensures balanced airflow, harmonized capacity, and reliable seasonal performance compared with mismatched components.
-
Value & Reliability: Combines high heating efficiency, solid cooling performance, and installation flexibility, making it a practical, cost‑effective choice for whole‑home HVAC comfort
Q&A
Q: What components are included in this system?

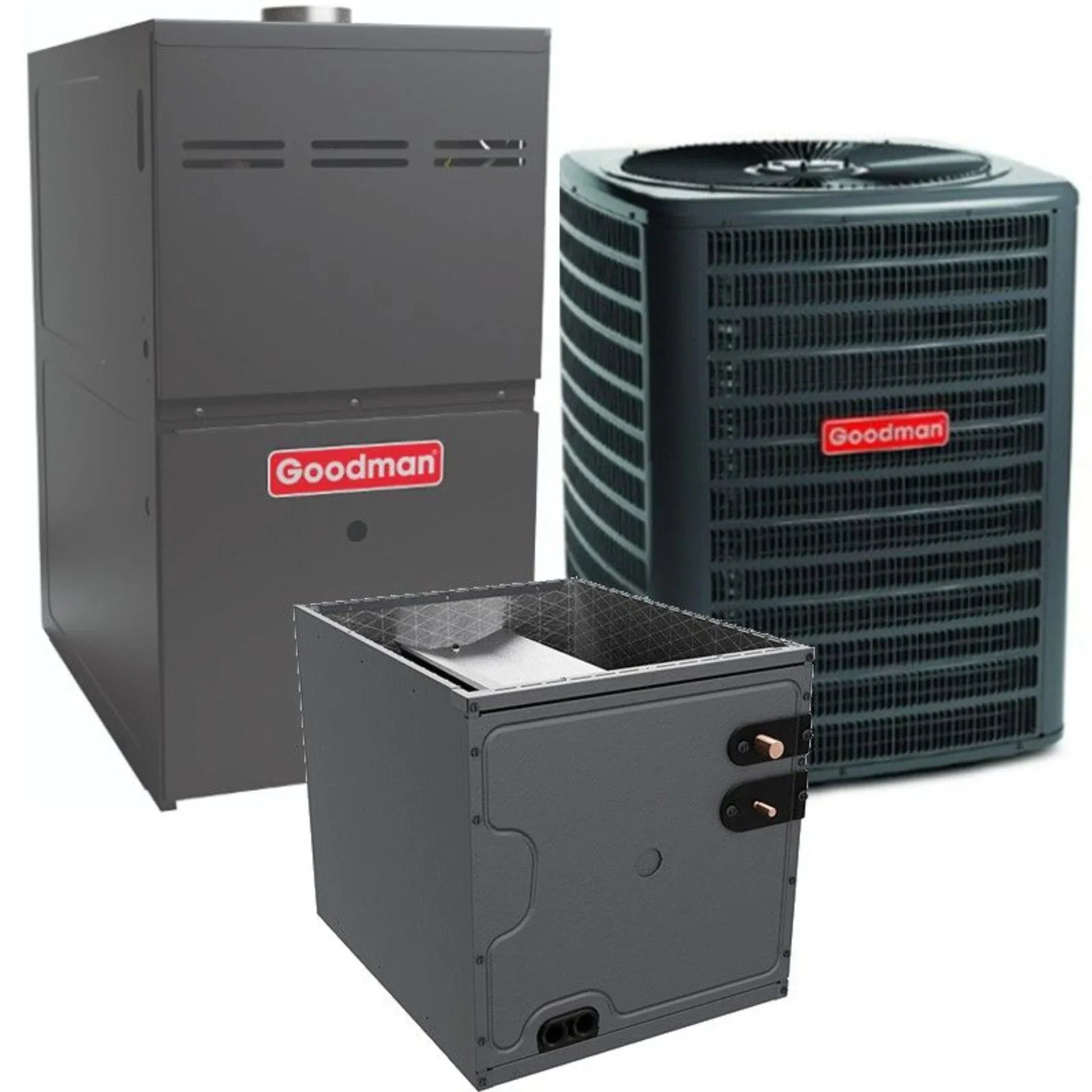

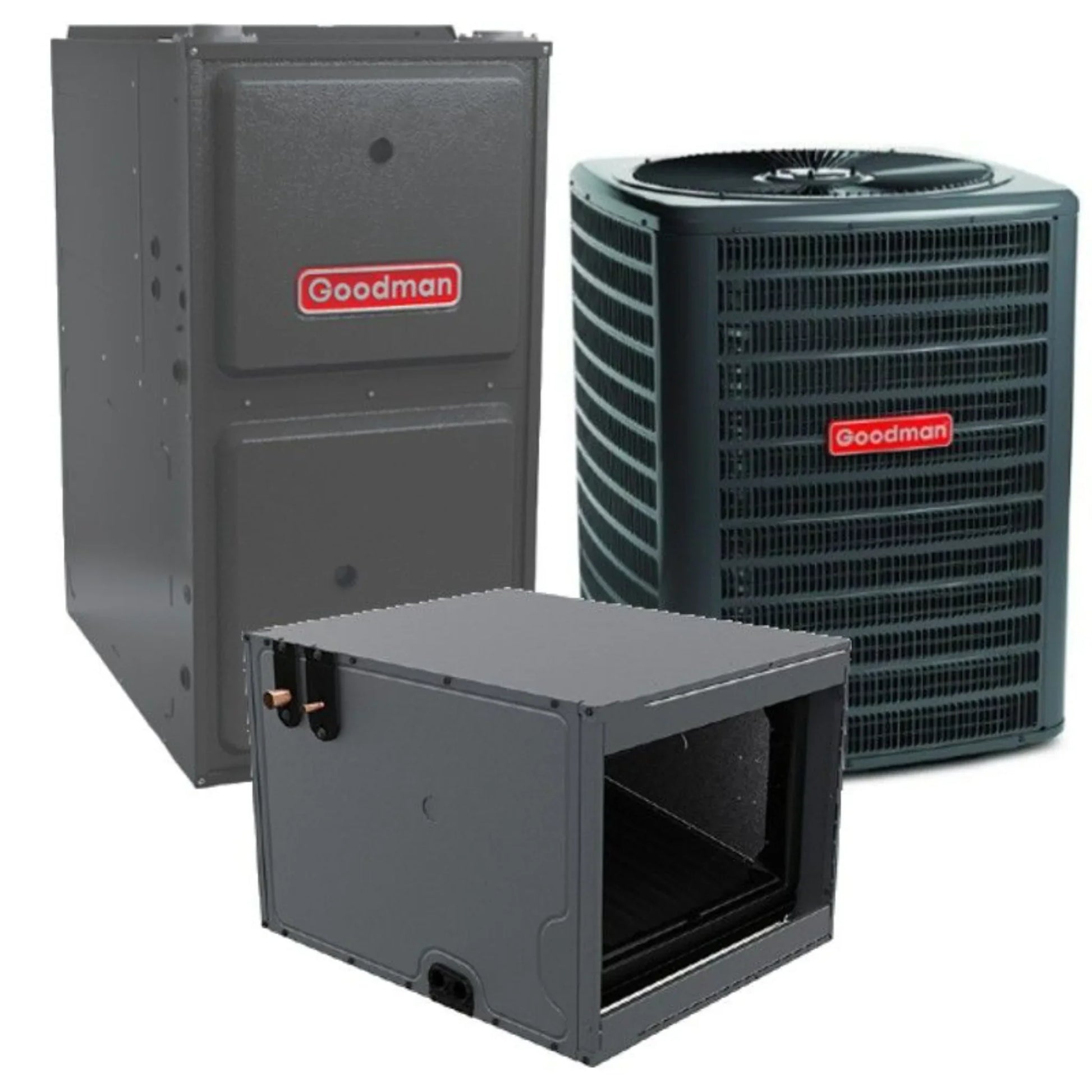

A: This is a matched Goodman HVAC system featuring a 1.5 ton R32 air conditioner condenser (GLXS4BA1810) with 15.2 SEER2 cooling, a 60,000 BTU 96% AFUE gas furnace, and a horizontal evaporator coil (CHPTA2426B3) — designed to work together for balanced heating and cooling.
Q: What cooling capacity and efficiency does it offer?
A: The AC condenser provides approx. 1.5 tons (≈18,000 BTU) of cooling with up to 15.2 SEER2 efficiency, helping to lower seasonal cooling costs while maintaining comfort.
Q: What does a 96% AFUE furnace mean?
A: A 96% AFUE rating means the furnace converts about 96 ¢ of every dollar spent on fuel into usable heat, making it highly efficient and cost‑effective for home heating.
Q: What refrigerant type does this system use?
A: Uses R32 refrigerant, a modern refrigerant that complies with updated environmental regulations and helps improve system efficiency.
Q: Is this system suitable for horizontal installation?
A: Yes — the horizontal evaporator coil (CHPTA2426B3) and gas furnace support horizontal configuration, perfect for attics, closets, or other spaces with limited vertical height.
Q: What blower and compressor type does it include?
A: The AC uses a single‑stage rotary compressor for consistent, reliable cooling, and the furnace features a 9‑speed ECM blower motor for smoother, quieter airflow.
Q: What are the key benefits of this matched system?
A: Key benefits include balanced 15.2 SEER2 cooling and 96% AFUE heating, modern R32 refrigerant compliance, matched coil for optimized airflow, horizontal installation flexibility, and Goodman’s robust warranty options (typically 10‑year parts with online registration).
Maintenance Tips
-
Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect the furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.
-
Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.
-
Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for correct operation.
-
Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.
-
Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
