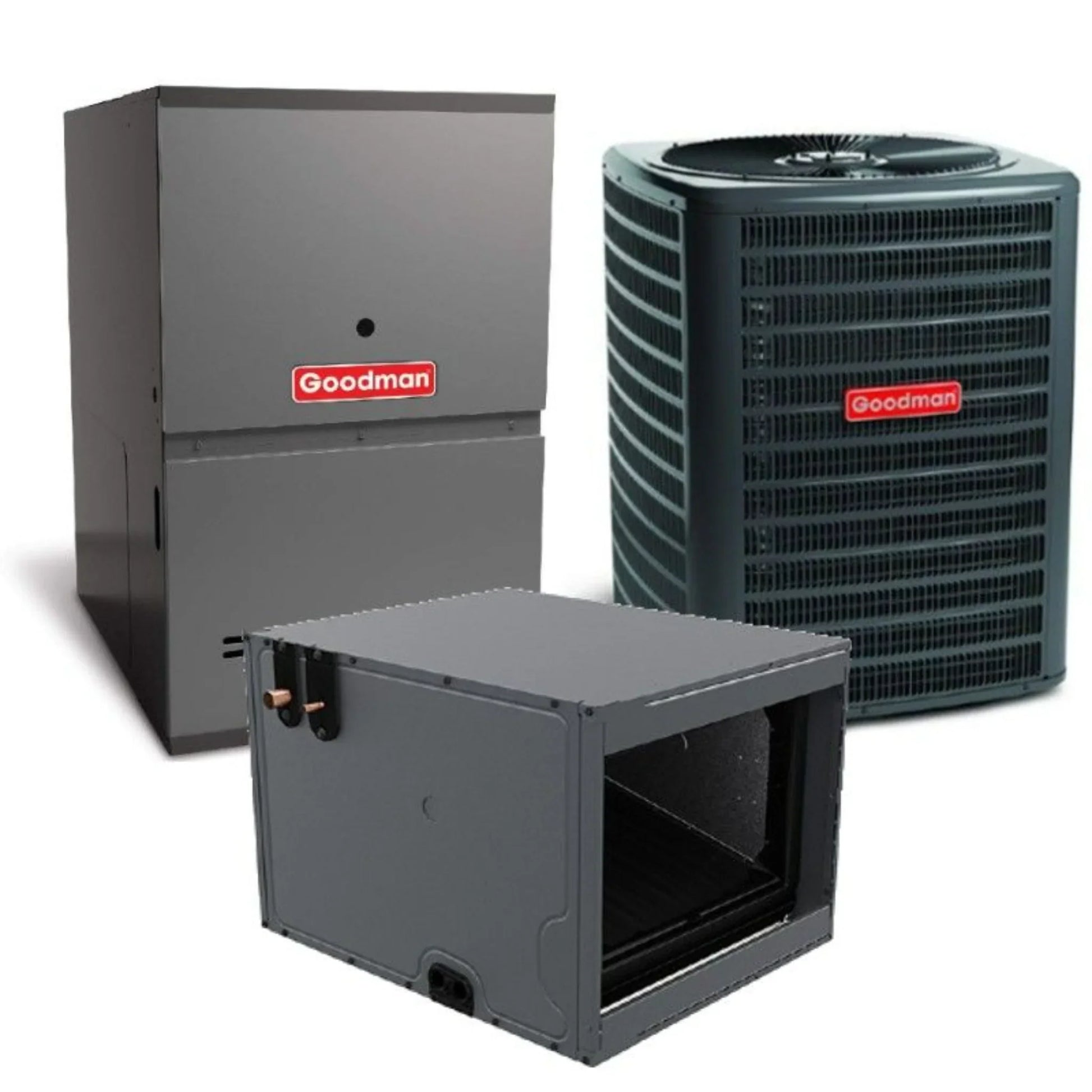

Goodman - 1.5 Ton/80,000 BTU 92% AFUE Gas Furnace and Air Conditioner System - Horizontal - 15.2 SEER2 - R32 - CHPTA2426B3
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features
- This furnace is ideal to heat medium to large house (depending on climate)
- 80,000 BTU 92% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
- Ideal size to cover a small house in ideal climates
- 1.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 2 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 1.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser |
| SKU |
GLXS4BA1810 |
| Weight |
136.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX130181 |
| Cooling BTU |
18,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
71 |
| Horsepower |
0.125 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
8.3 Amps |
| Tonnage |
1.5 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
All‑Season Comfort Combo: The Goodman CHPTA2426B3 HVAC System pairs a 92% AFUE gas furnace with a 1.5 ton AC, delivering efficient heating and cooling in one matched system.
-
High‑Efficiency Heating: 92% AFUE means most fuel becomes usable heat, helping lower winter heating costs with robust warmth.
-
Efficient Cooling: 15.2 SEER2 cooling performance provides strong summer comfort with reduced electricity use.
-
Horizontal Installation Fit: Designed for horizontal duct layouts in crawlspaces, attics, or compact mechanical areas, offering installation flexibility.
-
R32 Refrigerant: Uses R32, enabling better heat transfer and lower environmental impact than older refrigerants.
-
Matched System Reliability: Coordinated furnace + AC design supports balanced airflow, consistent performance, and longer system life.
-
Great Value Choice: Combines solid efficiency, dependable comfort, and flexible installation, making it a smart, cost‑effective whole‑home solution.
Q&A
Q: What’s included in this HVAC system?
A: This complete matched system includes a 1.5 ton 15.2 SEER2 R32 air conditioner condenser (GLXS4BA1810), a 92% AFUE 80,000 BTU gas furnace (GR9S920803BN), and a horizontal CHPTA2426B3 evaporator coil with factory‑installed TXV for efficient operation.
Q: What cooling capacity and efficiency does the AC offer?
A: The air conditioner delivers 1.5 ton (≈18,000 BTU) cooling with a 15.2 SEER2 rating, helping reduce electricity use and provide consistent comfort.
Q: What does 92% AFUE mean for the furnace?
A: 92% AFUE means about 92 ¢ of every dollar spent on fuel becomes heat, making this furnace highly efficient, lowering heating costs compared with lower AFUE models.
Q: Is this system designed for horizontal installation?
A: Yes — the horizontal CHPTA2426B3 coil and compatible components make this package ideal for horizontal installations (closets, attics, crawlspaces) where vertical space is limited.
Q: What refrigerant does it use and why it matters?
A: This system uses R32 refrigerant, a modern choice with improved energy efficiency and reduced environmental impact compared with older refrigerants.
Q: Does the coil improve system performance?
A: Yes — the factory‑installed thermostatic expansion valve (TXV) in the CHPTA2426B3 coil helps optimize refrigerant flow and improve cooling efficiency and system reliability.
Q: What are the benefits of a matched system?
A: Matched components ensure optimal performance, balanced airflow, and warranty compatibility, improving comfort and longevity vs. mismatched parts.
Maintenance Tips
-
Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain proper airflow and protect furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even heating and cooling.
-
Inspect Furnace Venting: Check intake and exhaust pipes for debris or blockages to maintain safe operation.
-
Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.
-
Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for correct operation.
-
Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.
-
Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
