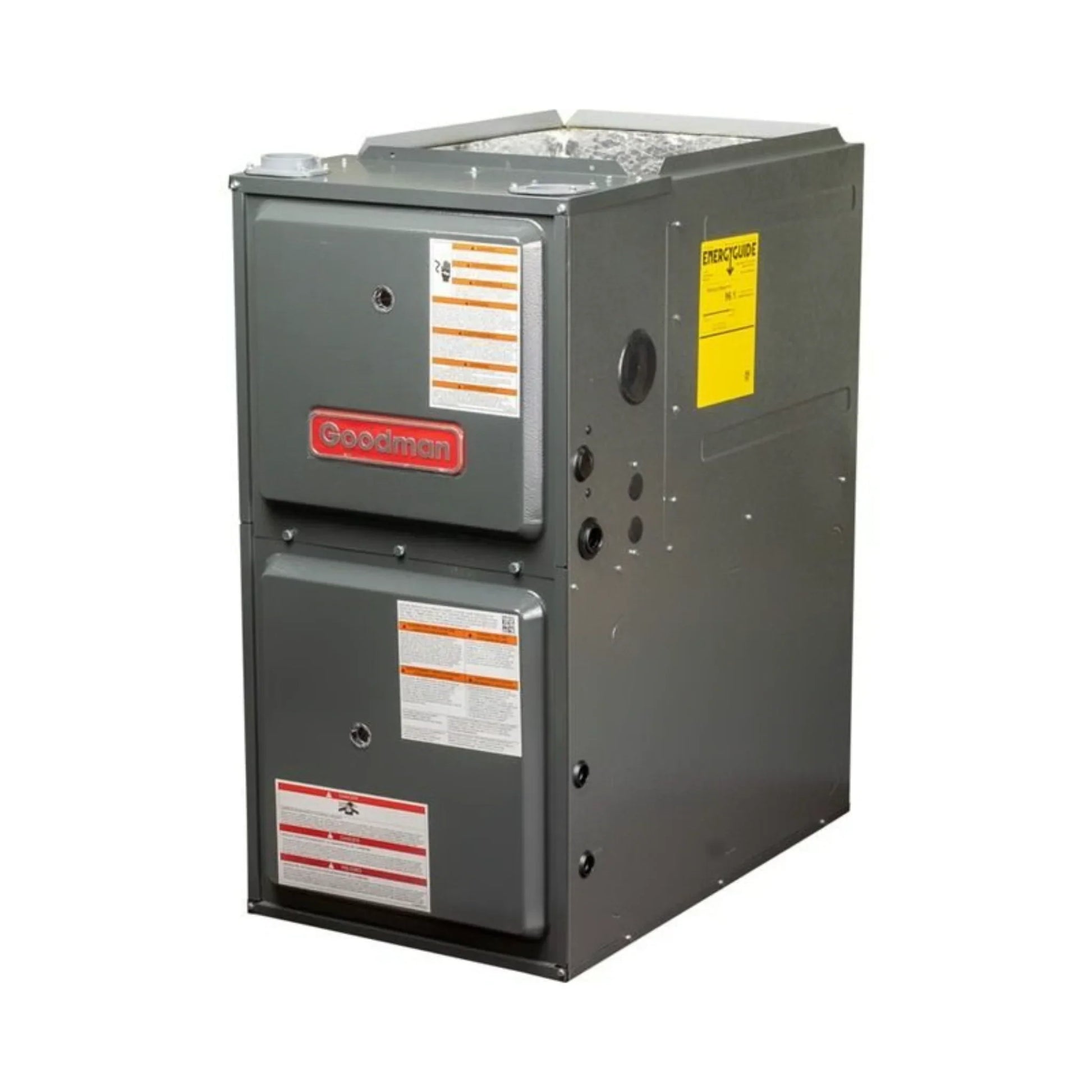

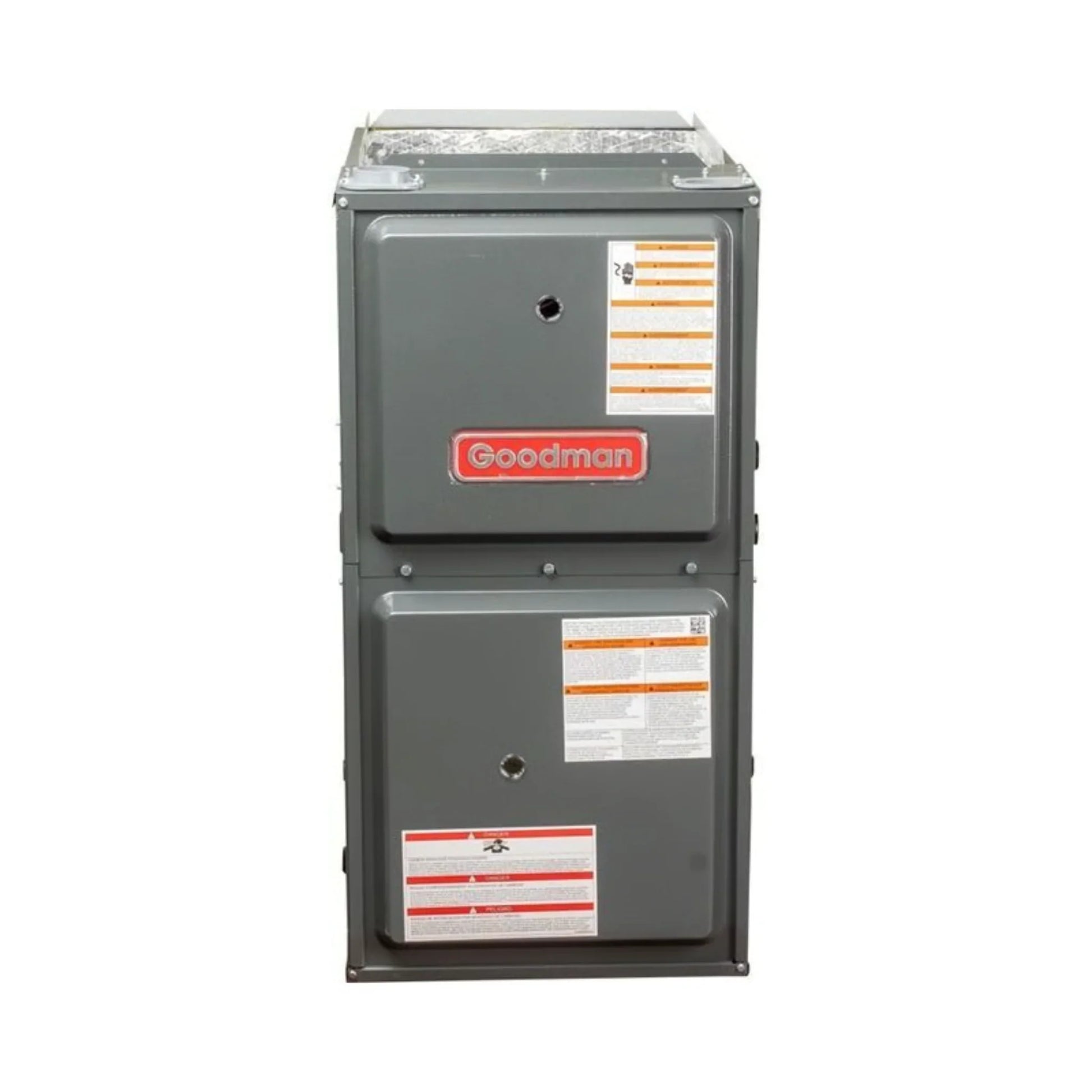

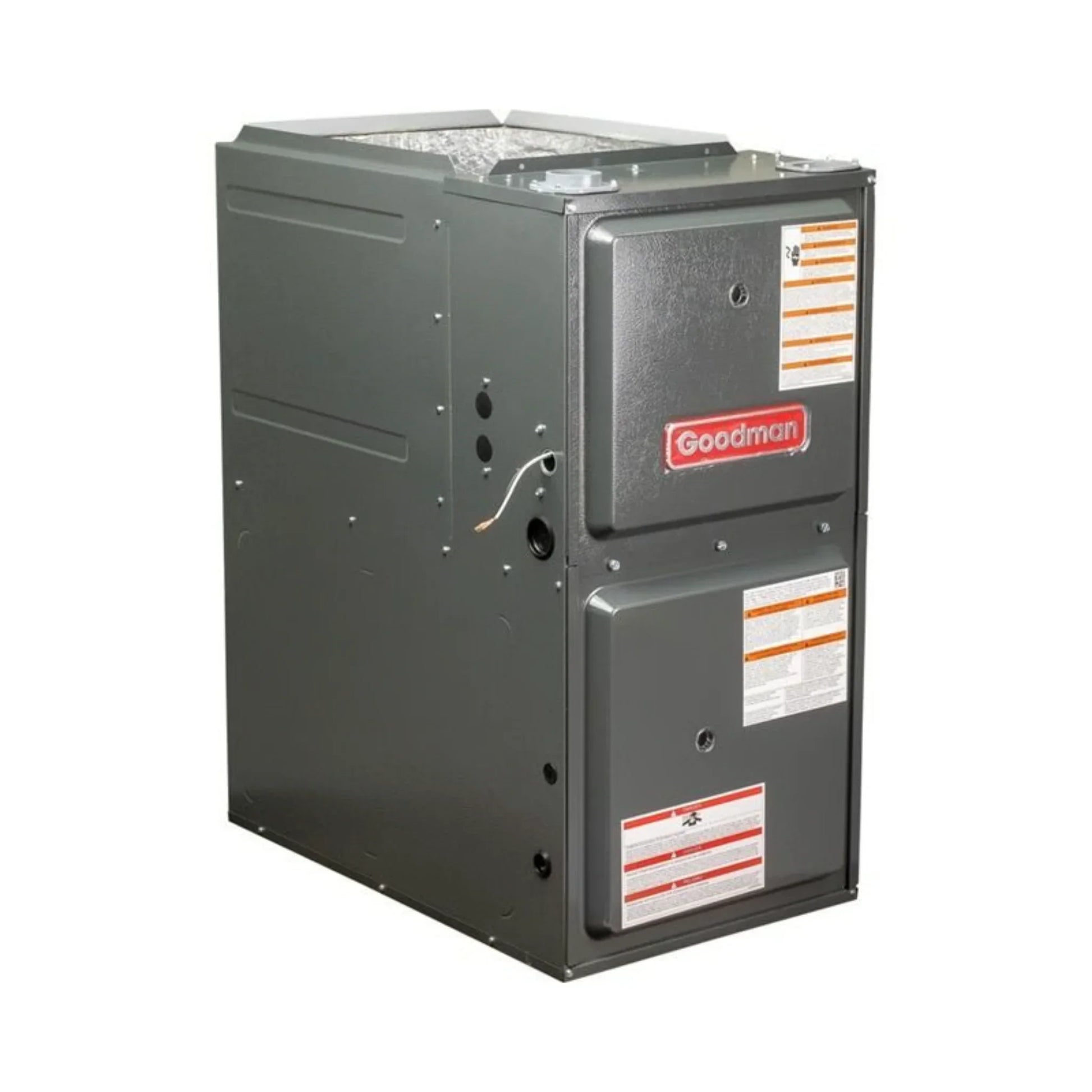

Goodman - 100,000 BTU 96% Gas Furnace - 21" Width - Upflow / Horizontal - Two Stage - 115V - R32 - GR9T961004CN

Goodman - 100,000 BTU 96% Gas Furnace - 21" Width - Upflow / Horizontal - Two Stage - 115V - R32 - GR9T961004CN

As a high-efficiency system, the GR9T961004CN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GR9T961004CN is a good way to go if you want to lower your gas bill.

Features

• This furnace is ideal to heat a larger house (depending on climate)
• 100,000 BTU 96% AFUE natural gas furnace
• Requires plastic/PVC flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with an optional conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output


Specifications

Manual

• Installation Manual
• Specifications Sheet


What our Experts Think

• High‑Efficiency Heating Performance: With a 96 % AFUE rating, this two‑stage gas furnace converts nearly all fuel into usable heat—reducing energy waste and lowering utility costs compared to standard 80 % models.

• Powerful 100,000 BTU Output: Offers 100,000 BTU input (96,000 BTU output) capacity, making it well‑suited for larger homes or high‑demand heating zones.

• Two‑Stage Gas Valve for Comfort: The two‑stage burner adjusts heating output based on demand—providing quieter operation, fewer temperature swings, and more consistent indoor comfort.

• Advanced Multi‑Speed ECM Blower: A 9‑speed ECM blower motor optimizes airflow for improved efficiency, lower energy consumption, and quieter circulation throughout your home.

• Durable, Reliable Construction: Heavy‑gauge insulated cabinet, aluminized steel primary and stainless‑steel secondary heat exchangers, and a silicon nitride ignitor enhance long‑term reliability.

• Flexible Installation Options: Supports upflow or horizontal configuration, fitting into a variety of mechanical spaces from basements to closets.

• Service‑Friendly Features: Self‑diagnostic control board, color‑coded terminals, and easy access simplify troubleshooting, installation, and maintenance.

Q&A

Q: What heating capacity and efficiency does this Goodman furnace deliver?
A: The Goodman GR9T961004CN provides 100,000 BTU input (≈96,000 BTU output) with a 96% AFUE efficiency, converting nearly all fuel into usable heat to reduce energy waste and lower heating costs.

Q: What type of gas valve and stages does it feature?
A: It includes a two‑stage gas valve, allowing the furnace to run at reduced capacity during milder weather and at full capacity when needed for maximum comfort.

Q: What blower motor does the furnace use?
A: The unit is equipped with a multi‑speed ECM blower motor (9‑speed), delivering efficient, quieter airflow and improved heating performance.

Q: What installation orientations are supported?
A: Designed for upflow or horizontal (left/right) installation, giving flexibility for basements, attics, or closets.

Q: What electrical and venting requirements are there?
A: Operates on standard 115 V single‑phase power and — as a high‑efficiency condensing furnace — requires plastic/PVC flue venting.

Q: What durability and performance features are included?
A: Features include stainless steel secondary heat exchanger, silicon nitride igniter, heavy‑gauge insulated cabinet, self‑diagnostic control board, and low‑speed fan options for quiet circulation.

Q: What fuel types is it compatible with?
A: Factory configured for natural gas and can be converted to propane (LP) with an optional conversion kit.

Maintenance Tips

• Replace or clean air filters every 1–3 months to maintain airflow and prevent dust buildup on the heat exchanger and blower.

• Inspect the heat exchanger annually for cracks or corrosion to ensure safe and efficient operation.

• Clean burners, pilot assembly, and ignition system for reliable two-stage combustion.

• Check the blower motor and fan assembly for dust, debris, and lubrication needs.

• Inspect venting and flue pipe for obstructions or leaks to ensure safe exhaust of combustion gases.

• Test gas valves, two-stage operation, and thermostat for accurate temperature control.

• Verify 115V electrical connections and inspect wiring for wear or corrosion.

• Keep surrounding area clear to maintain airflow and reduce fire hazards.

• Schedule annual professional HVAC service for full inspection, cleaning, and safety testing.
