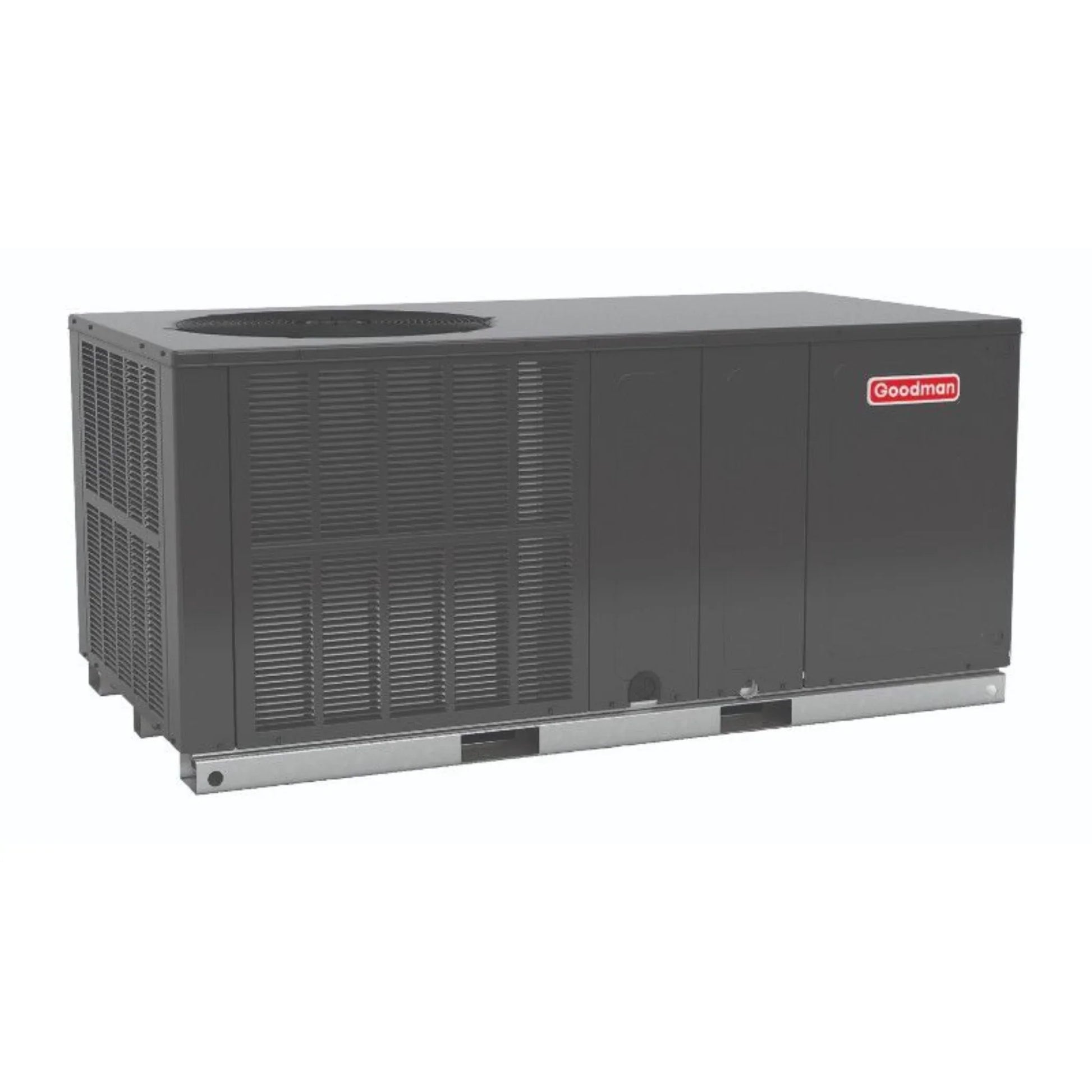

Goodman - 2.0 Tons/24,000 BTU Packaged Heat Pump System Dedicated Horizontal - SEER2 13.4 - Single Stage - 208V - R32 - GPHH32431
With its quiet horizontal discharge and ready-to-install pre-charged refrigerant system, the Goodman GPHH32431 heat pump packaged unit is ready as an inexpensive heating and cooling solution for any all-in-one application. At a basic efficiency rating and a reliability to last a long time, the GPHH32431 lives up to the Goodman name as it offers superior comfort and affordability. Utilizing advanced technology, the Goodman heat pump system efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
Features
- Can normally cover a small house in average climates
- 2 ton, 13.4 SEER2 heat pump packaged unit
- Horizontal discharge
- Fully charged
- Low sound output
Specifications
| SKU |
GPHH32431 |
| Weight (in lbs) |
325.000000 |
| AHRI Certificate Number |
208842404 |
| Brand/Manufacturer |
Goodman |
| Replaces |
GPH1424H41, 663051630505 |
| HSPF |
8 |
| Cooling BTU |
24,400 BTU |
| Heating BTU |
22,800 BTU |
| Blower Motor |
EEM (Energy Efficient Motor) |
| Decibel Level (dBA) |
76 decibels |
| Electric Backup Heat Capabilities (Optional) |
5 Kilowatts, 10 Kilowatts |
| Configuration |
Horizontal |
| Refrigerant |
R32 |
| SEER2 (Efficiency) |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
30 amps |
| Min. Breaker Size |
18.6 amps |
| Tonnage |
2 Ton |
| Height |
30" |
| Width |
66" |
| Depth |
34" |
Manual
What our Experts Think
-
Reliable Year-Round Comfort: 2 Ton / 24,000 BTU capacity provides consistent heating and cooling.
-
Energy Efficiency: SEER2 13.4 balances performance with reasonable energy use.
-
Single-Stage Operation: Delivers steady, dependable climate control.
-
Dedicated Horizontal Design: Ideal for horizontal ductwork installations.
-
Eco-Friendly Refrigerant: Uses R32 to reduce environmental impact.
-
Durable Build: Engineered for long-term reliability in diverse climates.
-
Power Supply: 208V compatible for standard residential applications.
-
Quiet Operation: Optimized for minimal operational noise.
Q&A
Q: What type of HVAC unit is this?
A: This is a self‑contained packaged heat pump that combines cooling and heating in one outdoor unit — ideal where indoor air handlers or furnaces aren’t practical.
Q: How much cooling and heating does it deliver?
A: It provides around 24,000 BTU of cooling and ~24,000 BTU of heat, suited for smaller homes or spaces.
Q: What energy efficiency ratings does it have?
A: Rated 13.4 SEER2 for cooling and around 6.7 HSPF2 for heating performance, balancing efficiency and comfort.
Q: What refrigerant does the heat pump use?
A: Uses R‑32 refrigerant, which has lower environmental impact than many older refrigerants.
Q: What compressor and operation type does it have?
A: Features a single‑stage scroll compressor for straightforward, dependable two‑mode operation (cooling/heating).
Q: What configuration and airflow design does it support?
A: Designed in a horizontal discharge configuration — ideal for installations where air flows horizontally out of the unit.
Q: What are the electrical requirements?
A: Operates on 208/230 V single‑phase power, typical for residential packaged heat pumps.
Q: How durable and serviceable is this unit?
A: Built with a heavy‑gauge galvanized steel cabinet, multi‑speed ECM blower, factory‑insulated blower compartment, and easy‑access panels for maintenance.
Q: How quiet does it run?
A: Typical operating sound is around ~76 dBA, keeping outdoor noise levels moderate.
Q: Is it easy to install?
A: The unit comes factory‑charged with R‑32 refrigerant, reducing installation time and eliminating the need to add refrigerant on site.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and efficiency.
-
Keep supply and return vents clear of furniture, dust, and debris.
-
Maintain 2–3 feet of clearance around the unit for proper airflow and safe operation.
-
Inspect the condensate drain line and pan regularly to prevent clogs and water buildup.
-
Check thermostat settings and operation for efficient heating and cooling cycles.
-
Inspect refrigerant lines and insulation for damage or leaks.
-
Clean condenser and evaporator coils periodically to maintain efficiency.
-
Listen for unusual noises such as rattling, buzzing, or humming indicating potential mechanical issues.
-
After storms or high winds, inspect the outdoor unit for debris or damage.
-
Schedule annual professional HVAC maintenance to check refrigerant levels, electrical components, blower motor, and overall system performance
