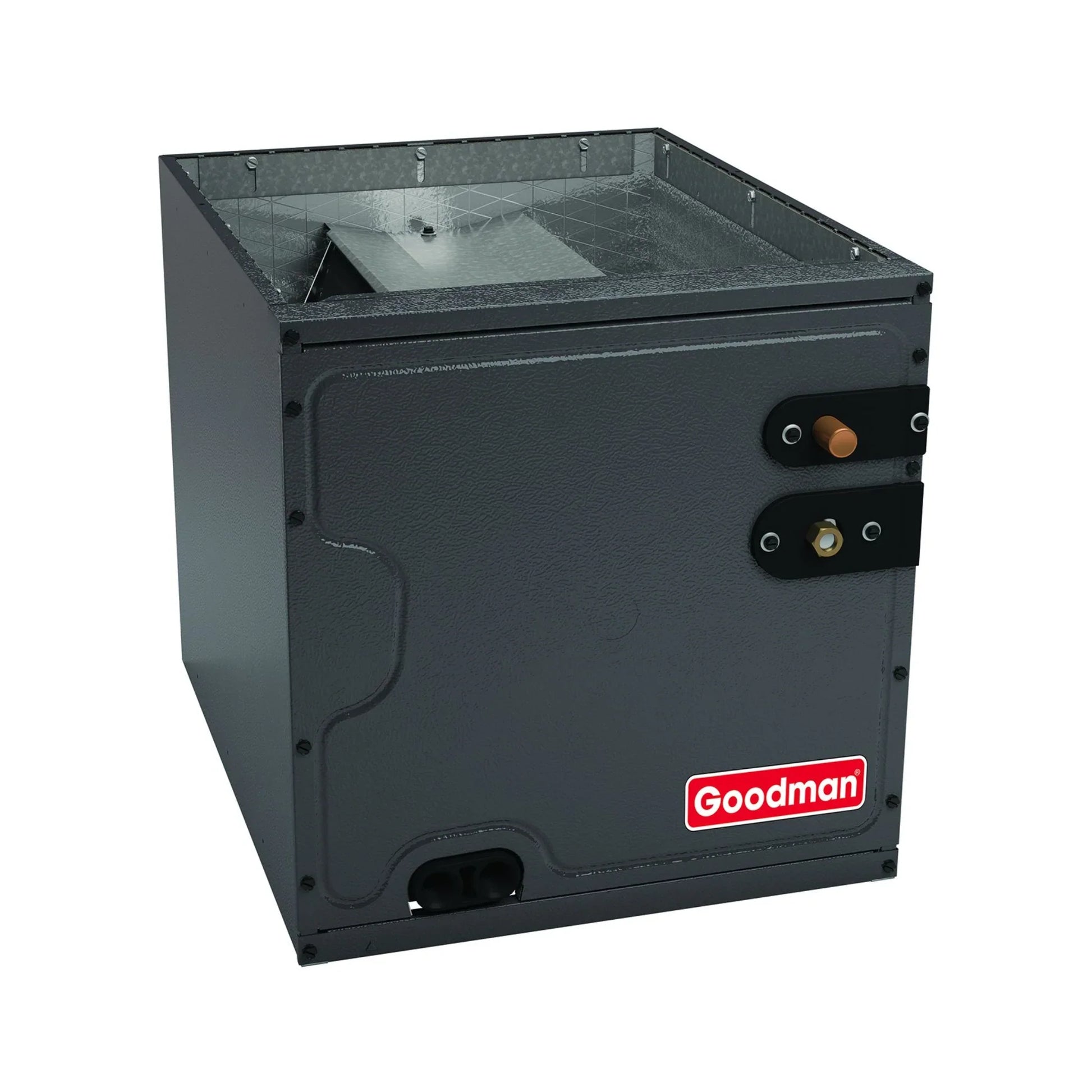

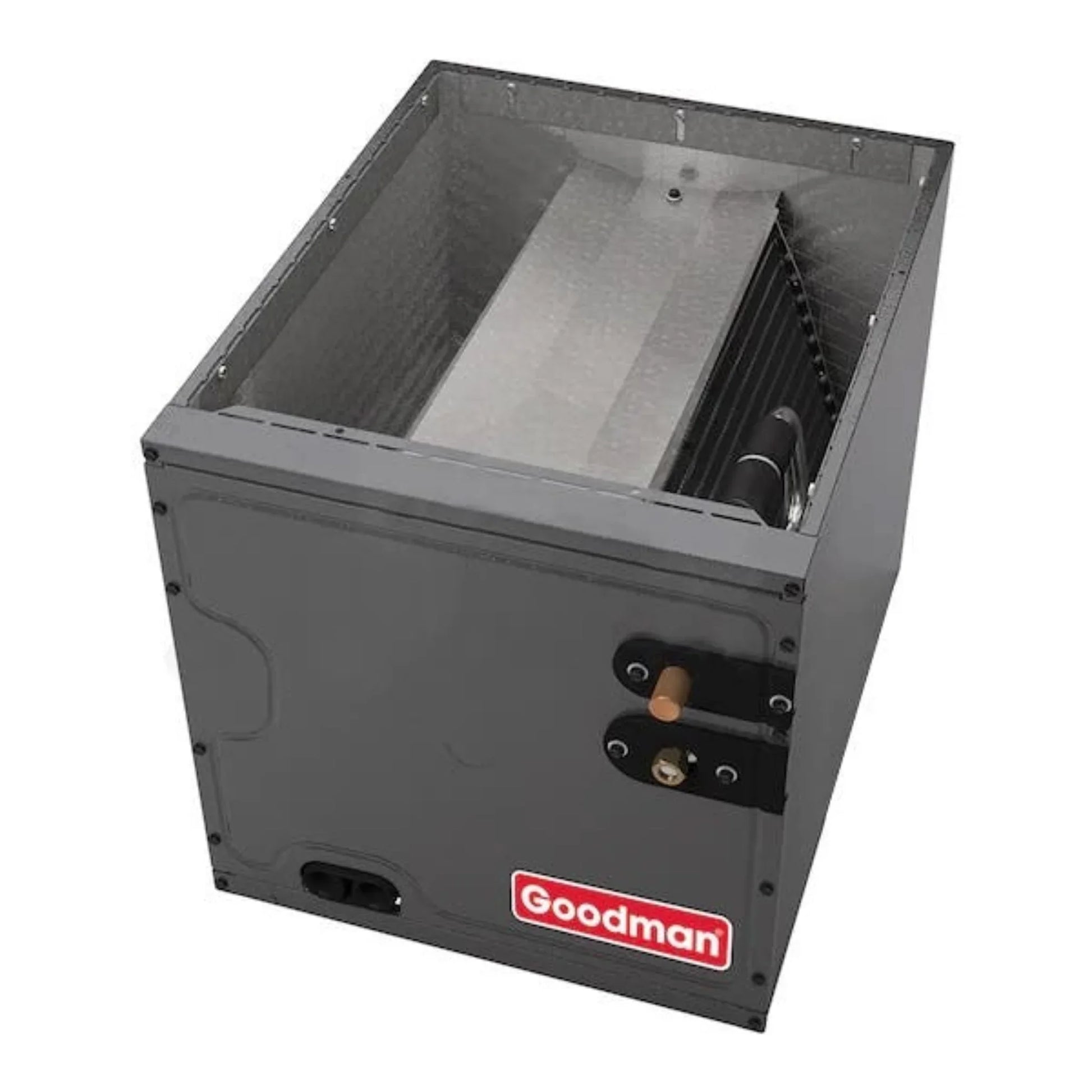

Goodman - 2.5 Ton - 17.5" Width x 22" High Upflow/Downflow Cased Evaporator Coil TXV - R32 - CAPTA3022B3
An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.
Features
- All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
- 10-Year Limited Warranty
Specifications
| SKU |
CAPTA3022B3 |
| Weight (in lbs) |
40.000000 |
| Brand/Manufacturer |
Goodman |
| Configuration |
Upflow / Downflow |
| Refrigerant |
R32 |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Tonnage |
2.5 Ton |
| Style |
A-Coil |
| Certification |
ETL Listed, AHRI Certified |
| Height |
22" |
| Width |
17.5" |
| Depth |
21" |
| Warranty |
10 Years Parts with Online Registration |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
1.5 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Owner's Manual
What our Experts Think
-
Designed for 2.5-ton cooling systems: The Goodman CAPTA3022B3 evaporator coil supports up to 30,000 BTU (2.5 tons) of cooling, making it a reliable match for mid-size residential air conditioning systems.
-
Factory-installed TXV for better efficiency: This coil includes a thermal expansion valve (TXV) that precisely regulates refrigerant flow, helping improve system efficiency, cooling performance, and humidity control compared with fixed-orifice coils.
-
Optimized for modern R-32 refrigerant: Built specifically for R-32 systems, the coil features circuits and components designed to work with the newer refrigerant standard while maintaining strong cooling performance.
-
Compact cabinet for easy installation: With a 17.5" width and 22" height, this cased coil is designed to pair with compatible Goodman furnaces and fit comfortably in standard HVAC cabinets or tight mechanical spaces.
-
Durable all-aluminum coil construction: The all-aluminum coil design improves corrosion resistance and long-term reliability compared with older copper-aluminum designs.
-
Condensation-resistant cabinet design: Features like foil-faced internal insulation and a rust-resistant thermoplastic drain pan help reduce cabinet condensation and improve long-term durability.
-
Service-friendly design for technicians: The coil includes front access panels and drain pan rails, allowing easier maintenance, cleaning, and repositioning during installation or servicing.
-
Certified performance and warranty support: AHRI certification and up to a 10-year limited parts warranty (with registration) provide added peace of mind for homeowners and installers.
-
A dependable match for Goodman split systems: Our experts consider this coil a strong pairing option for Goodman condensers and furnaces, offering efficient heat transfer, durable construction, and installer-friendly design.
Q&A
Q: What is the Goodman CAPTA3022B3 evaporator coil?
A: The Goodman CAPTA3022B3 is a 2.5-ton cased evaporator coil designed for use with compatible Goodman air conditioners or heat pumps to efficiently transfer heat and support reliable indoor cooling performance.
Q: What system size is this evaporator coil designed for?
A: This coil is rated for 2.5-ton HVAC systems (30,000 BTU), making it ideal for residential central air conditioning setups requiring a matched coil for optimal efficiency.
Q: What are the dimensions of the CAPTA3022B3 coil?
A: The coil cabinet measures 17.5 inches wide by 22 inches high, allowing it to fit many standard furnace installations while maintaining proper airflow.
Q: What installation configurations are supported?
A: The CAPTA3022B3 supports upflow and downflow installation, offering flexible installation options for different HVAC system layouts.
Q: Does this evaporator coil include a TXV?
A: Yes. The coil comes with a factory-installed thermal expansion valve (TXV) designed to regulate refrigerant flow and improve system efficiency and performance.
Q: Which refrigerant is this coil designed for?
A: This model is compatible with R-32 refrigerant, a newer refrigerant designed to improve efficiency and reduce environmental impact.
Q: What are the key features of the Goodman CAPTA3022B3?
A: Key features include durable galvanized steel cabinet construction, efficient aluminum tubing and fin coil design, factory-installed TXV, and compatibility with modern R-32 air conditioning systems.
Q: Is this coil compatible with Goodman HVAC systems?
A: Yes. The CAPTA3022B3 evaporator coil is designed to pair with Goodman condensers and furnaces to create a properly matched central HVAC system for residential comfort.
Maintenance Tips
-
Replace HVAC air filters regularly: Check and replace filters every 1–3 months to prevent dust buildup on the evaporator coil and maintain proper airflow.
-
Keep the evaporator coil clean: Periodically inspect the aluminum coil and have it professionally cleaned if dirt accumulates, as buildup can reduce cooling efficiency and airflow.
-
Inspect the condensate drain line and pan: Ensure the thermoplastic drain pan and line remain clear to prevent water leaks, clogs, or mold growth.
-
Check insulation and cabinet condition: The coil cabinet includes foil-faced insulation to reduce condensation—inspect periodically for damage or moisture issues.
-
Monitor refrigerant performance: The factory-installed TXV (thermal expansion valve) regulates refrigerant flow; if cooling performance drops, have a technician inspect the valve and refrigerant levels.
-
Schedule annual HVAC service: A certified technician should inspect the coil, refrigerant connections (3/8" liquid line, 3/4" suction line), and system performance yearly.
-
Keep surrounding equipment clean: Ensure the furnace or air handler area is free of dust and debris to protect the coil and maintain system efficiency.
