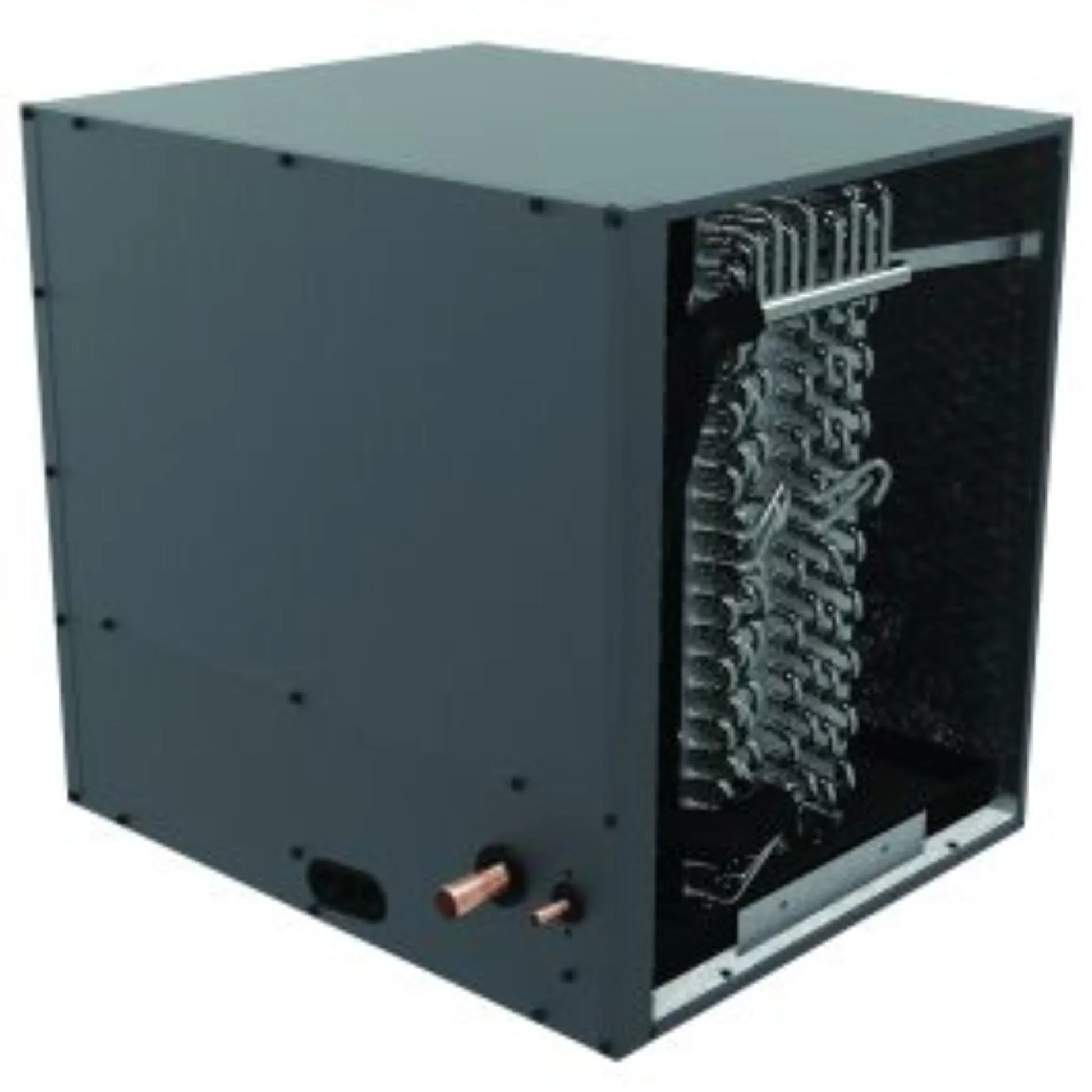

Goodman - 2.5 Ton - 21" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA3026C3
The Goodman CHPTA3026C3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA3026C3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Features
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 2.5 Ton 21" Height Goodman Horizontal Cased Evaporator Coil - TXV - R32 |
| SKU |
CHPTA3026C3 |
| Weight (in lbs) |
62.000000 |
| Brand/Manufacturer |
Goodman |
| Configuration |
Horizontal |
| Refrigerant |
R32 |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Tonnage |
2.5 Ton |
| Style |
A-Coil |
| Certification |
ETL Listed | AHRI Certified |
| Height |
21" |
| Width |
26" |
| Depth |
21" |
Manual
What our Experts Think
-
Right‑Sized for 2.5‑Ton HVAC: Engineered for 30,000 BTU capacity, this evaporator coil pairs perfectly with 2.5‑ton split systems for homes and residential installations.
-
Factory‑Installed TXV for Efficiency: Thermal expansion valve (TXV) delivers precise refrigerant control, improving cooling efficiency and consistent performance.
-
R‑32 Refrigerant Optimized: Designed specifically for R‑32 systems, offering better heat transfer and lower environmental impact compared to older refrigerants.
-
21″ Horizontal Configuration: Horizontal, 21‑inch cabinet height fits tight mechanical spaces like attics, crawlspaces, or closets.
-
Durable Aluminum Coil Design: Aluminum tube‑and‑fin construction resists corrosion and supports reliable heat exchange over time.
-
Moisture & Rust Protection: Foil‑faced insulation and corrosion‑resistant drain pan help manage moisture and extend system longevity.
-
Service‑Friendly Access: Front‑accessible panels and standardized connections make installation and future maintenance easier.
Q&A
Q: What capacity and type is the Goodman CHPTA3026C3 evaporator coil?
A: The Goodman CHPTA3026C3 is a 2.5 Ton horizontal cased evaporator coil designed for residential HVAC systems up to ~30,000 BTU capacity.
Q: What refrigerant does this coil support?
A: This coil is built for R‑32 refrigerant, supporting modern, high‑efficiency air conditioners and heat pump systems.
Q: Does the CHPTA3026C3 include a metering device?
A: Yes — it comes with a factory‑installed thermal expansion valve (TXV) for optimized refrigerant control and improved performance.
Q: What installation orientation is supported?
A: It’s designed for horizontal installation, ideal for attic, crawl space, or sideways airflow applications.
Q: What are the key physical dimensions?
A: The coil features a 21″ height in a compact horizontal cased cabinet for flexible residential installation spaces.
Q: What construction materials and features enhance durability?
A: It has all‑aluminum tubing and fins for efficient heat transfer and improved corrosion resistance, plus a galvanized steel cased cabinet for long‑lasting performance.
Q: What serviceability features are included?
A: Includes accessible service panels, an insulated cabinet, and a rust‑resistant drain pan, making maintenance easier and helping reduce condensation issues.
Q: What line sizes does it use?
A: Standard residential line connections include 3/8″ liquid and 7/8″ suction line sizes, compatible with matched condensing units.
Q: What applications is the CHPTA3026C3 ideal for?
A: Best suited for residential air conditioning and heat pump applications when paired with a compatible outdoor unit for balanced cooling and heating performance.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and prevent dust buildup on the coil.
-
Inspect and clean the evaporator coil annually for efficient heat transfer and consistent cooling.
-
Keep the condensate drain pan and drain line clear to prevent clogs, water overflow, and mold growth.
-
Check refrigerant line connections (3/8" liquid, 7/8" suction) for leaks or damaged insulation.
-
Verify TXV operation to ensure proper refrigerant flow and optimal system performance.
-
Inspect coil cabinet and insulation to prevent air leaks and condensation issues.
-
Maintain a clean surrounding area to reduce dust and moisture near the unit.
-
Schedule annual professional HVAC service for coil inspection, refrigerant check, and overall system efficiency.
