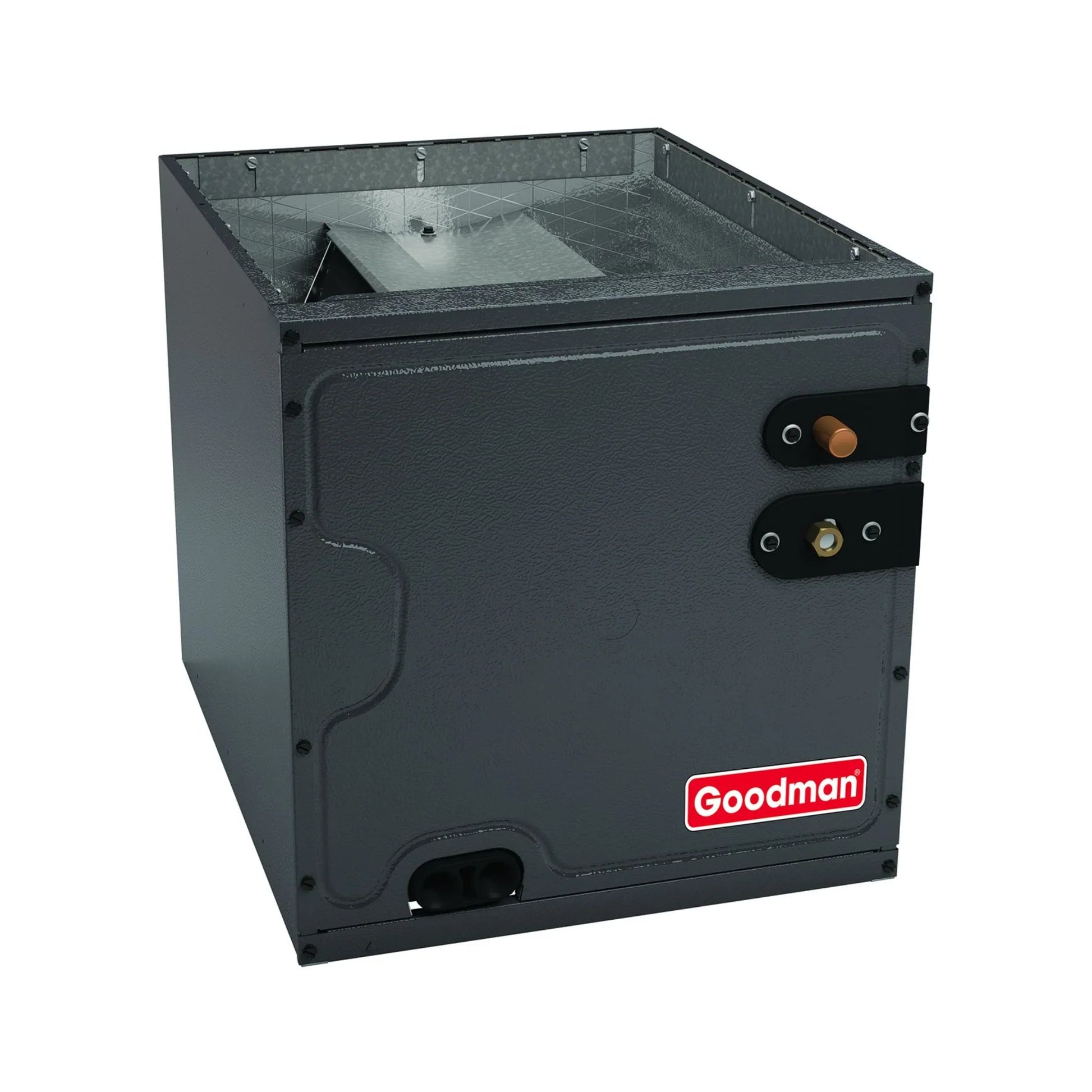

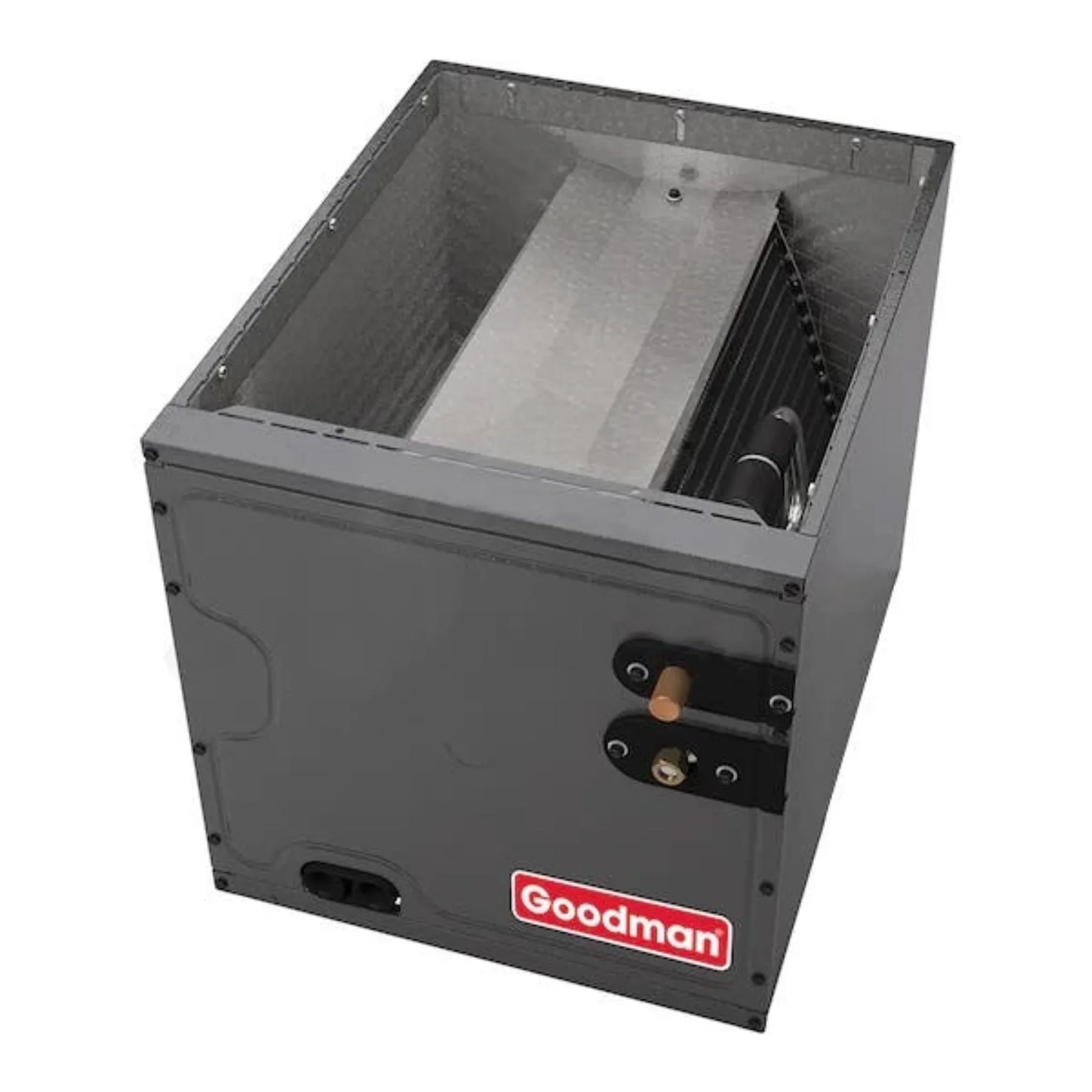

Goodman - 2.5 Ton - 21" Width Upflow/Downflow Cased Evaporator Coil TXV - R32 - CAPTA3022C3
An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.
Features
- All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
Specifications
| SKU |
CAPTA3022C3 |
| Weight (in lbs) |
43.000000 |
| Brand/Manufacturer |
Goodman |
| Configuration |
Upflow / Downflow |
| Refrigerant |
R32 |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Tonnage |
2.5 Ton |
| Style |
A-Coil |
| Certification |
ETL Listed, AHRI Certified |
| Height |
22" |
| Width |
21" |
| Depth |
21" |
Manual
What our Experts Think
-
Right-Sized Capacity: 2.5 Ton coil ideal for medium-sized homes or spaces.
-
Flexible Installation: 21" width supports upflow or downflow cased setups.
-
Precise Cooling: TXV (Thermostatic Expansion Valve) ensures accurate refrigerant control.
-
Eco-Friendly Refrigerant: Compatible with R32 for reduced environmental impact.
-
Durable Design: Built for long-term reliability under varied operating conditions.
-
Efficient Performance: Optimized for consistent airflow and effective heat exchange.
Q&A
Q: What is this Goodman CAPTA3022C3?
A: A 2.5 ton indoor evaporator coil designed for split central HVAC systems, used with matched air conditioners or heat pumps to improve heat transfer and system efficiency.
Q: What installation orientations does this coil support?
A: It supports Upflow and Downflow airflow configurations, allowing flexible installation in attics, closets, or mechanical rooms.
Q: What refrigerant and metering device does it use?
A: Optimized for R‑32 refrigerant and includes a factory‑installed Thermal Expansion Valve (TXV) for precise refrigerant control and better performance.
Q: What is the construction and build quality?
A: Features an all‑aluminum evaporator coil with a galvanized, insulated cased cabinet and foil‑faced insulation to reduce condensation.
Q: What durability features are included?
A: The unit has rust‑resistant thermoplastic drain pans with low water‑retention design and UV resistance, helping reduce corrosion and improve longevity.
Q: What are the physical dimensions and connections?
A: It has a 21″ cabinet width, around 22″ height and depth, 3/8″ liquid line, and 3/4″ suction line connections typical for 2.5 ton systems.
Q: Is this coil certified and safe?
A: Yes — it is AHRI certified and ETL listed, meeting performance and safety standards for HVAC components.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and efficiency.
-
Keep the area around the evaporator coil clear of dust, debris, and obstructions.
-
Inspect coil fins and surfaces periodically; clean gently to prevent dirt buildup that reduces efficiency.
-
Ensure the drain pan and condensate drain line are clear to prevent clogs and water damage.
-
Check refrigerant lines and insulation for damage or leaks.
-
Verify TXV (Thermostatic Expansion Valve) operation for proper refrigerant flow.
-
Maintain 2–3 feet of clearance around the unit for proper airflow and service access.
-
Listen for unusual noises such as rattling or hissing that may indicate mechanical issues.
-
Ensure thermostat is working properly and calibrated.
-
Schedule annual professional HVAC inspection to clean coils, check refrigerant, and verify overall system performance.
