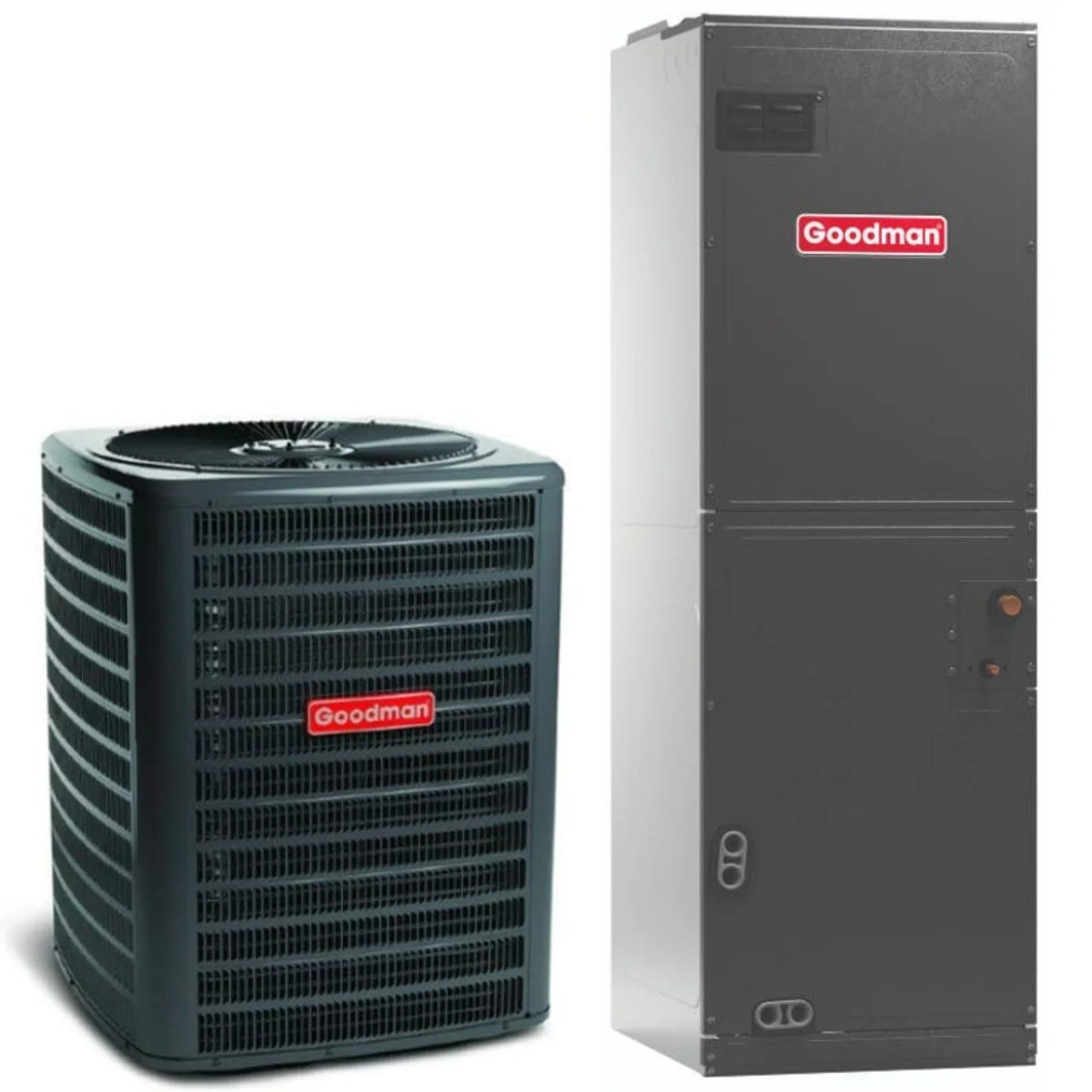

Goodman - 2.5 Ton/30,000 BTU - Multi-Positional - Air Conditioner Split System - 14.5 SEER2 - R32 - GLXS4BA3010
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman air conditioner split system is the perfect choice for all of your cooling needs.
Features
- Ideal size to cover a small house in ideal climates
- 2.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
-

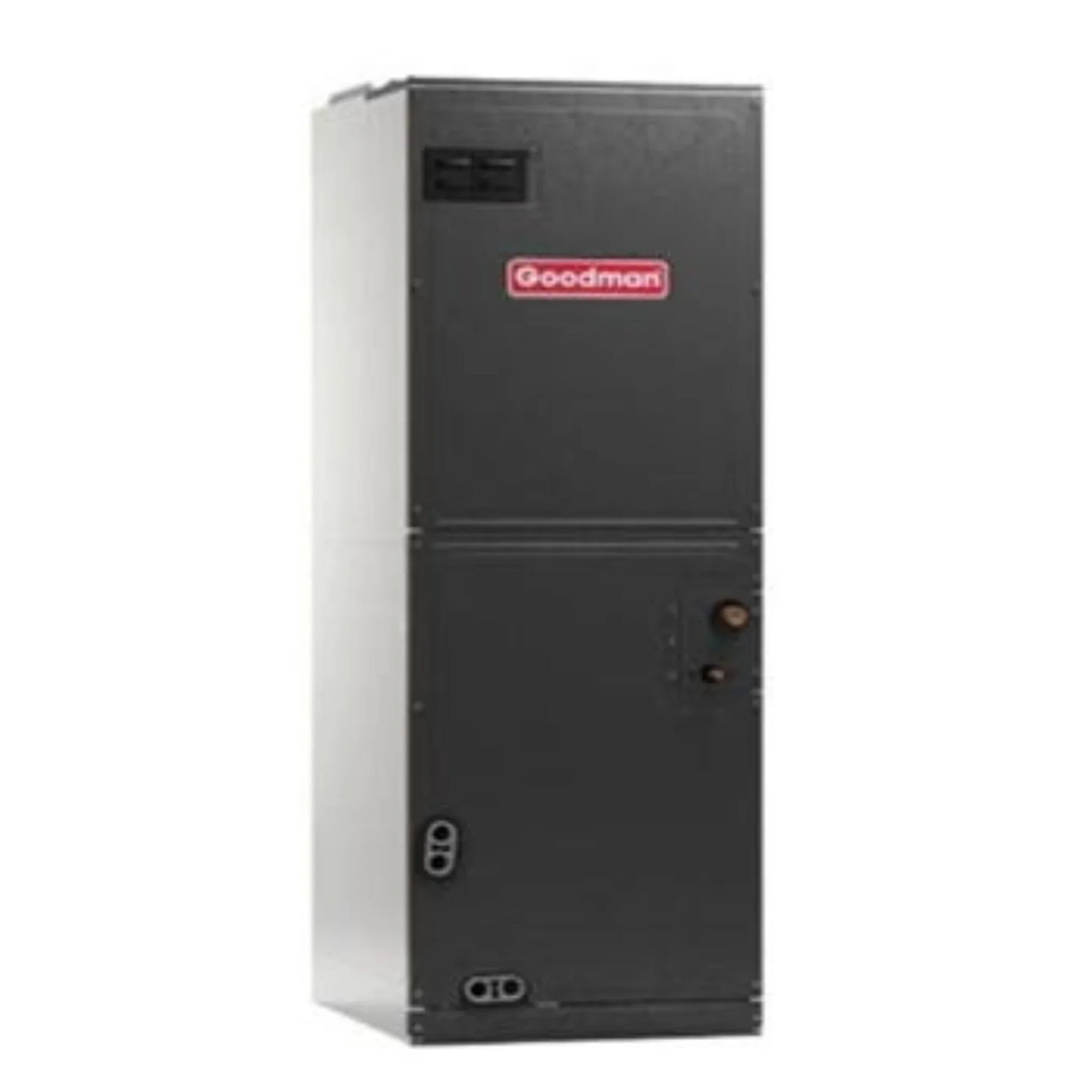

Air Handler
- 2.5 ton air handler
- Electric heat compatible
- Optimized for use with R-32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
Specifications
| 2.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS4BA3010 |
| Weight |
170.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN403010 |
| Cooling BTU |
30,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
71 |
| Horsepower |
1/6 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
15.0 Amps |
| Tonnage |
2.5 Ton |
| Connection |
Sweat |
| Height |
32" |
| Width |
29" |
| Depth |
29" |
Manual
What our Experts Think
-
2.5 Ton / ~30,000 BTU Cooling Capacity – Right‑sized for medium residential spaces, delivering consistent summer cooling performance without oversized energy waste.
-
14.3–14.5 SEER2 Efficiency (R‑32) – Meets current energy standards and uses eco‑friendlier R‑32 refrigerant for improved heat transfer and reduced environmental impact.
-
Single‑Stage Cooling Operation – Simple, reliable compressor design ensures consistent cooling with straightforward maintenance and repair.
-
Durable Outdoor Cabinet – Powder‑coat finish and heavy‑gauge steel with coil guard resist corrosion and extend long‑term outdoor reliability.
-
Factory‑Installed Filter Drier & Service Access – Protects system from moisture and contaminants and simplifies service with easy access ports.
-
Flexible Installation Compatibility – Works with multi‑positional indoor air handlers or coils to fit upflow, downflow, or horizontal duct systems.
-
Quiet, Residential Operation – Engineered airflow and compressor design aim for comfortable performance with manageable sound levels (~71 dBA).
Q&A
Q: What type of air conditioner is the Goodman GLXS4BA3010?
A: It’s a 2.5 ton (30,000 BTU) central air conditioner split system condenser using R32 refrigerant, designed for standard residential cooling paired with a compatible indoor air handler or coil.
Q: What does 14.5 SEER2 efficiency mean?
A: 14.5 SEER2 indicates seasonal energy efficiency, offering efficient cooling and lower electricity usage compared to older or lower‑SEER systems while meeting current regulatory standards.
Q: What refrigerant does it use?
A: This unit uses R32 refrigerant, a more energy‑efficient and lower environmental‑impact choice than many older refrigerants.
Q: What kind of compressor and operation does it have?
A: It has a single‑stage compressor that provides reliable, consistent cooling performance for everyday home comfort.
Q: What does “multi‑positional” refer to?
A: “Multi‑positional” means the system can pair with indoor components (like air handlers or coils) that install in upflow, downflow, or horizontal orientations, giving flexibility for different home duct layouts.
Q: Is this system easy to install?
A: The condenser comes factory‑charged for up to ~15 feet of line set, which helps streamline professional installation by a licensed HVAC technician.
Maintenance Tips
-
Keep Outdoor Unit Clear: Maintain at least 24 inches of clearance around the condenser; remove leaves, dirt, and debris to ensure proper airflow.
-
Clean Condenser Coils: Rinse coils every 3–6 months to prevent dirt buildup and maintain SEER2 efficiency.
-
Replace Indoor Air Filters: Change filters every 1–3 months to protect the system and maintain airflow.
-
Inspect Refrigerant Lines & Insulation: Ensure lines are intact and insulation is undamaged for optimal R32 performance.
-
Check Condensate Drain: Keep the drain line clear to prevent water buildup or system interruptions.
-
Schedule Annual Professional Service: Technicians should inspect electrical connections, refrigerant levels, fan motor, and overall split system performance.
-
Monitor System Performance: Unusual noises, weak cooling, or rising energy bills indicate the need for prompt service.
