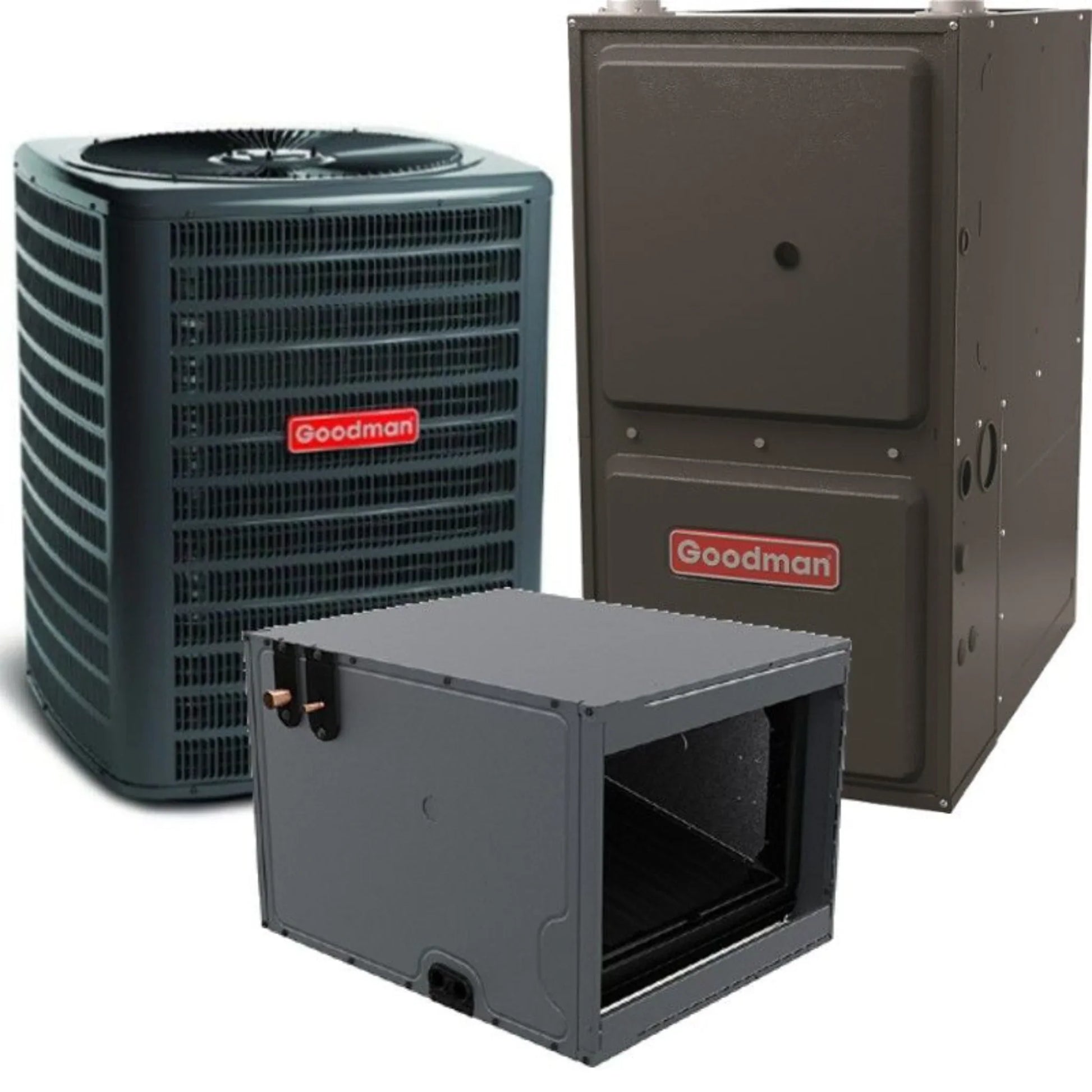

Goodman - 2.5 Ton/40,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.3 SEER2 - R32 - GLXS4BA3010 / CHPTA3026B3 / GD9T960403BN

Features

• Ideal size to cover a small house in ideal climates

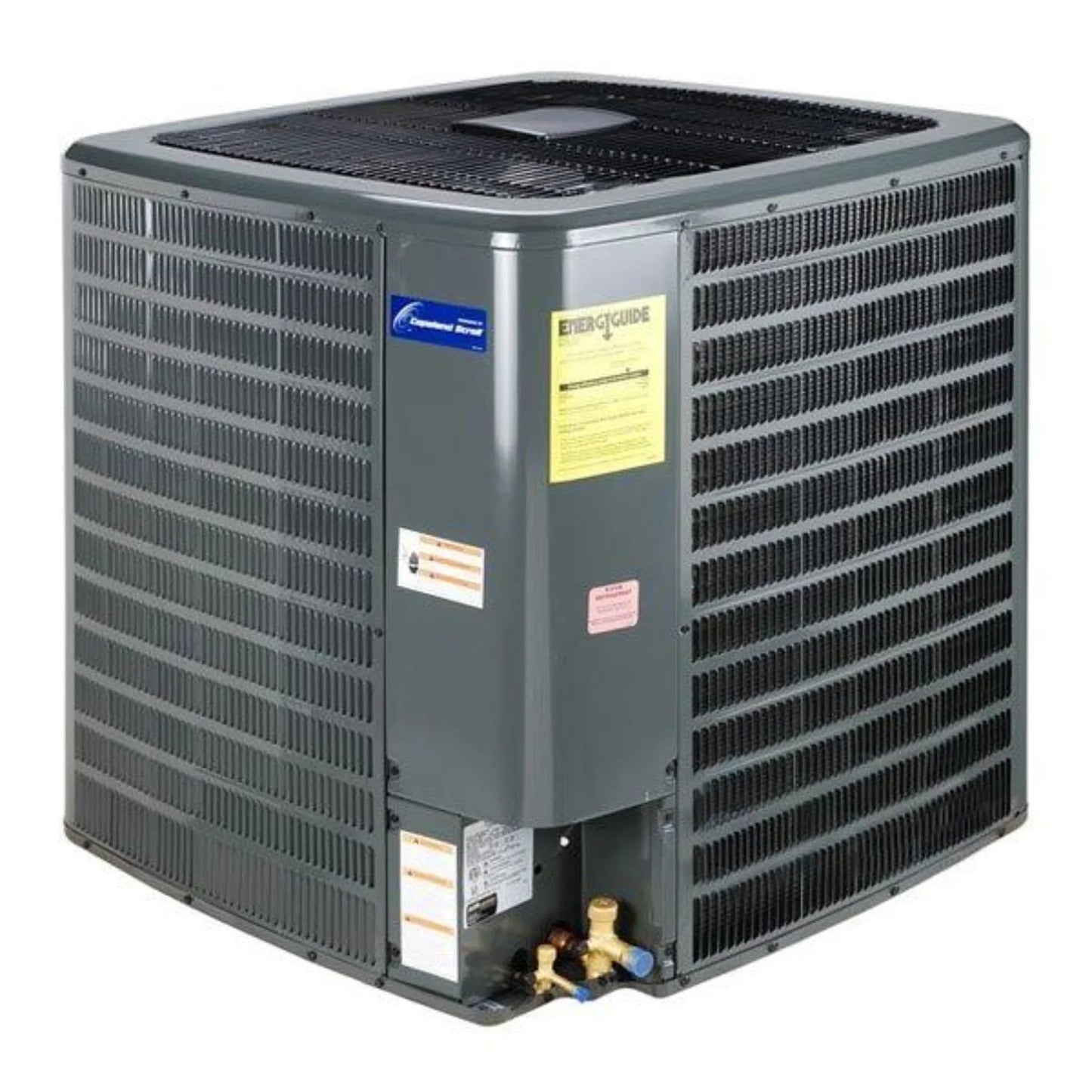

• 2.5 ton, 14.3 SEER2 AC-only condenser
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Fully charged for up to 15' of line set
• Low sound output
• Factory-installed filter drier
• 2.5 ton horizontal evaporator coil
• Can be used with heat pump and AC-only condensers
• R32: Complies with Clean Air Act New Refrigerant Requirements
• Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
• Factory-installed TXV kit
• This furnace is ideal to heat a smaller house (depending on climate)
• 40,000 BTU 96% AFUE natural gas furnace
• Requires plastic/PVC flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the downflow or horizontal orientation
• Can be converted to an LP furnace with an optional conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output


Specifications

Owner's Manual

• GLXS4B Specifications
• GLXS4B Installation Manual
• Warranty Information
• CHPTA Installation Manual

• CHPTA Specifications Sheet
• Evaporator Coil Warranty
• GD9T96 Specifications Sheet

What our Experts Think

• Balanced comfort for medium homes: This system pairs a 2.5 ton R‑32 air conditioner at ~14.3 SEER2 with a 96 % AFUE, 40,000 BTU gas furnace, delivering reliable cooling performance and very efficient heating for small–to–medium residential spaces.

• High winter efficiency: The 96 % AFUE rated furnace converts nearly all gas into usable heat, significantly reducing winter heating costs compared with standard 80% units—especially valuable in cooler climates.

• Good cooling efficiency: At 14.3 SEER2, the GLXS4BA3010 condenser offers solid summer performance and energy savings compared to baseline older models, helping lower electricity use without premium upfront cost.

• R‑32 refrigerant choice: Using R‑32 refrigerant improves heat transfer efficiency and reduces environmental impact compared with legacy refrigerants, aligning with modern HVAC standards.

• Optimized refrigerant control: The CHPTA3026B3 evaporator coil with factory‑installed TXV helps regulate refrigerant precisely based on load demands, improving humidity control and consistent cooling.

• Smooth airflow & quieter operation: The multi‑speed blower in the furnace enhances airflow control and reduces noise compared with basic single‑speed systems, improving comfort consistency.

• Versatile horizontal installation: Designed for horizontal or multi‑position placement, this setup fits attics, crawlspaces, and tight utility areas where vertical installations aren’t feasible.

• Durability and serviceability: Features like heavy‑gauge steel cabinets, insulated drain pans, and AHRI certification support long‑term reliability and easier servicing.

• Value‑focused choice: Experts see this system as a well‑rounded, mid‑efficiency HVAC solution combining dependable year‑round comfort, modern refrigerant tech, and efficient heating at a competitive value point.

Q&A

Q: What type of HVAC system is this?
A: This is a complete high-efficiency Goodman 2.5-ton system, including a 14.3 SEER2 air conditioner (GLXS4BA3010), 2.5-ton cased evaporator coil (CHPTA3026B3), and 40,000 BTU 96% AFUE gas furnace (GD9T960403BN) for reliable year-round comfort.

Q: What size home is suitable for this system?
A: A 2.5-ton AC system (30,000 BTU cooling) is ideal for medium-sized homes around 1,200–1,600 sq. ft., depending on insulation, ceiling height, and layout.

Q: How energy efficient is this system?
A: The system provides 14.3 SEER2 cooling efficiency and a 96% AFUE gas furnace, meaning nearly all fuel is converted into usable heat for highly efficient heating.

Q: What refrigerant does the air conditioner use?
A: The condenser uses R‑32 refrigerant, a modern, eco-friendly refrigerant designed to improve energy efficiency and reduce environmental impact.

Q: Does the furnace include advanced features?
A: Yes. The GD9T960403BN furnace features a variable-speed ECM blower motor, offering quieter operation, consistent airflow, and precise indoor temperature control.

Q: Can this system be installed horizontally?
A: Yes. Both the furnace and coil support horizontal installation, suitable for attics, crawl spaces, or closets with limited vertical space.

Q: What components are included?
A: The package includes:

• GLXS4BA3010 – 2.5 Ton 14.3 SEER2 outdoor AC condenser

• CHPTA3026B3 – 2.5 Ton cased evaporator coil

• GD9T960403BN – 40,000 BTU 96% AFUE gas furnace

Maintenance Tips

• Replace air filters every 1–3 months: Maintains airflow, protects the blower motor, and improves indoor air quality.

• Keep the outdoor condenser clear: Maintain 2–3 ft clearance and remove leaves, dirt, or debris for efficient cooling.

• Inspect evaporator coil and drain pan: The CHPTA aluminum coil should be checked for dust or clogs to prevent water leaks and maintain cooling performance.

• Check refrigerant line insulation: Ensure suction line insulation is intact to maintain energy efficiency.

• Keep vents and registers unobstructed: Allows balanced airflow for consistent heating and cooling throughout your home.

• Schedule annual professional service: A certified HVAC technician should inspect the furnace heat exchanger, blower motor, refrigerant levels, and safety controls yearly.

• Maintain a clear furnace area: Keep the surrounding space free of clutter for safe operation and proper airflow.
