Goodman - 2.5 Ton/40,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3630B3
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features
- This furnace is ideal to heat a smaller house (depending on climate)
- 40,000 BTU 96% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
- Ideal size to cover a small house in ideal climates
- 2.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 3 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 2.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS4BA3010 |
| Weight |
170.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN403010 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
30,000 |
| Decibel Level (dBA) |
71 |
| Horsepower |
1/6 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
15.0 Amps |
| Tonnage |
2.5 Ton |
| Connection |
Sweat |
| Height |
32" |
| Width |
29" |
| Depth |
29" |
Manual
What our Experts Think
-
Balanced Year‑Round Comfort: The Goodman CHPTA3630B3 HVAC System matches a 96% AFUE gas furnace with a 2.5 ton (40,000 BTU) air conditioner, delivering efficient heating and cooling in one system.
-
High‑Efficiency Heating: The 96% AFUE furnace helps maximize fuel use, reducing winter heating costs with reliable warmth.
-
Energy‑Smart Cooling: With 14.5 SEER2, the air conditioner provides improved cooling efficiency, lowering energy consumption during hot months.
-
Horizontal Installation Fit: Designed for horizontal duct applications, ideal for tight spaces such as crawlspaces, attics, or compact mechanical areas.
-
R32 Refrigerant Performance: Uses R32 refrigerant for better heat transfer and lower environmental impact than older refrigerants.
-
Matched System Advantage: Engineered as a coordinated package to ensure optimized airflow, capacity balance, and dependable year‑round performance.
-
Goodman Value & Reliability: Combines high heating efficiency, efficient cooling, and flexible installation, making it a smart choice for homeowners wanting dependable, whole‑home comfort.
Q&A
Q: What components are included in this system?

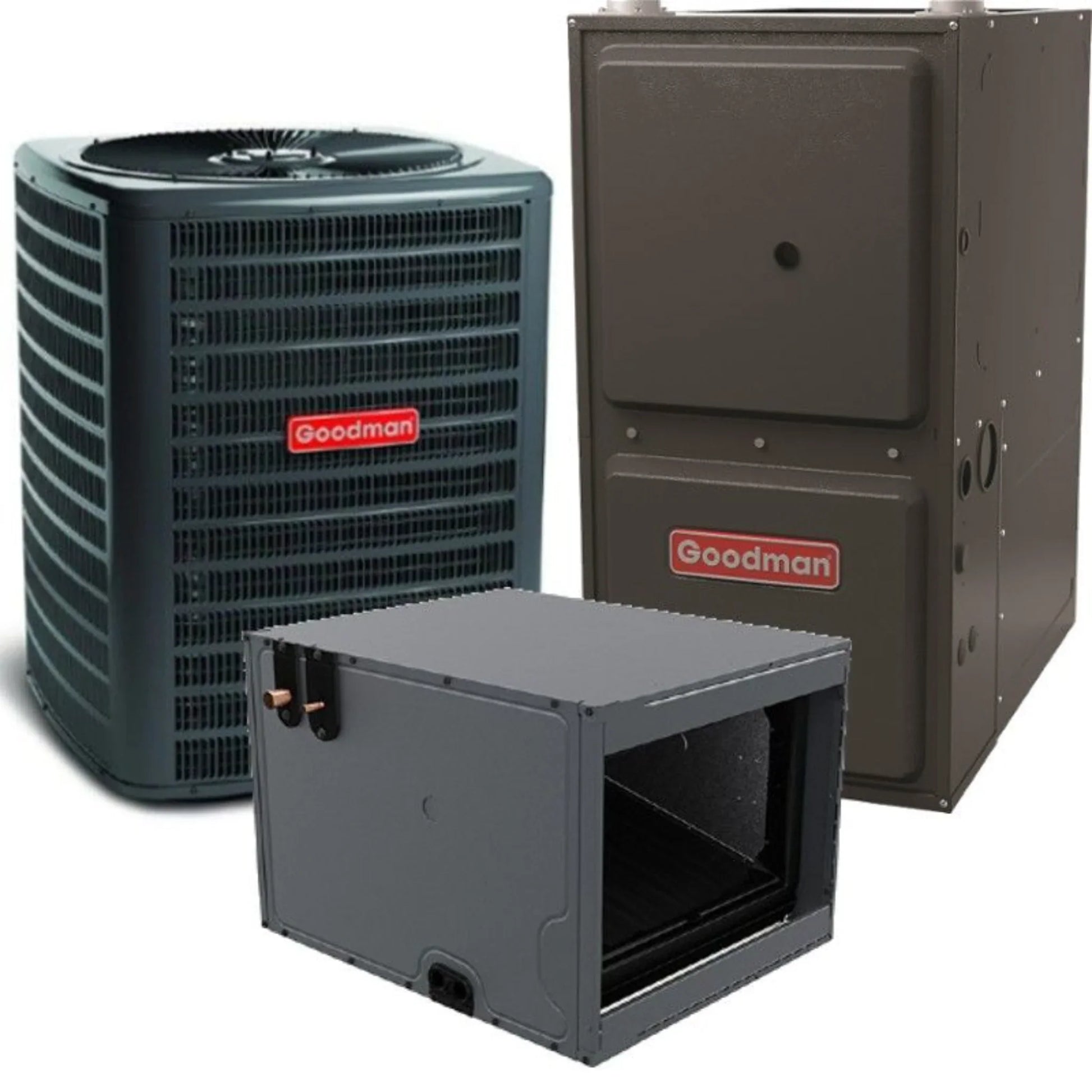

A: This complete HVAC system includes: a 2.5 ton 14.5 SEER2 R32 air conditioner condenser, a 40,000 BTU 96% AFUE gas furnace, and a horizontal cased evaporator coil (CHPTA3630B3) — all matched for performance.
Q: What heating and cooling capacities does it offer?
A: Cooling capacity is 2.5 tons (~30,000 BTU) with 14.5 SEER2 efficiency for efficient cooling. The furnace delivers 40,000 BTU heat input at 96% AFUE, meaning most fuel becomes usable heat.
Q: What does a 96% AFUE rating mean?
A: 96% AFUE means approximately 96 ¢ of every dollar spent on fuel becomes heat, making this one of the most efficient gas furnaces available for operating cost savings.
Q: What is SEER2 14.5 and why it matters?
A: SEER2 14.5 measures seasonal cooling efficiency under updated test standards. A higher SEER2 rating improves efficiency and typically reduces electricity costs compared to lower SEER units.
Q: What installation configurations are supported?
A: The furnace and coil support horizontal installation, ideal for attics, closets, or tight mechanical spaces with horizontal duct runs.
Q: What refrigerant does the system use?
A: This system uses R32 refrigerant, a newer and more environmentally friendly choice that meets updated regulatory requirements.
Maintenance Tips
-
Replace Air Filters Monthly: Keep airflow optimal and protect both furnace and AC components; replace every 1–3 months.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.
-
Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.
-
Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for proper operation.
-
Monitor System Performance: Listen for unusual noises from the variable-speed blower or condenser; watch for reduced heating or cooling efficiency.
-
Schedule Annual Professional Service: Licensed HVAC technicians should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
