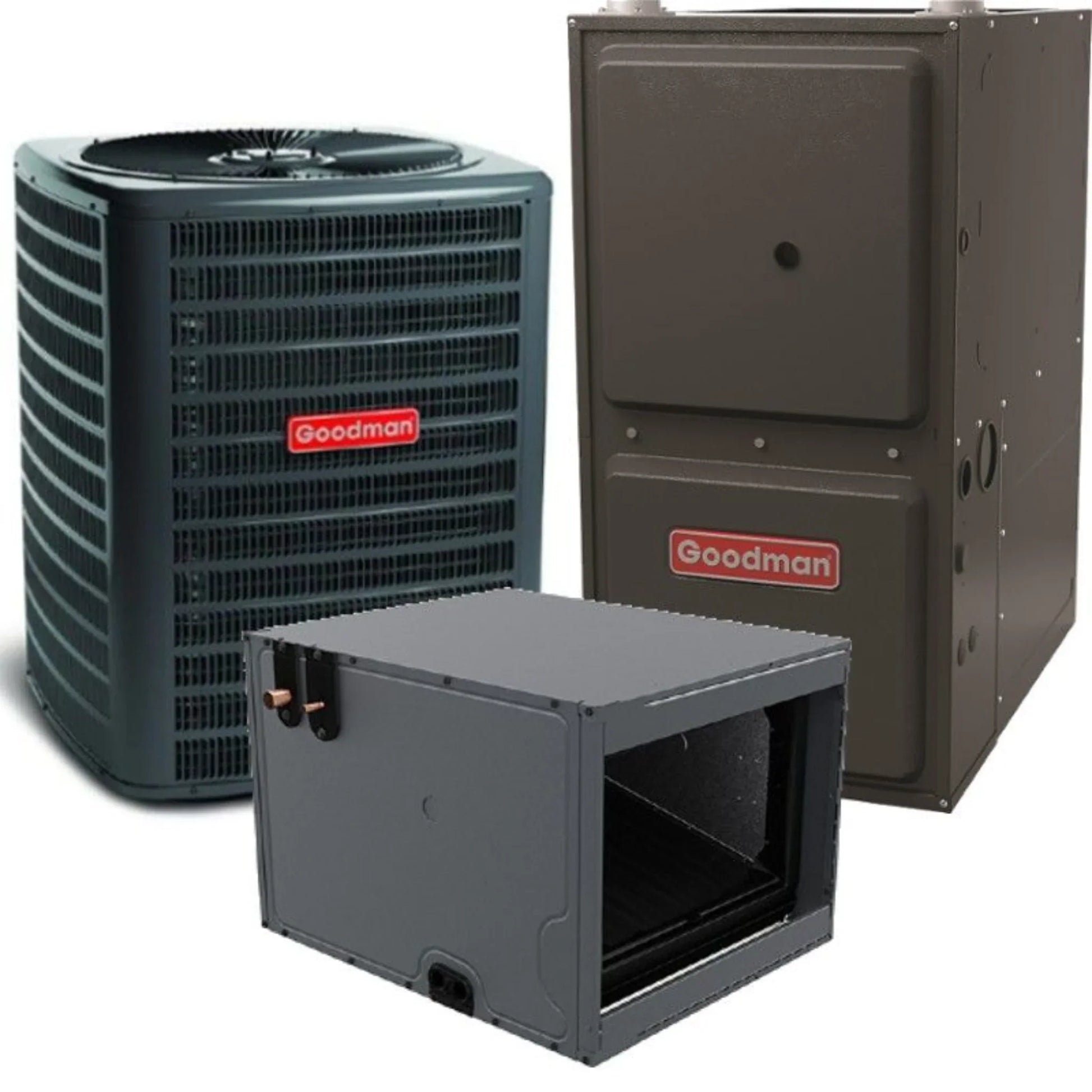

Goodman - 2.5 Ton/40,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 -GLXS4BA3010 / CHPTA3630B3 / GD9T960403BN
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates

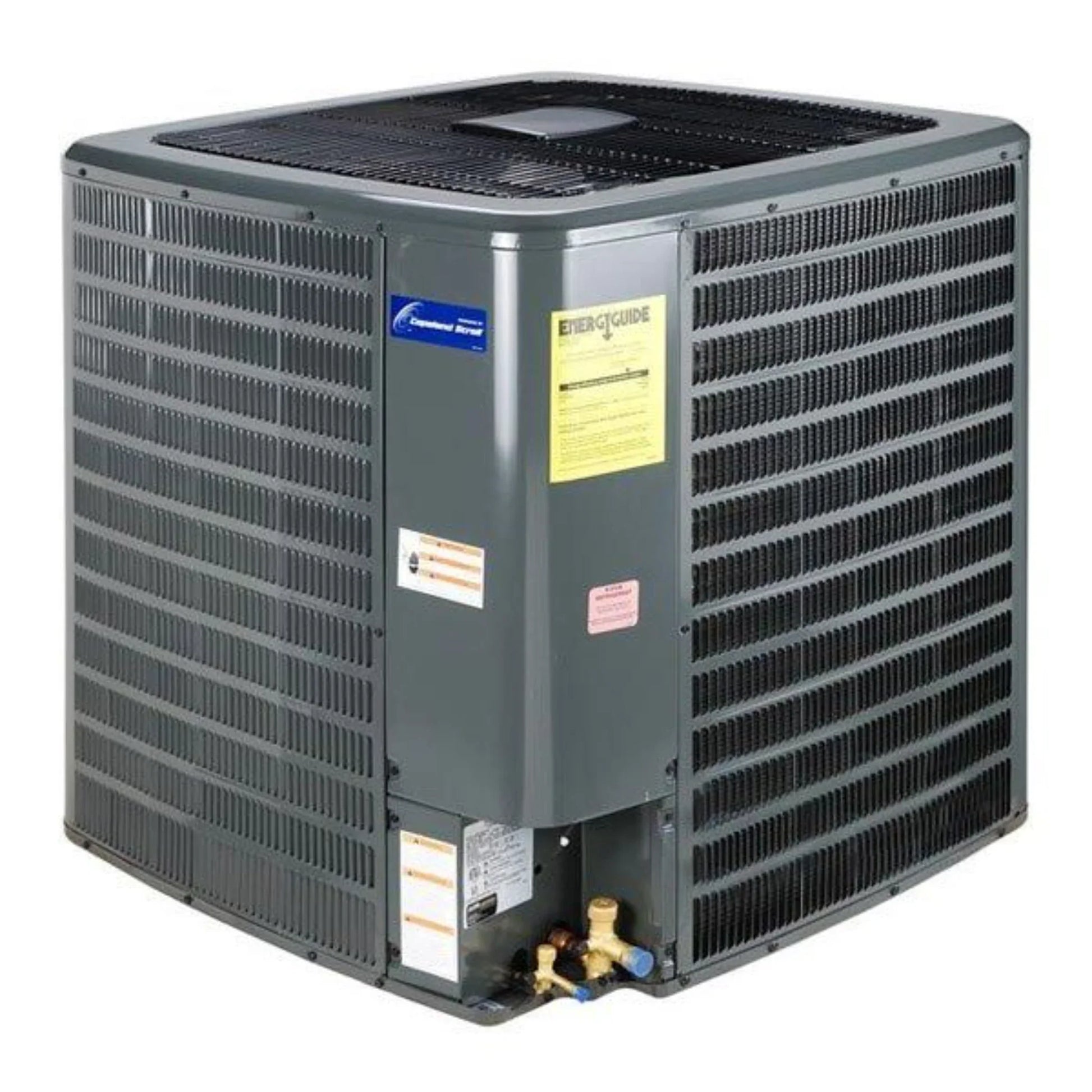

- 2.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 3 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a smaller house (depending on climate)
- 40,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GLXS4BA3010 |
| Weight |
170.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN403010 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
30,000 |
| Decibel Level (dBA) |
71 |
| Horsepower |
1/6 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
15.0 Amps |
| Tonnage |
2.5 Ton |
| Connection |
Sweat |
| Height |
32" |
| Width |
29" |
| Depth |
29" |
Owner's Manual
What our Experts Think
-
Well‑rounded cooling + high‑efficiency heating: This system combines a 2.5 ton R‑32 air conditioner (~14.5 SEER2) with a 96 % AFUE, 60,000 BTU gas furnace, offering efficient year‑round comfort for small to medium homes.
-
Lower energy bills in winter: The 96 % AFUE furnace converts most fuel into heat—only ~4 % is lost—helping reduce heating costs compared to standard 80 % AFUE units.
-
Stable, smooth airflow: The furnace’s multi‑speed ECM blower motor delivers controlled airflow with quieter operation and more consistent indoor temperatures than basic single‑speed motors.
-
Modern refrigerant and cooling tech: The GLXS4BA3010 condenser uses R‑32 refrigerant for improved thermodynamic efficiency and a factory‑installed TXV evaporator coil helps with better humidity control and cooling responsiveness.
-
Versatile installation options: Designed for horizontal placement and multi‑position setups, this system fits attics, crawlspaces, and other tight mechanical areas with installation flexibility.
-
Built‑in durability: Goodman components feature heavy‑gauge cabinets, insulated panels, and extended warranty options that support long‑term reliability and easier service access.
-
Cost‑effective comfort package: Our experts view this configuration as a solid mid‑efficiency HVAC solution that balances good seasonal efficiency, modern refrigerant tech, and dependable performance at an attractive value.
Q&A
Q: What type of HVAC system is this?
A: This is a complete high-efficiency Goodman 2.5-ton system, including a 14.5 SEER2 air conditioner (GLXS4BA3010), 2.5-ton cased evaporator coil (CHPTA3630B3), and 40,000 BTU 96% AFUE gas furnace (GD9T960403BN) for dependable year-round comfort.
Q: What size home is suitable for this system?
A: A 2.5-ton AC system (30,000 BTU) is ideal for medium-sized homes around 1,200–1,600 sq. ft., depending on insulation, ceiling height, and layout.
Q: How energy efficient is this system?
A: The system delivers 14.5 SEER2 cooling efficiency and a 96% AFUE gas furnace, converting nearly all fuel into usable heat for highly efficient residential heating.
Q: What refrigerant does the air conditioner use?
A: The outdoor condenser uses R‑32 refrigerant, a modern, eco-friendly refrigerant designed to maximize energy efficiency and reduce environmental impact.
Q: Does the furnace include advanced features?
A: Yes. The GD9T960403BN furnace has a variable-speed ECM blower motor, providing quieter operation, improved airflow, and consistent indoor temperatures.
Q: Can this system be installed horizontally?
A: Yes. Both the furnace and coil support horizontal installation, making it suitable for attics, crawl spaces, or closets where vertical space is limited.
Q: What components are included?
A: The package includes:
-
GLXS4BA3010 – 2.5 Ton 14.5 SEER2 outdoor AC condenser
-
CHPTA3630B3 – 2.5 Ton cased evaporator coil
-
GD9T960403BN – 40,000 BTU 96% AFUE gas furnace
Maintenance Tips
-
Replace air filters every 1–3 months: Maintains airflow, protects the blower motor, and improves indoor air quality.
-
Keep the outdoor condenser clear: Maintain 2–3 ft clearance around the unit and remove leaves, dirt, or debris to ensure optimal cooling performance.
-
Inspect evaporator coil and drain pan: Check the CHPTA aluminum coil for dust or clogs to prevent water leaks and maintain efficiency.
-
Check refrigerant line insulation: Ensure suction line insulation is intact to prevent energy loss.
-
Keep vents and registers unobstructed: Ensures balanced airflow for consistent heating and cooling throughout the home.
-
Schedule annual professional service: A certified HVAC technician should inspect the furnace heat exchanger, blower motor, refrigerant levels, and safety controls yearly.
-
Maintain a clear furnace area: Keep the surrounding space free of clutter for safe operation and proper airflow.
