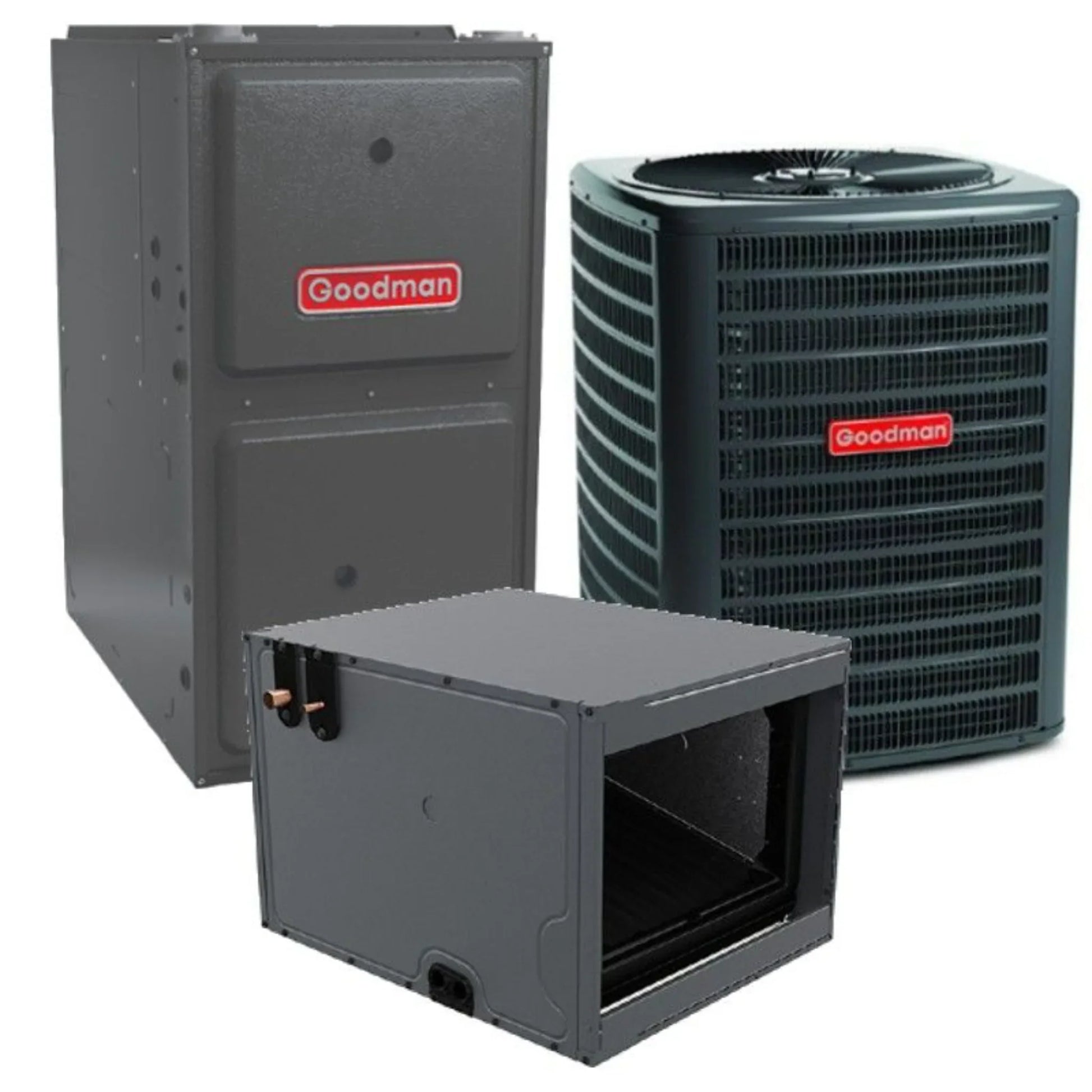

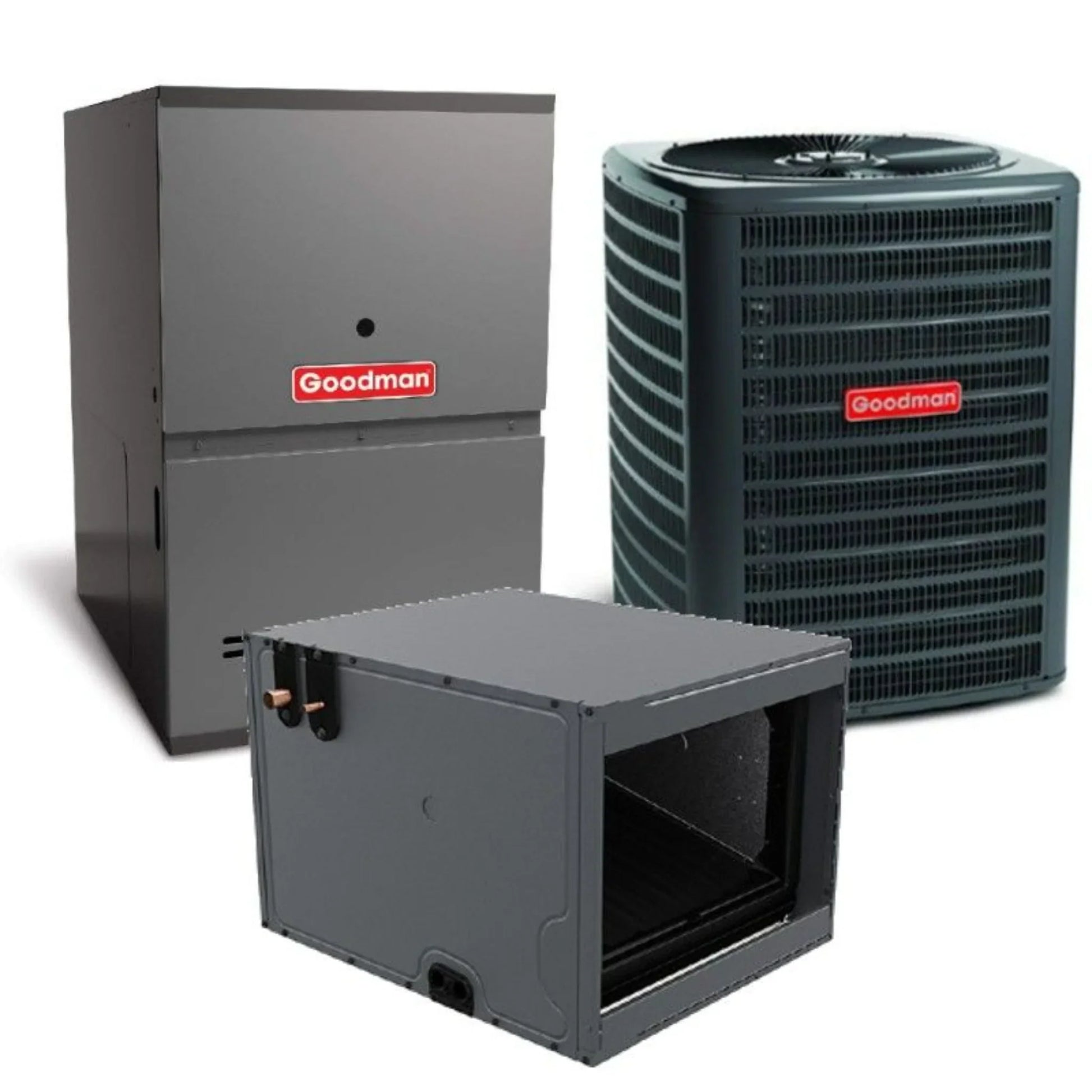

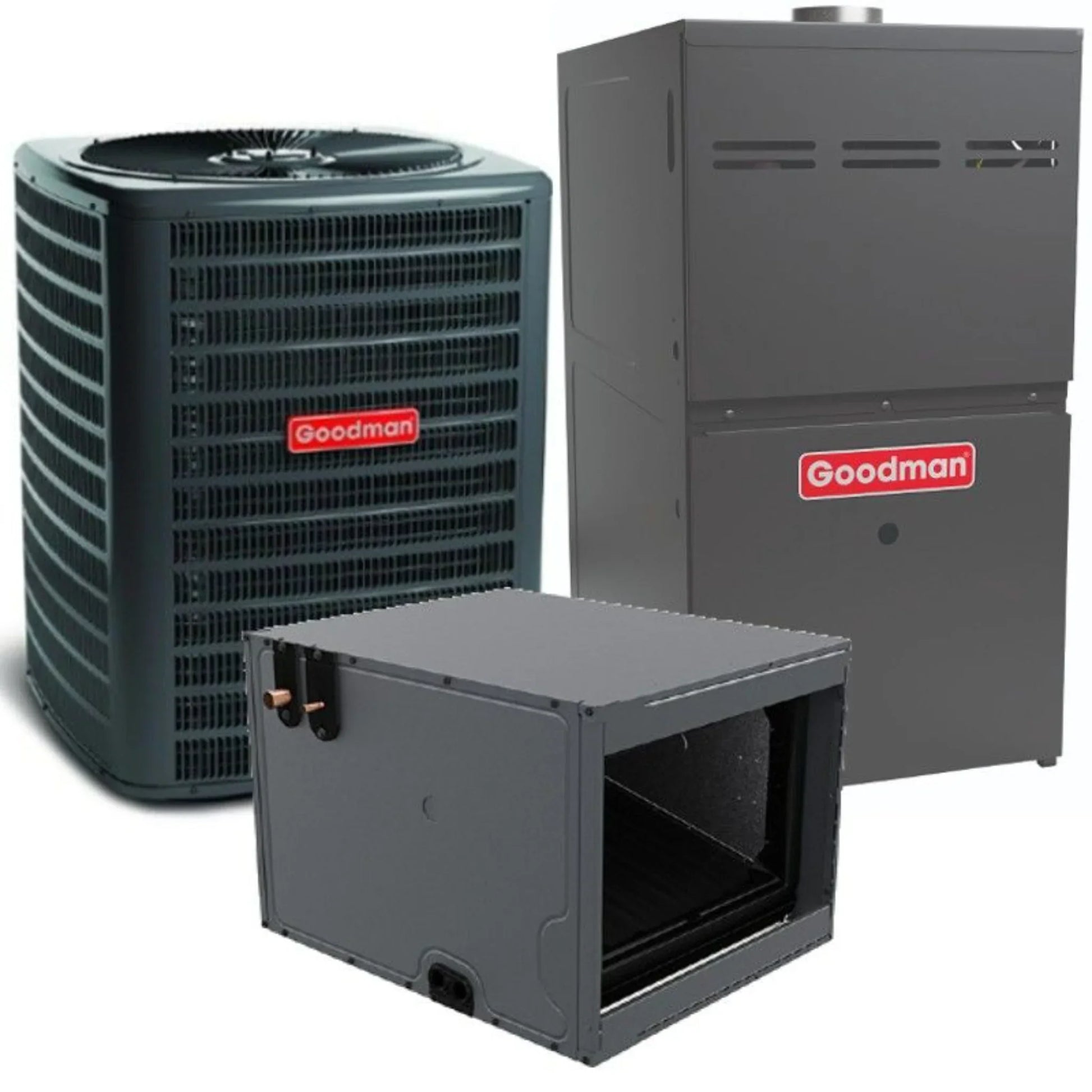

Goodman - 2.5 Ton/60,000 BTU 92% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3026B3
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features
- This furnace is ideal to heat a smaller house (depending on climate)
- 60,000 BTU 92% efficient natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
- Ideal size to cover a small house in ideal climates
- 2.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 2.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser |
| SKU |
GLXS4BA3010 |
| Weight |
180.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX140301 |
| Cooling BTU |
30,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
72 |
| Horsepower |
0.167 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
15.5 Amps |
| Tonnage |
2.5 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
29" |
| Depth |
29" |
Manual
What our Experts Think
-
Balanced, Year‑Round Comfort: The Goodman CHPTA3026B3 HVAC System pairs a 92% AFUE gas furnace with a 2.5 ton (60,000 BTU) air conditioner, delivering efficient heating and cooling in one optimized system.
-
High‑Efficiency Heating: 92% AFUE means most fuel becomes usable heat, helping lower winter energy costs and deliver strong, consistent warmth.
-
Efficient Cooling Performance: 14.5 SEER2 cooling helps reduce electricity use in hot weather while maintaining comfortable indoor temperatures.
-
Horizontal Installation Fit: Built for horizontal duct applications, making it ideal for crawlspaces, attics, or other low‑clearance mechanical areas.
-
R32 Refrigerant Advantage: Uses R32 refrigerant, which provides better heat transfer and a smaller environmental footprint versus older refrigerants.
-
Matched System Optimization: Designed as a coordinated furnace + AC package to ensure harmonized airflow, consistent capacity, and reliable seasonal performance.
-
Great Value & Reliability: Combines high heating efficiency, strong cooling performance, and installation flexibility, making it a smart choice for dependable whole‑home HVAC comfort.
Q&A
Q: What’s included in this HVAC system?
A: This matched system includes a 2.5 ton R32 14.5 SEER2 air conditioner condenser, the Goodman 60,000 BTU 92% AFUE gas furnace, and a horizontal evaporator coil (CHPTA3026B3) designed to work together for efficient year‑round comfort.
Q: How much cooling capacity and efficiency does it offer?
A: The outdoor unit delivers 2.5 tons (~30,000 BTU) of cooling with 14.5 SEER2 efficiency, helping reduce seasonal electricity costs while providing consistent indoor comfort.
Q: What does 92% AFUE mean for the gas furnace?
A: 92% AFUE means roughly 92 ¢ of each dollar spent on fuel becomes usable heat, boosting heating efficiency over lower AFUE models and helping lower winter energy bills.
Q: What refrigerant does this system use?
A: This system uses R32 refrigerant, a modern refrigerant standard with improved energy performance and lower environmental impact than many older refrigerants.
Q: Is this suitable for horizontal installation?
A: Yes — the CHPTA3026B3 horizontal evaporator coil and furnace are configured for horizontal installation, ideal where vertical space is limited (e.g., crawlspaces, attics, closets).
Q: What are the key benefits of a matched HVAC system?
A: Matched systems ensure optimized airflow, balanced efficiency, reliable year‑round comfort, and full manufacturer warranty support, which can perform better than mismatched components.
Q: Who is this system best for?
A: Ideal for small to medium homes needing efficient cooling with 14.5 SEER2 and dependable 92% AFUE heating in a single horizontally installed package
Maintenance Tips
-
Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain proper airflow and protect both furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even heating and cooling.
-
Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.
-
Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.
-
Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for correct operation.
-
Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.
-
Schedule Annual Professional Service: Licensed HVAC technicians should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
