Goodman - 2.5 Ton/60,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Downflow - 14.3 SEER2 - R32 - CAPTA3026B3
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features

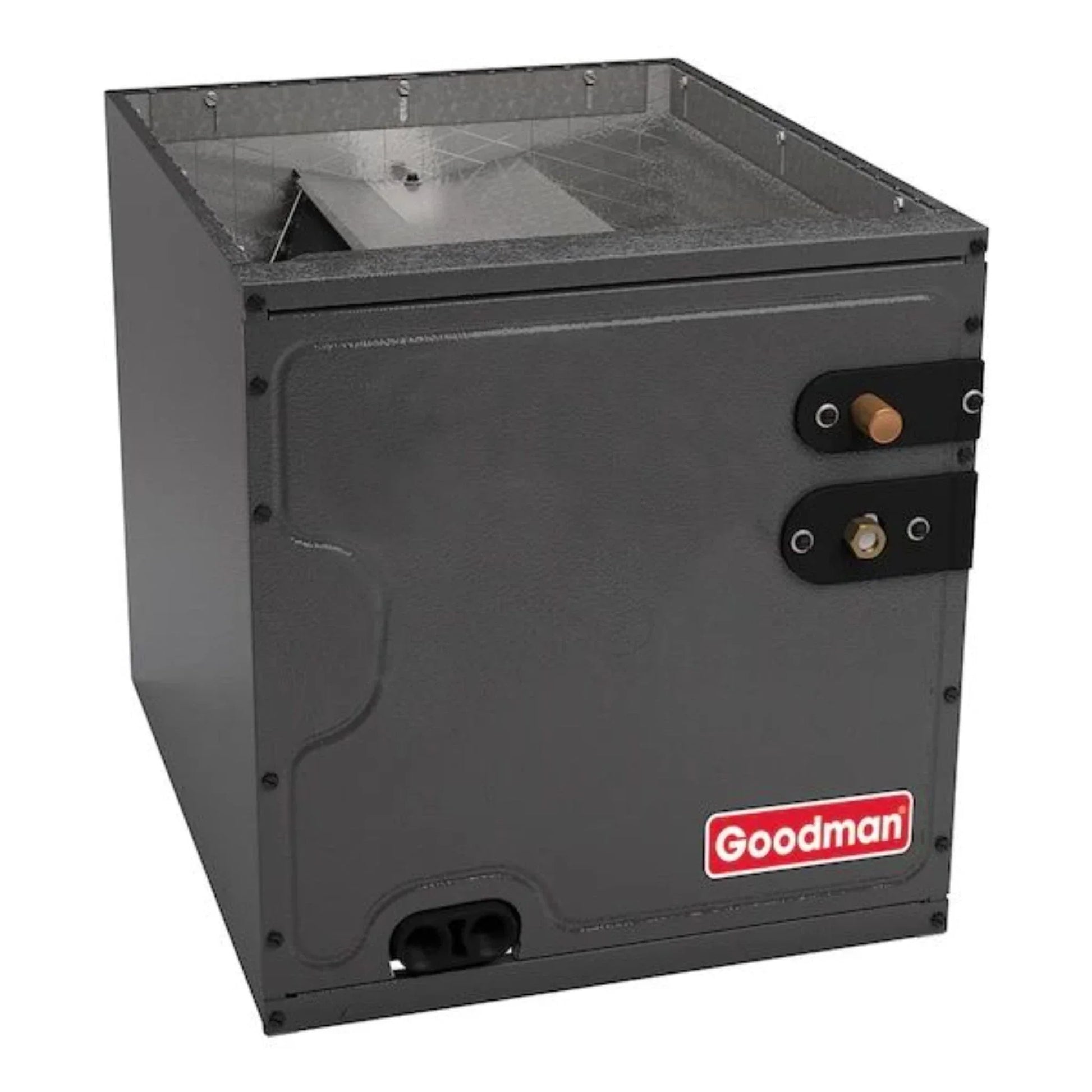

- All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
- Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
- Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
- Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
- R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
Specifications

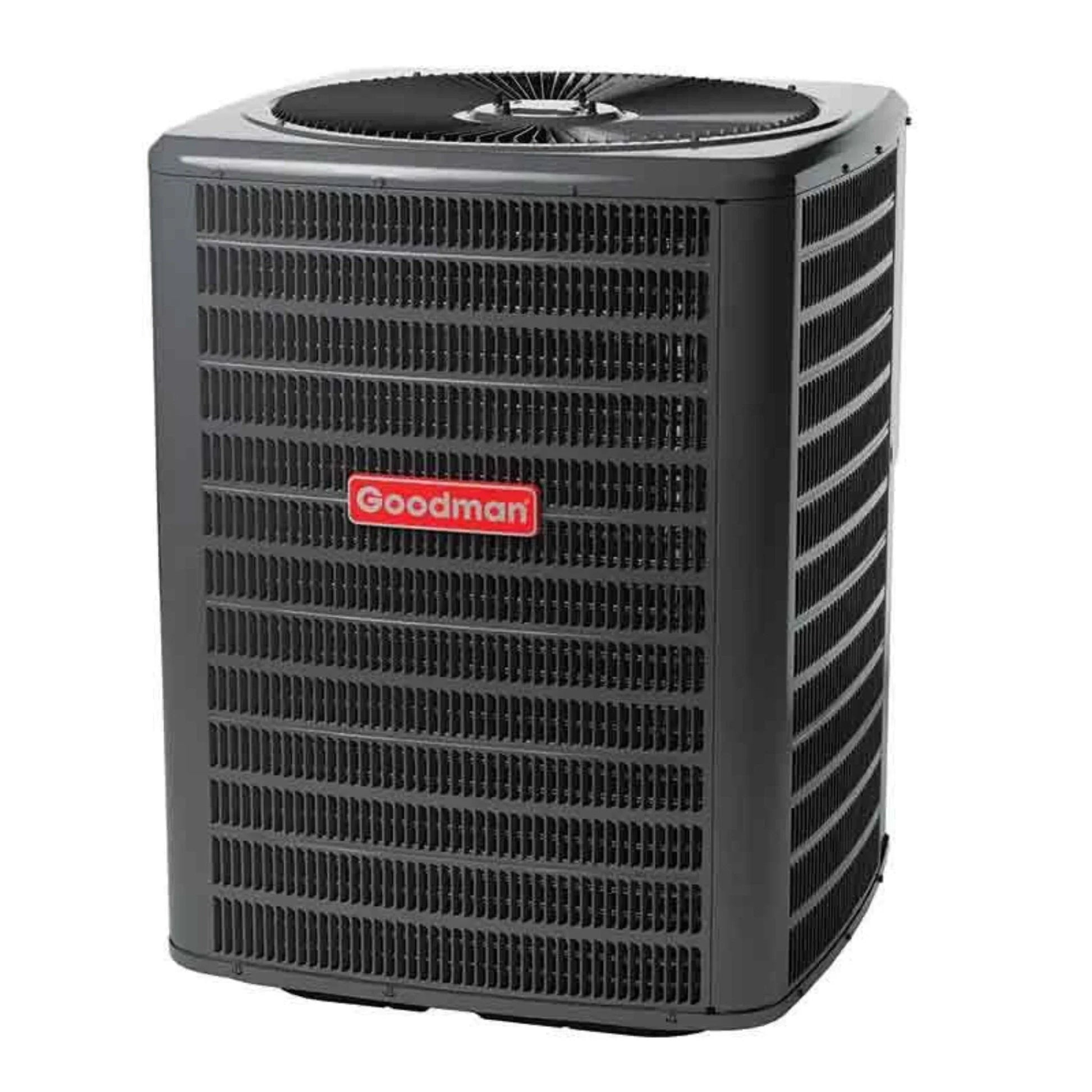

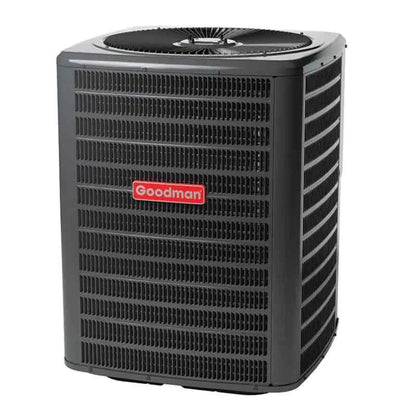

| 2.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS4BA3010 |
| Weight |
170.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN403010 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
30,000 |
| Decibel Level (dBA) |
71 |
| Horsepower |
1/6 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
15.0 Amps |
| Tonnage |
2.5 Ton |
| Connection |
Sweat |
| Height |
32" |
| Width |
29" |
| Depth |
29" |
Manual
What our Experts Think
-
Matched Heating & Cooling Package – Combines a 60,000 BTU, 96% AFUE gas furnace with a 2.5 ton air conditioner for dependable year‑round comfort in medium‑sized homes.
-
High Heating Efficiency (96% AFUE) – Means most fuel converts to heat, significantly reducing heating costs versus standard‑efficiency units.
-
14.3 SEER2 Cooling Performance – Meets modern efficiency standards, lowering energy use and utility bills compared to older AC systems.
-

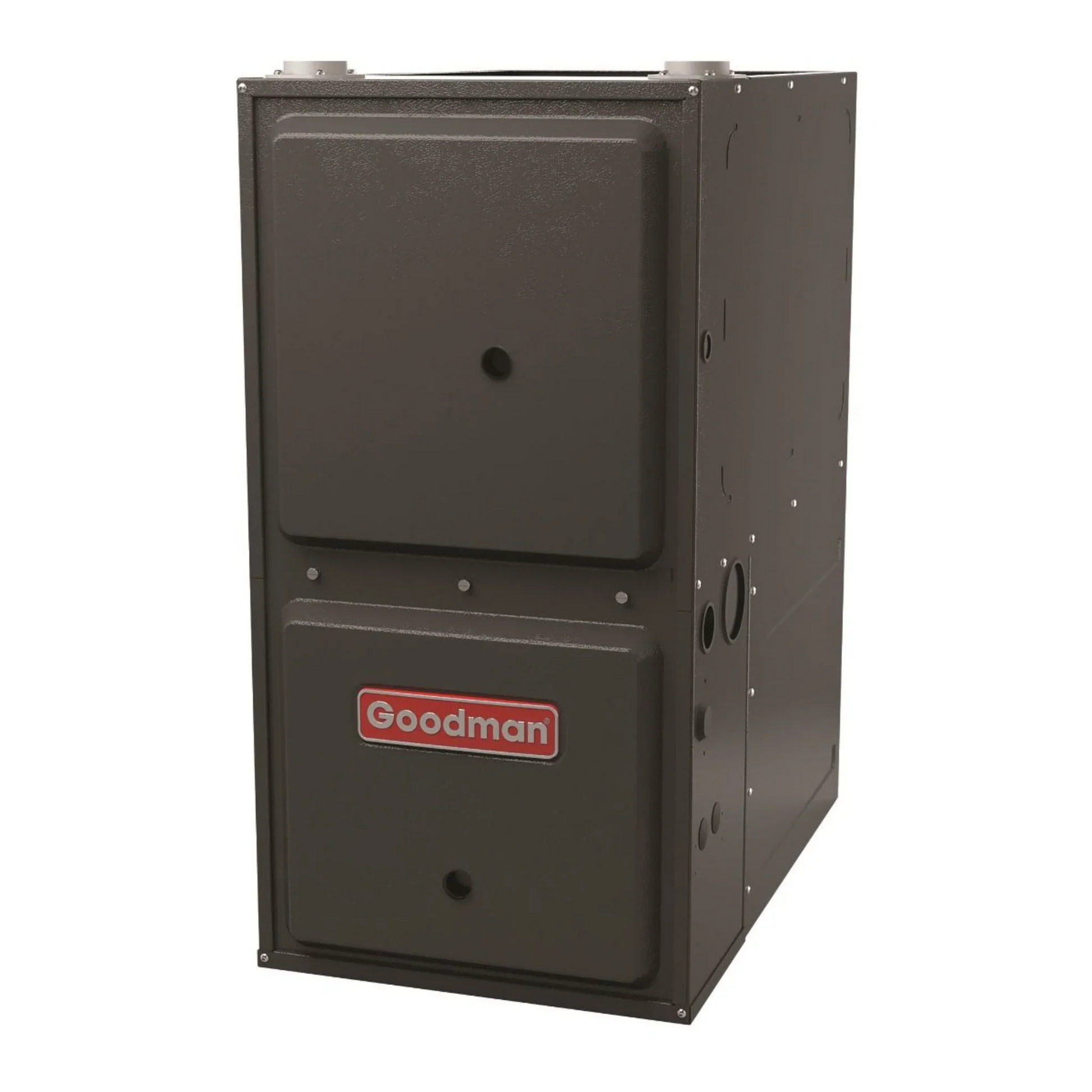

Downflow Furnace Configuration – Ideal for installations in basements or attic‑mounted air handlers, providing installation flexibility for tight spaces.
-
R‑32 Refrigerant Compatibility – Uses next‑generation, lower‑environmental‑impact refrigerant for modern cooling systems.
-
Factory‑Matched System Design – Designed to work together for optimized performance, airflow, and reliability when installed by a qualified technician.
-
Durable Construction – Built with reliable components and Goodman’s proven engineering for long‑term operation with routine maintenance.
-
Balanced Comfort & Value – Excellent choice for homeowners who want efficient heating, effective cooling, and long‑term energy cost savings without overspending on ultra‑high SEER equipment.
Q&A
Q: What’s included in this Goodman HVAC system?

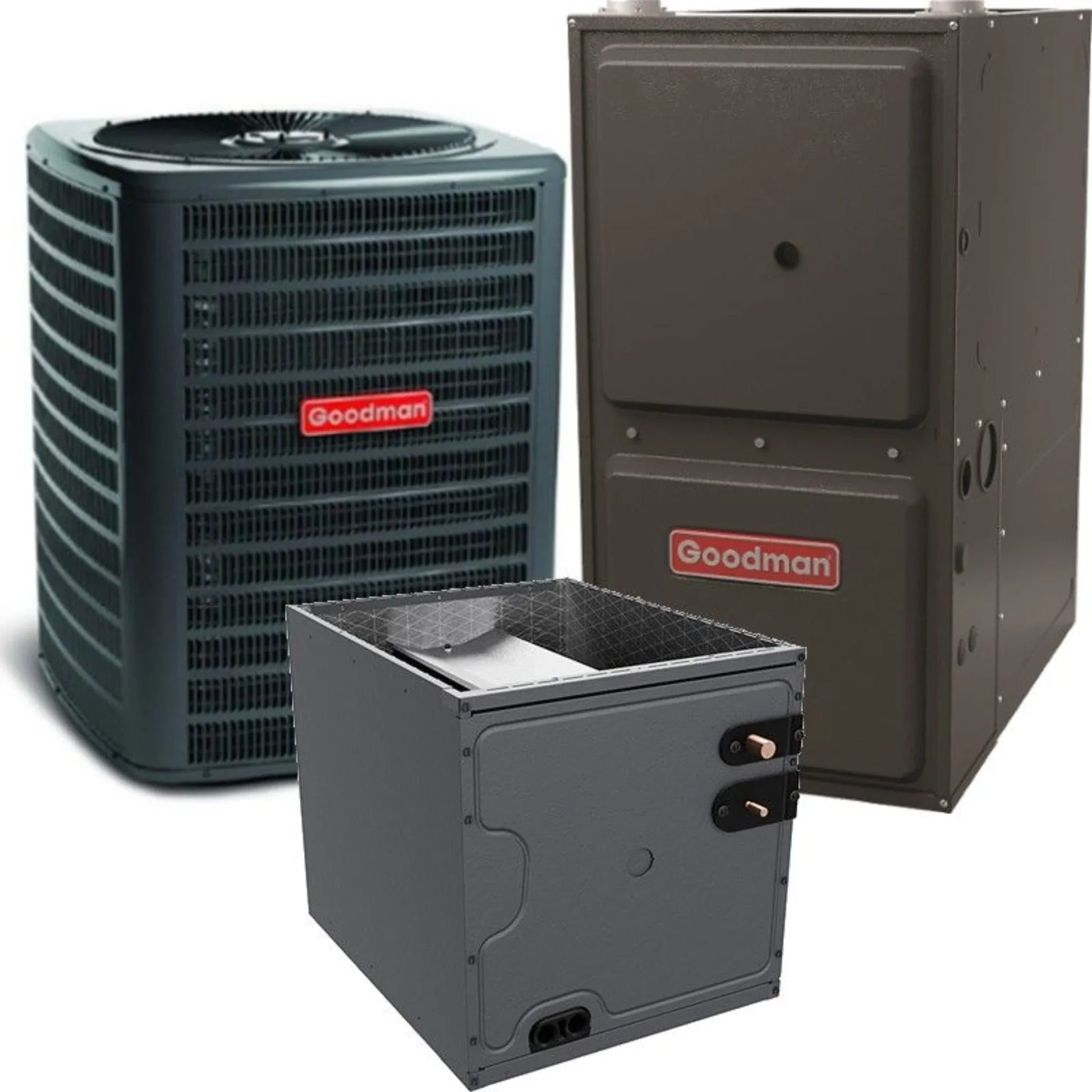

A: This matched system includes a 2.5 ton 14.3 SEER2 R32 air conditioner condenser (GLXS4BA3010), a CAPTA3026B3 R32‑ready cased evaporator coil with TXV, and a 96% AFUE 60,000 BTU gas furnace designed for downflow/horizontal installation.
Q: What size home is this system best for?
A: With 2.5 ton cooling and 60,000 BTU heating, this system fits medium to larger homes (~1,500–2,500 sq ft) depending on insulation, local climate, and duct design.
Q: What does 14.3 SEER2 mean for cooling performance?
A: A 14.3 SEER2 rating delivers efficient seasonal cooling performance, helping reduce electricity costs compared to older, lower‑SEER systems.
Q: Why is 96% AFUE significant for the furnace?
A: 96% AFUE means 96% of the fuel is converted into heat, offering high heating efficiency and lower natural gas costs.
Q: What refrigerant does this system use?
A: This system uses R32 refrigerant, a more efficient and environmentally friendly choice than older refrigerants.
Q: What installation orientation does the furnace support?
A: The furnace supports downflow and horizontal installation, ideal for attics, crawlspaces, or tight mechanical room
Maintenance Tips
-
Replace Air Filters Regularly: Check every 1–3 months to maintain airflow and protect both furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Clean Outdoor AC Condenser: Rinse coils every 3–6 months to preserve SEER2 efficiency and prevent debris buildup.
-
Inspect Furnace Components: Have a professional check burners, heat exchanger, gas pressure, and airflow annually for safe and efficient operation.
-
Check Refrigerant Lines & Insulation: Ensure lines are intact and insulation is in good condition for optimal R32 efficiency.
-
Maintain Condensate Drains: Keep both furnace and AC drain lines clear to prevent water issues or system shutdowns.
-
Schedule Annual Professional Service: A certified technician should inspect electrical connections, airflow, and overall system performance yearly.
-
Monitor for Unusual Signs: Strange noises, odors, or inconsistent heating/cooling require prompt professional attention.
