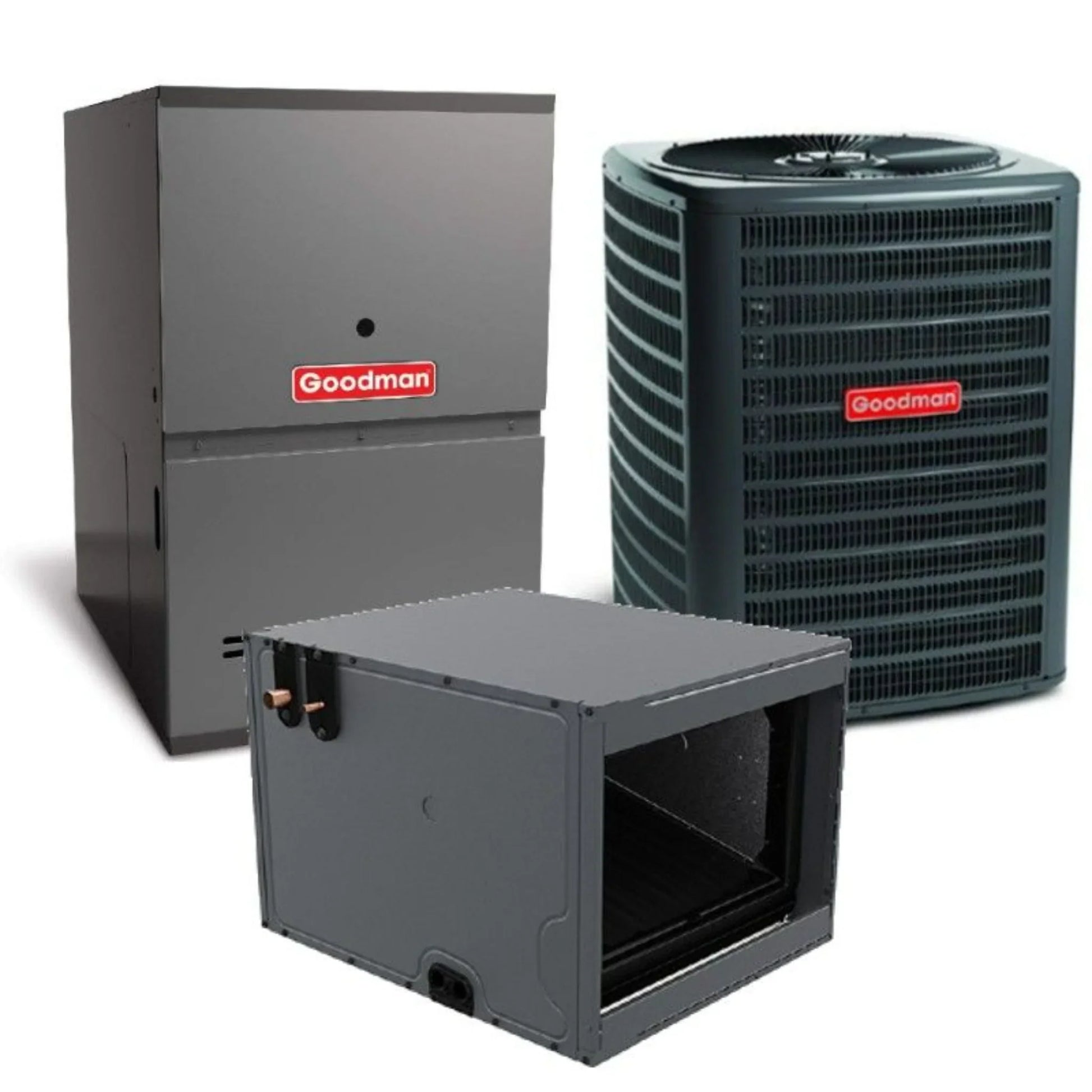

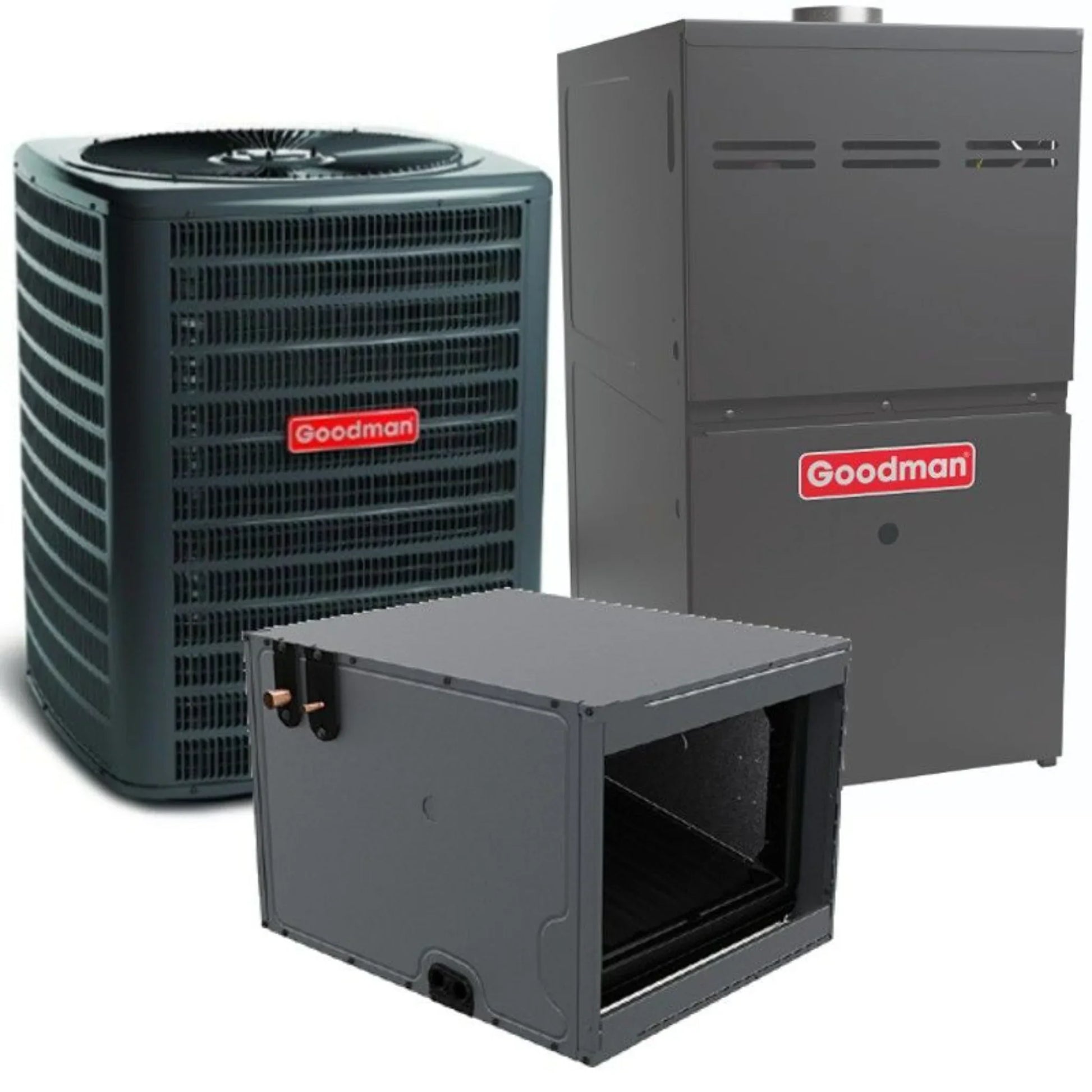

Goodman - 2.5 Ton/80,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3630C3
A Goodman gas furnace and air conditioner system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a medium-sized house
- 2.5 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
- 3 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit

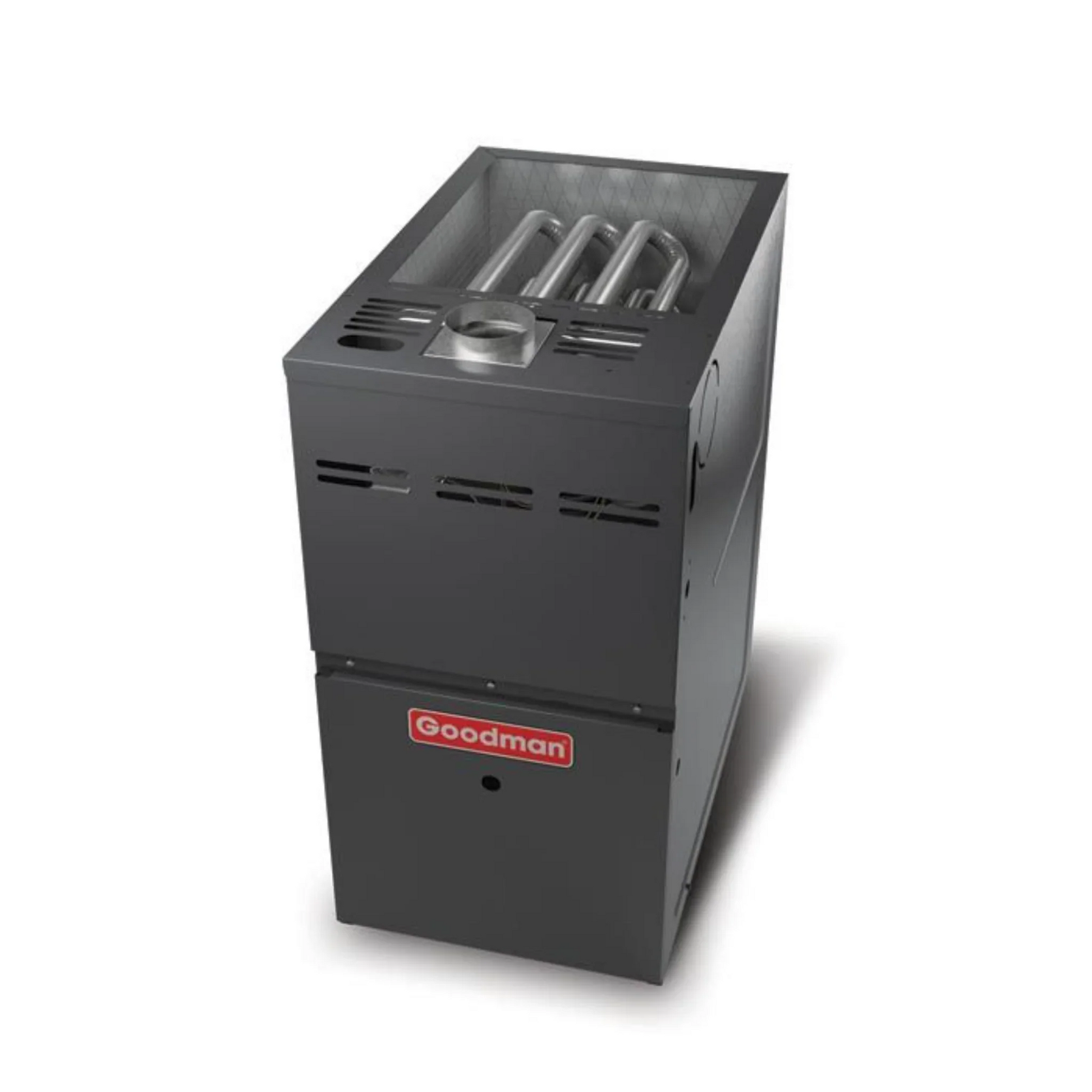

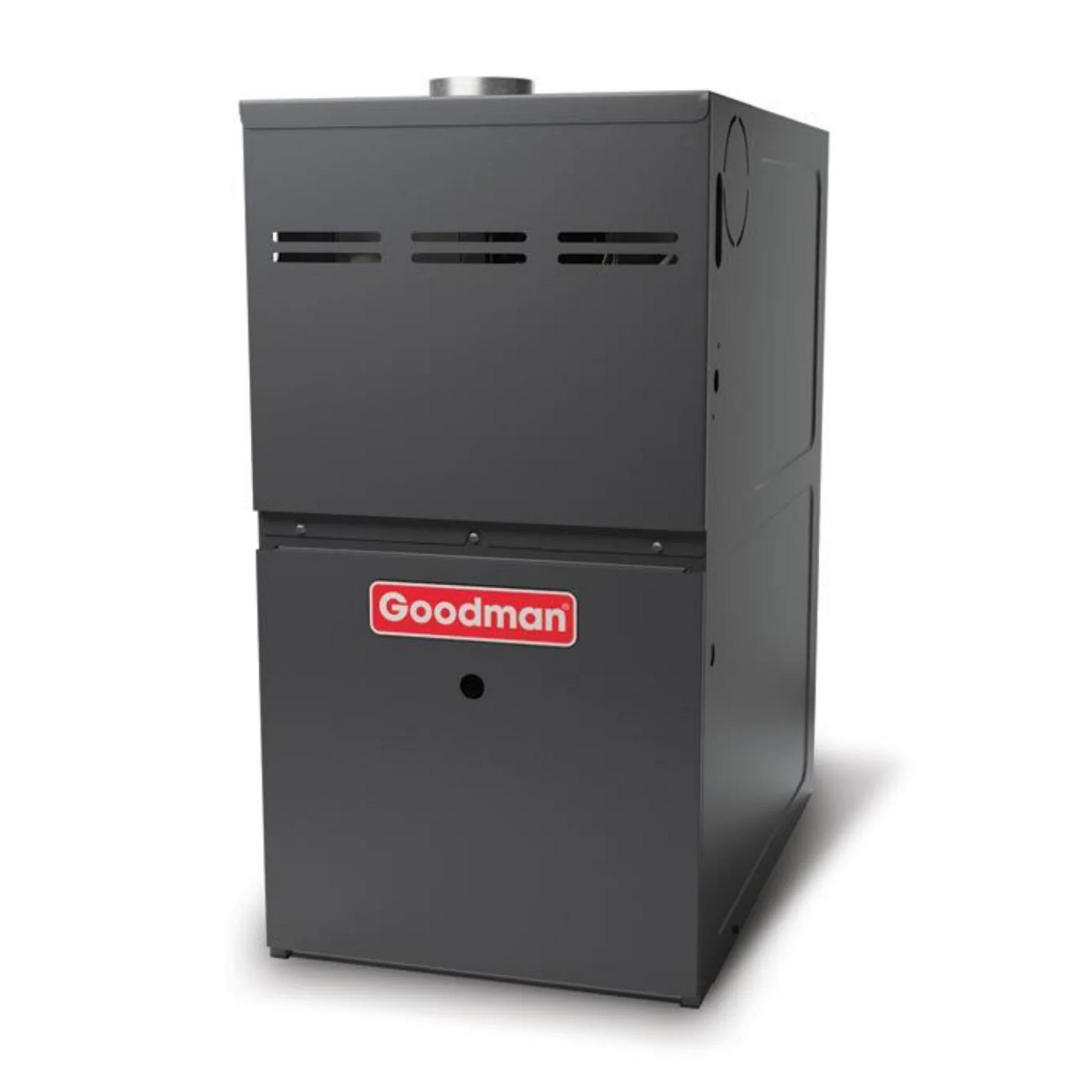

- This furnace is ideal to heat a medium-sized house (in average climate conditions)
- 80,000 BTU 80% AFUE two stage variable speed natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| 2.5 Ton 13.4 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS3BN3010 |
| Weight |
149.000000 |
| Manufacturer |
Goodman |
| Replaces |
Add GSX130301 and GSXN3N3010 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
30,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
14.7 Amps |
| Tonnage |
2.5 Ton |
| Connection |
Sweat |
| Height |
32 1/2" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
Balanced Year‑Round Comfort: The Goodman CHPTA3630C3 HVAC System matches an 80% AFUE gas furnace with a 2.5 ton air conditioner, delivering reliable heating and cooling in one coordinated package.
-
Dependable Heating Performance: With 80% AFUE, the furnace offers steady, cost‑effective warmth for moderate climates and everyday home use.
-
Efficient Cooling: 14.5 SEER2 cooling efficiency helps reduce summer electricity costs while maintaining comfortable indoor temperatures.
-
Horizontal Installation Flexibility: Designed for horizontal duct applications, making it suitable for attics, crawlspaces, or other low‑clearance areas.
-
R32 Refrigerant Advantage: Uses R32 refrigerant, offering improved heat transfer and a smaller environmental footprint than older refrigerants.
-
Matched System Benefits: Engineered as a coordinated furnace + AC system to ensure consistent airflow, balanced capacity, and reliable year‑round performance.
-
Goodman Value & Reliability: Combines solid heating and cooling efficiency with flexible installation, making it a practical, cost‑effective choice for whole‑home HVAC comfort.
Q&A
Q: What’s included in this HVAC system?
A: A complete matched cooling and heating split system with: a 2.5 ton R32 air conditioner condenser, a horizontal evaporator coil (CHPTA3630C3), and an 80,000 BTU 80% AFUE gas furnace — all designed for horizontal installation and compatible refrigerant.
Q: How much cooling capacity does the AC unit provide?
A: The air conditioner delivers 2.5 tons of cooling (~30,000 BTU) with up to 14.5 SEER2 efficiency, helping lower seasonal cooling costs compared with lower‑SEER models.
Q: What does 80% AFUE mean for the furnace?
A: 80% AFUE means about 80 ¢ of every dollar spent on fuel becomes usable heat for your home, making it a standard‑efficiency furnace that balances performance and operating cost.
Q: What refrigerant does this system use and why it matters?
A: This system operates on R32 refrigerant, a modern and more environmentally friendly option designed to improve efficiency and meet current environmental regulations.
Q: What type of furnace motor and airflow features are typical?
A: The gas furnace uses a multi‑speed ECM blower, which enhances airflow control and quiet operation compared with basic motors, though exact blower specs vary by furnace model.
Q: What installation configuration is supported?
A: Designed for horizontal — and often upflow/horizontal — installation, making it a good choice for attics, closets, or spaces with limited vertical height.
Maintenance Tips
-
Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect both furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even heating and cooling.
-
Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.
-
Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.
-
Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits for proper operation.
-
Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling may indicate service is needed.
-
Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
