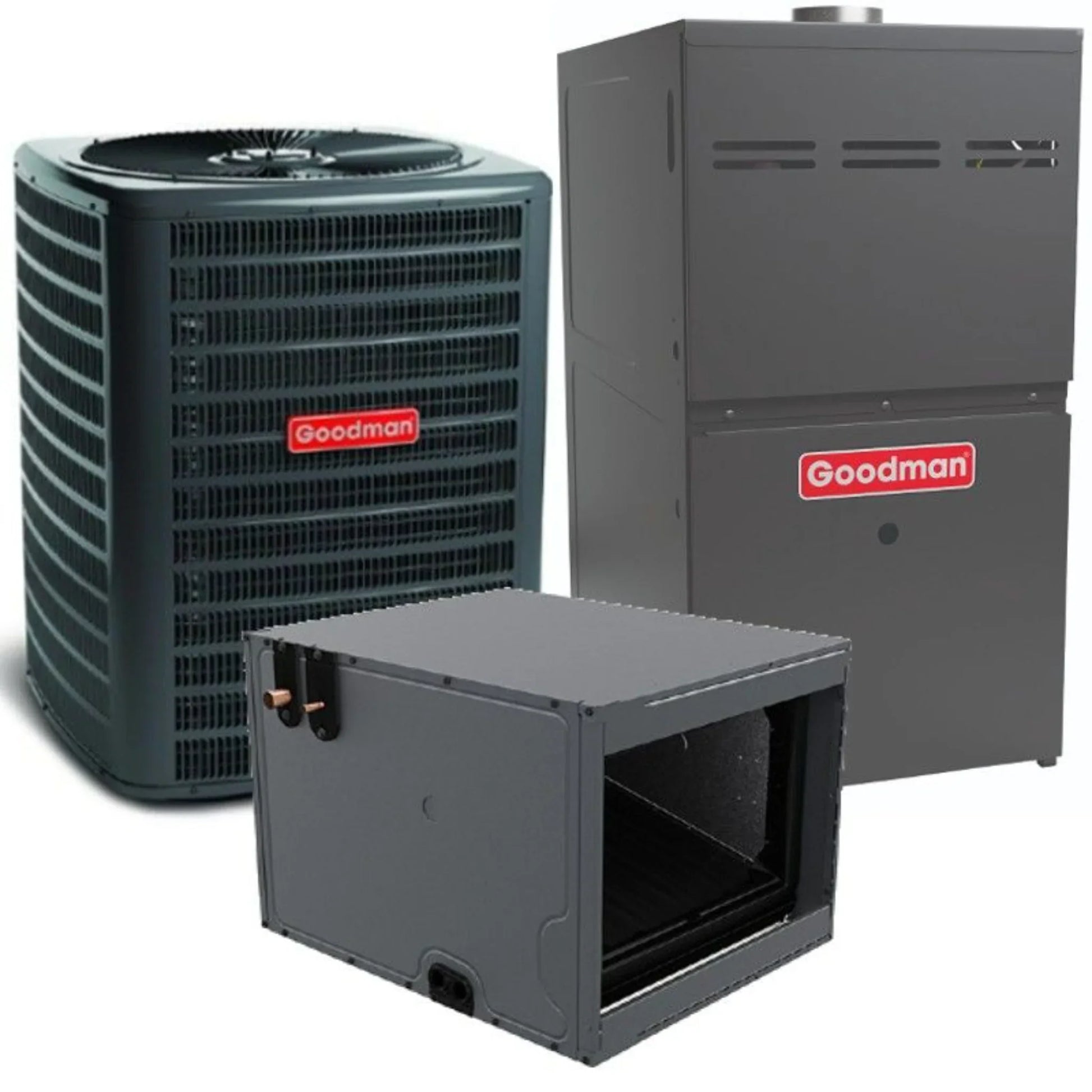

Goodman - 2.5 Ton/80,000 BTU 80% AFUE Low NOx Gas Furnace and Air Conditioner System - Horizontal - 15.2 SEER2 - R32 - CHPTA3026B3
A Goodman Gas Furnace and Air Conditioner System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman Gas Furnace and Air Conditioner System is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates
- 2.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GLXS4BA3610 |
| Weight |
173.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN403610 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
36,000 |
| Decibel Level (dBA) |
67 |
| Horsepower |
1/6 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
7/8" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
30 Amps |
| Min. Breaker Size |
17.8 Amps |
| Tonnage |
3 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
29" |
| Depth |
29" |
Manual
What our Experts Think
-
Balanced year‑round comfort: This matched system combines a 2.5‑ton (80,000 BTU) capacity with an 80% AFUE Low NOx gas furnace and 15.2 SEER2 cooling, delivering reliable heating and cooling throughout the year.
-
Solid efficiency for value‑conscious buyers: 15.2 SEER2 cooling and 80% AFUE heating help lower energy use and operating costs compared with older HVAC setups—without the higher price of ultra‑premium systems.
-
Low NOx emissions design: The Low NOx furnace reduces nitrogen oxide output, making this system better for local air quality and compliant with stricter emissions areas.
-
Horizontal installation fit: Engineered for horizontal placement, ideal for attics, crawl spaces, or tight mechanical rooms where upflow units won’t work.
-
Modern refrigerant ready: Uses R‑32 refrigerant, which offers efficient heat transfer and a lower environmental footprint compared with many legacy refrigerants.
-
Matched performance: Coordinated indoor and outdoor components ensure smooth system operation, easier servicing, and lasting performance.
Q&A
Q: What heating and cooling capacity does this system provide?
A: This complete HVAC package pairs a 2.5 ton, 15.2 SEER2 air conditioner condenser with a horizontal evaporator coil (CHPTA3026B3) and an 80,000 BTU 80% AFUE Low NOx gas furnace, offering year‑round comfort for medium‑sized homes.
Q: What efficiency ratings does this system achieve?
A: The outdoor condenser delivers 15.2 SEER2 cooling efficiency, and the furnace operates at 80 % AFUE, balancing efficient performance with practical energy savings.
Q: What refrigerant is used?
A: The system uses R‑32 refrigerant, a modern, energy‑efficient choice that supports better heat transfer and lower global warming potential than older refrigerants.
Q: Is the gas furnace Low NOx compliant?
A: Yes — the gas furnace is Low NOx compliant, designed to help reduce nitrogen oxide emissions for regions with stricter air quality standards.
Q: What components are included?
A: This HVAC system includes:
• A 15.2 SEER2 single‑stage air conditioner condenser with R‑32 refrigerant.
• A horizontal cased evaporator coil (CHPTA3026B3) optimized for R‑32.
• An 80,000 BTU 80 % AFUE Low NOx gas furnace compatible with upflow/horizontal ductwork.
Q: What installation orientation is supported?
A: It’s designed for horizontal airflow installation, ideal for attics, crawl spaces, sidewall ducts, or other horizontal return configurations.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and efficiency.
-
Keep supply and return vents clear for even heating and cooling.
-
Check thermostat settings to ensure proper furnace and AC operation.
-
Inspect refrigerant lines and insulation for wear or damage.
-
Maintain a clean, clutter-free area around the unit for safe operation.
-
Rinse AC condenser coils periodically to remove dust buildup.
-
Schedule annual professional maintenance to inspect burners, heat exchanger, refrigerant levels, and electrical components.
