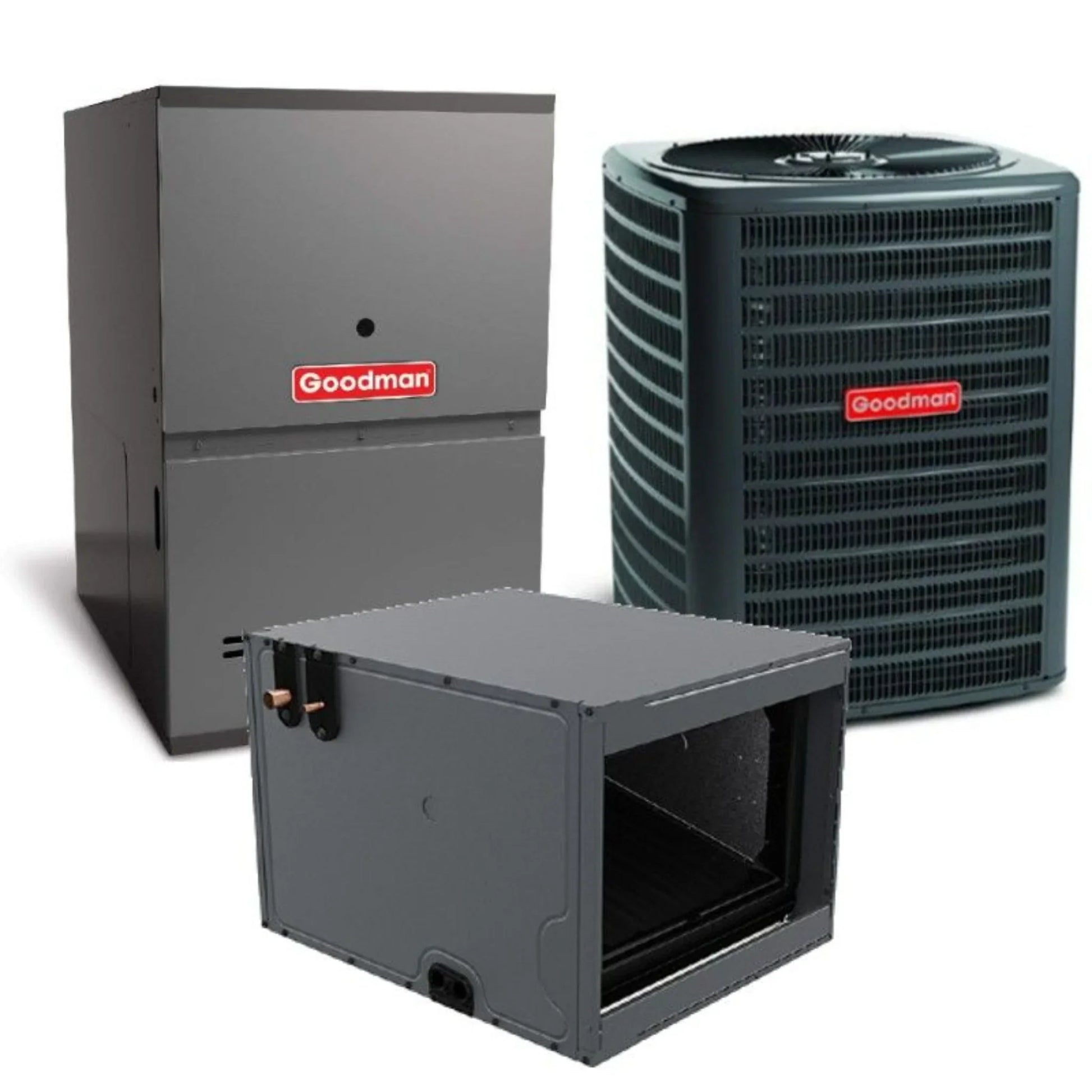

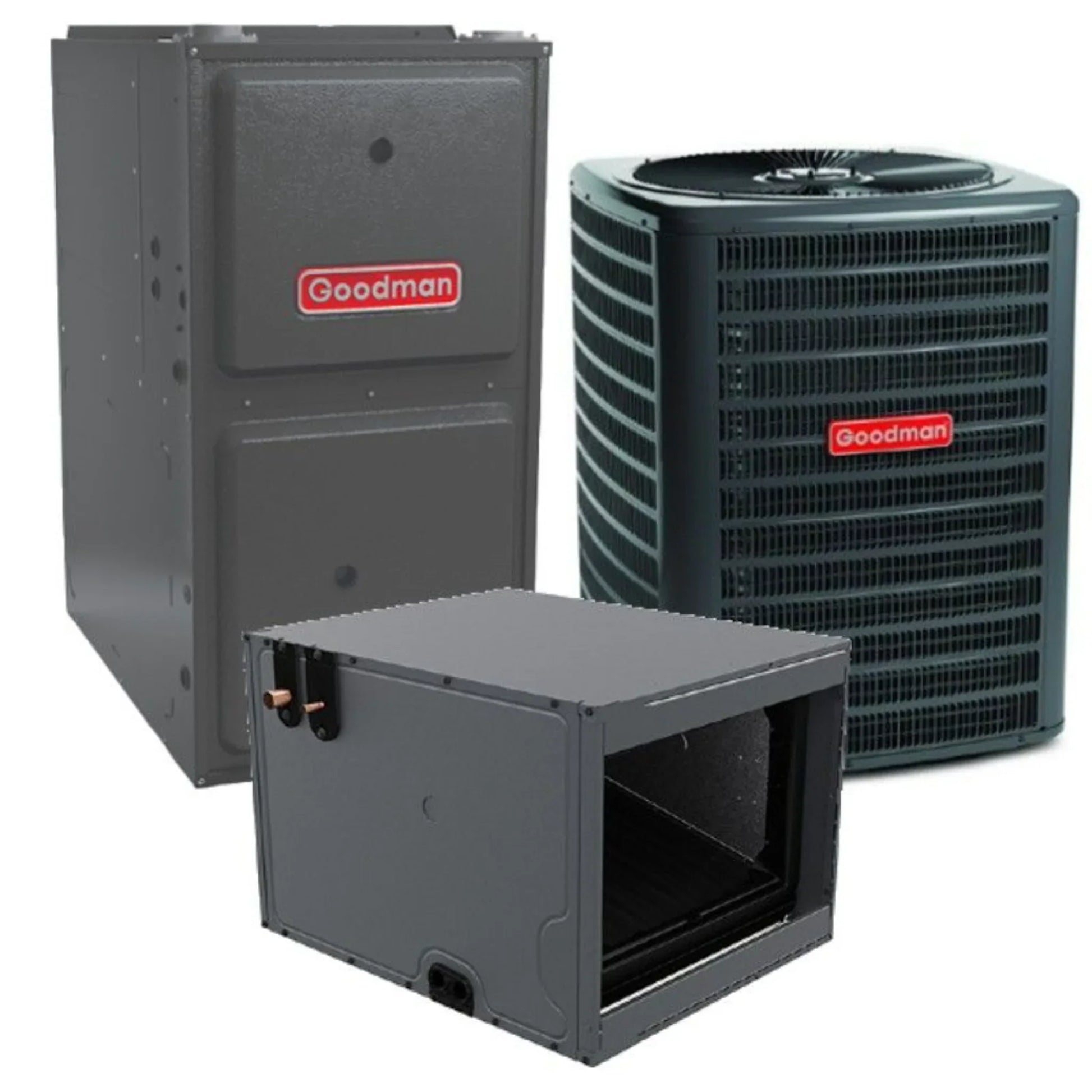

Goodman - 2.5 Ton/80,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 13.4 SEER2 - R32 - CHPTA3630C3
A Goodman Gas Furnace and Air Conditioner System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman Gas Furnace and Air Conditioner System is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a medium-sized house
- 2.5 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
- 3 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| 1.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser |
| SKU |
GLXS4BA1810 |
| Weight |
136.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX130181 |
| Cooling BTU |
18,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
71 |
| Horsepower |
0.125 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
8.3 Amps |
| Tonnage |
1.5 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
Matched HVAC Comfort System – Combines a **2.5 ton air conditioner with an 80,000 BTU, 96% AFUE gas furnace for full year‑round comfort across seasons.
-
High Heating Efficiency (96% AFUE) – Delivers excellent fuel efficiency so most gas energy becomes heat, cutting winter operating costs compared to lower‑efficiency units.
-
13.4 SEER2 Cooling Performance – Meets energy‑efficiency standards for cost‑effective cooling and compliance with modern DOE guidelines.
-
Horizontal Installation – Designed for horizontal duct layouts (attic or crawl space), simplifying installation in tighter spaces.
-
R‑32 Refrigerant Compliance – Uses next‑generation, lower global‑warming refrigerant, improving environmental performance.
-
Multi‑Speed ECM Furnace Blower – Provides quieter airflow with optimized circulation, enhancing comfort and reducing noise.
-
Factory‑Matched Coil with TXV – Built‑in thermal expansion valve in the horizontal coil improves refrigerant control, boosting cooling precision and efficiency.
-
Durable, Code‑Compliant Design – Includes galvanized cabinets and quality construction for reliable performance and simplified maintenance.
Q&A
Q: What’s included in this Goodman system?
A: A matched HVAC package with a 2.5 ton 13.4 SEER2 R32 air conditioner condenser, a horizontal evaporator coil (CHPTA3630C3) with TXV, and an 80,000 BTU 96% AFUE gas furnace for year‑round comfort.
Q: What size home is it best for?
A: With 2.5 ton (≈30,000 BTU) cooling and 80,000 BTU heating, this system suits medium‑sized homes (~1,200–2,000 sq ft) depending on insulation, layout, and climate.
Q: What does 13.4 SEER2 efficiency mean?
A: 13.4 SEER2 reflects seasonal cooling efficiency, helping reduce electricity use vs older units while meeting current energy standards.
Q: What does 96% AFUE mean for heating?
A: 96% AFUE means 96% of the gas energy becomes usable heat for your home, delivering high heating efficiency and lower fuel costs.
Q: What refrigerant does this system use?
A: It uses R32 refrigerant, a more efficient and lower‑impact option than many older refrigerants.
Q: What are the furnace features?
A: The 80,000 BTU furnace works in horizontal orientation, has a multi‑speed ECM blower for quieter operation, and requires plastic/PVC flue venting typical of high‑efficiency models.
Q: What does the CHPTA3630C3 coil do?
A: The horizontal evaporator coil with factory‑installed TXV optimizes refrigerant flow for improved cooling efficiency and performance.
Maintenance Tips
-
Replace Air Filters Every 1–3 Months: Maintains airflow, efficiency, and protects both furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Clean Outdoor AC Condenser: Rinse coils every 3–6 months to maintain SEER2 efficiency and prevent debris buildup.
-
Annual Professional Inspection: Have a certified technician check burners, heat exchanger, gas pressure, and airflow for safe and efficient furnace operation.
-
Inspect Refrigerant Lines & Insulation: Ensure lines are intact and insulation is in good condition for optimal R32 performance.
-
Maintain Condensate Drains: Keep both furnace and AC drain lines clear to prevent water issues or system shutdowns.
-
Schedule Yearly Professional Service: Inspect electrical connections, airflow, and overall system performance.
-
Monitor for Unusual Signs: Strange noises, odors, or inconsistent heating/cooling require prompt professional attention.
