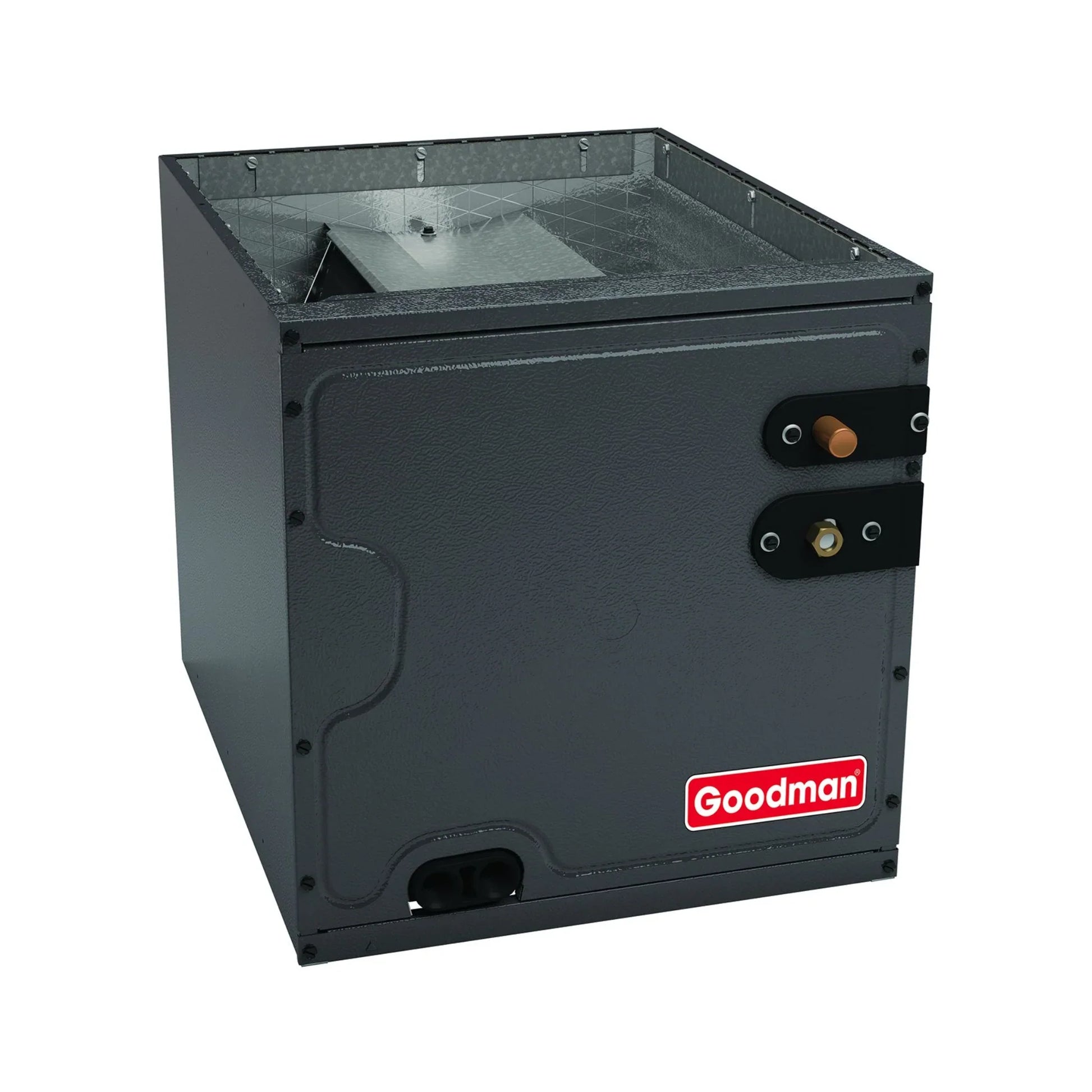

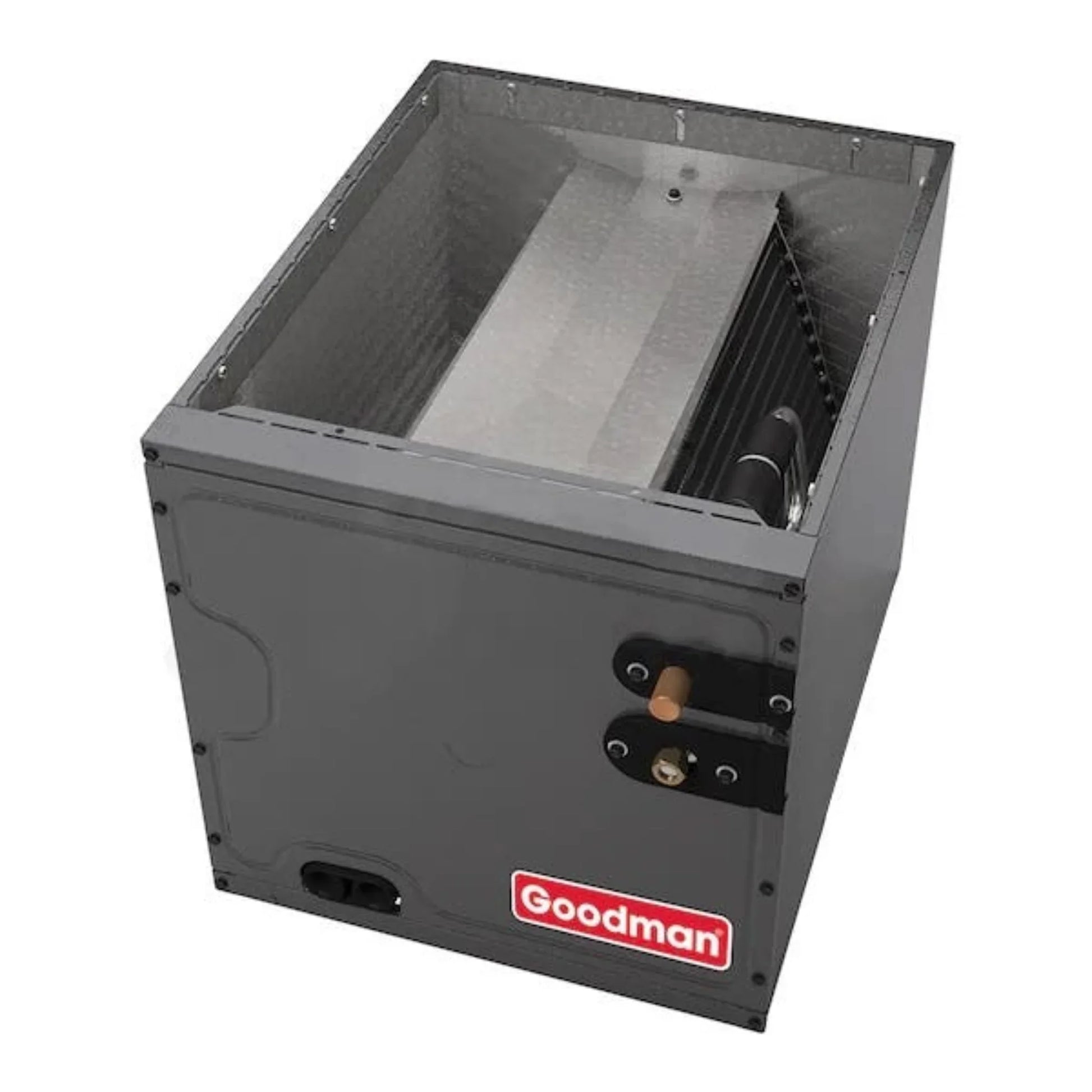

An AC or heat pump system is only as good as its evaporator coil. The Goodman CAPTA evaporator coils are designed with this simple thought in mind for its longevity, accessibility, and value as their other heating and cooling equipment. The advanced design and all-aluminum constriction of this coil improves its durability and heat transfer efficiency. The CAPTA series are cased A-Coils for use in Upflow/Downflow applications. These units include an internal TXV (thermostatic expansion valve), which is perfect for high-performance systems. Goodman pressure tests each coil twice prior to it leaving the factory. Whether you are replacing an old failing coil or installing a new system, you can choose Goodman's CAPTA units with confidence.
Features
All-Aluminum Coil: Goodman's evaporator coils maximize surface area and optimize heat transfer for efficient comfort by using a reliable all-aluminum design complete with sine fins and grooved tubes.
Internal Thermostatic Expansion Valve: Goodman's CAPTA units have a factory-installed internal thermostatic expansion valve, which streamlines installation and maintains ideal refrigerant flow for your system.
Cabinet Durability: Providing superior longevity and efficiency, CAPTA units have a galvanized, embossed, and insulated cabinet that protects the coil and prevents air leakage.
Condensate Management: Keeping your system sage and operational, the CAPTA units feature a foil-faced insulation to inhibit the formation of condensate and a rust-resistant, DecaBDE-free thermoplastic drain pan secondary drain connections. The drain pan is UV-resistant.
R32 Compatibility: Complies with Clean Air Act New Refrigerant Requirements.
Purpose‑Built for R‑32 Split HVAC Systems The Goodman CAPTA2422C3 2 Ton Evaporator Coil is engineered specifically for R‑32 refrigerant applications, ensuring modern refrigerant compatibility and long‑lasting performance when paired with the right outdoor unit.
Factory‑Installed TXV for Precise Cooling Control A built‑in thermostatic expansion valve (TXV) delivers accurate refrigerant metering, enhancing cooling efficiency, improving humidity control, and helping your system maintain consistent comfort.
All‑Aluminum Coil for Better Heat Transfer & Durability The all‑aluminum tubing and fins maximize heat transfer and resist corrosion—supporting reliable operation and long service life in residential environments.
Flexible Upflow/Downflow Installation Designed for both upflow and downflow configurations, this coil fits a wide range of HVAC setups (attics, closets, basements) and matches standard 21″ cabinet widths for easy integration.
Smart Condensate & Cabinet Design Foil‑faced insulation reduces cabinet condensation, while rust‑resistant thermoplastic drain pans with secondary connections and UV protection help prevent moisture‑related issues.
Service‑Friendly Features A single front access panel and standardized copper suction stub simplify inspection, maintenance, and refrigerant line connections for HVAC professionals.
Q&A
Q1: What HVAC systems is this coil compatible with? A: The Goodman CAPTA2422C3 is designed for 1.5–2 ton split‑system air conditioners and heat pumps, making it suitable for residential cooling and heat pump indoor applications.
Q2: Does this coil include a metering device? A: Yes — it includes a factory‑installed TXV (Thermostatic Expansion Valve) that provides precise refrigerant metering for both cooling and heat pump operation.
Q3: Which refrigerant is it engineered for? A: This model is optimized for R‑32 refrigerant, supporting modern HVAC systems with lower global warming potential.
Q4: What installations are supported? A: It supports upflow and downflow installations, offering flexibility for vertical duct configurations with furnaces or air handlers.
Q5: What are the key physical dimensions? A: The coil cabinet measures about 21″ wide × 21″ deep × 22″ high, with standard 3/8″ liquid and 3/4″ suction connections.
Q6: What construction and durability features does it offer? A: It features an all‑aluminum evaporator coil in a galvanized, insulated cased cabinet, foil‑faced insulation to reduce condensation, and rust‑resistant, UV‑protected thermoplastic drain pans with secondary drain connections.
Q7: Is this coil certified for quality and safety? A: Yes — the CAPTA2422C3 is AHRI certified and ETL listed to meet industry performance and safety standards.
Maintenance Tips
Replace Air Filters Every 1–3 Months – Clean filters ensure proper airflow across the all‑aluminum coil, improving cooling efficiency and preventing coil icing.
Clean the Coil Annually – Dust and debris on coil fins reduce heat transfer; schedule professional cleaning to maintain SEER2 performance. (hvacstore.com)
Inspect Condensate Drain & Pan – Keep the drain pan and line clear to prevent leaks and microbial growth.
Check TXV Operation – The thermostatic expansion valve regulates refrigerant flow; periodic inspection ensures proper superheat and cooling efficiency.
Maintain Unobstructed Airflow – Keep supply and return vents clear for optimal upflow or downflow operation.
Inspect Cabinet & Insulation – Check the galvanized, insulated cabinet annually for moisture, corrosion, or damage.
Schedule Annual HVAC Service – Professional maintenance helps detect refrigerant issues, clean internal components, and maintain peak system performance.
