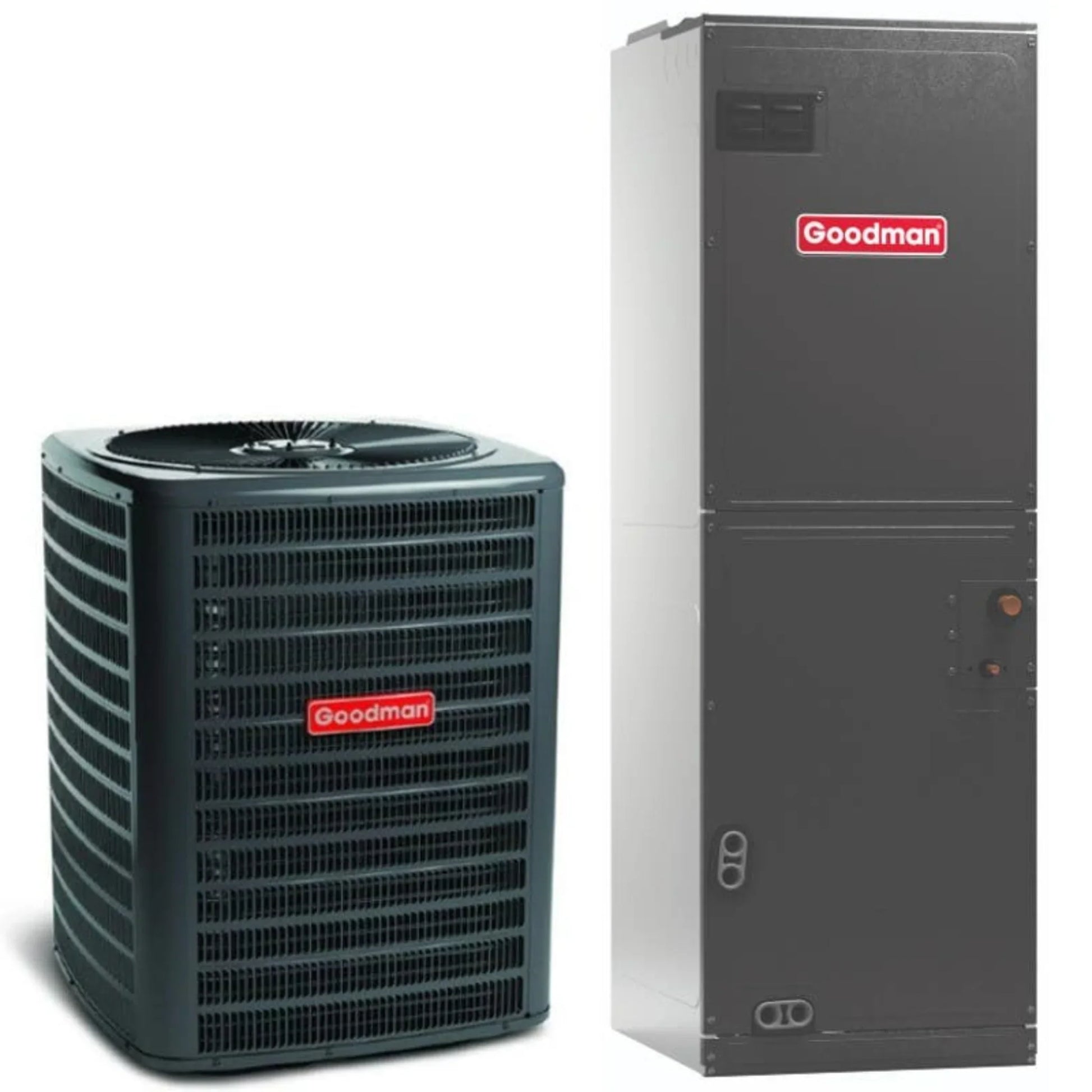

Goodman - 2 Ton/24,000 BTU - Multi-Positional - Air Conditioner Split System - 15.2 SEER2 - R32 - GLXS5BA2410
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman air conditioner split system is the perfect choice for all of your cooling needs.
Features
- Ideal size to cover a smaller house in ideal climates
- 2 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
-

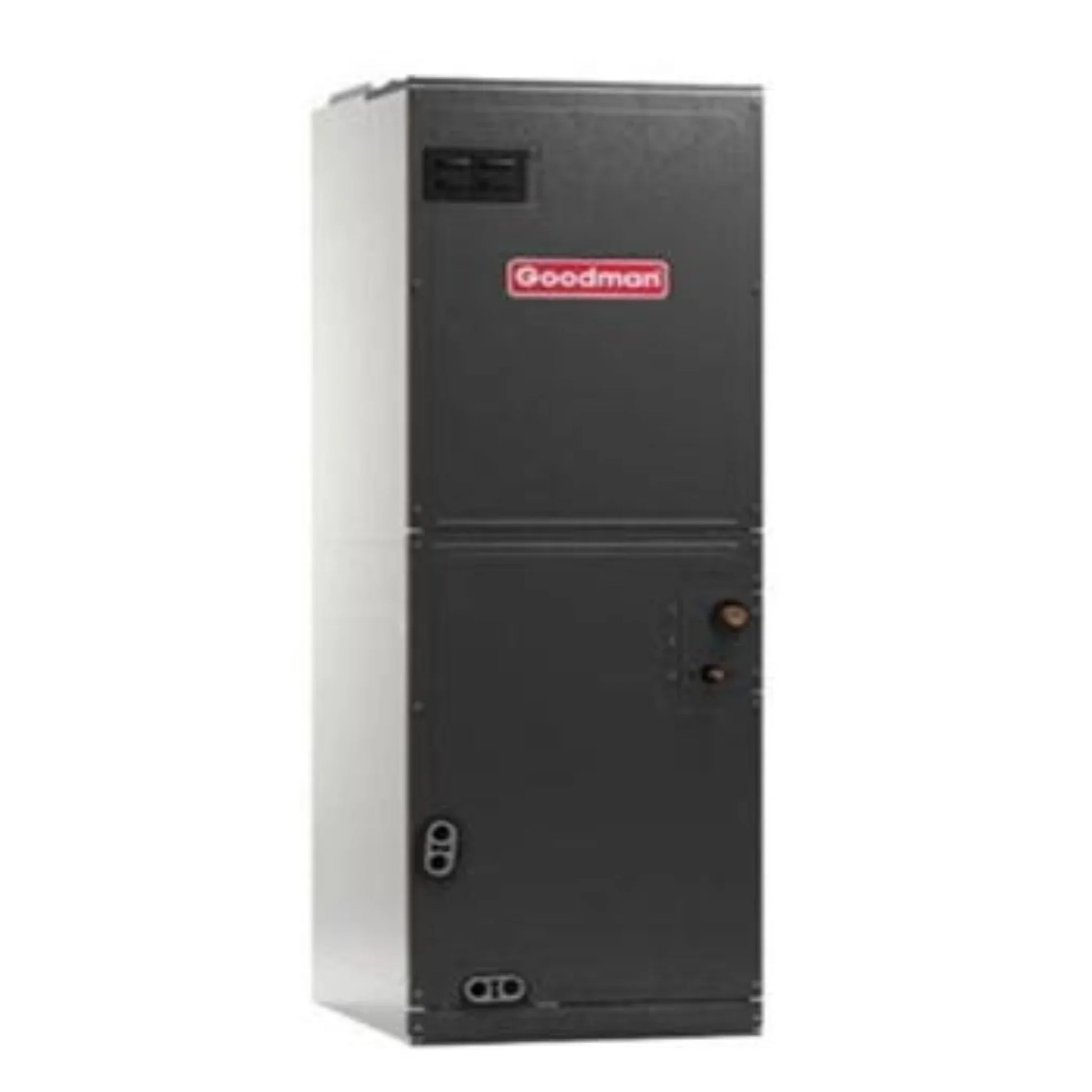

Air Handler
- 2 ton air handler
- Electric heat compatible
- Optimized for use with R-32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
Specifications

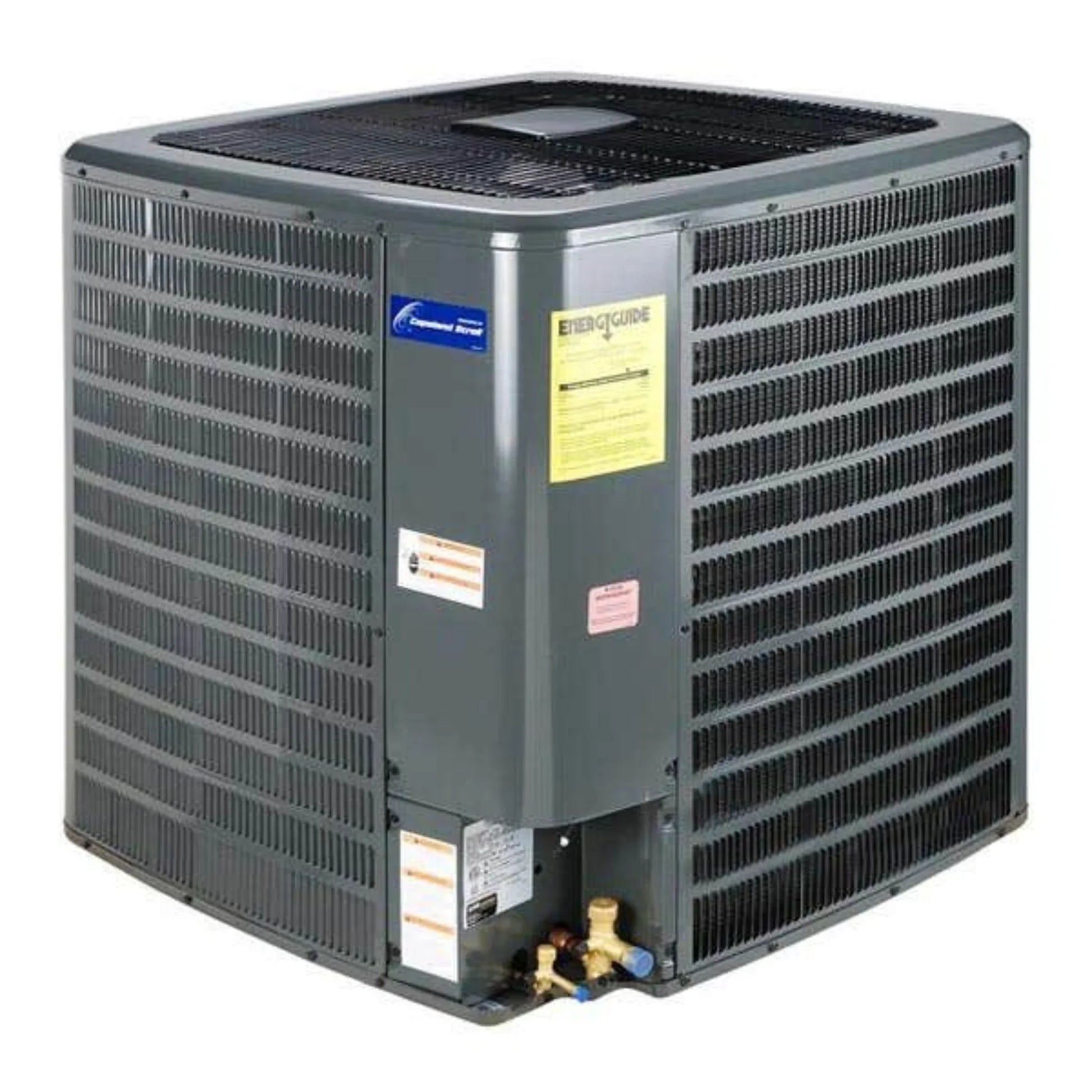

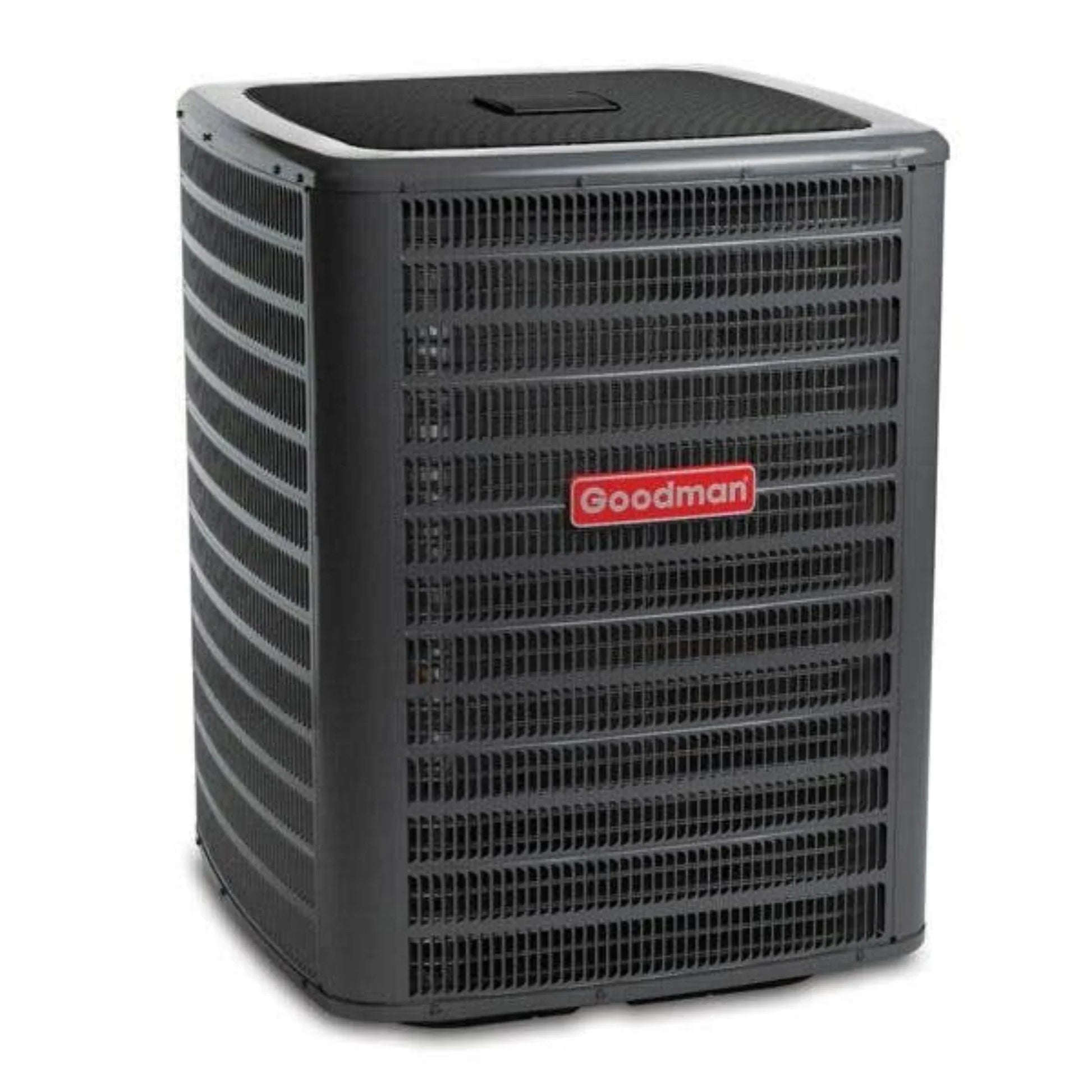

| 2 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser |
| SKU |
GLXS5BA2410 |
| Weight |
169.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX160241 |
| Cooling BTU |
24,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
73 |
| Horsepower |
0.167 HP |
| Refrigerant |
R32 |
| SEER2 |
15.2 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
25 Amps |
| Min. Breaker Size |
15.3 Amps |
| Tonnage |
2 Ton |
| Connection |
Sweat |
| Height |
32" |
| Width |
29" |
| Depth |
29" |
What our Experts Think
-
Balanced 2‑Ton Cooling: Designed for 24,000 BTU capacity, this unit delivers reliable cooling for small to mid‑size homes and residential spaces.
-
Improved Efficiency: With a 15.2 SEER2 rating, it offers better energy savings and performance compared to lower‑SEER models, helping reduce monthly cooling costs.
-
Next‑Gen R‑32 Refrigerant: Uses R‑32 refrigerant for enhanced heat transfer efficiency and lower environmental impact than older refrigerants.
-
Multi‑Positional Flexibility: Built for multi‑positional installation, making it easier to fit into varied duct layouts and non‑standard applications.
-
Single‑Stage Cooling: Simple single‑stage operation prioritizes durability and straightforward performance without complex staging.
-
Durable Construction: Sturdy design with a weather‑resistant cabinet helps protect internal components and ensures long‑term reliability.
-
Service‑Ready Design: Standard service valves and accessible panels make installation and maintenance more convenient for technicians.
Q&A
Q: What size and cooling capacity does this system offer?
A: The Goodman GLXS5BA2410 2 Ton/24,000 BTU Split Air Conditioner delivers 2 tons (24,000 BTU) of cooling power, ideal for medium‑sized homes and residential spaces.
Q: What efficiency rating does it achieve?
A: This unit provides 15.2 SEER2 efficiency, offering strong energy performance for reduced utility costs and compliance with current efficiency standards.
Q: What type of refrigerant is used?
A: It uses R‑32 refrigerant, a next‑generation, lower‑GWP option that meets modern environmental regulations.
Q: What compressor and sound features does it have?
A: The system features a single‑stage scroll compressor for proven reliability and low sound operation.
Q: What installation type is supported?
A: Designed as a split system, it pairs an outdoor condenser with a compatible indoor air handler (or existing HVAC indoor unit) for flexible installs.
Q: What electrical and line‑set details should installers know?
A: Operates on 208/230 V single‑phase power and comes factory‑charged for up to 15 ft of line set with standard 3/8″ liquid and 3/4″ suction connections.
Q: How durable and serviceable is this unit?
A: The condenser includes a factory‑installed filter drier and service valves for easier maintenance and long‑term operation.
Maintenance Tips
-
Keep at least 24 inches of clearance around the outdoor condenser to ensure proper airflow and optimal cooling efficiency.
-
Clean the condenser coil regularly using low-pressure water to prevent dirt buildup and maintain 15.2 SEER2 performance.
-
Replace or clean indoor air filters every 1–3 months to reduce strain on the compressor and improve airflow.
-
Inspect refrigerant lines and insulation for damage or leaks to maintain efficient R‑32 refrigerant operation.
-
Check electrical connections, disconnects, and capacitors for wear or corrosion before the cooling season.
-
Monitor unusual noises or vibrations from the scroll compressor or fan motor, which may indicate service needs.
-
Ensure the unit remains level to prevent drainage issues and uneven cooling.
-
Schedule annual professional HVAC maintenance to inspect refrigerant levels, coils, and system controls.
-
Keep the cabinet and coil guard clean and intact to protect components and maintain airflow efficiency.
-
Register your unit to activate warranty coverage and track maintenance compliance.
