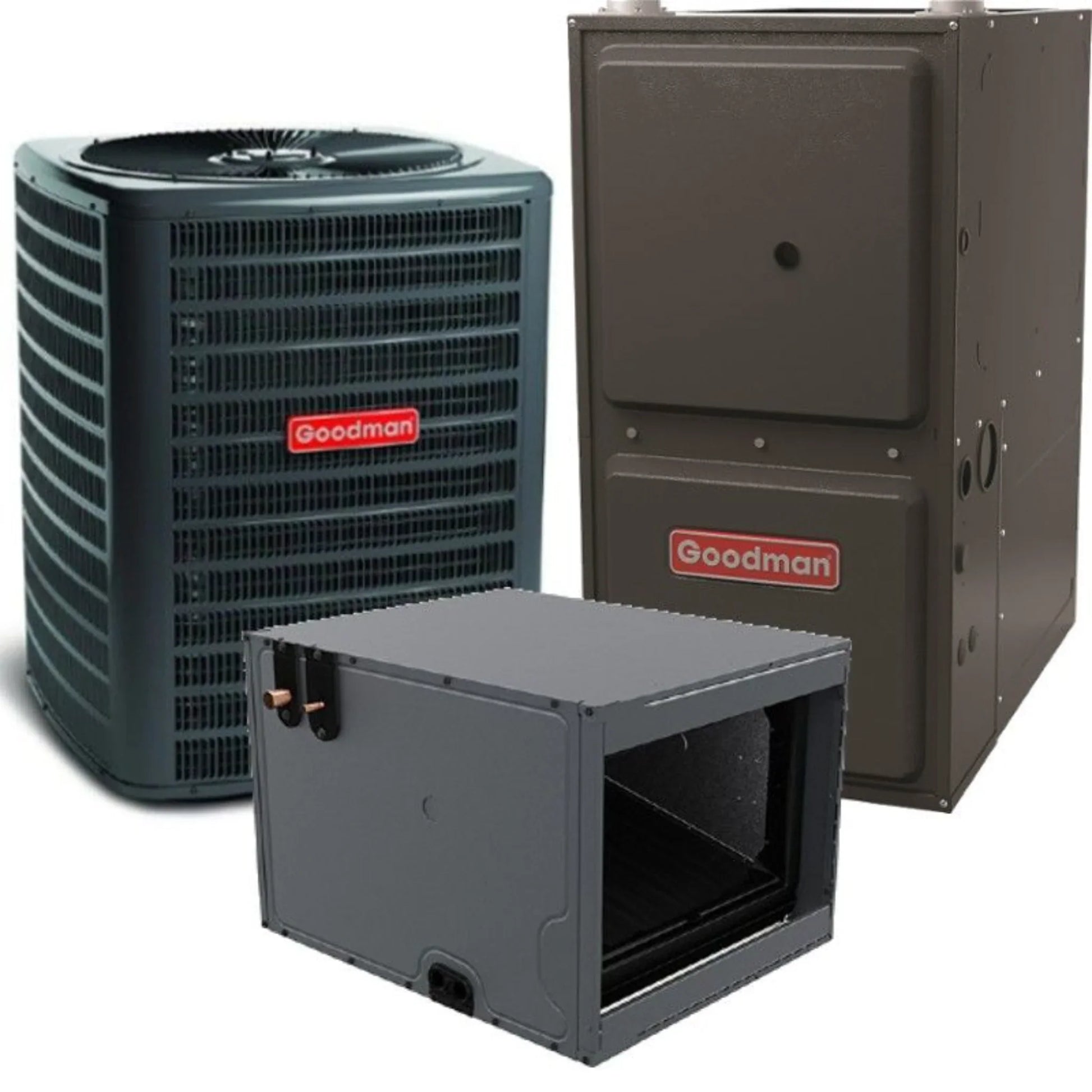

Goodman - 2 Ton/40,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS4BA2410 / CHPTA3026B3 / GD9T960403BN
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates

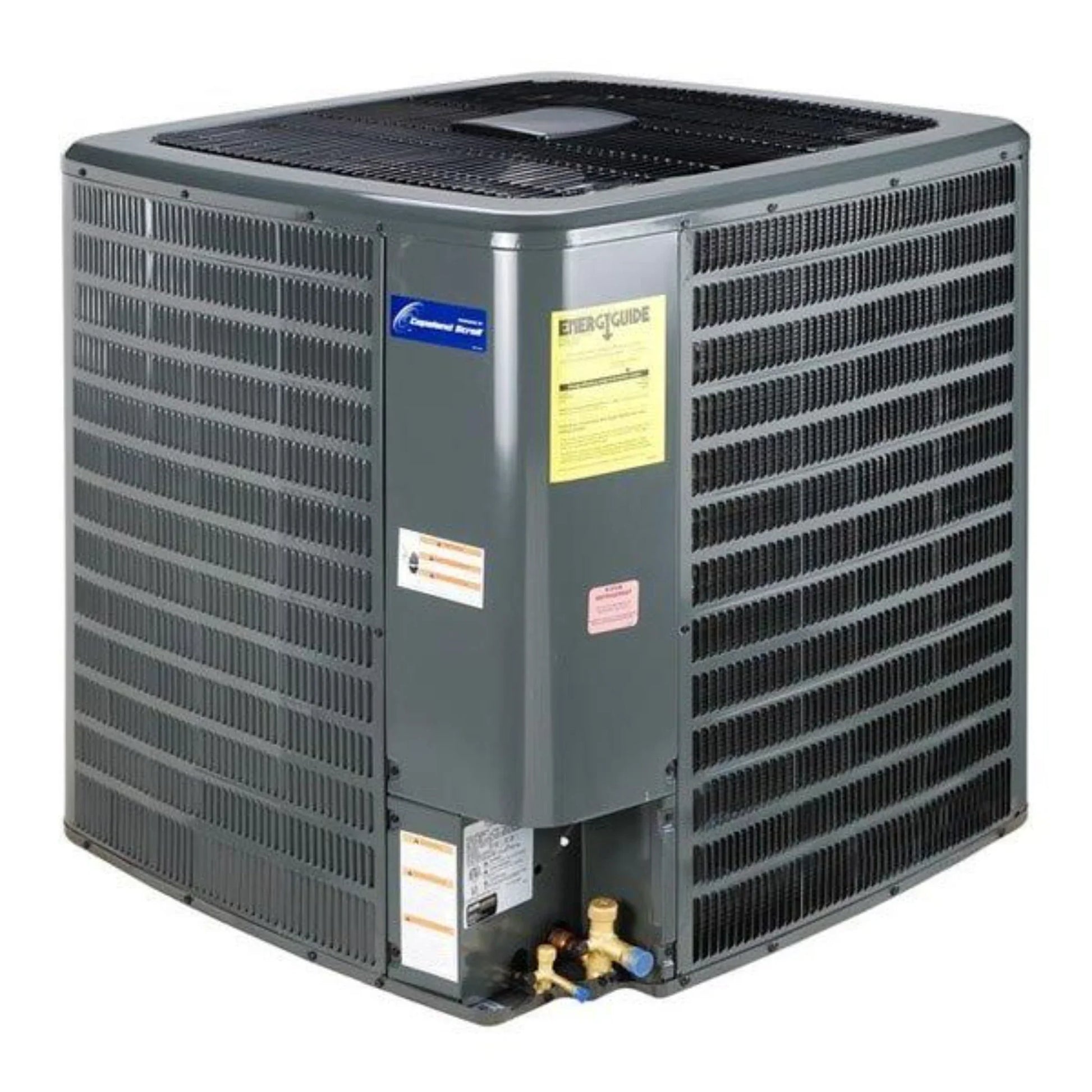

- 2 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a smaller house (depending on climate)
- 40,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GLXS4BA2410 |
| Weight |
132.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN402410 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
24,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
2 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Owner's Manual
What our Experts Think
-
Efficient all‑in‑one comfort package: This system pairs a 2 ton (24 000 BTU) R‑32 air conditioner at ~14.5 SEER2 with a 96 % AFUE 40 000 BTU gas furnace, delivering reliable year‑round comfort with balanced heating and cooling output.
-
High‑efficiency heating: The GD9T960403BN furnace achieves 96 % AFUE, meaning most fuel goes into heating your home rather than wasted in exhaust—great for lowering winter heating costs in colder seasons.
-
Staged and multi‑speed operation: A two‑stage burner with a 9‑speed ECM blower motor improves comfort stability, reduces frequent cycling, and enhances airflow control compared with single‑stage systems.
-
Advanced cooling tech: The GLXS4BA2410 condenser uses modern R‑32 refrigerant to support improved thermodynamic efficiency and a lower environmental impact.
-
TXV‑equipped evaporator coil: The CHPTA3026B3 coil with factory TXV delivers precise refrigerant control, resulting in better humidity management and more consistent cooling performance.
-
Versatile installation: Designed for horizontal or multi‑position setup, this system fits tight mechanical spaces like attics or crawl areas without sacrificing performance.
-
Quiet and durable design: Goodman’s components are engineered for lower sound output and rugged build quality, helping the system run quietly and reliably over many years.
-
Strong value proposition: Experts see this as a cost‑effective mid‑efficiency HVAC solution that blends solid efficiency, modern refrigerant and blower tech, and dependable comfort for everyday residential use.
Q&A
Q: What type of HVAC system is this?
A: This is a complete Goodman high-efficiency HVAC system, including a 2‑ton air conditioner (GLXS4BA2410), cased evaporator coil (CHPTA3026B3), and 40,000 BTU 96% AFUE gas furnace (GD9T960403BN) for reliable year‑round comfort.
Q: What size home is a 2‑ton system suitable for?
A: A 2‑ton AC system (24,000 BTU cooling) is ideal for small to medium homes or apartments around 900–1,400 sq. ft., depending on insulation, climate, and layout.
Q: How energy efficient is this system?
A: The system offers 14.5 SEER2 cooling efficiency and a 96% AFUE gas furnace, delivering high-efficiency heating with almost all fuel converted into usable heat.
Q: What refrigerant does the air conditioner use?
A: The condenser uses R‑32 refrigerant, a modern eco-friendly refrigerant designed for better energy efficiency and lower environmental impact.
Q: Does the furnace include advanced technology?
A: Yes. The GD9T960403BN furnace features a variable-speed ECM blower motor and high-efficiency design, providing quieter operation, improved airflow, and consistent indoor temperatures.
Q: Can this system be installed horizontally?
A: Yes. The furnace and coil support horizontal installation, making it suitable for attics, crawl spaces, or closets where horizontal airflow is needed.
Q: What components are included in this HVAC package?
A: The system includes:
-
GLXS4BA2410 – 2 Ton 14.5 SEER2 outdoor AC condenser
-
CHPTA3026B3 – 2 Ton cased evaporator coil
-
GD9T960403BN – 40,000 BTU 96% AFUE gas furnace
Maintenance Tips
-
Replace air filters every 1–3 months: Clean filters maintain airflow, protect the blower, and improve indoor air quality.
-
Keep the outdoor condenser clean: Remove leaves, dirt, and maintain 2–3 ft clearance around the unit for optimal cooling efficiency.
-
Inspect the evaporator coil and drain pan: The CHPTA aluminum coil should be checked for dirt or clogs to prevent water leaks and reduced cooling performance.
-
Check refrigerant line insulation: Ensure suction line insulation is intact to maintain energy efficiency.
-
Maintain unobstructed vents: Keep supply and return vents clear for balanced airflow throughout the home.
-
Schedule annual professional service: A certified HVAC technician should inspect the furnace heat exchanger, blower motor, refrigerant levels, and safety controls yearly.
-
Keep the furnace area clean: Clear surrounding space for safe operation and efficient heating of the 96% AFUE gas furnace.
