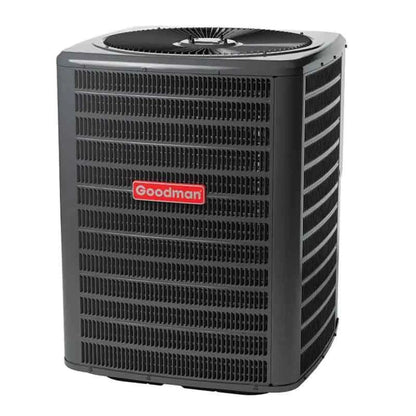

Goodman - 2 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS3BN2410
A Goodman gas furnace and air conditioner system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a medium-sized house
- 2 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-size house (in average climate conditions)
- 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| 2 Ton 13.4 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS3BN2410 |
| Weight |
130.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX130241 and GSXN3N2410 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
24,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
2 Ton |
| Connection |
Sweat |
| Height |
27.5" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
All‑Season Comfort Package: The Goodman GLXS3BN2410 HVAC System combines a **2 ton (≈60,000 BTU) cooling system with an 80% AFUE gas furnace, delivering reliable heating and cooling in one horizontal‑ready package.
-
Dependable Heating: The 80% AFUE furnace produces steady warmth with a multi‑speed blower for quieter operation and balanced airflow — ideal for moderate climates where energy efficiency and comfort matter.
-
Efficient Cooling: 14.5 SEER2 efficiency on the air conditioner helps reduce summer energy use while maintaining comfortable indoor temperatures throughout the cooling season.
-
R32 Refrigerant Advantage: Uses R32 refrigerant, offering improved heat transfer efficiency and a smaller environmental footprint compared with older refrigerants.
-
Horizontal Installation Ready: Designed for horizontal duct configurations, making it a great fit for attics, crawlspaces, and low‑clearance mechanical areas.
-
Matched System Performance: Engineered as a coordinated furnace + AC system to ensure balanced airflow, consistent capacity, and reliable seasonal performance.
-
Goodman Value & Reliability: Combines solid heating and cooling efficiency with flexible installation, making it a practical, cost‑effective solution for year‑round home comfort.
Q&A
Q: What’s included in this HVAC system?

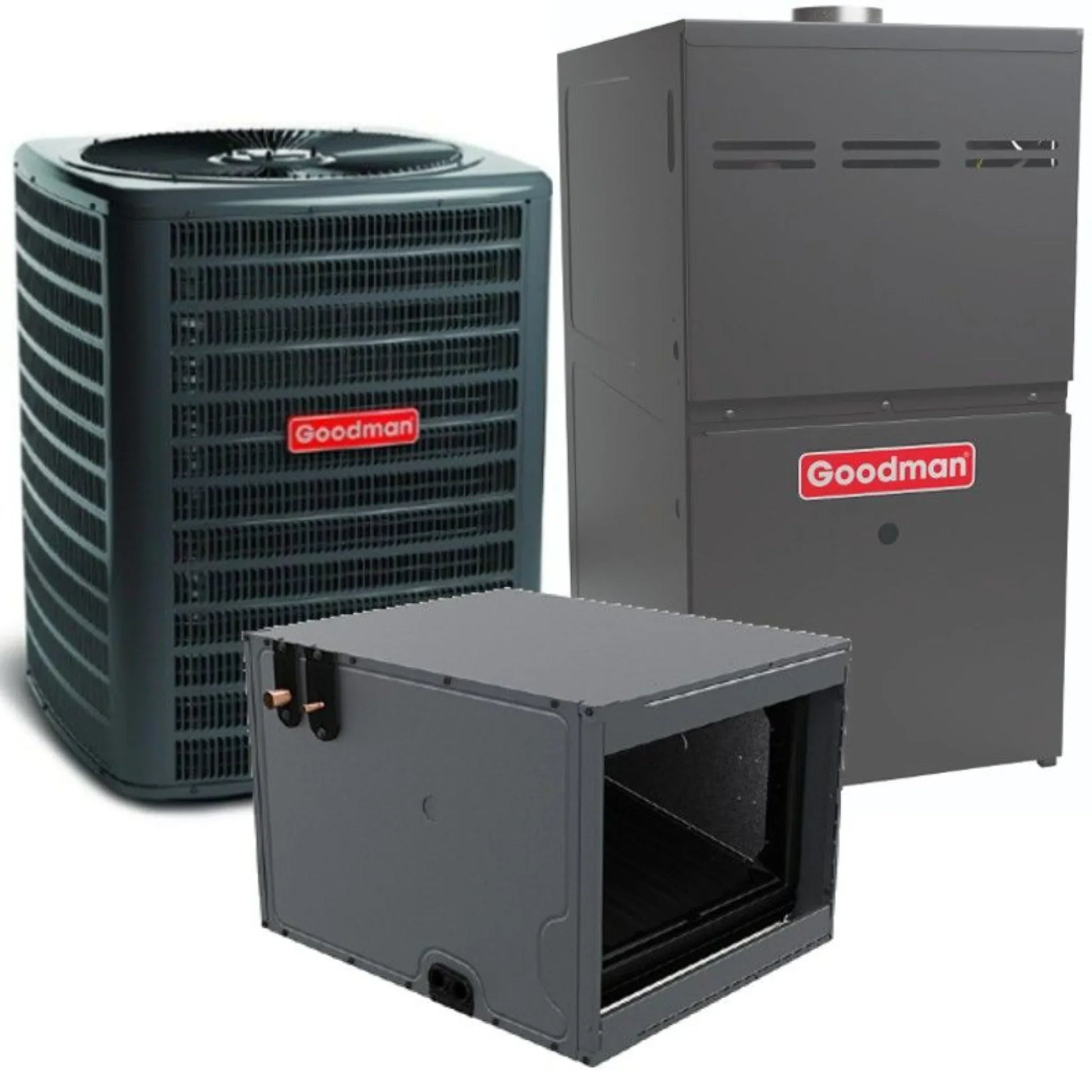

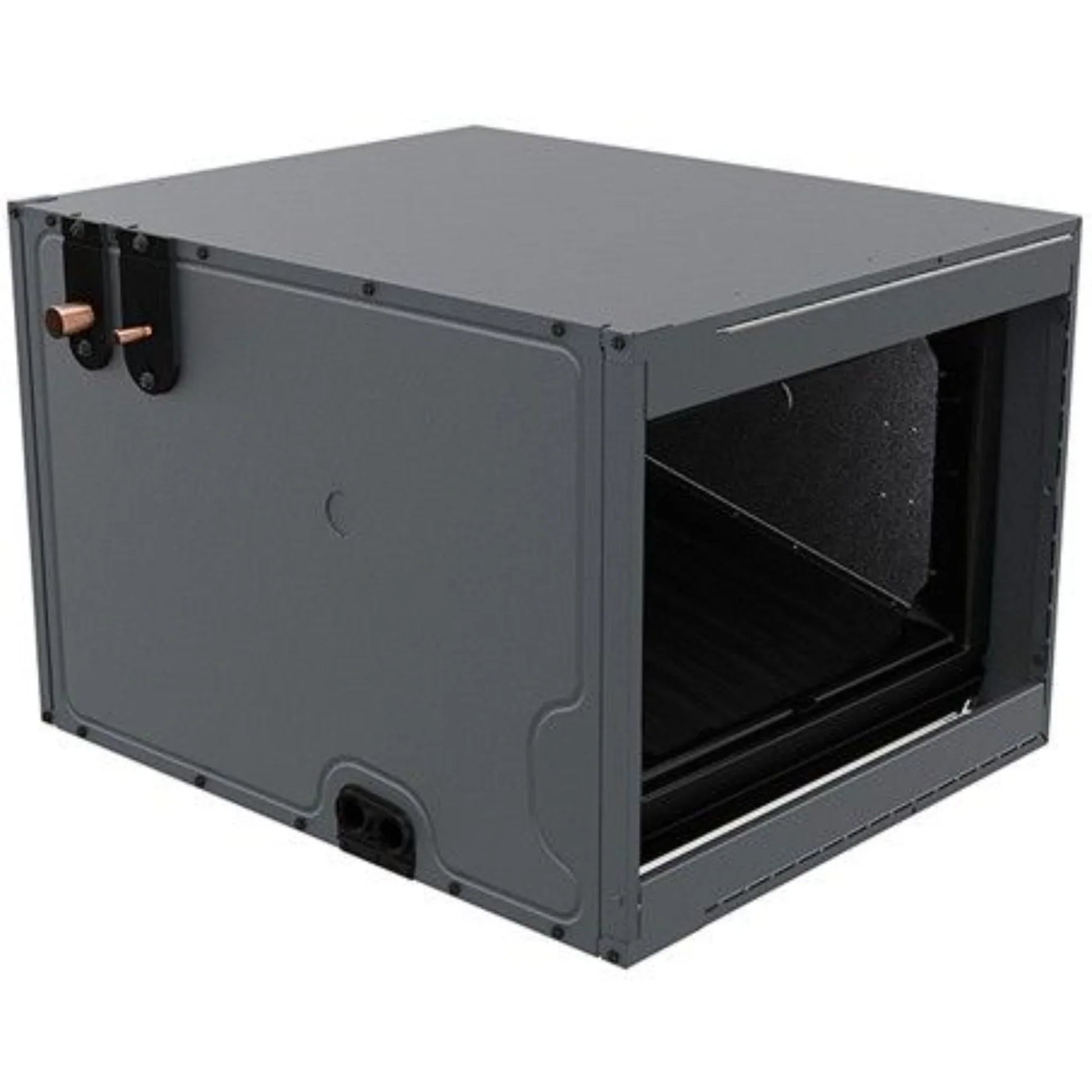

A: This matched system includes a 2 ton R32 air conditioner condenser (GLXS3BN2410) with 14.5 SEER2 cooling, a 60,000 BTU 80% AFUE gas furnace, and a horizontal evaporator coil (CHPTA2426B3) designed for horizontal installation.
Q: What cooling performance does the system provide?
A: The outdoor unit delivers 2 ton (≈24,000 BTU) cooling with up to 14.5 SEER2 efficiency, which helps balance energy savings and comfort in moderate climates.
Q: What does 80% AFUE mean for heating?
A: 80% AFUE means about 80 ¢ of every fuel dollar becomes usable heat, offering standard‑efficiency heating that’s reliable and cost‑effective.
Q: What refrigerant does this system use?
A: This system uses R32 refrigerant, a modern, energy‑efficient refrigerant with lower environmental impact than many older types.
Q: Is it suitable for horizontal installation?
A: Yes — the system is configured for horizontal installation, ideal for spaces with limited vertical clearance like attics, closets, or crawlspaces.
Q: What type of compressor and stages does it have?
A: The AC uses a single‑stage compressor for simple, dependable operation and consistent cooling performance.
Q: What are the benefits of matched components?
A: Matched components ensure optimized airflow, enhanced reliability, balanced heating & cooling performance, and full warranty compatibility compared with mismatched parts.
Maintenance Tips
-
Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect both furnace and AC components.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Inspect Furnace Venting: Check intake and exhaust pipes for blockages or damage to maintain safe operation.
-
Clean Around the Units: Maintain 2–3 ft clearance around furnace and condenser to prevent dust buildup and allow proper airflow.
-
Check Thermostat & Electricals: Verify thermostat settings, gas supply, and 115V/208–230V circuits are functioning properly.
-
Monitor System Performance: Listen for unusual noises from the blower or condenser; reduced heating or cooling efficiency may indicate maintenance needs.
-
Schedule Annual Professional Service: A licensed HVAC technician should inspect burners, heat exchanger, gas pressure, AC refrigerant charge, and safety controls yearly.
