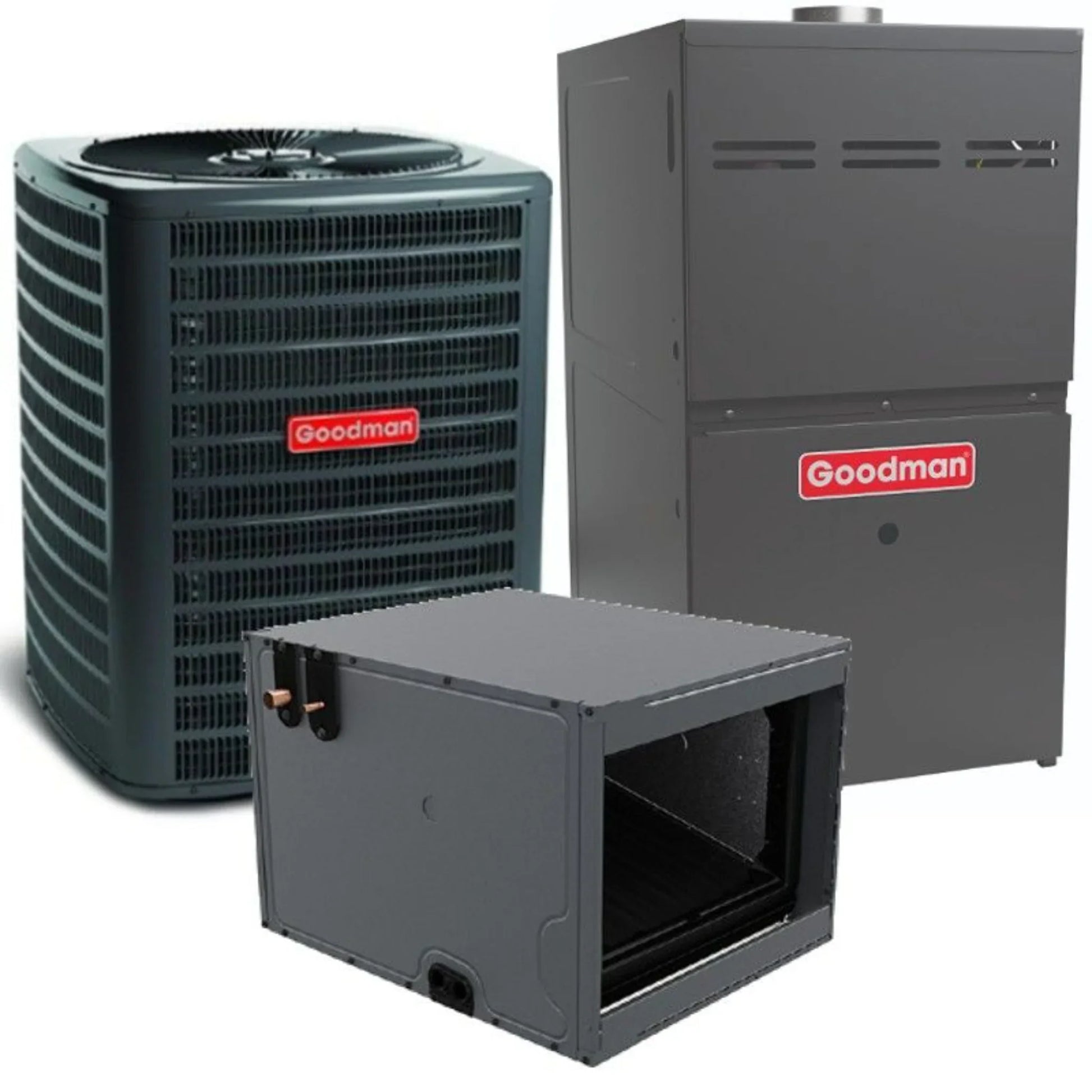

Goodman - 2 Ton/60,000 BTU 80% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - CHPTA3026B3
A Goodman gas furnace and air conditioner system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman gas furnace and air conditioner system is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a medium-sized house
- 2 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-sized house (in average climate conditions)

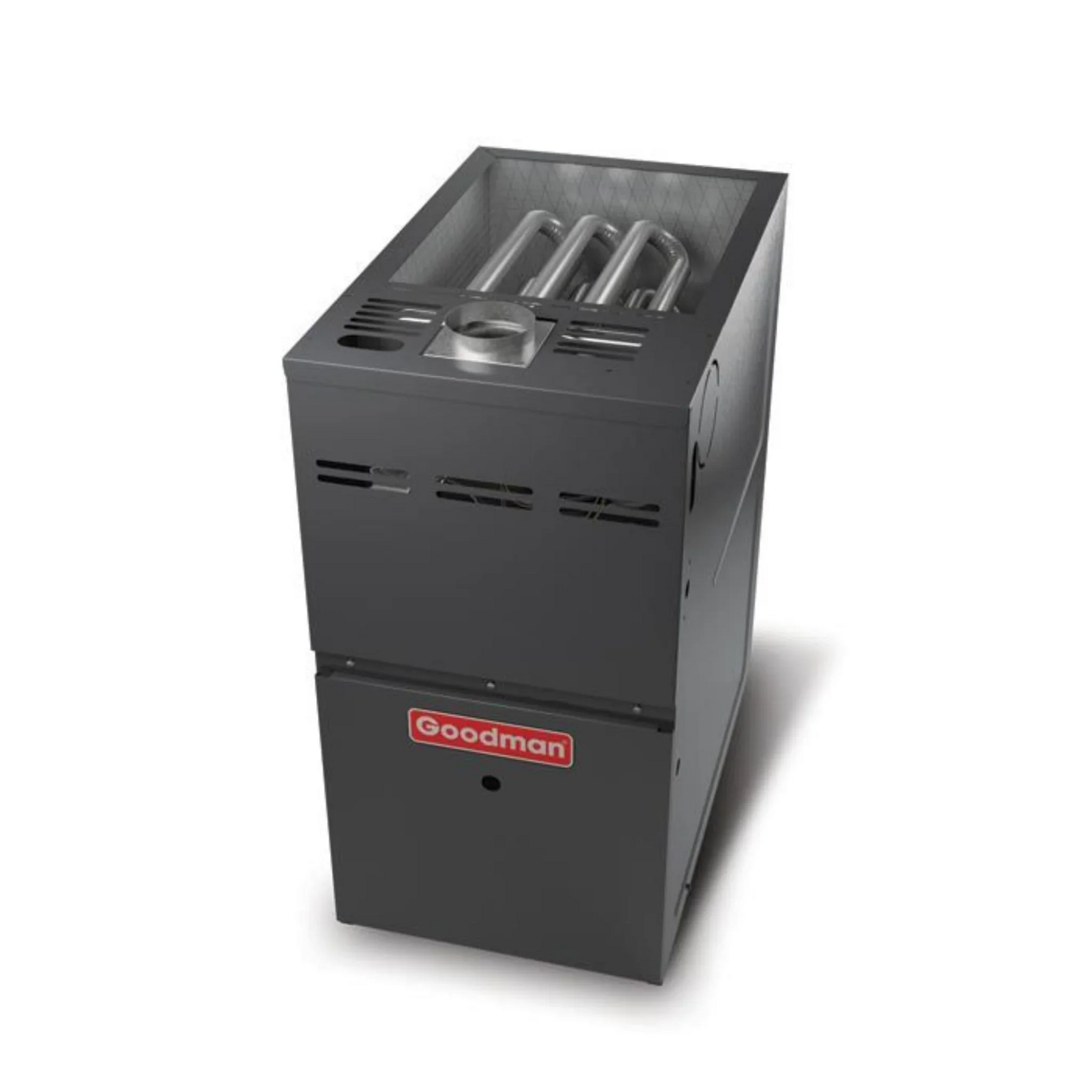

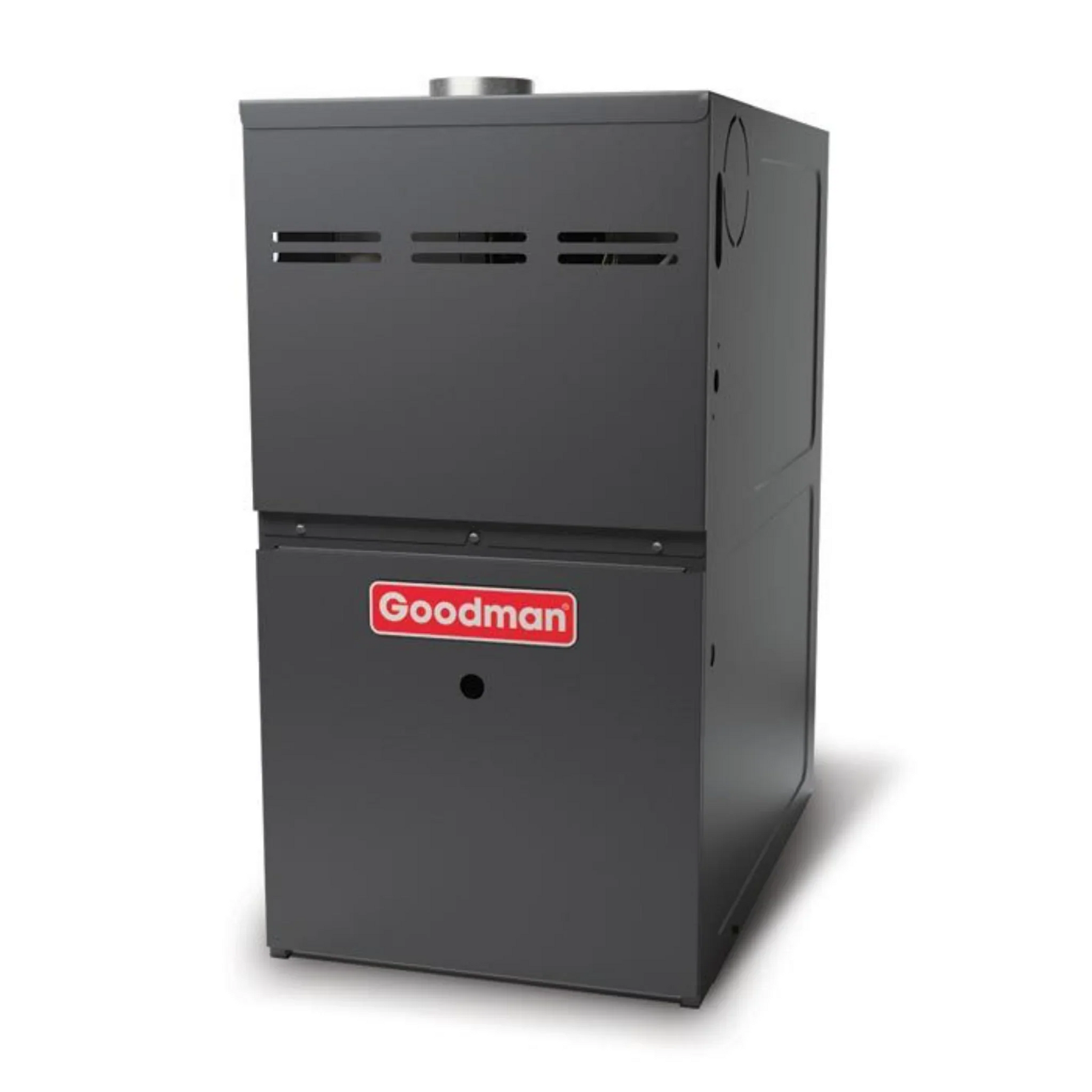

- 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to propane with an LP conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| 2 Ton 13.4 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS3BN2410 |
| Weight |
130.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX130241 and GSXN3N2410 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
24,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
2 Ton |
| Connection |
Sweat |
| Height |
27.5" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
Complete Heating & Cooling System – A matched 2 ton air conditioner + 60,000 BTU, 80% AFUE gas furnace that delivers reliable year‑round comfort in smaller to mid‑size homes.
-
14.5 SEER2 Cooling Efficiency – Meets modern energy standards for efficient summer cooling and can help reduce electricity costs compared with older systems.
-
80% AFUE Gas Furnace – Offers dependable heating performance with a standard‑efficiency rating that balances comfort with upfront value.
-
Horizontal Installation Configuration – Designed for attic or crawl‑space setups, making it a good choice where space is limited or ductwork is horizontal.
-
R‑32 Refrigerant Ready – Designed for use with next‑generation R‑32 refrigerant, improving environmental performance and aligning with current HVAC standards.
-
Factory‑Matched Components – Engineered to work together for optimized system performance, smoother airflow, and improved reliability compared to mismatched units.
-
Simple, Service‑Friendly Design – Straightforward configuration means easier installation and routine maintenance for HVAC professionals.
-
Balanced Comfort & Value – Provides consistent cooling and everyday heating without premium costs for advanced staging or ultra‑high efficiency.
Q&A
Q: What components are included in this system?
A: A matched HVAC comfort system featuring a **2 ton 14.5 SEER2 R32 air conditioner condenser, a horizontal CHPTA3026B3 evaporator coil with factory‑installed TXV, and a 60,000 BTU 80% AFUE gas furnace designed for year‑round cooling and heating.
Q: What size home is this system best for?
A: With 2 ton (about 24,000 BTU) cooling and 60,000 BTU heating, it’s ideal for small to medium homes (~1,000–1,800 sq ft) depending on insulation, climate, and duct design.
Q: What does 14.5 SEER2 efficiency mean?
A: 14.5 SEER2 denotes solid seasonal cooling efficiency. It helps reduce electricity use and cooling costs compared to older or lower‑rated systems, while meeting current efficiency standards.
Q: What does 80% AFUE indicate for the furnace?
A: 80% AFUE means 80% of the gas energy becomes usable heat, offering cost‑effective and dependable heating performance for everyday comfort.
Q: How does the CHPTA3026B3 coil improve performance?
A: The horizontal evaporator coil with factory‑installed TXV ensures precise refrigerant metering and efficient heat transfer, enhancing overall cooling performance and reliability.
Q: What refrigerant does this system use?
A: This system uses R32 refrigerant, which provides higher efficiency and lower environmental impact compared with many older refrigerants.
Q: What installation orientation is supported?
A: It’s designed for horizontal installation, making it suitable for attic, closet, or tight mechanical room applications requiring sideways airflow.
Q: Is professional installation required?
A: Yes — licensed HVAC professionals should install and properly configure the system for safety, optimal performance, and warranty compliance.
Maintenance Tips
-
Replace Air Filters Every 1–3 Months: Maintains airflow, protects both furnace and AC components, and ensures efficient operation.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for consistent heating and cooling.
-
Clean Outdoor AC Condenser: Rinse coils every 3–6 months to maintain SEER2 efficiency and prevent debris buildup.
-
Annual Professional Inspection: Technicians should check burners, heat exchanger, gas pressure, and airflow for safe furnace operation.
-
Inspect Refrigerant Lines & Insulation: Ensure lines are intact and insulation is in good condition for optimal R32 performance.
-
Maintain Condensate Drains: Keep both furnace and AC drain lines clear to prevent water issues or system shutdowns.
-
Schedule Yearly Professional Service: Inspect electrical connections, airflow, and overall system performance.
-
Monitor for Unusual Signs: Strange noises, odors, or inconsistent heating/cooling require immediate attention.
