Goodman - 2 Ton/60,000 BTU 96% AFUE Gas Furnace and Air Conditioner System - Horizontal - 14.5 SEER2 - R32 - GLXS4BA2410 / CHPTA3026B3 / GC9S960603BN
A Goodman Gas Furnace and Air Conditioner System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman Gas Furnace and Air Conditioner System is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates
- 2 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium house (depending on climate)
- 60,000 BTU 96% efficient natural gas furnace
- Requires plastic/pvc flue venting
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GLXS4BA2410 |
| Weight |
132.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN402410 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
24,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
2 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
| Warranty |
10 Years Parts with Online Registration |
Owner's Manual
What our Experts Think
-
Balanced heating + cooling performance: This complete 2 ton (24,000 BTU) R‑32 split system combines a ~14.5 SEER2 air conditioner with a 96 % AFUE 60,000 BTU gas furnace, delivering dependable year‑round comfort for small to medium homes.
-
Very high heating efficiency: With 96 % AFUE, nearly all fuel converts to usable heat, reducing winter energy costs and boosting overall system efficiency compared with standard 80 % furnaces.
-
Modern condenser technology: The GLXS4BA2410 outdoor unit uses R‑32 refrigerant, which improves cooling efficiency and lowers global warming potential versus older refrigerants, helping future‑proof your installation.
-
Precise refrigerant control: The included CHPTA3026B3 evaporator coil with TXV enhances cooling responsiveness and humidity management by adjusting refrigerant flow based on load demands.
-
9‑speed ECM blower: The GC9S960603BN furnace’s multi‑speed ECM motor boosts airflow control, reduces electrical draw, and runs more quietly than older PSC motors — contributing to smoother fan performance and fewer comfort swings.
-
Flexible installation: Designed for horizontal or downflow applications, this system easily fits attics, crawl spaces, and tight utility rooms where vertical setups aren’t possible.
-
Durable and service‑ready: Goodman’s condensing units and furnace cabinets are AHRI‑certified and ETL‑listed for safety, with features like robust steel construction and self‑diagnostic controls that simplify maintenance.
-
Strong value choice: Experts consider this a well‑rounded mid‑efficiency HVAC package — it blends solid cooling performance, excellent heating efficiency, modern refrigerant tech, and dependable components at a competitive price point.
Q&A
Q: What type of HVAC system is this?
A: This is a complete high-efficiency Goodman HVAC system, including a 2‑ton air conditioner (GLXS4BA2410), cased evaporator coil (CHPTA3026B3), and 60,000 BTU 96% AFUE gas furnace (GC9S960603BN) for year-round heating and cooling.
Q: What size home is this system suitable for?
A: A 2‑ton AC system (24,000 BTU cooling) is ideal for small to medium homes around 900–1,400 sq. ft., depending on insulation, climate, and home layout.
Q: How energy efficient is this system?
A: The system delivers 14.5 SEER2 cooling efficiency and a 96% AFUE gas furnace, meaning nearly all fuel is converted into usable heat for highly efficient residential comfort.
Q: What refrigerant does the air conditioner use?
A: The condenser uses R‑32 refrigerant, a modern, eco-friendly refrigerant that improves efficiency and reduces environmental impact.
Q: Does the furnace include advanced technology?
A: Yes. The GC9S960603BN furnace features a variable-speed ECM blower motor and a high-efficiency design for quiet operation, consistent airflow, and precise indoor temperature control.
Q: Can this system be installed horizontally?
A: Yes. The furnace and coil support horizontal airflow installation, making it suitable for attics, crawl spaces, or closets with limited vertical space.

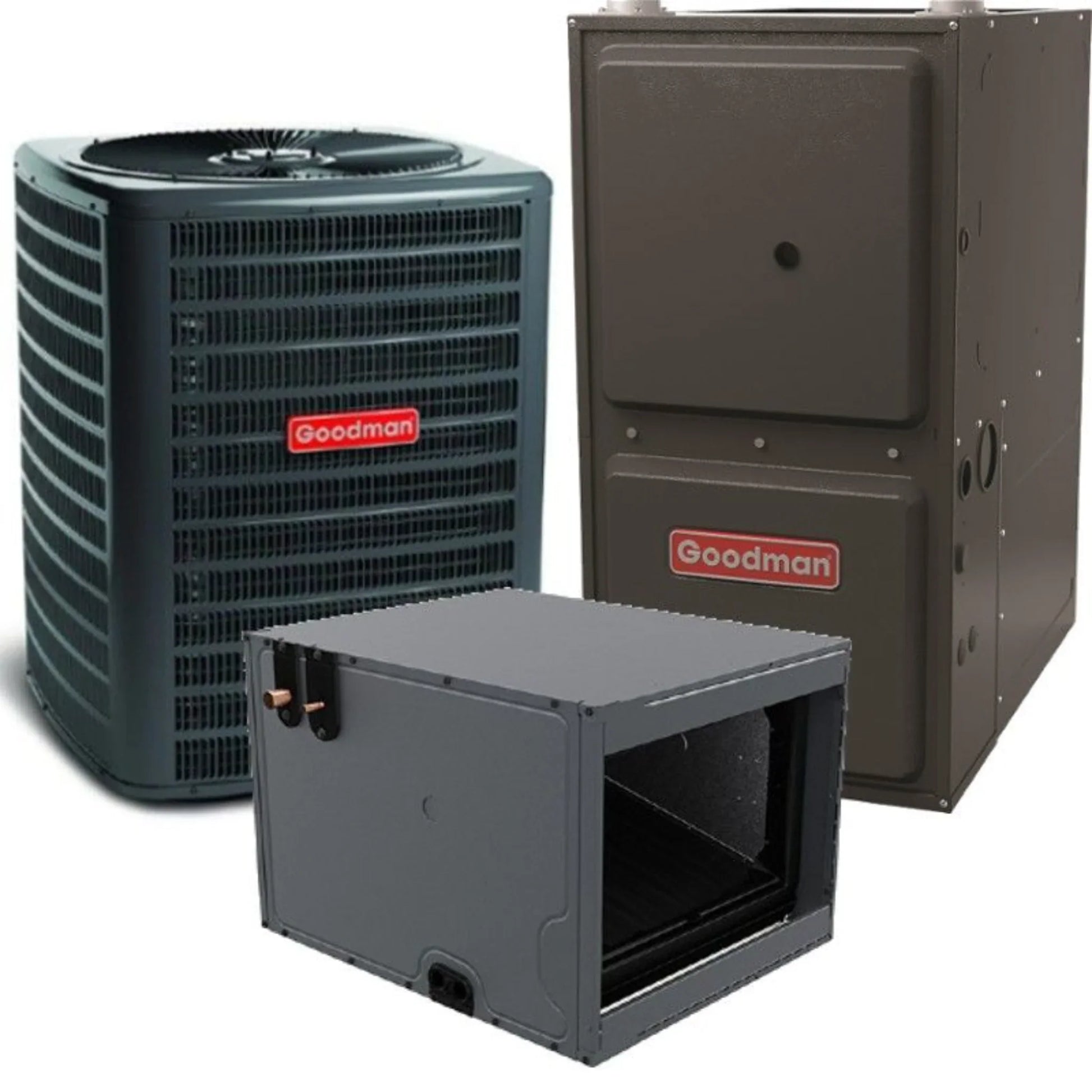

Q: What components are included in this HVAC system?
A: The system includes:
-

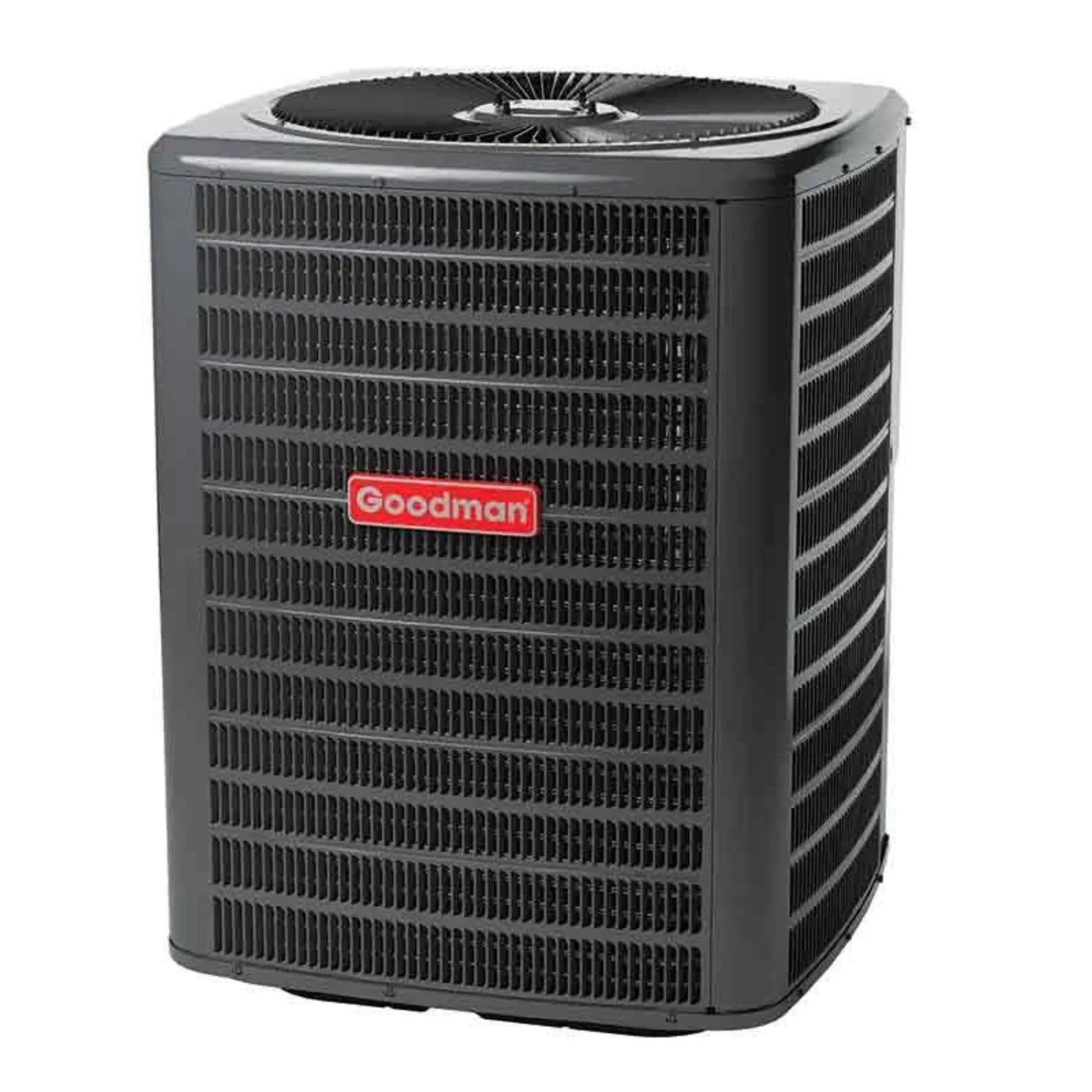

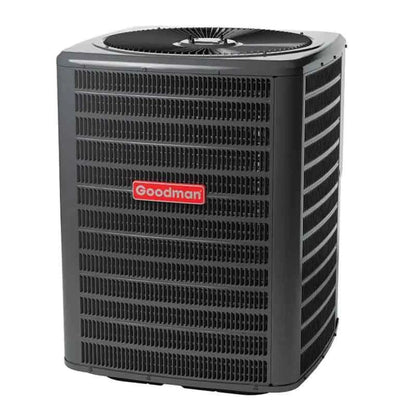

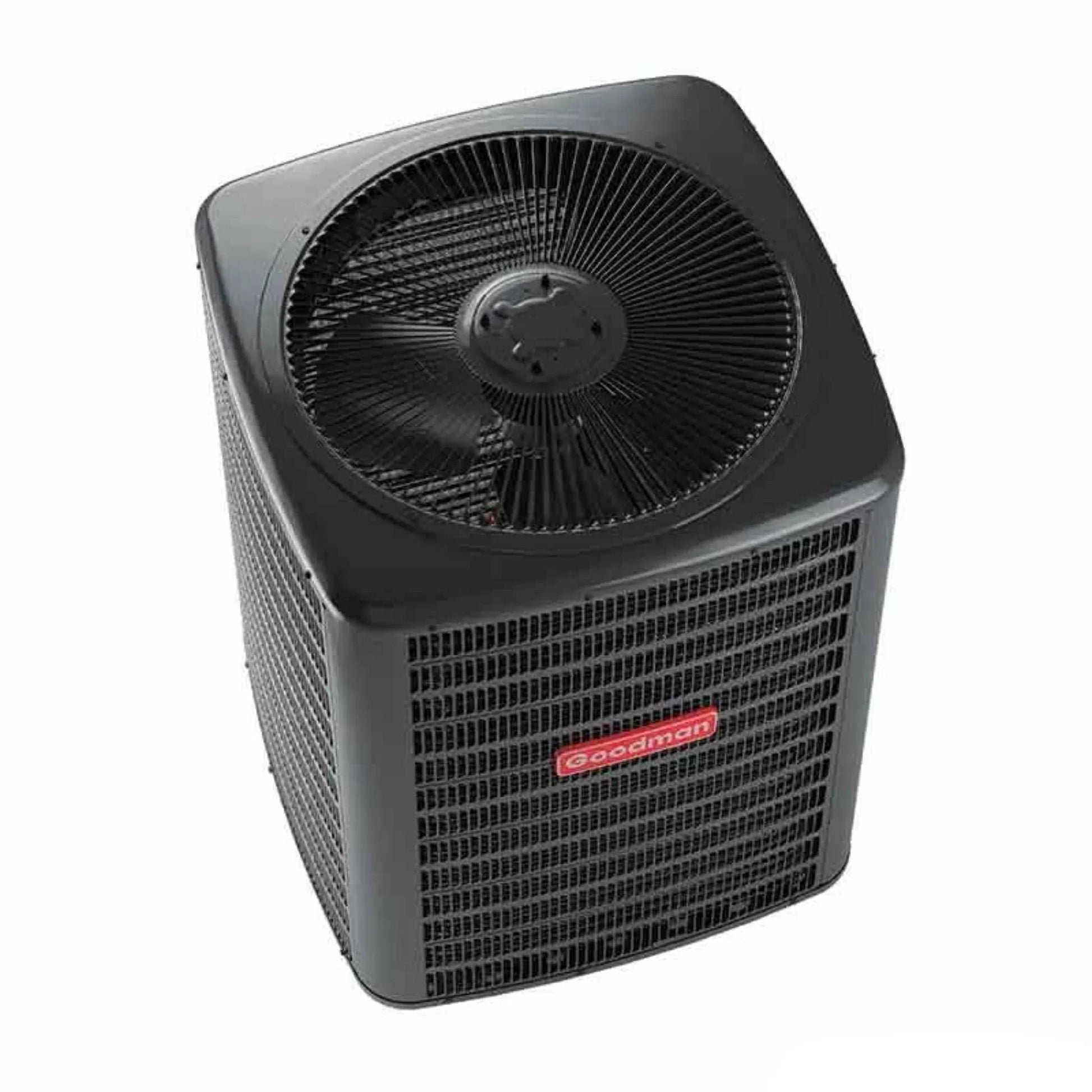

GLXS4BA2410 – 2 Ton 14.5 SEER2 outdoor AC condenser
-
CHPTA3026B3 – 2 Ton cased evaporator coil
-

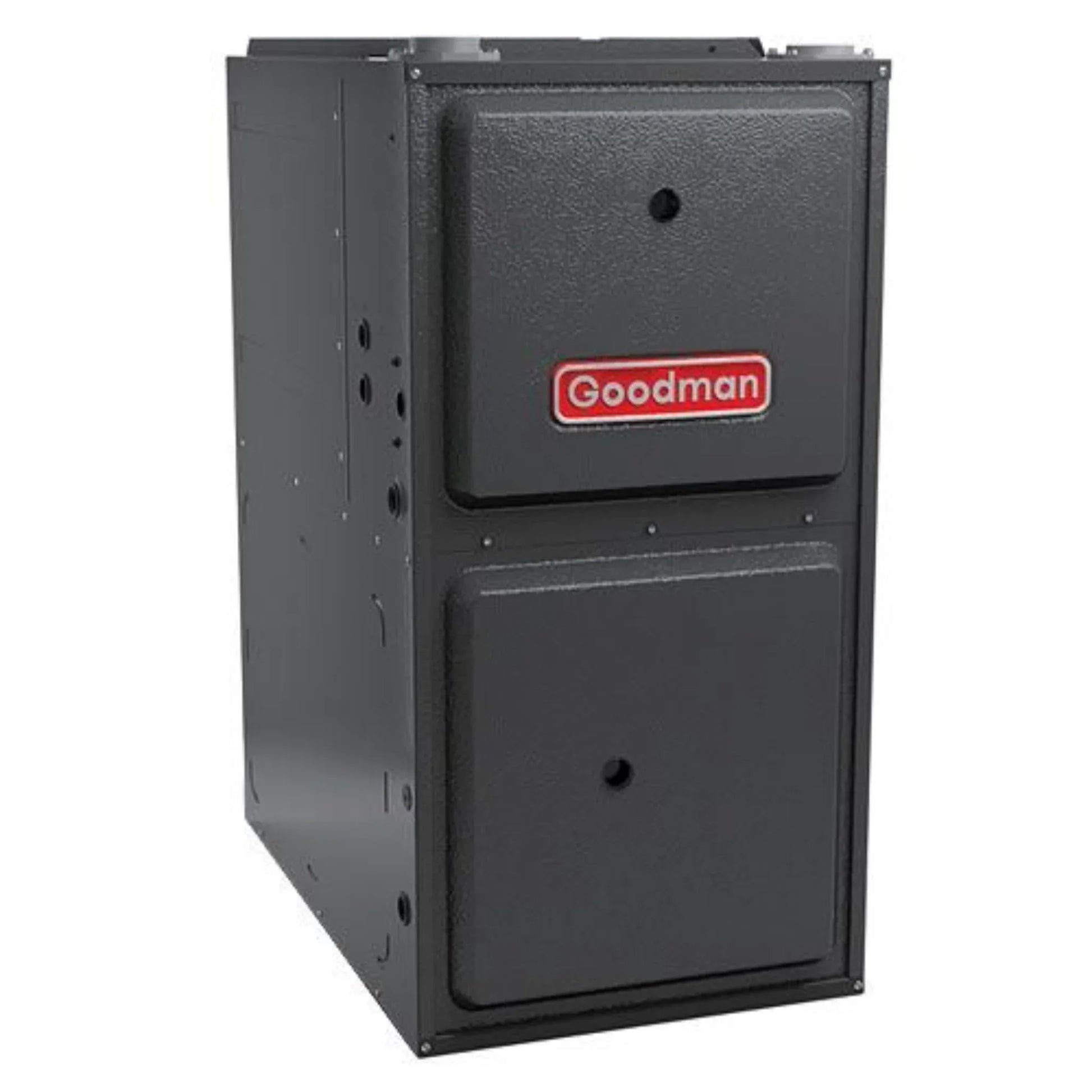

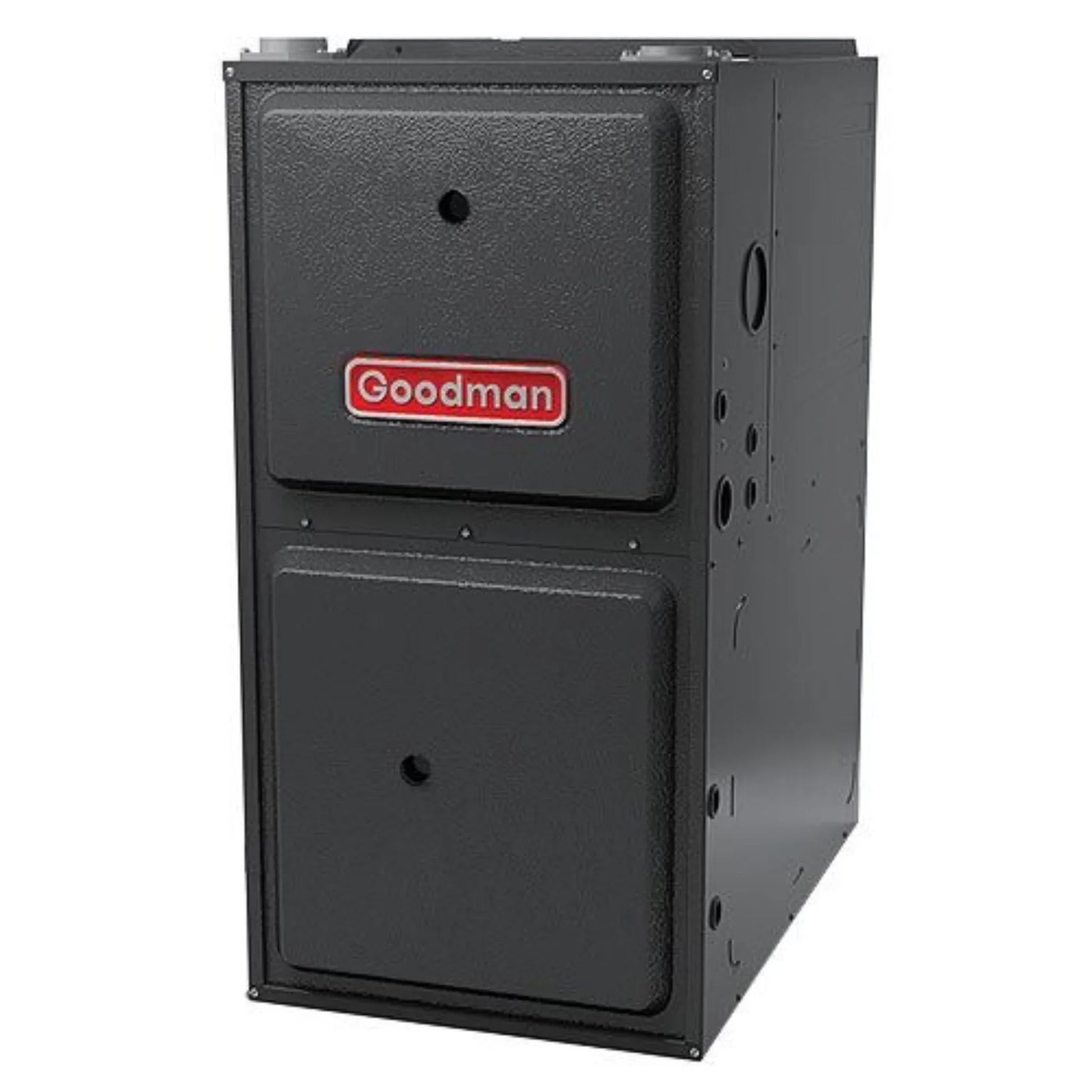

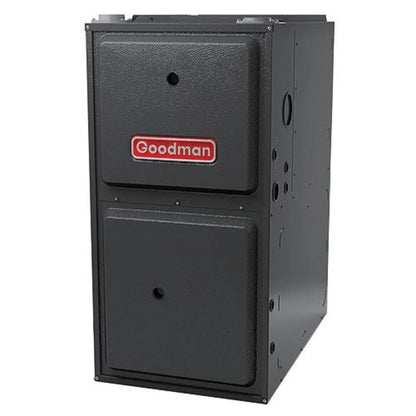

GC9S960603BN – 60,000 BTU 96% AFUE gas furnace
Maintenance Tips
-
Replace air filters every 1–3 months: Keeps airflow optimal, protects the blower motor, and improves indoor air quality.
-
Keep the outdoor condenser clean: Maintain 2–3 ft clearance and remove leaves, dirt, or debris for efficient cooling.
-
Inspect evaporator coil and condensate pan: The CHPTA coil should be checked for dust and clogs to prevent leaks and maintain cooling efficiency.
-
Check refrigerant line insulation: Ensure suction line insulation is intact to prevent energy loss.
-
Maintain clear vents and registers: Unblocked supply and return vents allow balanced airflow throughout the home.
-
Schedule annual professional service: A certified HVAC technician should inspect the furnace heat exchanger, blower motor, refrigerant levels, and safety controls yearly.
-
Keep the furnace area clean: Ensure surrounding space is clear for safe operation of the 96% AFUE gas furnace.
