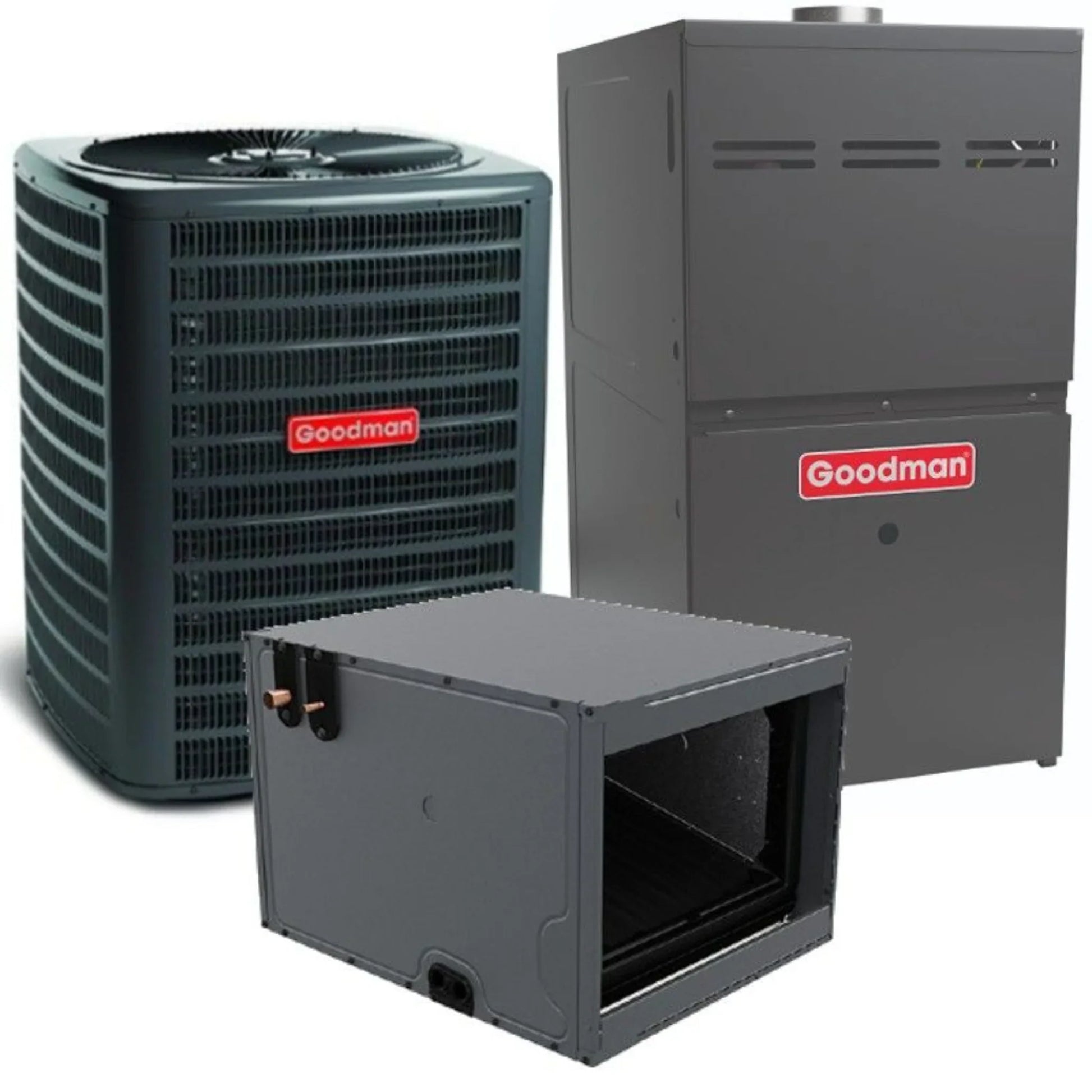

Goodman - 2 Ton/80,000 BTU 80% AFUE Low NOx Gas Furnace and Air Conditioner System - Horizontal - 15.2 SEER2 - R32 - CHPTA3026B3
A Goodman Gas Furnace and Air Conditioner System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman Gas Furnace and Air Conditioner System is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates
- 2 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
- 2.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-sized house (depending on climate)
- 80,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GLXS4BA2410 |
| Weight |
132.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN402410 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
24,000 |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/8 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Rotary |
| Liquid Line |
3/8" |
| Suction Line |
3/4" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
3/4" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
15 Amps |
| Min. Breaker Size |
10.9 Amps |
| Tonnage |
2 Ton |
| Connection |
Sweat |
| Height |
27" |
| Width |
26" |
| Depth |
26" |
Manual
What our Experts Think
-
Complete year‑round comfort: This matched system pairs a 2‑ton (80,000 BTU) capacity with an 80% AFUE Low NOx gas furnace and 15.2 SEER2 cooling, delivering balanced heating and cooling from one coordinated package.
-
Solid efficiency performance: 15.2 SEER2 cooling and 80% AFUE heating help reduce energy use and operating costs compared with older systems, without the complexity and cost of ultra‑high‑efficiency models.
-
Low NOx emissions: Built with Low NOx combustion technology, it helps minimize nitrogen oxide output, making it a more environmentally responsible choice—especially where emissions standards matter.
-
Horizontal installation fit: Designed for horizontal placement, this unit is ideal for attics, crawl spaces, or compact utility areas where upflow units won’t work.
-
Modern refrigerant readiness: Uses R‑32 refrigerant, which provides improved heat transfer and lower environmental impact than many legacy refrigerants.
-
Reliable matched system: Coordinated outdoor and indoor components ensure smooth operation, easier servicing, and lasting performance.
Q&A
Q: What heating and cooling capacity does this system offer?
A: This complete HVAC system pairs a 2 ton AC condenser with an 80,000 BTU 80 % AFUE gas furnace, ideal for medium‑sized homes needing efficient year‑round comfort.
Q: What are the energy efficiency ratings?
A: The outdoor unit delivers 15.2 SEER2 cooling efficiency, and the furnace operates at 80 % AFUE, balancing efficient cooling and heating performance.
Q: What type of refrigerant is used?
A: The system uses R‑32 refrigerant, a next‑generation, lower environmental impact choice that complies with modern regulatory standards.
Q: Is the gas furnace Low NOx compliant?
A: Yes — the furnace is Low NOx compliant, designed to reduce nitrogen oxide emissions for regions with stricter air quality requirements.
Q: What installation orientation is supported?
A: It supports horizontal airflow orientation, making it suitable for attic, crawl space, or side return duct configurations.
Q: What key components are included?
A: The system includes a 15.2 SEER2 single‑stage outdoor condenser, a horizontal evaporator coil (CHPTA3026B3) optimized for R‑32, and the 80,000 BTU Low NOx furnace — all matched for reliable operation.
Q: What electrical and venting requirements does it have?
A: The AC condenser uses 208/230 V single‑phase power; the furnace runs on 115 V and requires metal flue venting typical for mid‑efficiency gas furnaces.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and system efficiency.
-
Keep supply and return vents clear for even heating and cooling.
-
Check thermostat settings to ensure proper furnace and AC operation.
-
Inspect refrigerant lines and insulation for wear or damage.
-
Maintain a clean, clutter-free area around the unit for safe operation and airflow.
-
Rinse AC condenser coils periodically to remove dust and maintain efficiency.
-
Schedule annual professional maintenance to inspect burners, heat exchanger, refrigerant levels, and electrical components.
