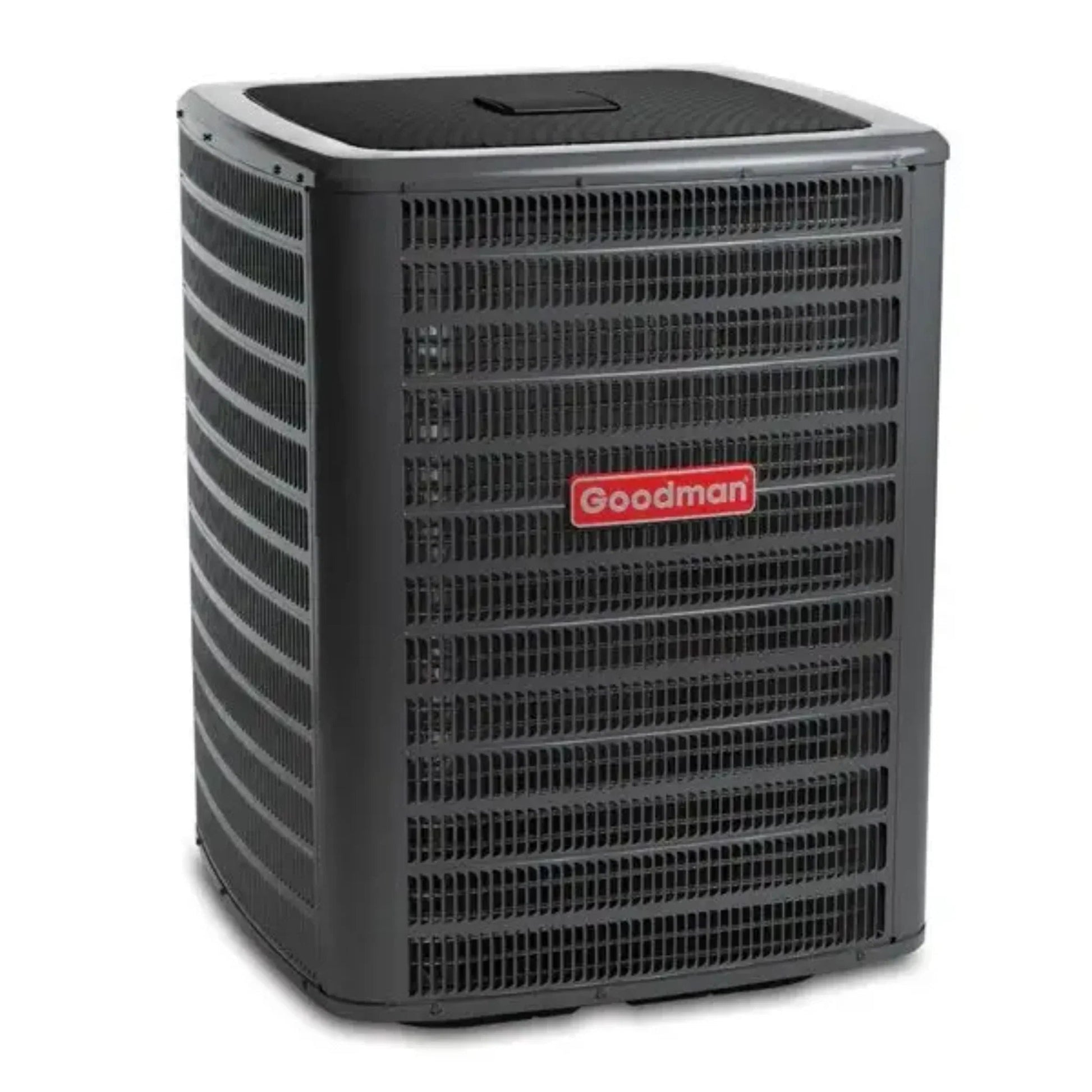

Goodman - 3.5 Ton/42,000 BTU Air Conditioner Condenser - SEER2 14.3 - Single Stage - R32 - GLXS4BA4210
The Goodman brand has been focused on providing efficiency and comfort where it matters most while still being an inexpensive brand. With its superior components and a standard efficiency, the Goodman GLXS4BA4210 air conditioner condenser is a popular choice for homeowners around the United States.
Features
- Ideal size to cover a small house in ideal climates
- 3.5 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
Specifications
| 3.5 Ton 14.3 SEER2 Goodman Air Conditioner Condenser |
| SKU |
GLXS4BA4210 |
| Weight (in lbs) |
248.000000 |
| Brand/Manufacturer |
Goodman |
| Replaces |
GSX140421 |
| Cooling BTU |
42,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
71 |
| Horsepower |
0.167 HP |
| Refrigerant |
R32 |
| SEER2 (Efficiency) |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
40 Amps |
| Min. Breaker Size |
23.1 Amps |
| Tonnage |
3.5 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
35 1/2" |
| Depth |
35 1/2" |
Manual
What our Experts Think
-
Right‑Sized 3.5‑Ton Cooling: Provides 42,000 BTU capacity, ideal for mid‑to‑large homes and residential split‑system installations needing dependable cooling.
-
Solid Energy Performance: 14.3 SEER2 rating strikes a strong balance between efficiency and cost, helping reduce cooling expenses compared to older low‑SEER models.
-
Single‑Stage Reliability: Single‑stage compressor offers straightforward, dependable operation with fewer parts and lower maintenance complexity.
-
Modern R‑32 Refrigerant: Built for R‑32 refrigerant, delivering improved heat‑transfer performance with a lower environmental impact versus legacy refrigerants.
-
Rugged Outdoor Construction: Weather‑resistant cabinet and protective finish help guard internal components from elements for long‑lasting performance.
-
Service‑Friendly Design: Accessible service valves and panels make installation and maintenance easier for HVAC professionals.
Q&A
Q: What cooling capacity and efficiency does this unit deliver?
A: The Goodman GLXS4BA4210 air conditioner condenser provides 3.5 tons (≈42,000 BTU) of cooling with a 14.3 SEER2 efficiency rating, offering effective comfort and solid energy performance for residential spaces.
Q: What type of refrigerant and compressor does it use?
A: It uses environmentally friendly R‑32 refrigerant and a single‑stage scroll compressor for dependable, straightforward cooling operation.
Q: What are the key electrical and connection specifications?
A: The condenser operates on 208/230 V single‑phase, 60 Hz power, with standard 3/8″ liquid and 7/8″ suction line connections for typical residential installs.
Q: What built‑in features support durability and maintenance?
A: Includes factory‑installed filter drier, sweat service valves with easy gauge access, high‑pressure switch, and extended life capacitors, plus AHRI certification and ETL listing.
Q: How is the cabinet constructed for outdoor use?
A: The condenser features a powder‑coated galvanized‑steel cabinet with steel louver coil guard and removable grille‑style top to protect components and withstand weather.
Q: What sound levels can users expect?
A: Typical operational sound levels are around 71–72 dBA, comparable to other efficient outdoor AC condensers.
Maintenance Tips
-
Maintain at least 24 inches of clearance around the outdoor condenser for proper airflow and efficient operation.
-
Clean the condenser coil regularly with low-pressure water to remove dirt and debris and maintain SEER2 14.3 efficiency.
-
Replace or clean indoor air filters every 1–3 months to reduce strain on the compressor and improve airflow.
-
Inspect refrigerant lines and insulation for leaks, damage, or loose connections to ensure proper R‑32 performance.
-
Check electrical connections and disconnect box for corrosion, wear, or loose wiring.
-
Monitor unusual noises or vibrations from the compressor or fan motor as early indicators of maintenance needs.
-
Ensure the unit is level to prevent drainage issues and uneven cooling.
-
Keep the cabinet and coil guards clean and intact to protect components and maintain airflow.
-
Schedule annual professional HVAC service to inspect refrigerant levels, coils, and system controls.
