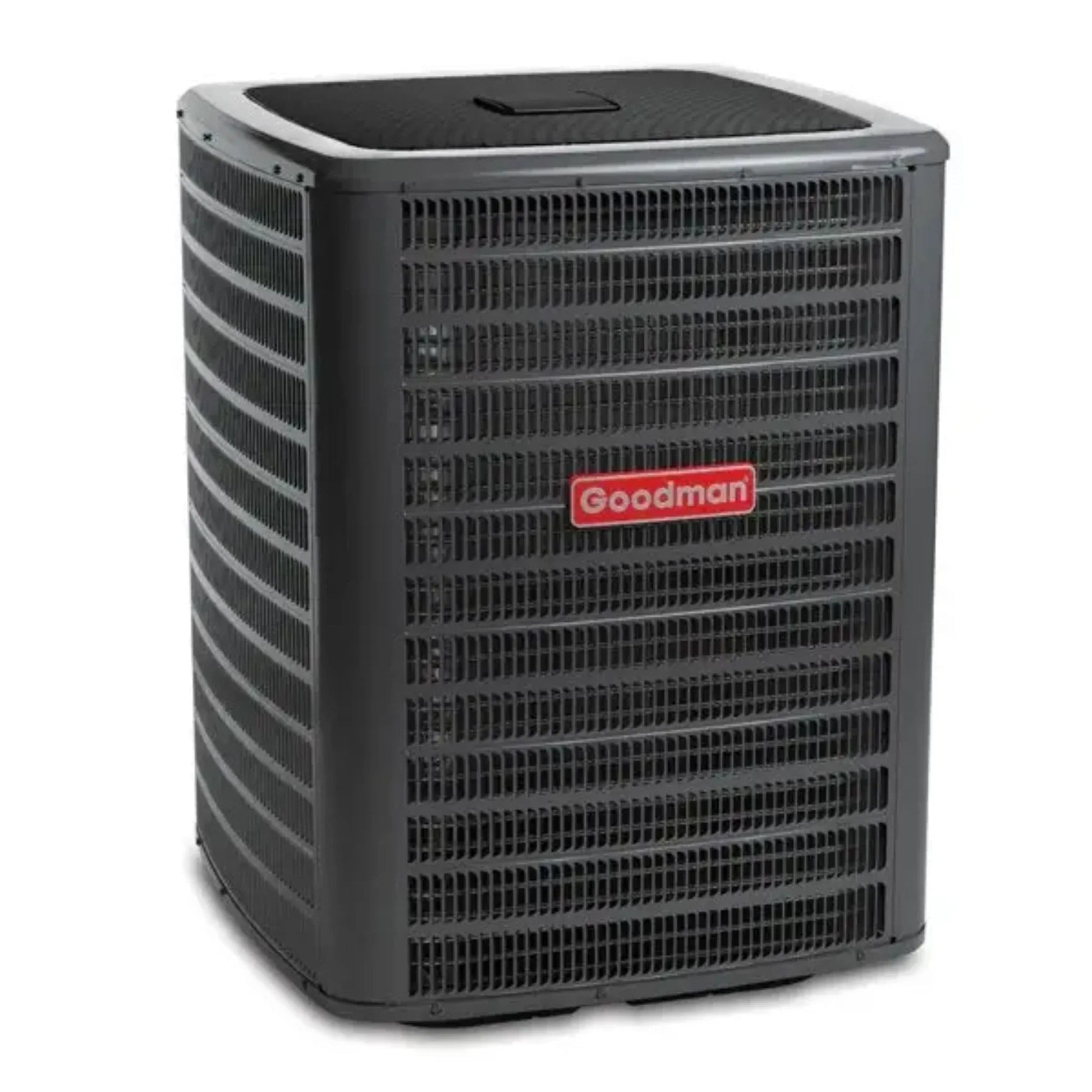

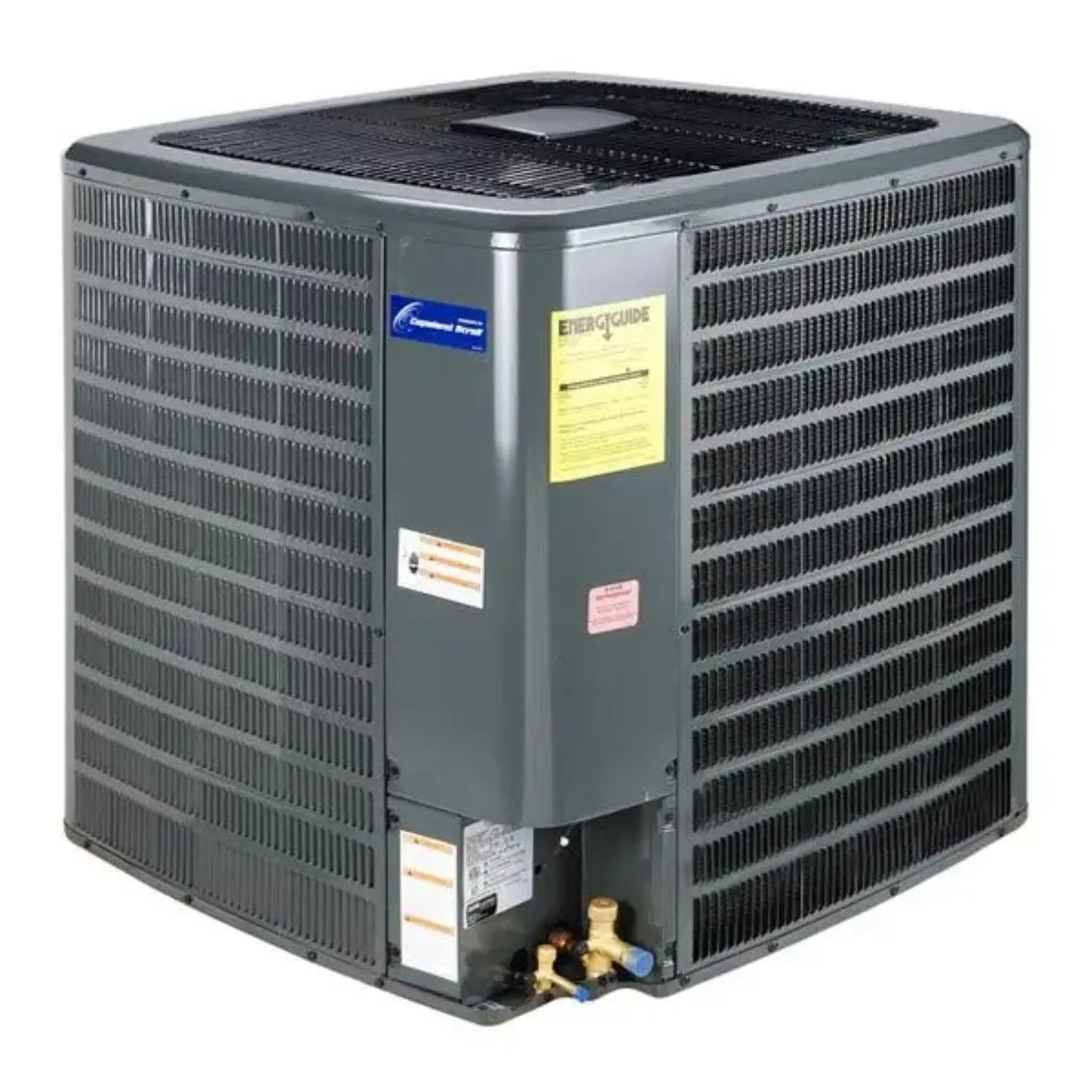

Goodman - 3.5 Ton/42,000 BTU Air Conditioner Condenser - SEER2 15.2 - Single Stage - R32 - GLXS5BA4210
The Goodman 3.5 Ton 15.2 SEER2 Air Conditioner Condenser (R-32) - GLXS4BA4210 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
Features
- Energy-efficient compressor
- Fully charged for 15' of tubing length
- Copper tube/ enhanced aluminum fin coil-5mm diameter
- Factory-installed filter drier
- Sweat connection service valves with easy access to gauge ports
- Enclosed contactor
- High-pressure switch
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Specifications
| Model Number(s) |
GLXS5BA4210 |
| Brand |
Goodman |
| Type |
Air Conditioning |
| Category |
Condensers |
| Ton |
3.5 Ton |
| SEER |
15.2 |
| Cooling Stage(s) |
1 |
| Compressor Stage |
Single |
| Voltage |
208/230V |
| Refrigerant Type |
R-32 |
Manual
What our Experts Think
-
Powerful cooling for larger spaces: With 3.5 tons (42,000 BTU) of cooling capacity, this condenser is ideal for medium-to-large homes or larger cooling zones, delivering strong and reliable performance during peak summer heat.
-
Balanced efficiency upgrade: The 15.2 SEER2 rating offers a practical balance of energy efficiency and cost, making it a smart replacement for older 10–13 SEER systems while helping reduce electricity consumption.
-
Dependable scroll compressor technology: A high-efficiency scroll compressor provides smoother operation, improved durability, and reliable long-term cooling compared with traditional compressor designs.
-
Next-generation R-32 refrigerant: This unit uses R-32 refrigerant, which improves heat transfer efficiency and has a lower environmental impact than many legacy refrigerants used in older HVAC systems.
-
Installer-friendly design: Features like factory-installed filter drier, service valves with easy gauge access, and a 15-ft factory refrigerant charge simplify installation and support reliable system startup.
-
Durable outdoor construction: The heavy-gauge galvanized steel cabinet, powder-coat finish, and steel coil guard help protect internal components from weather and debris for long-term outdoor durability.
Q&A
Q: What is the cooling capacity of the Goodman GLXS5BA4210?
A: This condenser provides 3.5 tons (42,000 BTU) of cooling power, making it suitable for medium-to-large residential homes requiring reliable central air conditioning.
Q: What is the SEER2 efficiency rating?
A: The unit delivers 15.2 SEER2 efficiency, helping improve energy performance and reduce cooling costs compared to older systems.
Q: Is the Goodman GLXS5BA4210 a single-stage or multi-stage unit?
A: It is a single-stage air conditioner condenser, designed for consistent cooling output and dependable operation.
Q: What type of compressor does this AC condenser use?
A: The system uses a high-efficiency scroll compressor, which offers smooth operation, durability, and reliable cooling performance.
Q: What refrigerant does the GLXS5BA4210 use?
A: This model uses R-32 refrigerant, a newer refrigerant that offers better heat transfer efficiency and lower environmental impact than older refrigerants.
Q: What are the electrical requirements for this condenser?
A: The unit operates on 208/230V single-phase power, which is standard for most residential HVAC systems.
Q: What are the dimensions of the Goodman GLXS5BA4210?
A: The outdoor unit measures approximately 35.5" W × 35.5" D × 36.5" H, allowing installation on most standard condenser pads.
Q: Does this condenser include built-in system protection features?
A: Yes. It includes a factory-installed filter drier, high-pressure switch, and steel louver coil guard to help protect the system and extend equipment life.
Maintenance Tips
-
Replace or clean the HVAC air filter every 1–3 months to maintain airflow and cooling efficiency.
-
Keep the outdoor condenser unit free of leaves, dirt, and debris to ensure proper heat transfer.
-
Maintain 2–3 feet of clearance around the condenser for optimal airflow and performance.
-
Rinse condenser coils periodically with a gentle stream of water to remove dust buildup.
-
Inspect refrigerant lines and insulation for damage or wear to maintain system efficiency.
-
Check thermostat settings and cooling cycles to ensure the single-stage AC operates properly.
-
Schedule yearly professional HVAC maintenance to inspect refrigerant levels, electrical components, and overall system performance.
