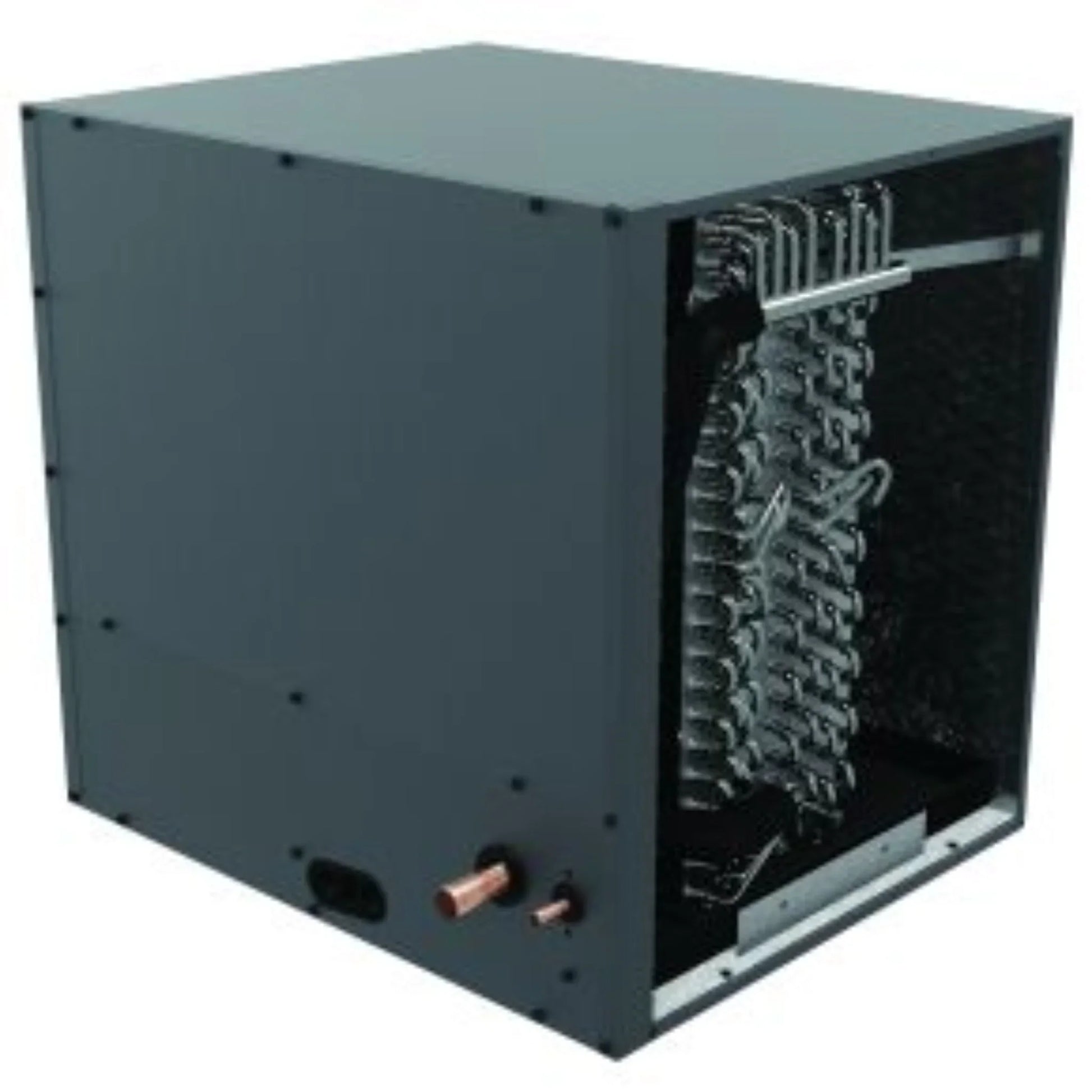

Goodman - 3.5 Ton - 21" Height Horizontal Cased Evaporator Coil TXV - R32 - CHPTA4230C3
The Goodman CHPTA4230C3 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPTA4230C3 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.
Features
- 3.5 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
Specifications
| 3.5 Ton 21" Height Goodman Horizontal Cased Evaporator Coil - TXV - R32 |
| SKU |
CHPTA4230C3 |
| Weight (in lbs) |
70.000000 |
| Brand/Manufacturer |
Goodman |
| Configuration |
Horizontal |
| Refrigerant |
R32 |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Tonnage |
3.5 Ton |
| Style |
A-Coil |
| Certification |
ETL Listed | AHRI Certified |
| Height |
21" |
| Width |
30" |
| Depth |
21" |
Manual
What our Experts Think
-
Perfect Match for 3.5‑Ton Systems: Designed to support 42,000 BTU cooling capacity, making it an excellent evaporator coil for mid‑to‑large residential air conditioners or heat pump systems.
-
Factory‑Installed TXV for Better Performance: The thermal expansion valve (TXV) ensures precise refrigerant control, improving cooling efficiency and steady airflow across varying conditions.
-
Built for R‑32 Refrigerant: Optimized for R‑32 refrigerant, offering improved heat transfer and better environmental performance than older refrigerants.
-
21″ Height Horizontal Design: Horizontal, low‑profile configuration fits easily into tight mechanical spaces such as attics, closets, or crawlspaces.
-
Durable Aluminum Coil Construction: Aluminum tube‑and‑fin design delivers strong corrosion resistance and dependable heat exchange for long service life.
-
Moisture & Condensate Protection: Includes foil‑faced insulation and corrosion‑resistant drain pan to help reduce moisture buildup and extend component life.
-
Service‑Ready Accessibility: Front access panels and standardized connections make installation and maintenance straightforward for HVAC professionals.
Q&A
Q: What size capacity is the Goodman CHPTA4230C3 evaporator coil?
A: The Goodman CHPTA4230C3 is a 3.5 Ton horizontal cased evaporator coil, ideal for residential HVAC systems up to ~42,000 BTU cooling capacity.
Q: What refrigerant does this coil use?
A: This evaporator coil is designed for R‑32 refrigerant, supporting modern high‑efficiency air conditioners and heat pumps.
Q: Does the CHPTA4230C3 include a metering device?
A: Yes — it comes with a factory‑installed thermal expansion valve (TXV) for optimized refrigerant flow and improved system performance.
Q: What installation orientation is supported?
A: It’s built for horizontal installation, suitable for attic or under‑floor setups where airflow is oriented sideways.
Q: What are the key dimensions?
A: The coil has a 21″ height and standard horizontal casing dimensions designed to fit common residential HVAC cabinets and attic spaces.
Q: What materials/features improve durability?
A: Features all‑aluminum tubing and fins for efficient heat transfer and corrosion resistance, plus a galvanized steel cased cabinet for structural strength.
Q: What serviceability and maintenance benefits does it include?
A: The design includes accessible service panels, rust‑resistant drain pan, and insulated casing for easier maintenance and reduced condensation issues.
Q: What line sizes are typically compatible?
A: Standard residential installations use 3/8″ liquid and 7/8″ suction line connections, compatible with most matched outdoor units.
Q: What applications is this coil best suited for?
A: It’s ideal for residential air conditioning and heat pump systems when paired with a matching outdoor condenser for balanced performance.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain proper airflow and prevent dust buildup on the coil.
-
Inspect and clean the evaporator coil annually to ensure efficient heat transfer and optimal cooling performance.
-
Keep the condensate drain pan and drain line clear to avoid water overflow, clogs, and mold growth.
-
Check refrigerant line connections (3/8" liquid, 7/8" suction) for leaks or damaged insulation.
-
Verify TXV (thermal expansion valve) operation for correct refrigerant flow and system efficiency.
-
Inspect coil cabinet and insulation to prevent air leaks and condensation issues.
-
Maintain a clean surrounding area to reduce dust and moisture accumulation near the unit.
-
Schedule annual professional HVAC maintenance to check coil condition, refrigerant charge, and overall system performance.
