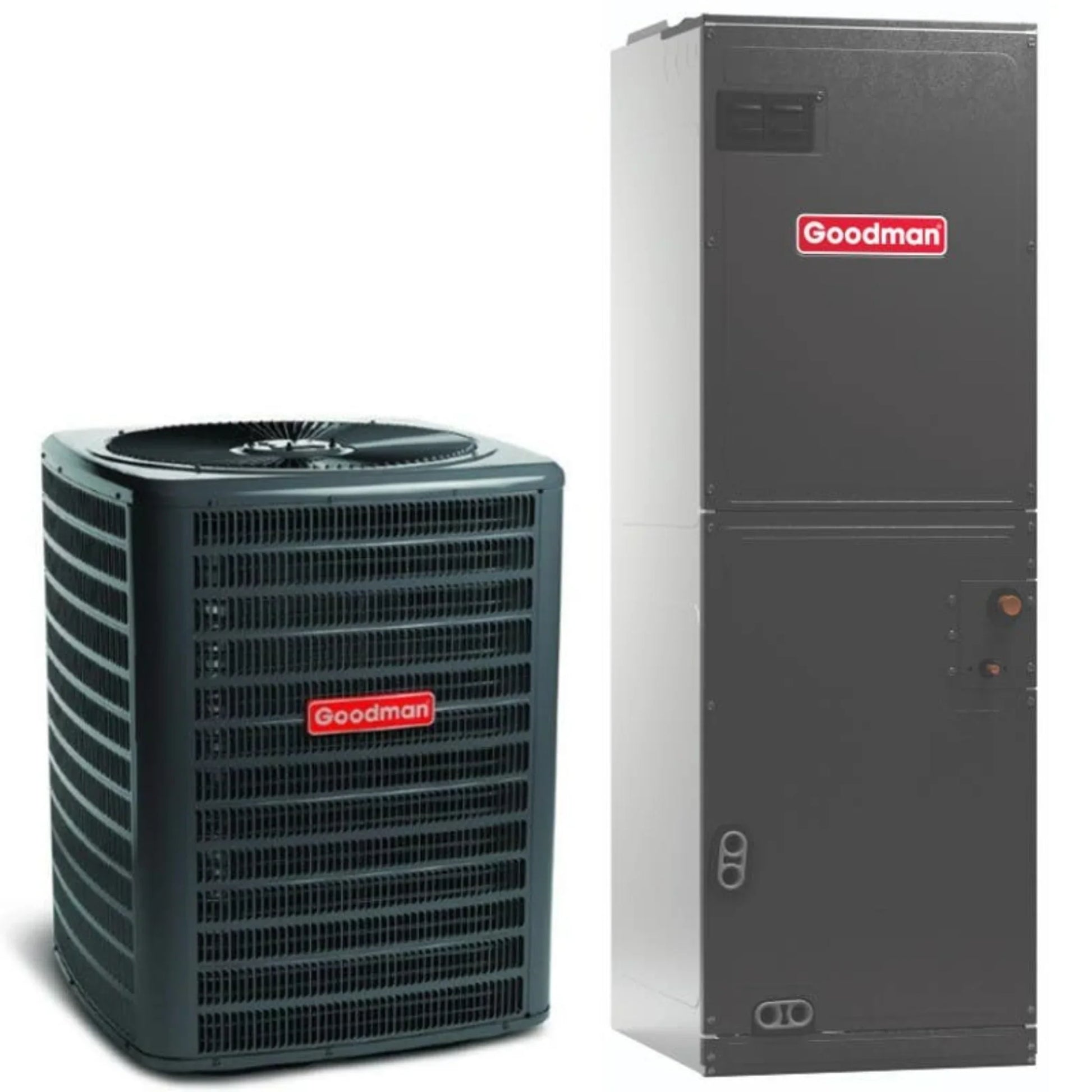

Goodman - 3 Ton/36,000 BTU - Multi-Positional - Air Conditioner Split System - 14.5 SEER2 - R32 - GLXS4BA3610
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman air conditioner split system is the perfect choice for all of your cooling needs.

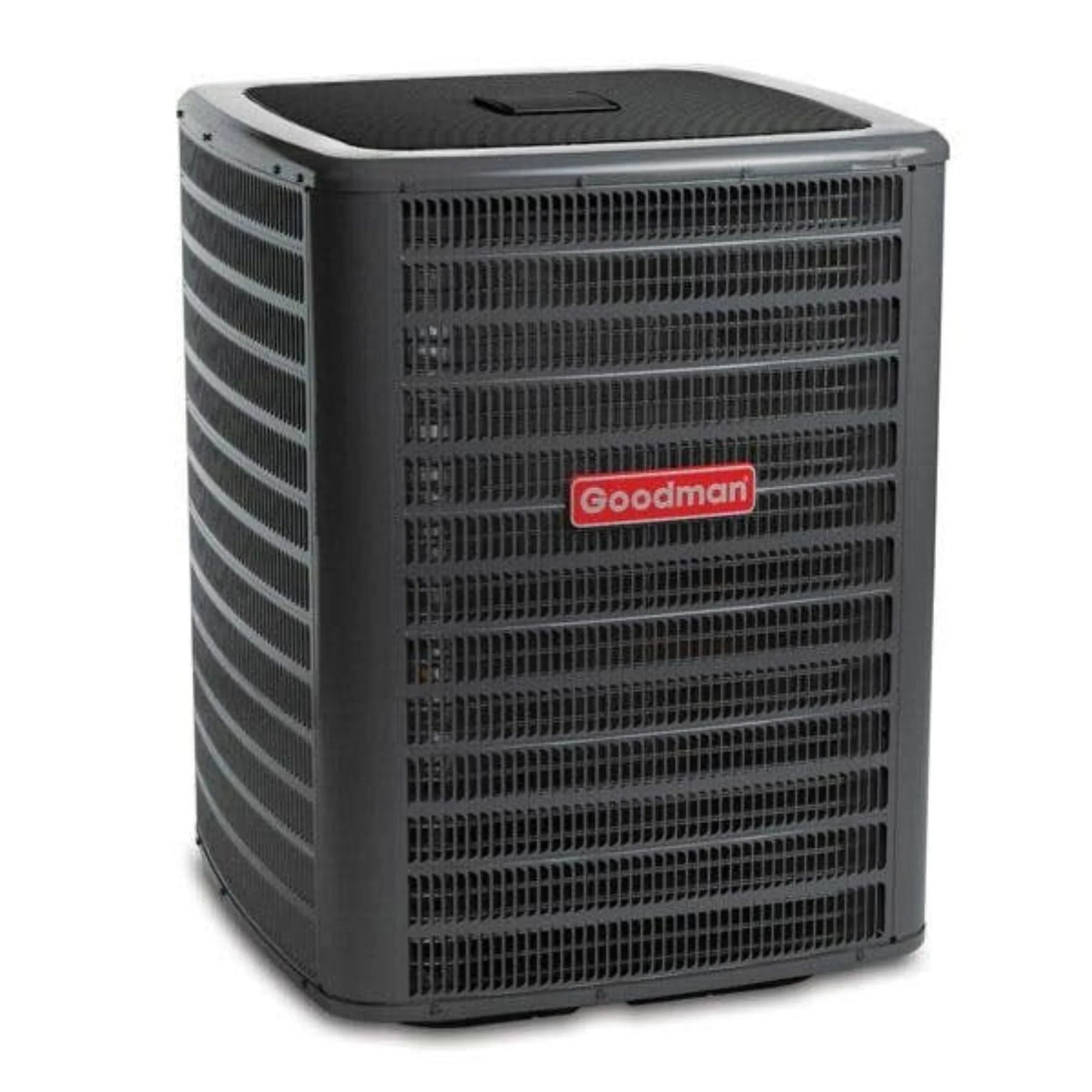

Features
- Ideal size to cover a small house in ideal climates
- 3 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
-

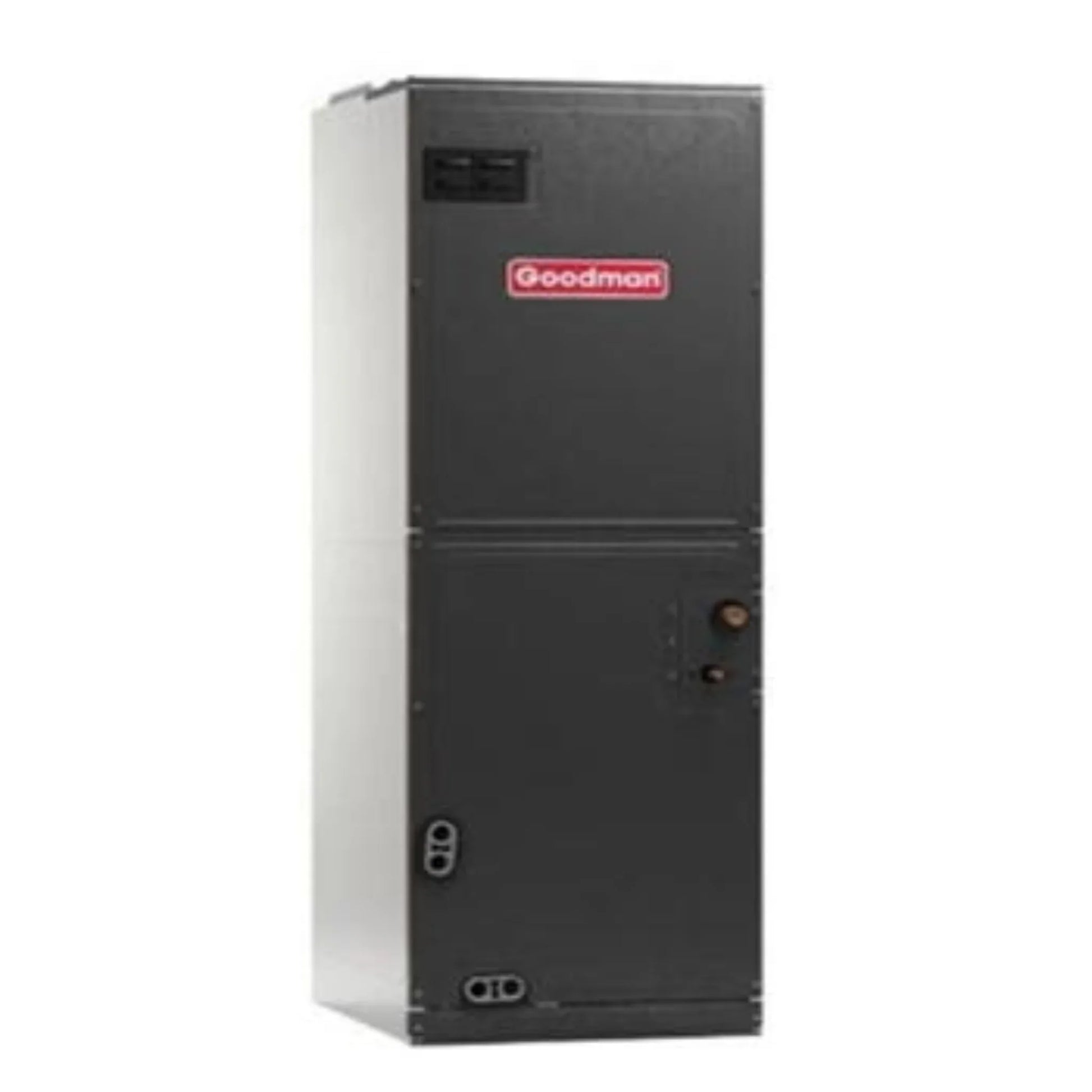

Air Handler
- 3 ton air handler
- Electric heat compatible
- Optimized for use with R-32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
Specifications
| 3 Ton 14.3 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS4BA3610 |
| Weight |
173.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN403610 |
| Cooling BTU |
36,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
67 |
| Horsepower |
1/6 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
7/8" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
30 Amps |
| Min. Breaker Size |
17.8 Amps |
| Tonnage |
3 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
29" |
| Depth |
29" |
Manual
What our Experts Think
-
Reliable 3‑Ton Cooling Power: The Goodman GLXS4BA3610 Air Conditioner Split System delivers 36,000 BTU (3 tons) of cooling, making it a strong choice for medium‑sized homes and larger living spaces with steady temperature control needs.
-
Solid SEER2 Performance: With an up to 14.3 SEER2 rating, this system balances energy efficiency and operational cost savings — ideal for homeowners seeking a budget‑friendly yet efficient cooling solution.
-
R‑32 Refrigerant Ready: Designed for use with R32 refrigerant, the unit delivers effective heat transfer and lower environmental impact compared to older refrigerants, aligning with modern HVAC standards.
-
Multi‑Positional Flexibility: The multi‑positional design supports upflow, downflow, or horizontal installations, giving installers more flexibility to fit the unit into varied duct layouts and tight mechanical spaces.
-
Durable Outdoor Build: Built with a galvanized steel cabinet and corrosion‑resistant finish for long‑lasting outdoor exposure and weather resistance.
-
Quiet & Efficient Operation: Engineered with sound‑dampening features and a standard scroll compressor, this system delivers steady, quiet performance throughout the cooling season.
-
Strong Value Choice: Combines trusted Goodman reliability, energy efficiency, and installation flexibility, making it an excellent value‑oriented cooling solution for residential HVAC upgrades or replacements.
Q&A
Q: What type of indoor unit is this?
A: This is a wall‑mounted ducted air handler with a built‑in 8 kW electric heater, designed to circulate conditioned air and provide supplemental heating when paired with an outdoor AC/heat pump unit.
Q: What capacity and power specs does it have?
A: Rated for 3 ton cooling (~36,000 BTU), it operates on 208/230 V single‑phase power, suitable for standard residential and light commercial applications.
Q: What refrigerant is it compatible with?
A: Designed for R32 refrigerant systems, ensuring compatibility with modern high‑efficiency outdoor units that use R32.
Q: How does the built‑in heater work?
A: The unit includes an 8 kW supplemental electric heater with sequence‑controlled, rust‑resistant nickel‑chromium heating elements, ideal for providing heat when cooling equipment isn’t running.
Q: What coil and airflow features does it include?
A: It features an all‑aluminum evaporator coil with a fully adjustable TXV (thermal expansion valve) for efficient refrigerant control and a multi‑speed ECM blower motor for precise airflow and quieter operation.
Q: Can this unit be installed easily?
A: Yes. It includes a wall‑hanging bracket for secure mounting, a built‑in filter rack with filter, thermoplastic drain pan, and a pull‑type disconnect for service safety.
Q: What installation and configuration flexibility does it offer?
A: Designed primarily for front‑return wall‑mount installations, the multi‑speed motor and accessible design make it suitable for diverse HVAC layouts and even zoned setups with compatible thermostats.
Maintenance Tips
-
Clean the Outdoor Condenser Coil: Remove dirt, leaves, and debris regularly to maintain efficient heat transfer and optimal cooling.
-
Maintain Clearance Around Unit: Keep at least 2–3 ft of space around both condenser and air handler for proper airflow.
-
Inspect Refrigerant Lines: Check liquid and suction lines for insulation damage or leaks to prevent efficiency loss.
-
Rinse Fins Gently: Use a garden hose to clean condenser fins without bending them.
-
Check Electrical Connections: Ensure wiring, disconnects, and capacitors are secure and corrosion-free.
-
Monitor Performance & Noise: Normal operation is quiet; unusual noises or reduced cooling may indicate service is needed.
-
Schedule Annual Professional Service: A licensed HVAC technician should inspect the compressor, fan motors, refrigerant charge, and system pressures yearly.
