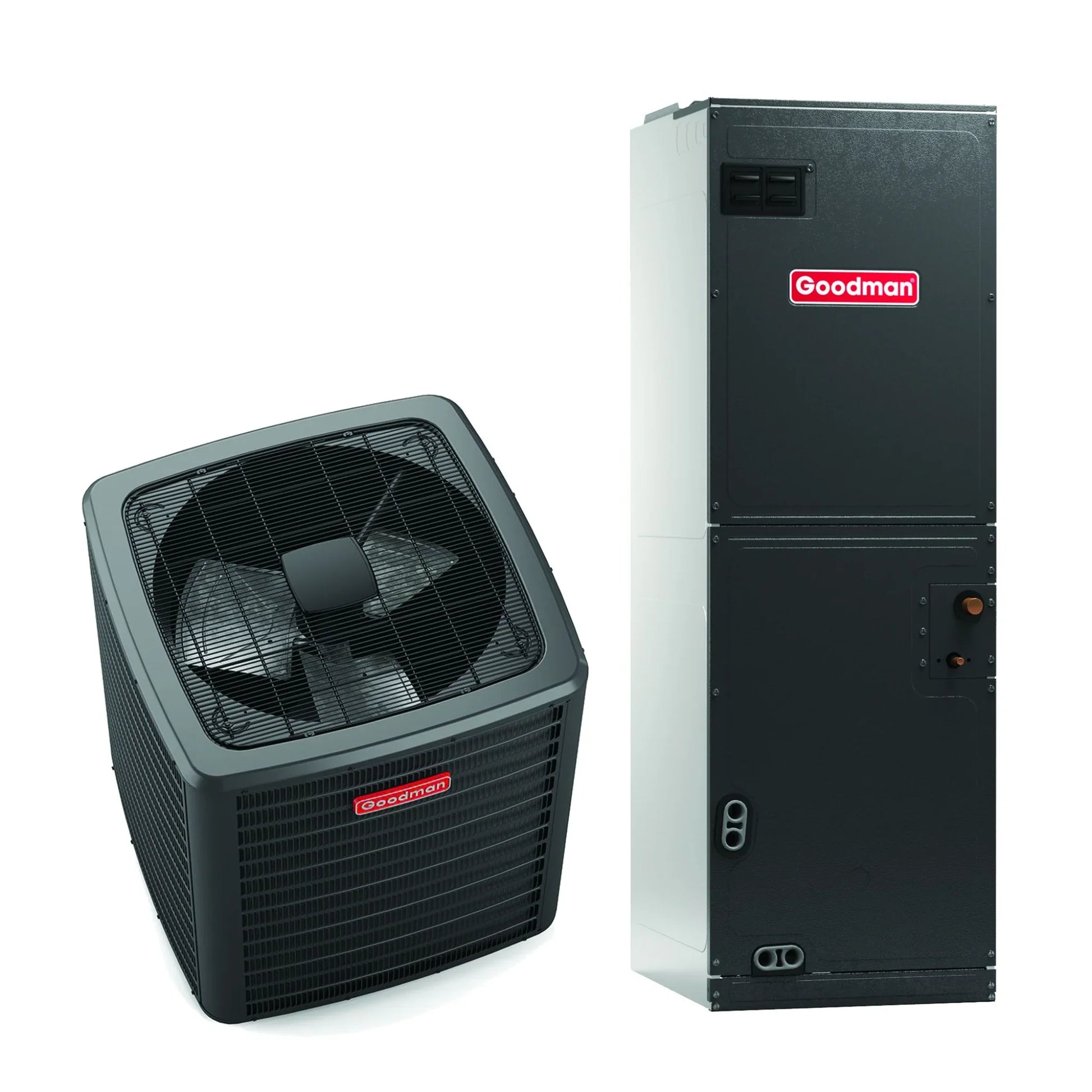

Goodman - 3 Ton/36,000 BTU - Multi-Positional - Heat Pump Split System - 15.2 SEER2 - R32 - GLZS5BA3610
The Goodman Heat Pump Split System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, the Goodman Heat Pump Split System is a perfect choice for all of your heating and cooling needs.
Features
- Designed to cover a smaller house in average climates

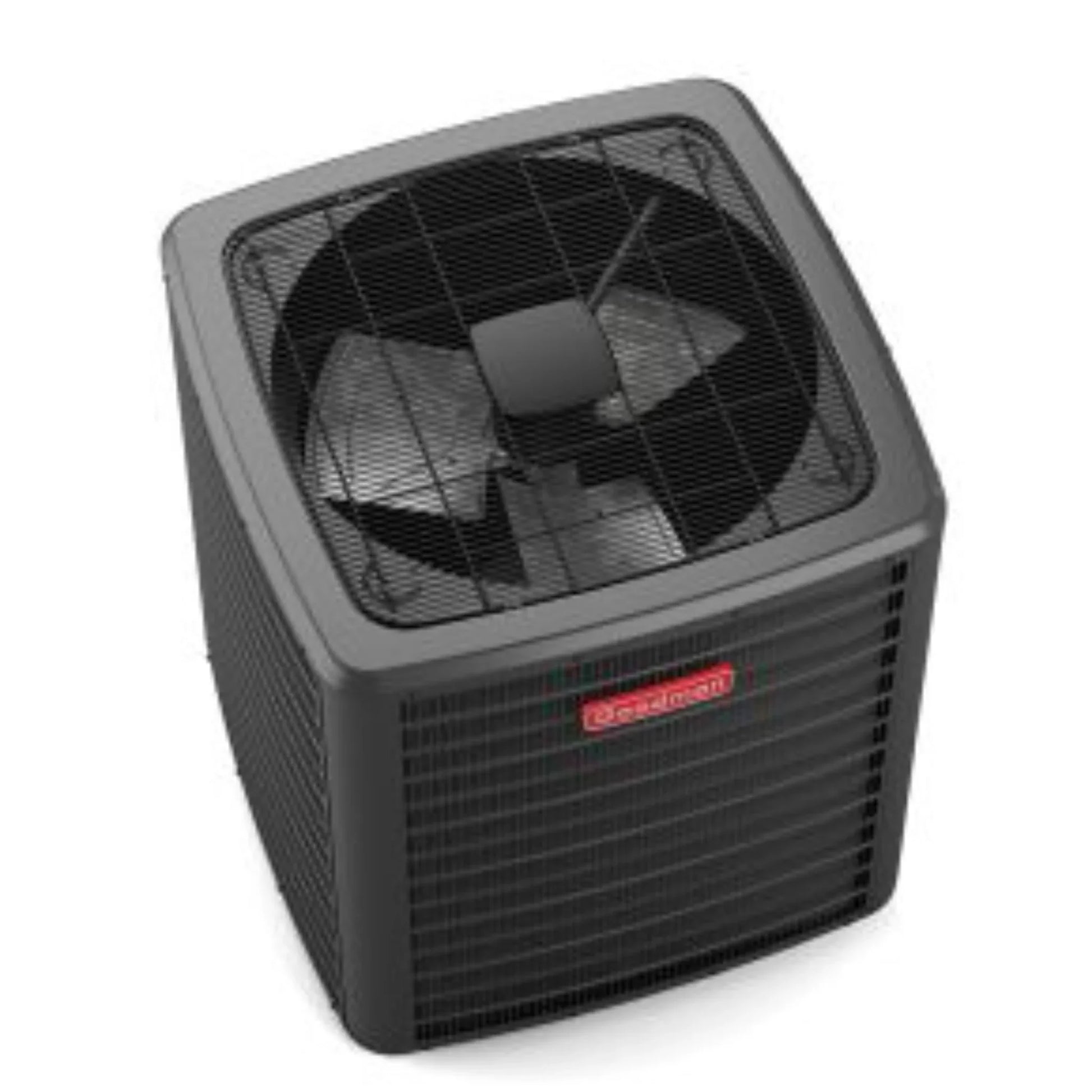

- 3 Ton, 15.2 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
-

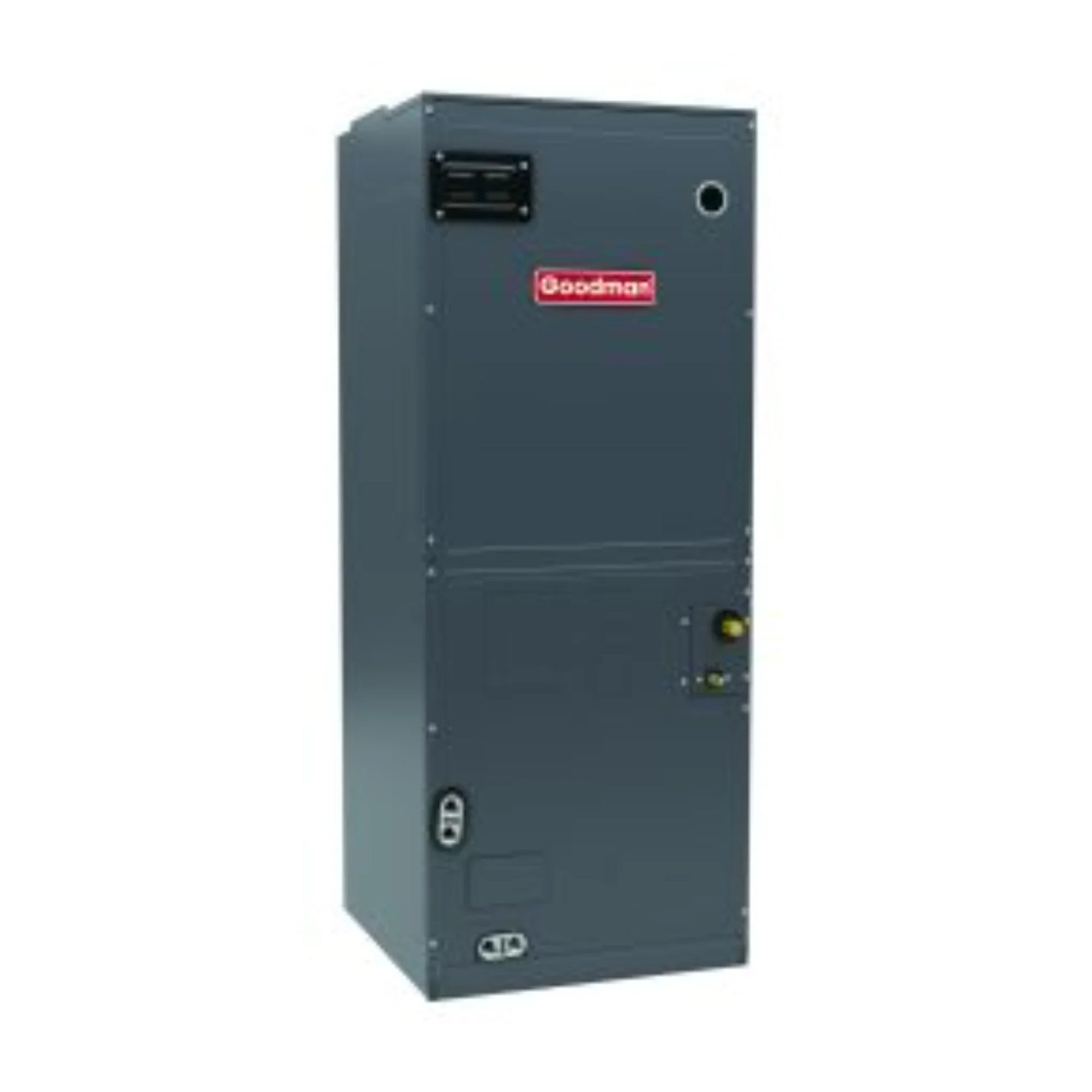

Air Handler
- 3.5 ton air handler
- Electric heat compatible
- Optimized for use with R-32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
Specifications
| SKU |
GLZS5BA3610 |
| Weight |
242.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSZ160361 |
| Cooling BTU |
36,000 |
| Heating BTU |
36,000 |
| Blower Motor |
Single Speed Motor |
| Decibel Level (dBA) |
72 |
| Horsepower |
0.33 HP |
| Refrigerant |
R32 |
| SEER2 |
15.2 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
35 Amps |
| Min. Breaker Size |
22.8 Amps |
| Tonnage |
3 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
35 1/2" |
| Depth |
35 1/2" |
Manual
What our Experts Think
-
High Efficiency: SEER2 15.2 ensures energy savings while maintaining strong cooling and heating.
-
Optimal Capacity: 3 Ton / 36,000 BTU ideal for medium to large homes.
-
Multi-Positional Flexibility: Supports upflow, downflow, or horizontal installation.
-
Reliable Operation: Engineered for consistent performance and long-term durability.
-
Eco-Friendly Refrigerant: Uses R32 to reduce environmental impact.
-
Quiet Performance: Designed for low operational noise.
-
Year-Round Comfort: Seamlessly integrates into heat pump systems for both heating and cooling.
Q&A
Q: What cooling & heating capacity does this system offer?
A: This split heat pump provides 36,000 BTU (3 tons) of cooling and heating, suitable for medium‑sized homes when paired with a compatible indoor air handler.
Q: How energy efficient is it?
A: Rated 15.2 SEER2, this model delivers high seasonal efficiency for cooling comfort with improved energy savings under current standards.
Q: What refrigerant does it use?
A: Uses R‑32 refrigerant, a more environmentally responsible option with a lower global warming potential than many older refrigerants.
Q: What type of compressor and operation does it have?
A: Equipped with a single‑stage, high‑efficiency scroll compressor and single‑speed condenser fan motor for dependable, consistent performance.
Q: What does “multi‑positional” mean for this system?
A: The paired indoor air handler (when included) supports upflow, downflow, and horizontal installation orientations for flexible placement in closets, attics, or basements.
Q: What are the electrical requirements?
A: Typically operates on 208/230 V single‑phase power (60 Hz) — standard for most residential HVAC installations.
Q: How durable and service‑ready is this system?
A: Includes factory‑installed suction‑line accumulator, crankcase heater, high‑capacity muffler, high/low pressure switches, and easy‑access service valves for maintenance and reliability.
Q: How quiet is it during operation?
A: Operates around ~71 dBA, a typical sound level for outdoor heat pump systems.
Q: What certifications does this unit have?
A: It is AHRI‑certified and ETL‑listed for tested performance and safety compliance.
Q: What warranty coverage is offered?
A: Goodman typically offers a 10‑year parts and compressor limited warranty when registered after installation.
Maintenance Tips
-
Clean the outdoor condenser coil regularly to remove dirt, leaves, and debris for optimal efficiency.
-
Maintain 2–3 feet of clearance around the outdoor unit for proper airflow.
-
Replace or clean indoor air filters every 1–3 months to maintain airflow and system performance.
-
Inspect refrigerant lines and insulation for damage or leaks.
-
Keep the condenser fan and top grille clear of debris to prevent airflow restriction.
-
Check the condensate drain line regularly to prevent clogs and water buildup.
-
Ensure thermostat is functioning properly and set for efficient heating/cooling cycles.
-
Listen for unusual noises like rattling, buzzing, or squealing, which may indicate mechanical issues.
-
After storms or strong winds, inspect the outdoor unit for debris or damage.
-
Schedule annual professional HVAC maintenance to inspect refrigerant levels, electrical components, and overall system performance.
