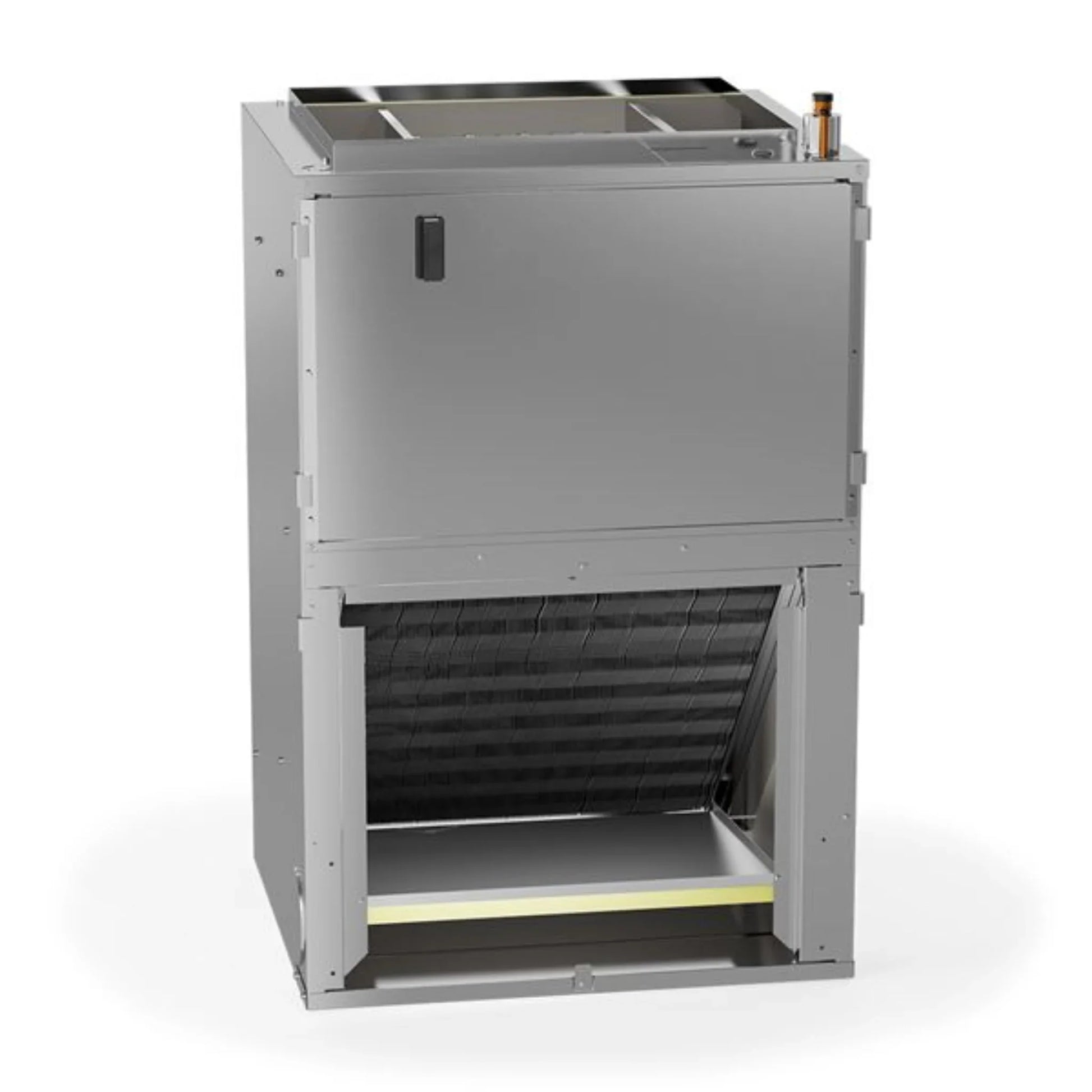

Goodman - 3 Ton/36,000 BTU Wall Mount Air Handler With Built-In 5kW Heater - 230V - R32 - AWST36LU1305
Goodman air handlers are an integral part of finishing a total home environment control system. The AWST plays a key role in reducing indoor humidity to create a much more comfortable environment. In addition, the AWST works with a multi-speed ECM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
Features
- AWST Models: Equipped with a fully adjustable TXV
- Designed for use with R-32 Refrigerant
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling

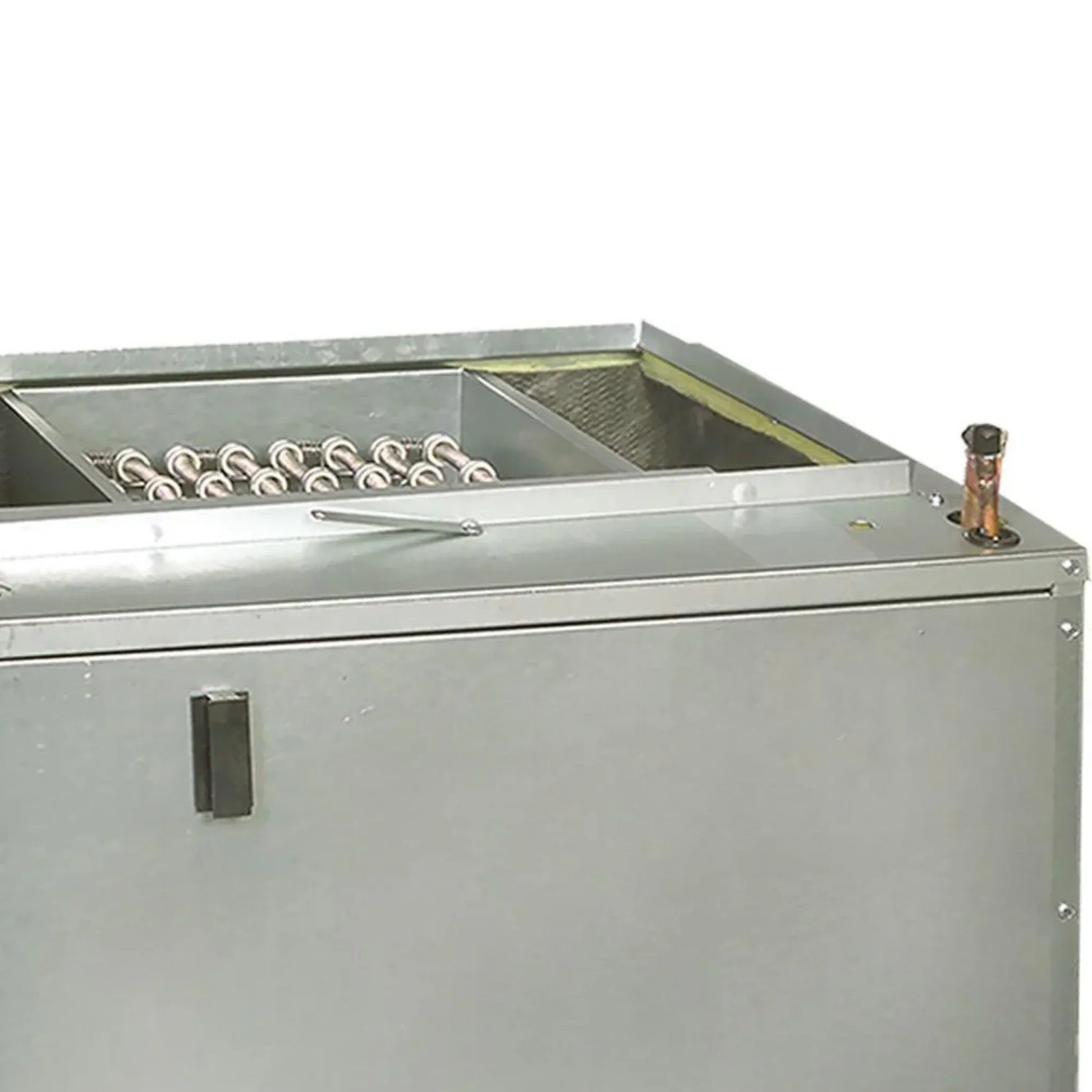

- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Factory-installed pull-type disconnect
- Factory installed R-32 sensor designed for the lifespan of the coil.
- Thermoplastic drain pan with bottom primary and secondary drain connections

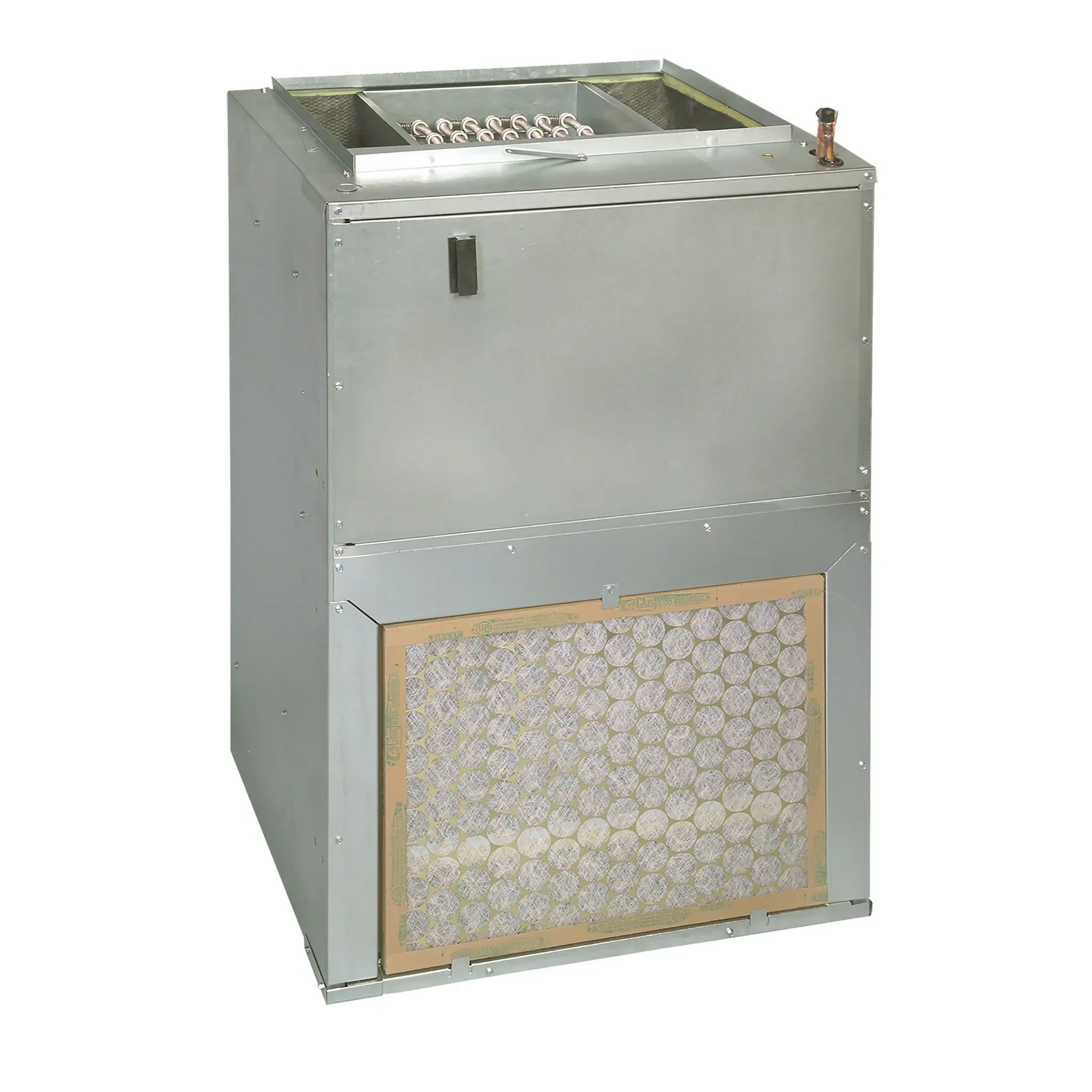

- Built-in filter rack (filter included)
- Large chassis (2.5- and 3-ton units) front return only
- Small chassis (1.5- and 2-ton units) front or bottom return

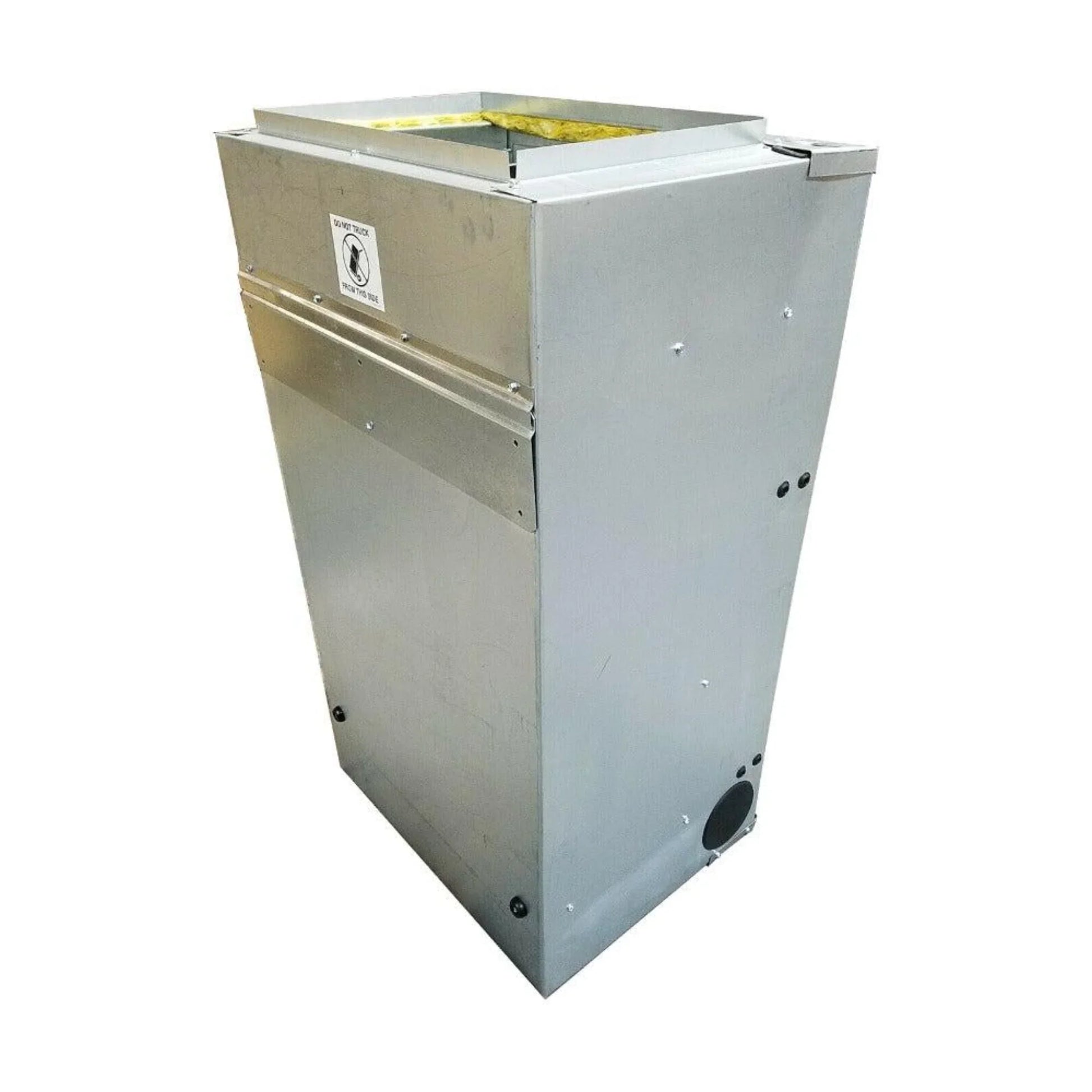

- Wall-hanging bracket provided
Specifications
| Model Number(s) |
AWST36LU1305 |
| Brand |
Goodman |
| Category |
Air Handlers |
| Ton |
3.0 Ton |
| Voltage |
208/230V |
| Electrical Phase(s) |
1-Phase |
| Amp(s) |
30 |
| Blower |
Multi-Speed |
| Suction Valve Size (Inches) |
3/4 |
| Liquid Valve Size (Inches) |
3/8 |
| Height (Inches) |
36 |
| Width (Inches) |
24 |
| Depth (Inches) |
21 |
| UPC # |
663051683709 |
Manual
What our Experts Think
-
Built‑In Electric Heat Adds Flexibility – The 5 kW electric heater integrated into the wall mount air handler supports supplemental heating — ideal for seasonal transition or cold nights without a separate furnace.
-
R‑32 Refrigerant & Modern Coil Design – Optimized for R‑32 refrigerant with durable aluminum tubing coils for efficient heat transfer and improved environmental performance.
-

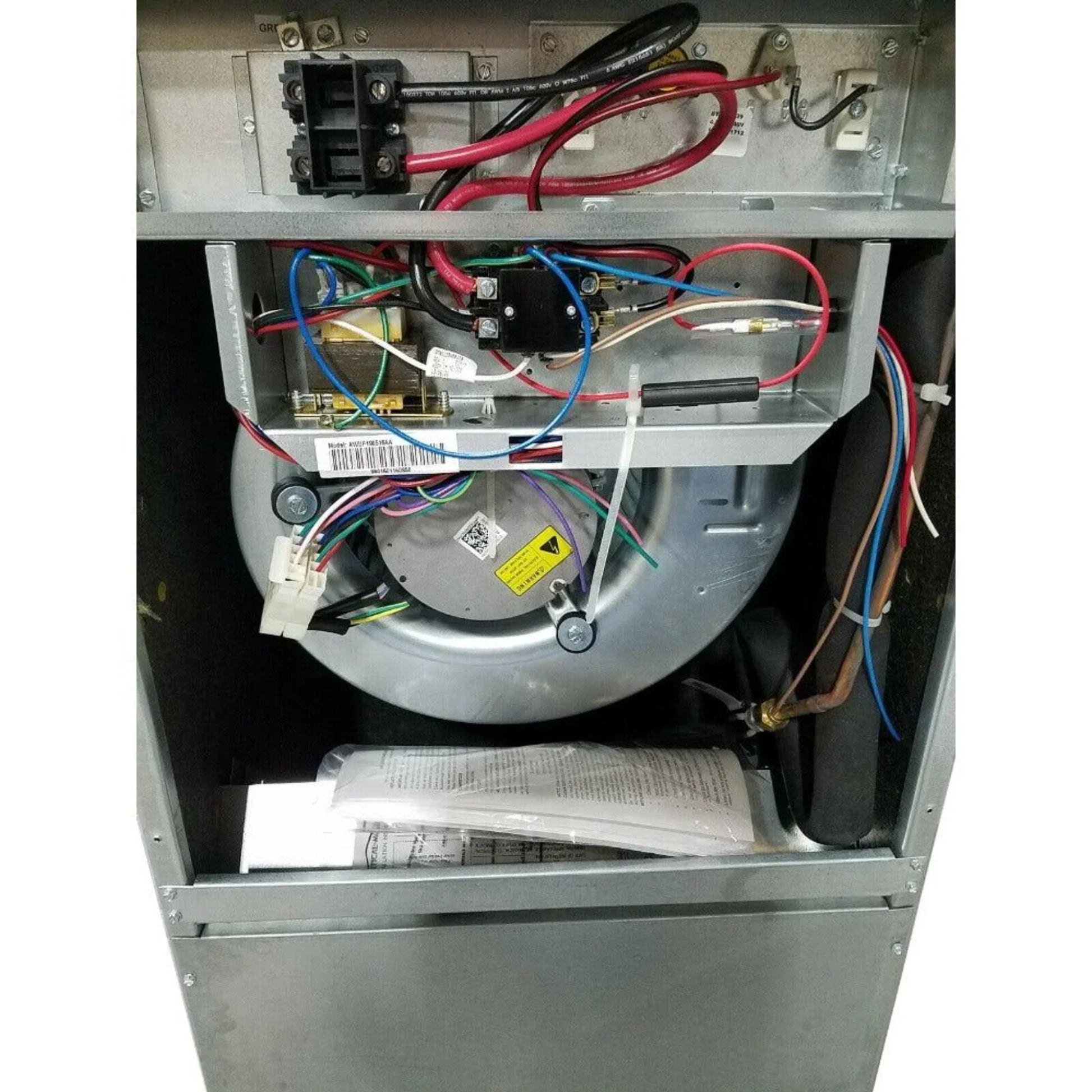

Multi‑Speed ECM Blower Motor – Multi‑speed ECM blower delivers adjustable airflow for both heating and cooling, enhancing comfort and reducing noise compared with basic motors.
-
Adjustable TXV for Precision – Fully adjustable thermal expansion valve (TXV) helps fine‑tune refrigerant flow, ensuring stable performance and maximizing efficiency.
-
Wall Mount & Space‑Saving Design – The vertical wall‑mount configuration is ideal for tight mechanical spaces or retrofit installs, freeing up floor area.
-
Low Air Leakage Cabinet – Tested to ASHRAE standards with very low cabinet air leakage, improving overall efficiency and indoor air performance.
-
Built‑In Filter & Easy Access – Comes with a built‑in filter rack and included filter, plus a pull‑type disconnect and thermoplastic drain pan to simplify maintenance.
Q&A
Q: What type of unit is this?
A: It’s a 3 ton (36,000 BTU) wall‑mount air handler designed for ducted HVAC systems and includes a built‑in 5 kW electric heater for supplemental heat.
Q: What refrigerant is it designed to work with?
A: This air handler is optimized for R32 refrigerant, supporting modern, higher‑efficiency cooling systems.
Q: What are the power and installation requirements?
A: It operates on 208/230 V single‑phase 60 Hz power and is engineered for wall or stud mounting to save space in mechanical rooms.
Q: What heater capacity does it have?
A: Features a 5 kW built‑in electric heater for additional warmth during shoulder or cold seasons without the need for a separate furnace.
Q: What blower and airflow features does it include?
A: Equipped with a direct‑drive multi‑speed blower motor that provides flexible air volume control for both cooling and heating modes.
Q: Does it include a thermal expansion valve (TXV)?
A: Yes — the unit has a fully adjustable TXV for improved refrigerant control and optimized cooling performance.
Q: What other convenience and quality features are included?
A: It includes a built‑in filter rack with filter, factory‑installed pull disconnect, thermoplastic drain pan with primary and secondary drains, and low air leakage cabinet design.
Q: What are the physical specs?
A: Approximate dimensions are 24″ W × 21″ D × 36″ H, with a large chassis front‑return design for easy installation and maintenance.
Maintenance Tips
-
Replace Air Filters Every 1–3 Months: Keeps airflow optimal, protects the blower motor, and ensures efficient heating and cooling.
-
Keep Surrounding Area Clear: Remove dust, debris, or obstructions around the unit to maintain proper airflow and service access.
-
Inspect Condensate Drain: Ensure the drain line is clear to prevent water buildup and potential system damage.
-
Check Electrical Connections: Periodically inspect wiring and connections for wear, corrosion, or loose fittings.
-
Monitor Built-In Heater Operation: Verify the 5kW heater functions properly during heating cycles for safe and efficient performance.
-
Schedule Annual Professional Maintenance: Technicians should inspect the blower motor, coils, refrigerant lines, and overall air handler operation yearly.
-
Listen for Unusual Signs: Any unusual noises, odors, or airflow changes should be addressed promptly to prevent larger issues.
