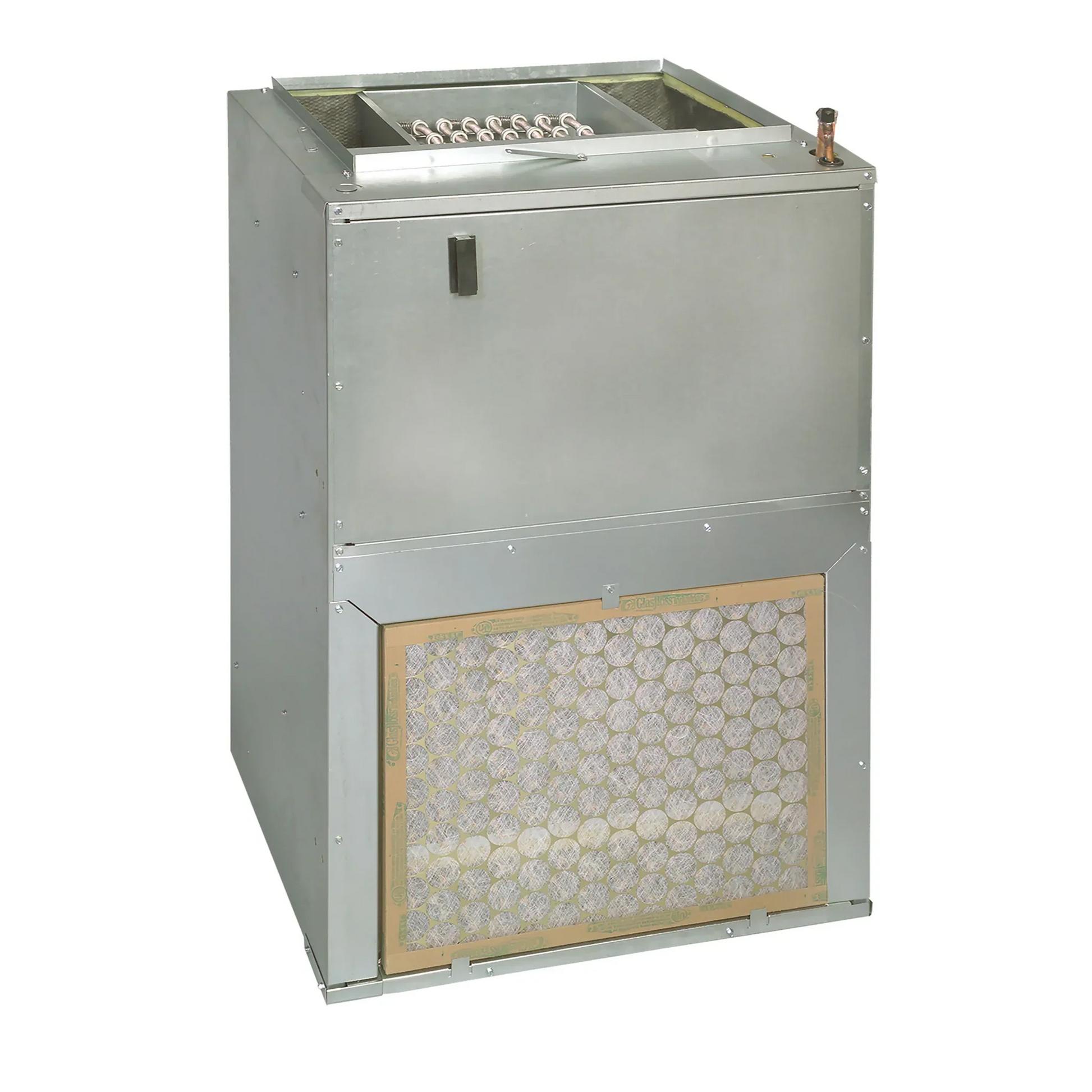

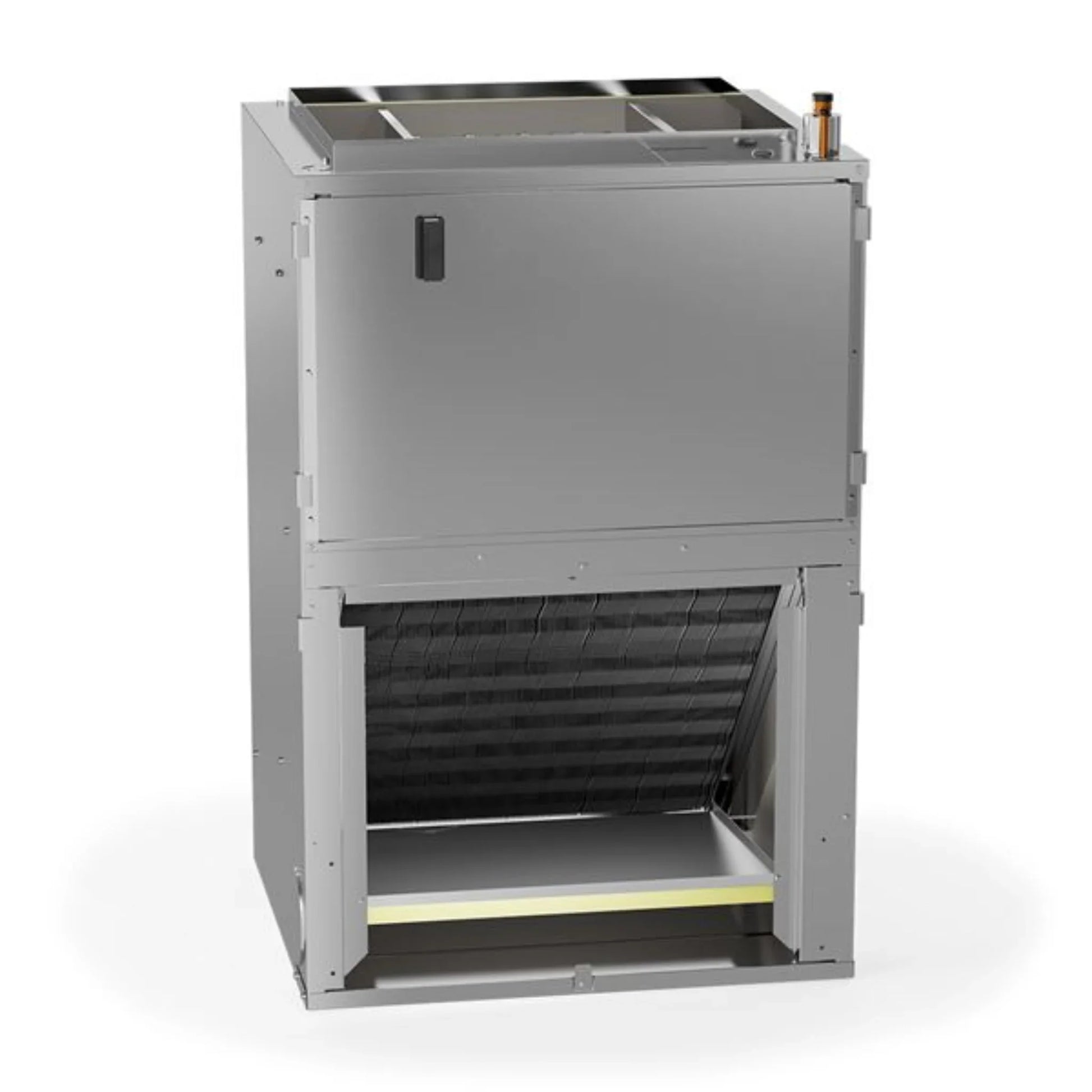

Goodman - 3 Ton/36,000 BTU Wall Mount Air Handler With Built-In 8kW Heater - 230V - R32 - AWST36LU1308
Goodman air handlers are an integral part of finishing a total home environment control system. The AWST plays a key role in reducing indoor humidity to create a much more comfortable environment. In addition, the AWST works with a multi-speed ECM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
Features
- AWST Models: Equipped with a fully adjustable TXV
- Designed for use with R-32 Refrigerant
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Factory-installed pull-type disconnect
- Factory installed R-32 sensor designed for the lifespan of the coil.
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2.5- and 3-ton units) front return only
- Small chassis (1.5- and 2-ton units) front or bottom return
- Wall-hanging bracket provided
Specifications
| Model Number(s) |
AWST36LU1308 |
| Brand |
Goodman |
| Category |
Air Handlers |
| Ton |
3.0 Ton |
| Voltage |
208/230V |
| Electrical Phase(s) |
1-Phase |
| Amp(s) |
45 |
| Blower |
Multi-Speed |
| Suction Valve Size (Inches) |
3/4 |
| Liquid Valve Size (Inches) |
3/8 |
| Height (Inches) |
36 |
| Width (Inches) |
24 |
| Depth (Inches) |
21 |
| UPC # |
663051683716 |
Manual
What our Experts Think
-
Versatile Wall‑Mount Air Handler: The Goodman AWST36LU1308 Air Handler is a 3‑ton, wall‑mounted indoor unit designed for R‑32 refrigerant systems, perfect for homes, condos, or multi‑family installations that need compact ducted comfort.
-
Built‑In Supplemental Heating: Features an 8 kW electric heat kit integrated into the cabinet, offering supplemental warmth in cooler seasons without needing a separate heater unit.
-
Multi‑Speed ECM Blower: The multi‑speed direct‑drive motor adjusts airflow for efficient cooling and heating, improving comfort control and reducing noise compared with basic blowers.
-
Precise Refrigerant Control: Equipped with a fully adjustable TXV (thermal expansion valve) to optimize refrigerant flow for both cooling and heat modes, enhancing efficiency and system responsiveness.
-
Durable, High‑Quality Build: Includes aluminum evaporator coils, low cabinet air leakage per ASHRAE standards, and a thermoplastic drain pan, which improves heat transfer, corrosion resistance, and longevity.
-
Space‑Saving & Easy Install: Wall‑mount design with included bracket, built‑in filter rack, and front return configuration simplifies installation and maintenance in tight spaces.
-
Strong Value & Performance: Provides a balanced indoor component for R‑32 split systems, combining efficient airflow, supplemental heat, and installation flexibility — a smart choice for modern HVAC applications.
Q&A
Q: What type of indoor unit is this?
A: This is a wall‑mounted ducted air handler with a built‑in 8 kW electric heater, designed to circulate conditioned air and provide supplemental heating when paired with an outdoor AC/heat pump unit.
Q: What capacity and power specs does it have?
A: Rated for 3 ton cooling (~36,000 BTU), it operates on 208/230 V single‑phase power, suitable for standard residential and light commercial applications.
Q: What refrigerant is it compatible with?
A: Designed for R32 refrigerant systems, ensuring compatibility with modern high‑efficiency outdoor units that use R32.
Q: How does the built‑in heater work?

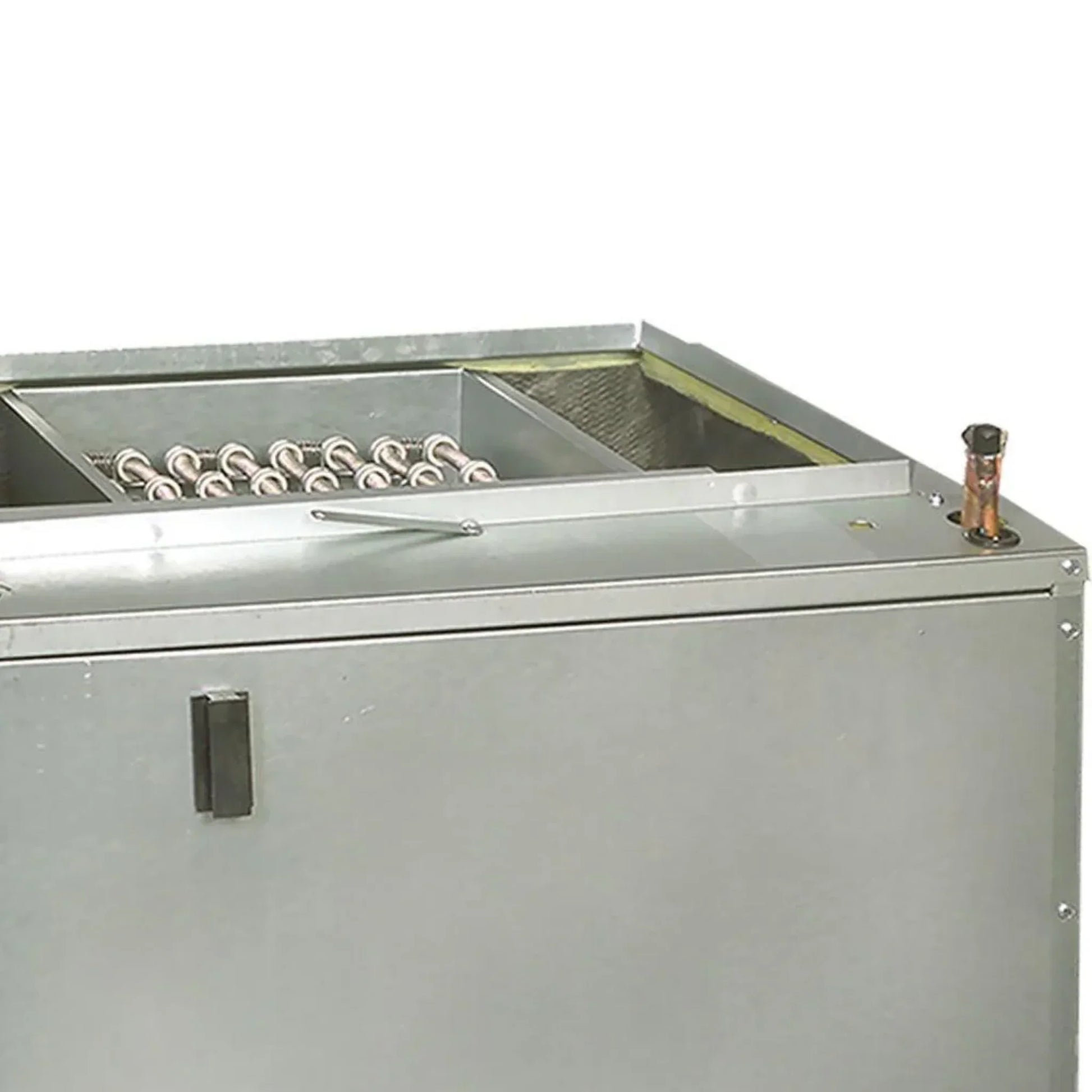

A: The unit includes an 8 kW supplemental electric heater with sequence‑controlled, rust‑resistant nickel‑chromium heating elements, ideal for providing heat when cooling equipment isn’t running.
Q: What coil and airflow features does it include?

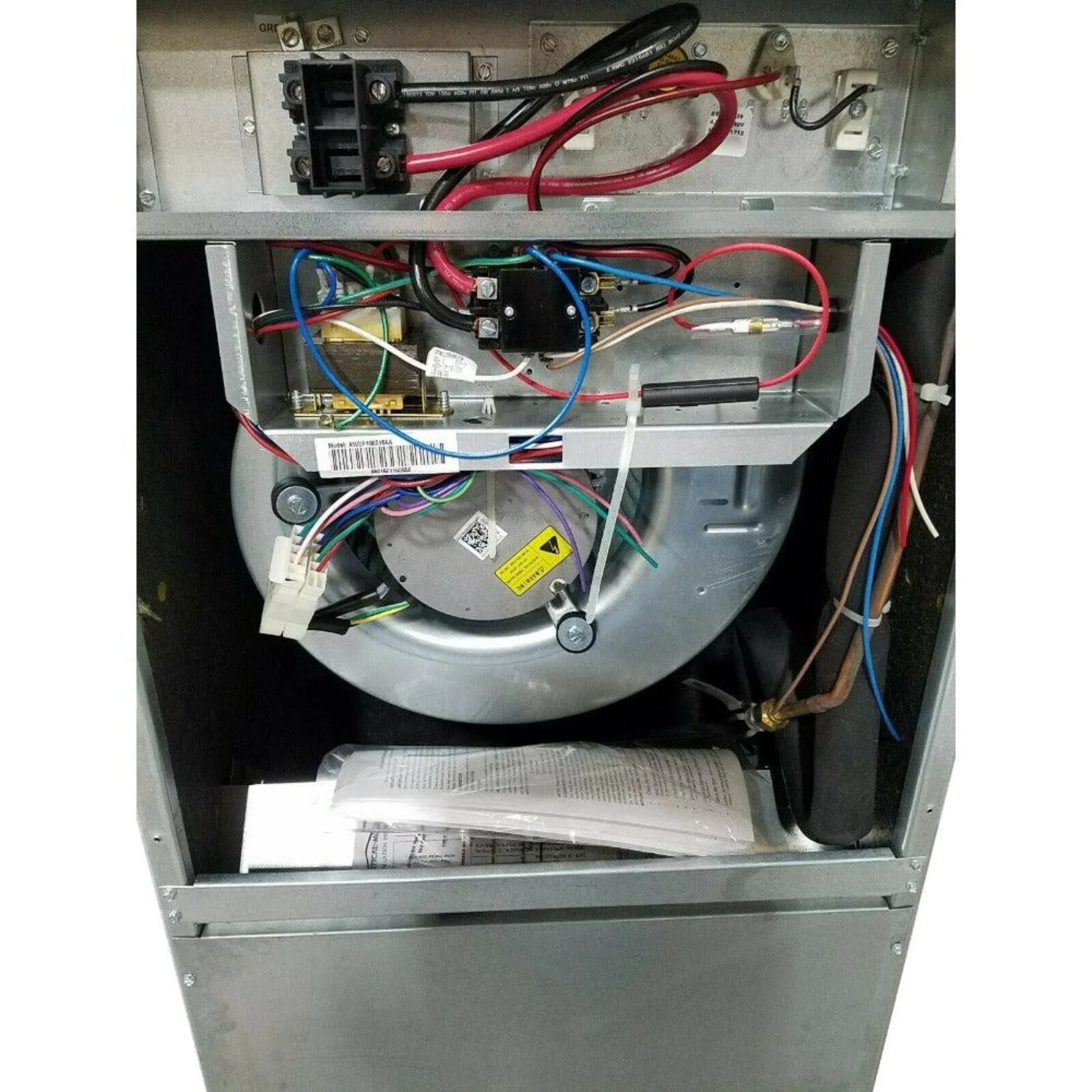

A: It features an all‑aluminum evaporator coil with a fully adjustable TXV (thermal expansion valve) for efficient refrigerant control and a multi‑speed ECM blower motor for precise airflow and quieter operation.
Q: Can this unit be installed easily?
A: Yes. It includes a wall‑hanging bracket for secure mounting, a built‑in filter rack with filter, thermoplastic drain pan, and a pull‑type disconnect for service safety.
Q: What installation and configuration flexibility does it offer?
A: Designed primarily for front‑return wall‑mount installations, the multi‑speed motor and accessible design make it suitable for diverse HVAC layouts and even zoned setups with compatible thermostats.
Maintenance Tips
-
Replace Air Filters Regularly: Inspect monthly and replace every 1–3 months to maintain airflow and protect the blower and coil.
-
Keep Vents & Registers Clear: Ensure supply and return vents are unobstructed for even airflow and heating.
-
Inspect Condensate Drain: Check the drain line and pan for clogs or leaks to prevent water damage and mold growth.
-
Clean Around the Unit: Remove dust and debris from the wall-mount area to allow proper airflow.
-
Check Electrical Connections: Ensure 230V power supply wiring and heater connections are secure and corrosion-free.
-
Monitor Blower & Heater Operation: Listen for unusual noises; verify the 8 kW heater engages properly when needed.
-
Schedule Annual Professional Service: Have a licensed HVAC technician inspect the blower motor, heating element, coil, and system controls yearly for optimal performance.
