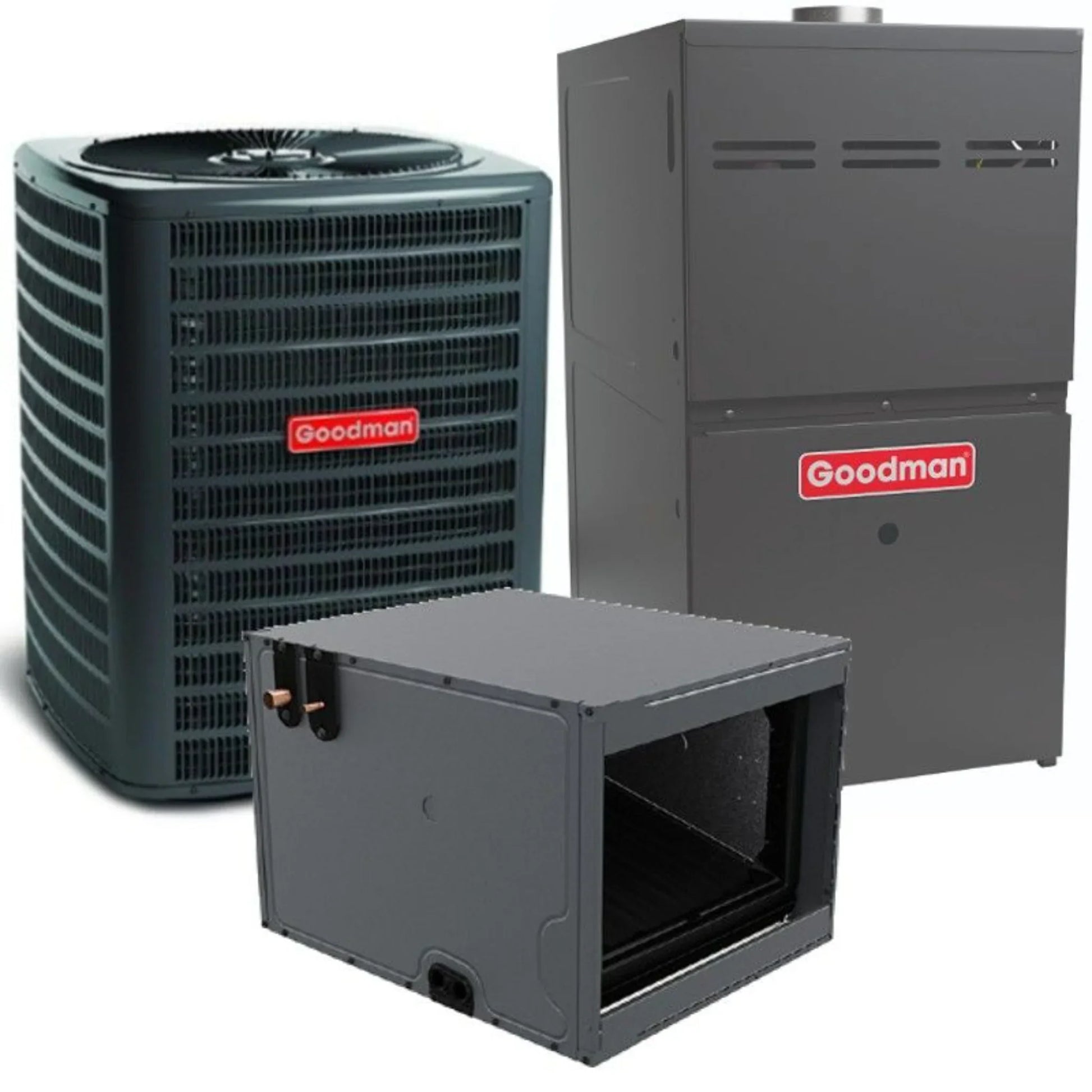

Goodman - 3 Ton/80,000 BTU 80% AFUE Low NOx Gas Furnace and Air Conditioner System - Horizontal - 15.2 SEER2 - R32 - CHPTA3630B3
A Goodman Gas Furnace and Air Conditioner System is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman Gas Furnace and Air Conditioner System is the perfect choice for all of your heating and cooling needs.
Features
- Ideal size to cover a small house in ideal climates

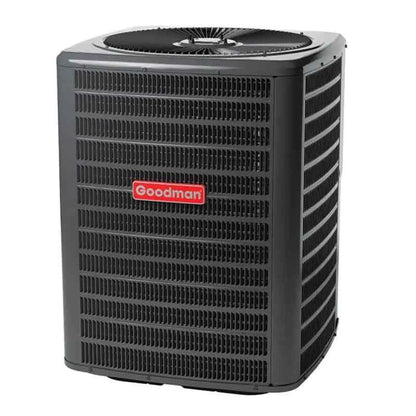

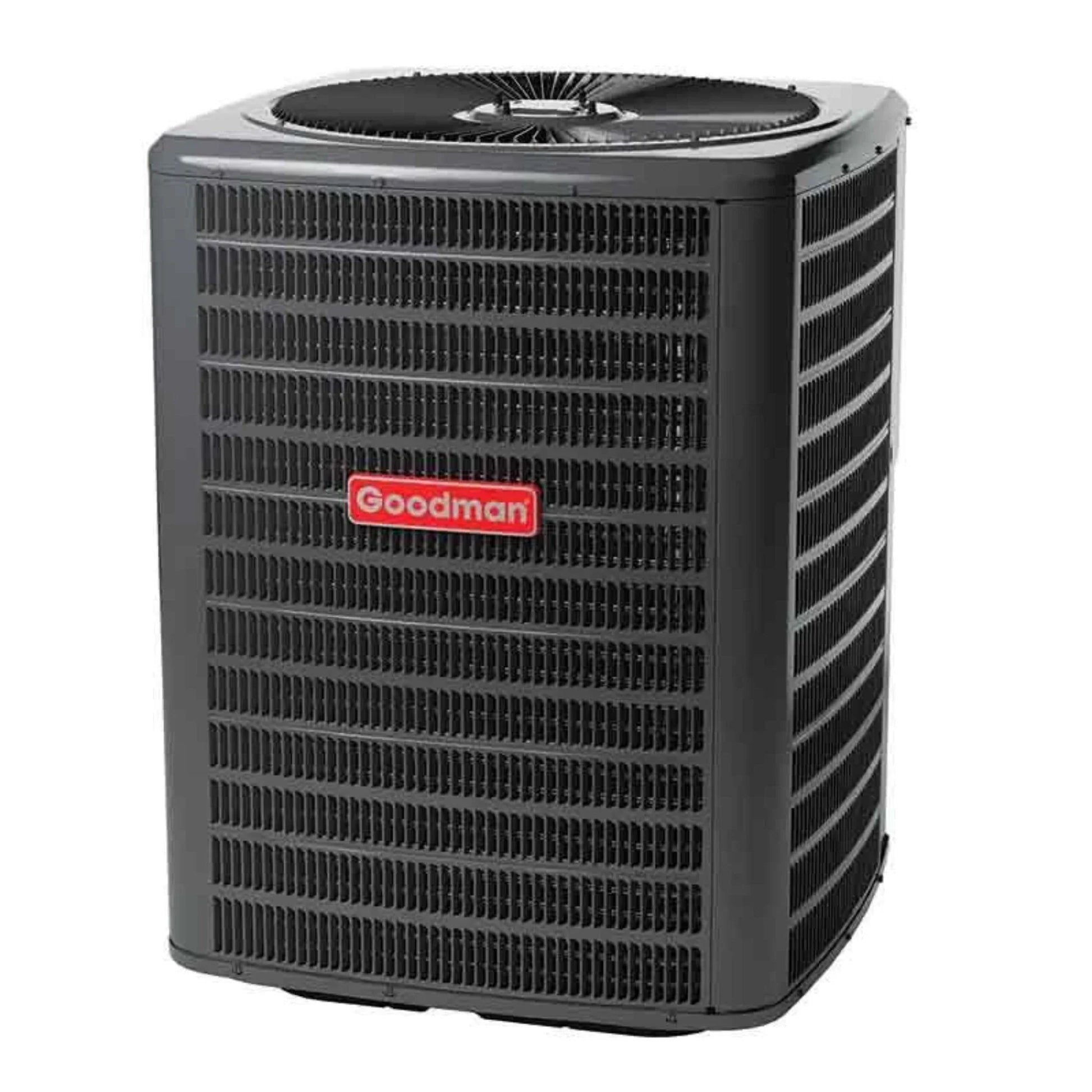

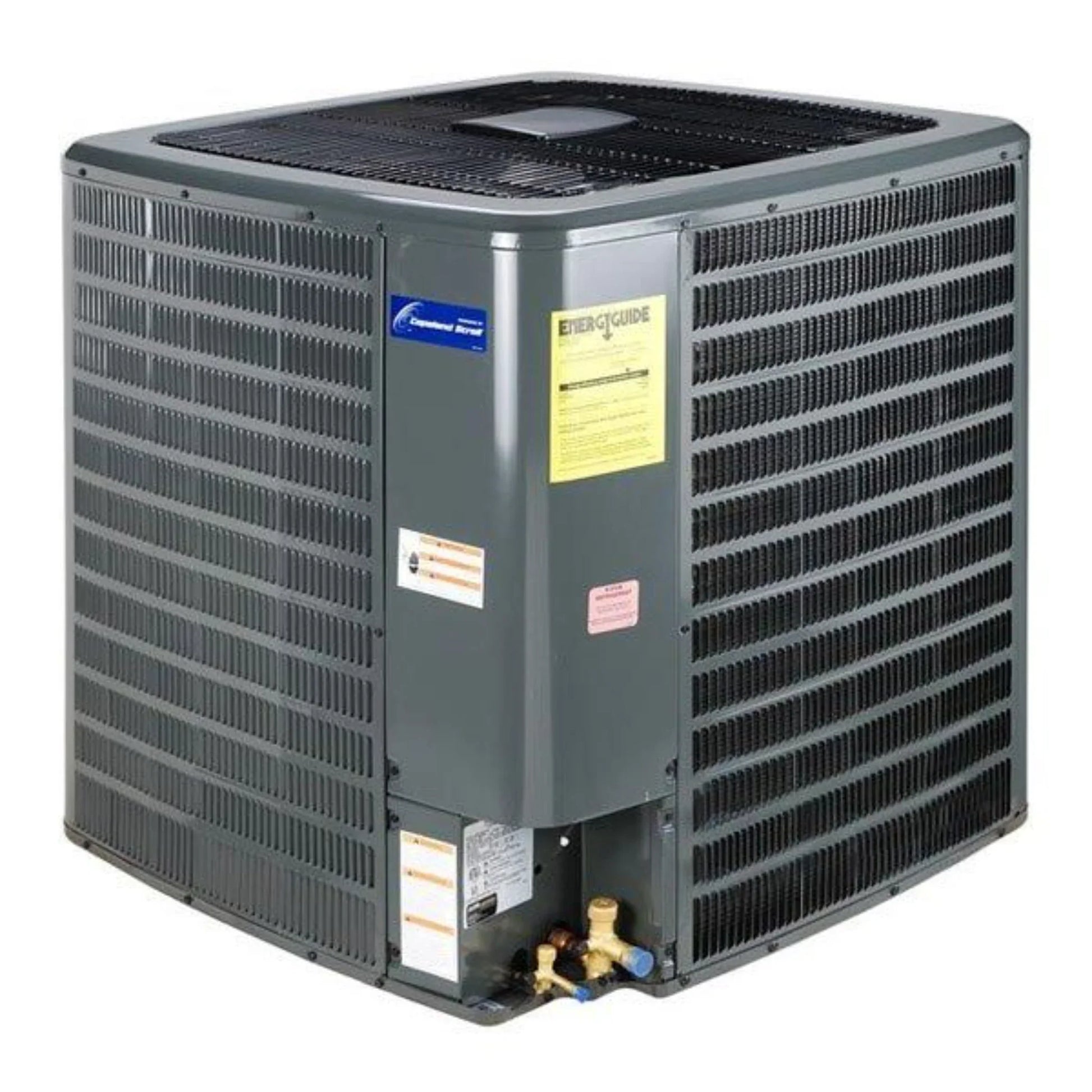

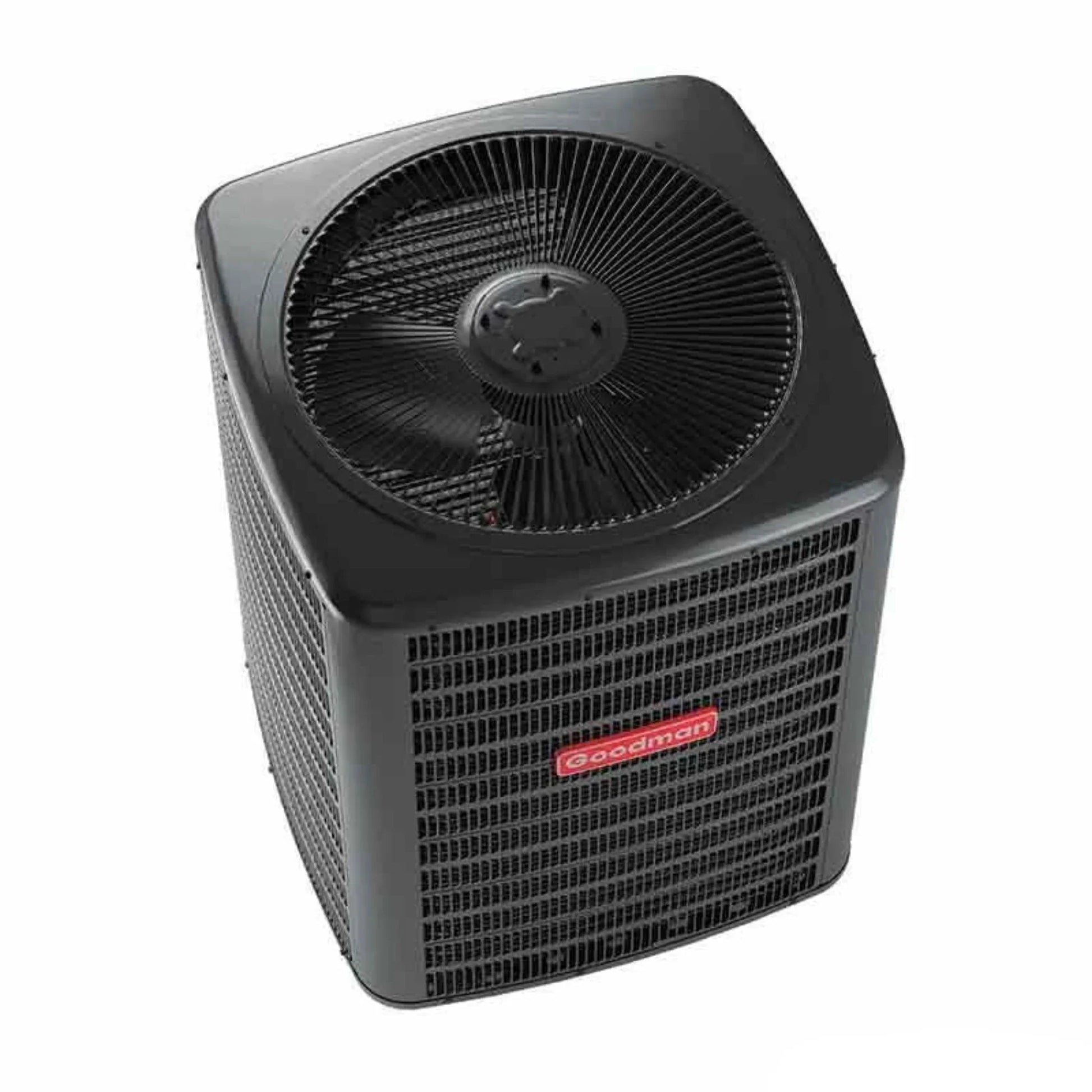

- 3 ton, 14.3 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier

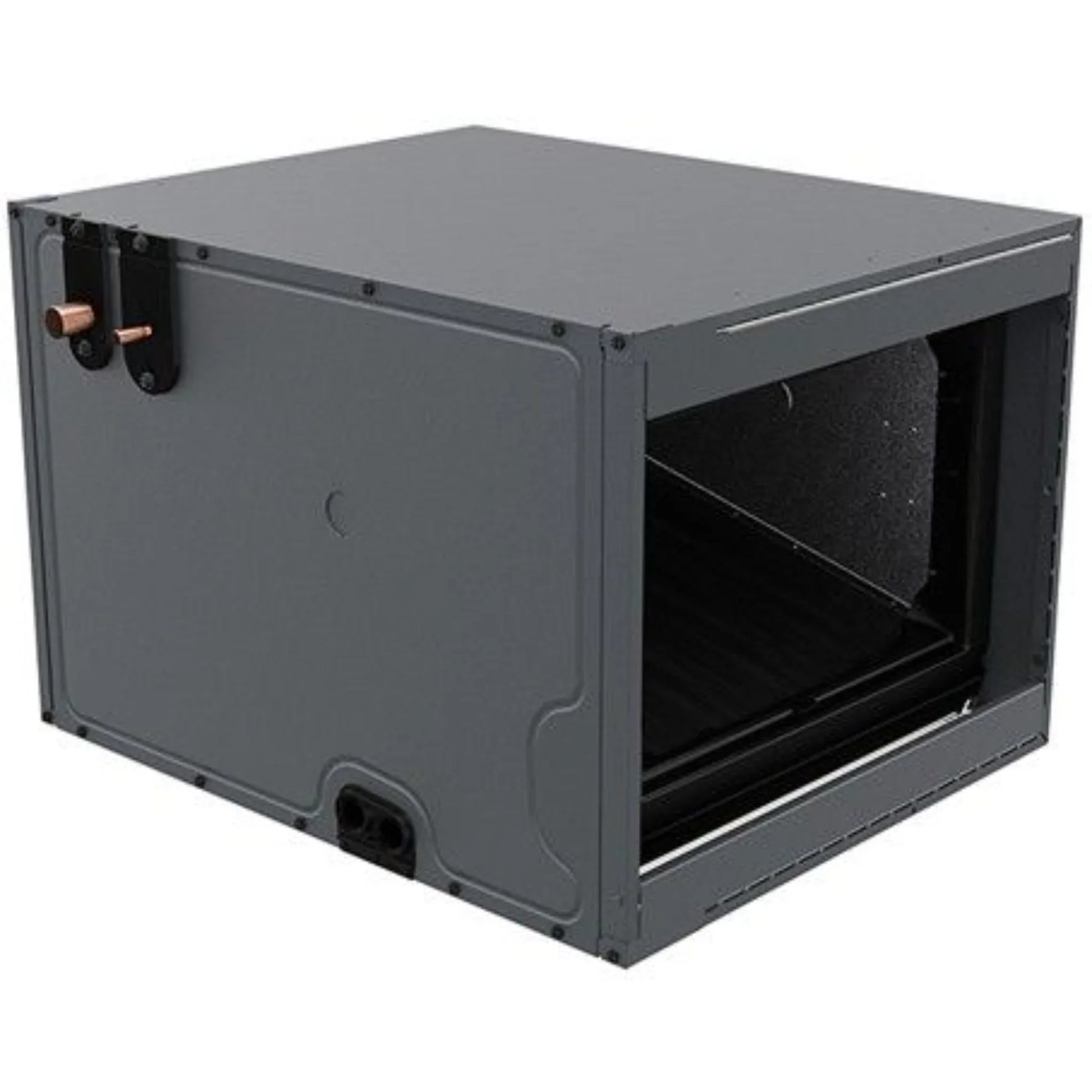

- 3 ton horizontal evaporator coil
- Can be used with heat pump and AC-only condensers
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
- Factory-installed TXV kit
- This furnace is ideal to heat a medium-sized house (depending on climate)

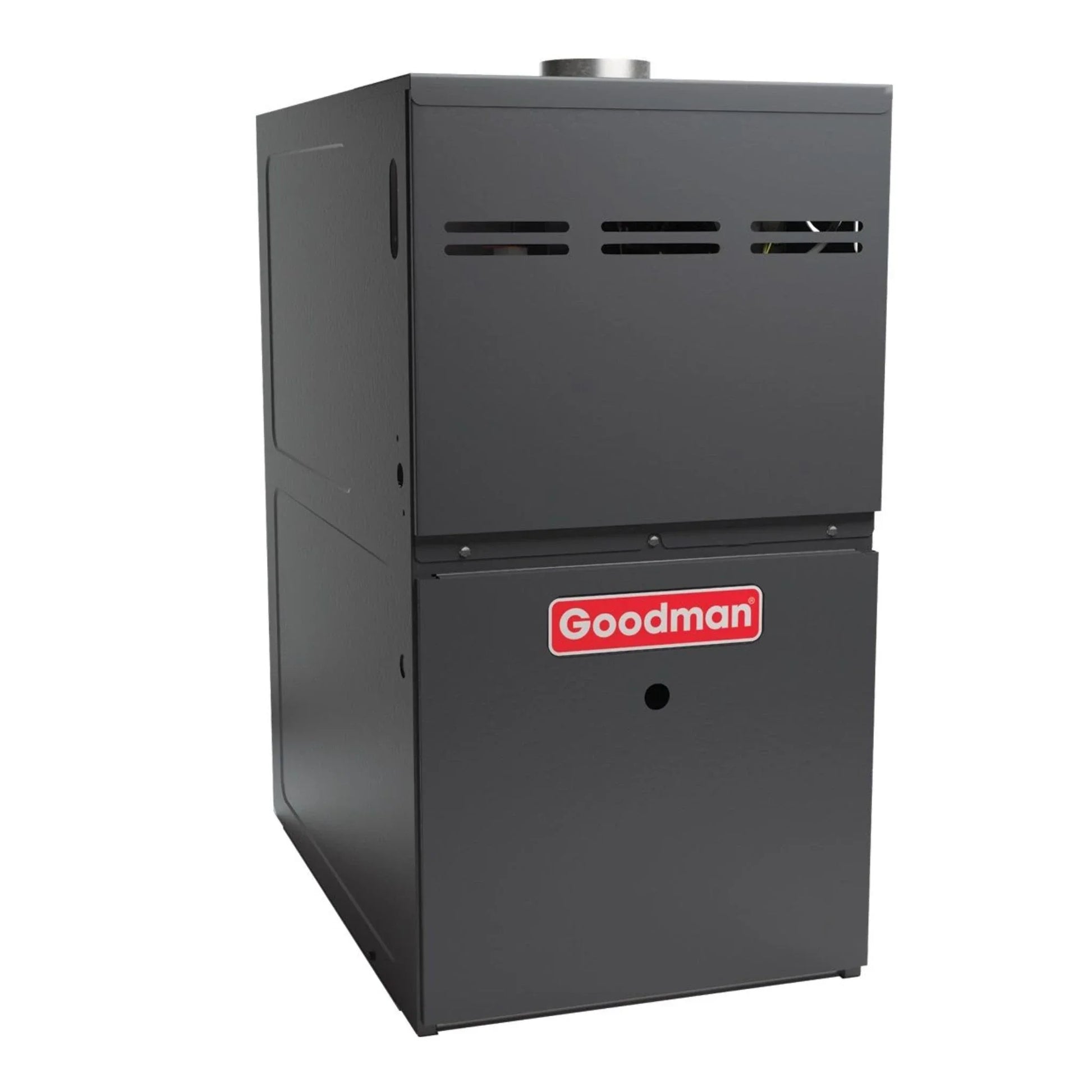

- 80,000 BTU 80% efficient natural gas furnace
- Requires metal flue venting
- Can be used in the upflow or horizontal orientation
- Can be converted to an LP furnace with a conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GLXS4BA3610 |
| Weight |
173.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSXN403610 |
| Product Features |
New Refrigerant Compliant |
| Cooling BTU |
36,000 |
| Decibel Level (dBA) |
67 |
| Horsepower |
1/6 HP |
| Refrigerant |
R32 |
| SEER2 |
14.3 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
7/8" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
30 Amps |
| Min. Breaker Size |
17.8 Amps |
| Tonnage |
3 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
29" |
| Depth |
29" |
Manual
What our Experts Think
-
True all‑season comfort: This matched system brings together a 3‑ton cooling capacity with an 80,000 BTU, 80% AFUE Low NOx gas furnace and 15.2 SEER2 cooling, delivering balanced year‑round heating and cooling without needing separate components.
-
Efficient performance at a smart price: The 15.2 SEER2 cooling and 80% AFUE heating help reduce energy use and monthly costs compared with older systems, offering a solid efficiency boost without premium pricing.
-
Low NOx design: Built with Low NOx combustion technology, this system minimizes nitrogen oxide output, making it better for local air quality and compliant in areas with stricter emissions standards.
-
Horizontal installation ready: Specifically engineered for horizontal placement, making it ideal for attics, crawl spaces, or low‑clearance mechanical rooms where vertical units won’t fit.
-
Modern refrigerant built‑in: Uses R‑32 refrigerant, which supports improved heat transfer efficiency and a lower environmental impact compared with many legacy refrigerants.
-
Matched system reliability: Coordinated outdoor and indoor components help ensure smooth, dependable operation, easier servicing, and better long‑term performance.
Q&A
Q: What heating and cooling capacity does this Goodman HVAC system deliver?
A: This matched set combines a 3 ton (≈36,000 BTU) R‑32 air conditioner condenser with a horizontal cased evaporator coil (CHPTA3630B3) and an 80,000 BTU 80 % AFUE gas furnace, providing balanced year‑round heating and cooling for medium‑large homes.
Q: What are the energy efficiency ratings?
A: The outdoor unit delivers 15.2 SEER2 cooling efficiency, and the furnace operates at 80 % AFUE, offering efficient performance and lower utility costs.
Q: What refrigerant does this system use?
A: The system uses R‑32 refrigerant, a modern choice known for better heat transfer and lower environmental impact.
Q: What type of furnace and blower technology are included?
A: The gas furnace is single‑stage with a multi‑speed ECM blower motor, delivering consistent heating and improved airflow control when paired with the evaporator coil.
Q: What installation orientation is supported?
A: This system is designed for horizontal airflow installation (horizontal evaporator coil) and matches a horizontal HVAC layout, ideal for attics, crawl spaces, or side duct returns.
Q: What are typical electrical and venting requirements?
A: The outdoor condenser runs on 208/230 V single‑phase power, while the furnace runs on 115 V and uses standard metal flue venting typical of mid‑efficiency gas furnaces.
Maintenance Tips
-
Replace or clean air filters every 1–3 months to maintain airflow and system efficiency.
-
Keep supply and return vents clear for even heating and cooling.
-
Check thermostat settings to ensure proper furnace and AC operation.
-
Inspect refrigerant lines and insulation for wear or damage.
-
Maintain a clean, clutter-free area around the unit for safe operation.
-
Rinse AC condenser coils periodically to remove dust buildup.
-
Schedule annual professional maintenance to inspect burners, heat exchanger, refrigerant levels, and electrical components.
