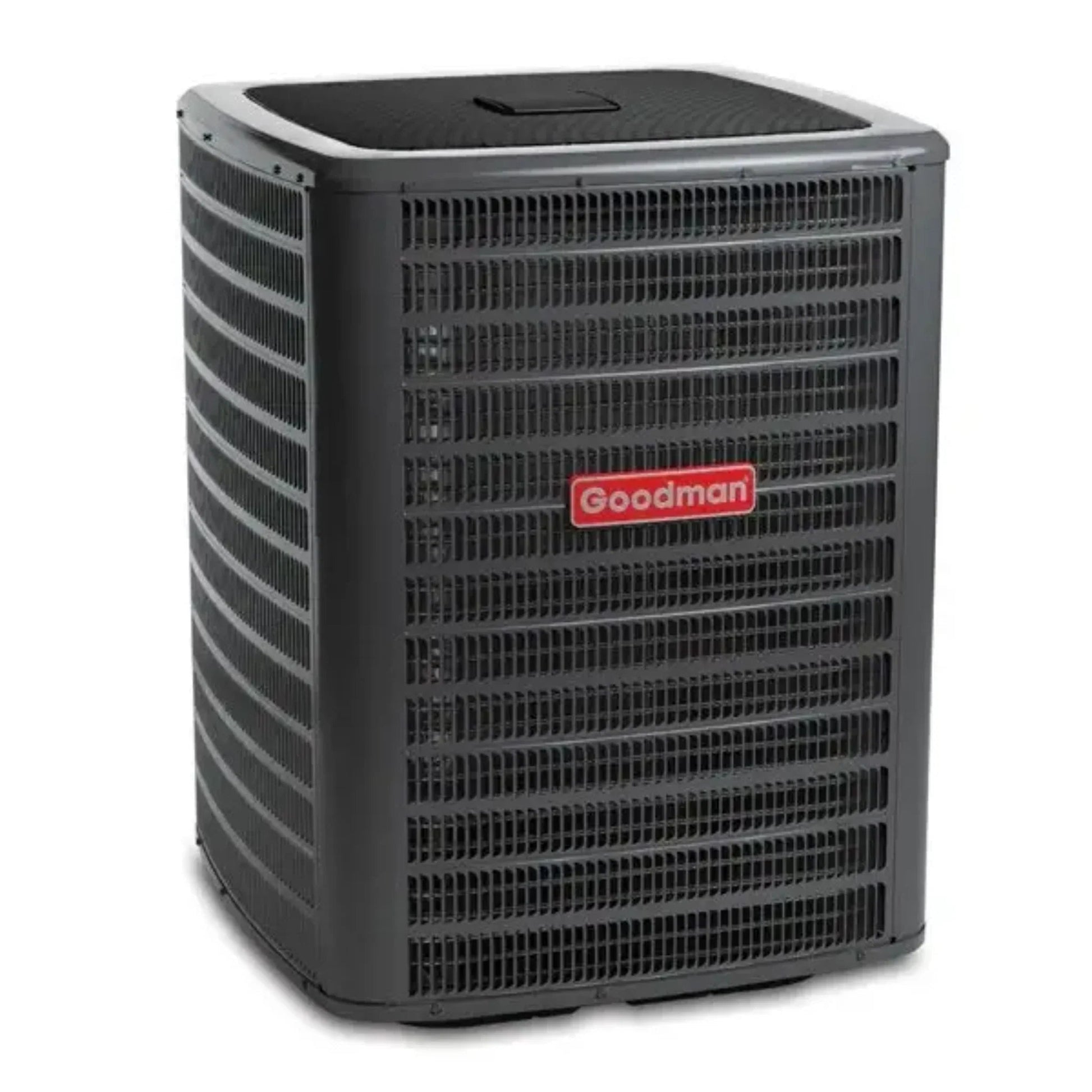

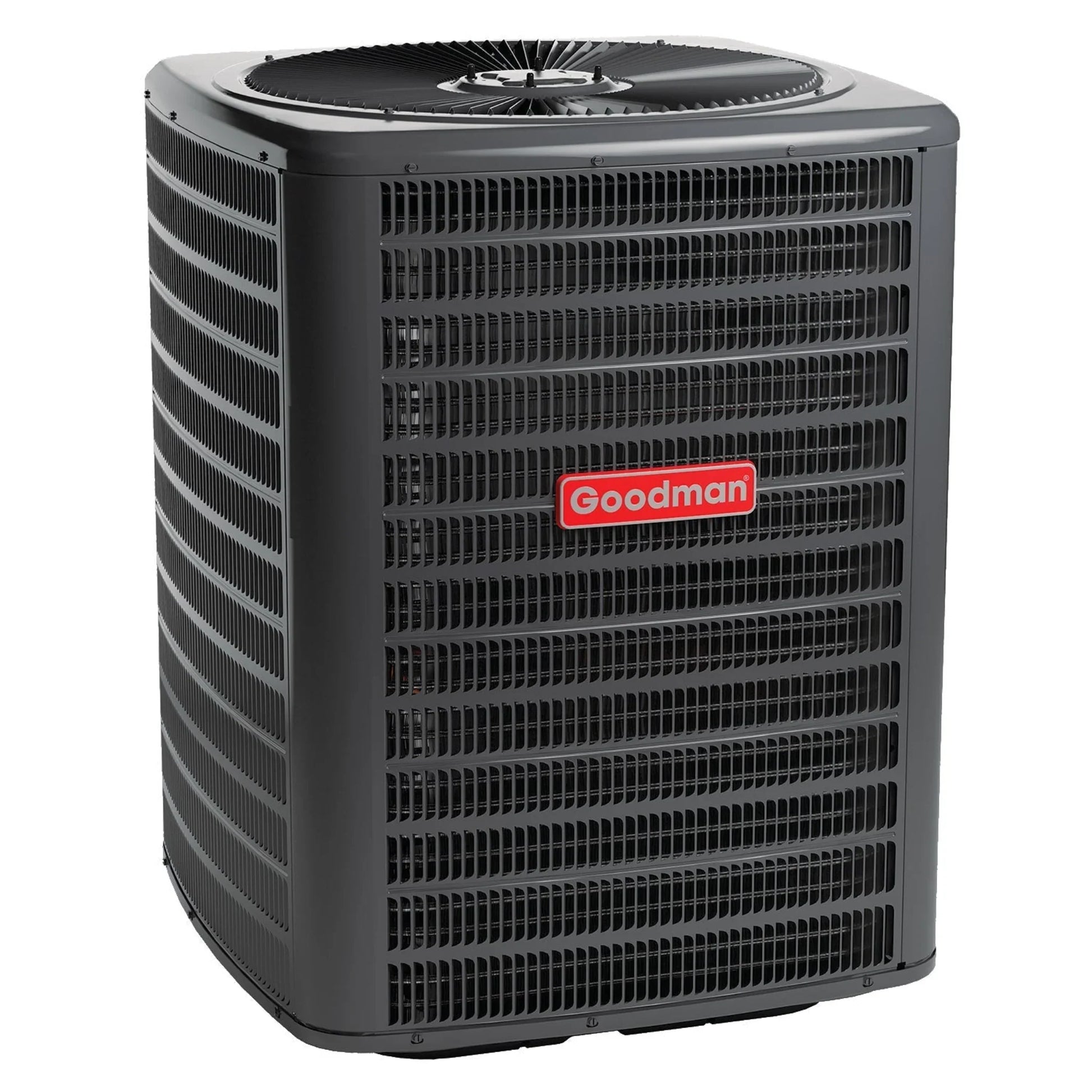

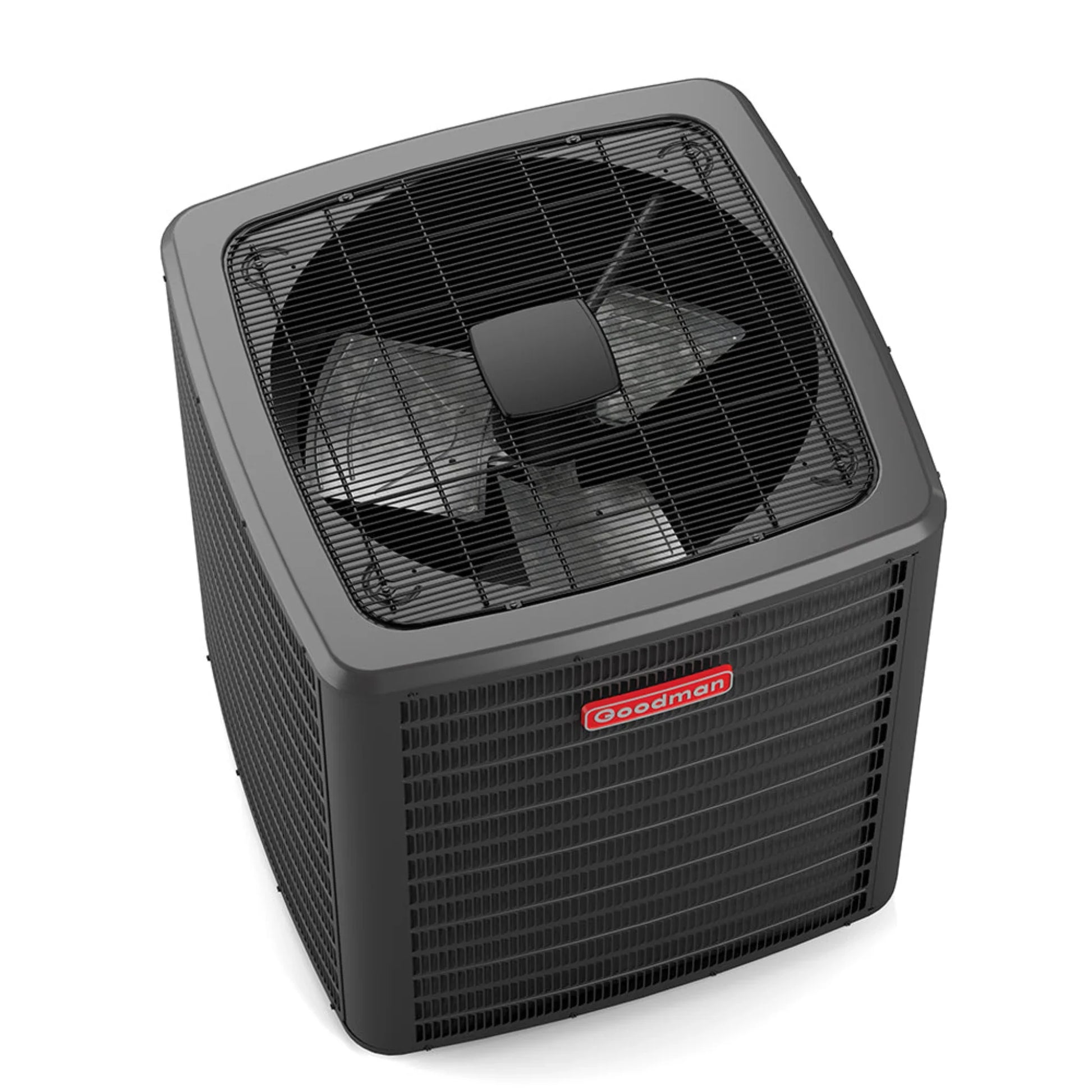

Goodman - 3 Ton/36,000 BTU Multi-Family Air Conditioner Condenser - SEER2 14.3 - Single Stage - R32 - GLXS4MA3610
The Goodman 3 Ton 15.2 SEER2 Multi-Family Series R-32 Air Conditioner Condenser (Scroll Compressor) - GLXS4MA3610 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.
Features
- High-Efficiency Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- 5mm diameter copper tube/ enhanced aluminum fin coil
- Service valves with sweat connections and easy-to-access gauge ports
- Enclosed contactor
- Ground lug connection
- Capacitors with extended life
- High-pressure switch
- AHRI Certified
- ETL Listed
Specifications
| Model Number(s) |
GLXS4MA3610 |
| Brand |
Goodman |
| Type |
Air Conditioning |
| Category |
Condensers |
| Ton |
3.0 Ton |
| SEER |
14.3 |
| Cooling Btu |
36,000 |
| Cooling Stage(s) |
1 |
| Compressor Stage |
Single |
| Voltage |
208/230V |
| Electrical Phase(s) |
1-Phase |
| Decibel Level (dB) |
67 |
| Refrigerant Type |
R-32 |
| Suction Valve Size (Inches) |
7/8 |
| Liquid Valve Size (Inches) |
3/8 |

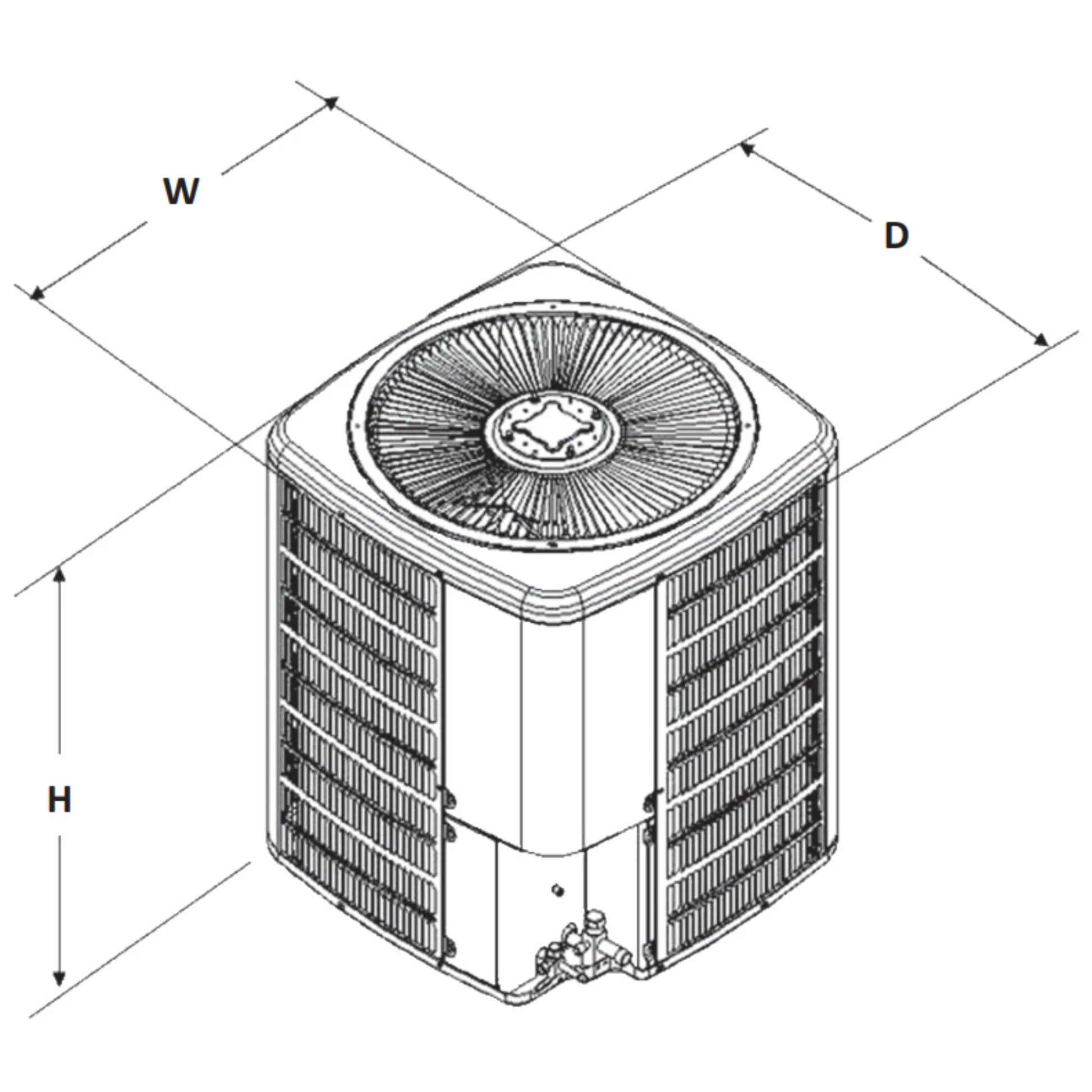

| Height (Inches) |
39 1/2 |
| Width (Inches) |
29 |
| Depth (Inches) |
29 |
| UPC # |
663051692121 |
Manual
What our Experts Think
-
Powerful Cooling for Larger Spaces: The Goodman GLXS4MA3610 Air Conditioner Condenser delivers 3 tons (36,000 BTU) of cooling capacity, making it ideal for mid- to large-sized homes, condos, or multi-family properties that need reliable temperature control.
-
Efficient SEER2 14.3 Performance: Built to meet modern energy efficiency standards, this unit provides solid cooling performance while helping reduce electricity costs during hot seasons.
-
Single-Stage Scroll Compressor: The single-stage compressor design offers dependable cooling with straightforward operation and easier maintenance, making it a popular choice for residential HVAC systems.
-
Next-Generation R32 Refrigerant: Uses R-32 refrigerant, which improves system efficiency and has lower environmental impact compared to older refrigerants.
-
Durable Outdoor Construction: A heavy-gauge galvanized steel cabinet with a louvered coil guard helps protect internal components and extend the unit’s lifespan in outdoor environments.
-
Designed for Multi-Family Installations: Engineered for multi-family housing and residential applications, making it a practical solution for property managers, builders, and replacement installations.
-
Strong Value Cooling System: Combines high capacity, reliable single-stage operation, and energy efficiency, making it a cost-effective cooling solution for dependable home comfort.
Q&A
Q: What size space can a 3 ton (36,000 BTU) AC condenser cool?
A: A 3 ton / 36,000 BTU air conditioner typically cools 1,500–2,100 sq ft, depending on insulation, climate, ceiling height, and sun exposure.
Q: What does SEER2 14.3 mean for energy efficiency?
A: SEER2 14.3 indicates the unit meets modern efficiency standards under updated testing conditions, helping provide reliable cooling while reducing electricity consumption.
Q: What type of compressor does this AC condenser use?
A: The unit features a single-stage high-efficiency scroll compressor, designed for dependable cooling and smooth operation.
Q: What refrigerant does the Goodman GLXS4MA3610 use?
A: This condenser uses R32 refrigerant, a newer refrigerant designed to improve system efficiency and reduce environmental impact compared to older refrigerants.
Q: Is this unit suitable for multi-family housing?
A: Yes. The Goodman Multi-Family Series condenser is designed for apartments, condos, and multi-unit residential buildings, offering efficient cooling and a compact footprint.
Q: What electrical requirements does this AC condenser need?
A: The system typically operates on 208/230V, single-phase power, which is standard for most residential HVAC systems.
Q: What are the dimensions of this condenser?
A: The unit measures approximately 39.5" H × 29" W × 29" D, making it suitable for many residential outdoor installations.
Q: How loud is the unit during operation?
A: The condenser operates at around 67 dB, which is typical for outdoor residential AC units.
Q: What are the key features of the Goodman GLXS4MA3610?
A: Key features include 3 ton (36,000 BTU) cooling capacity, 14.3 SEER2 efficiency, single-stage scroll compressor, R32 refrigerant compatibility, durable galvanized steel cabinet, and multi-family application design.
Maintenance Tips
-
Clean the Outdoor Coil Regularly: Remove leaves, dust, and debris from the condenser coil to maintain efficient heat transfer and cooling performance.
-
Maintain Proper Airflow Clearance: Keep at least 2–3 ft of space around the condenser to ensure unrestricted airflow and prevent overheating.
-
Inspect Refrigerant Lines: Check the 3/8" liquid line and 7/8" suction line insulation periodically for damage or leaks.
-
Rinse Condenser Fins: Gently wash the aluminum fins with a garden hose to remove dirt buildup that can reduce system efficiency.
-
Check Electrical Components: Inspect the disconnect box, wiring, and capacitor connections to ensure stable 208/230V power supply and safe operation.
-
Monitor Sound & Performance: The unit normally operates around 67 dB; unusual noises or reduced cooling may indicate maintenance needs.
-
Schedule Annual Professional Service: An HVAC technician should inspect the scroll compressor, fan motor, refrigerant charge, and safety switches each year
