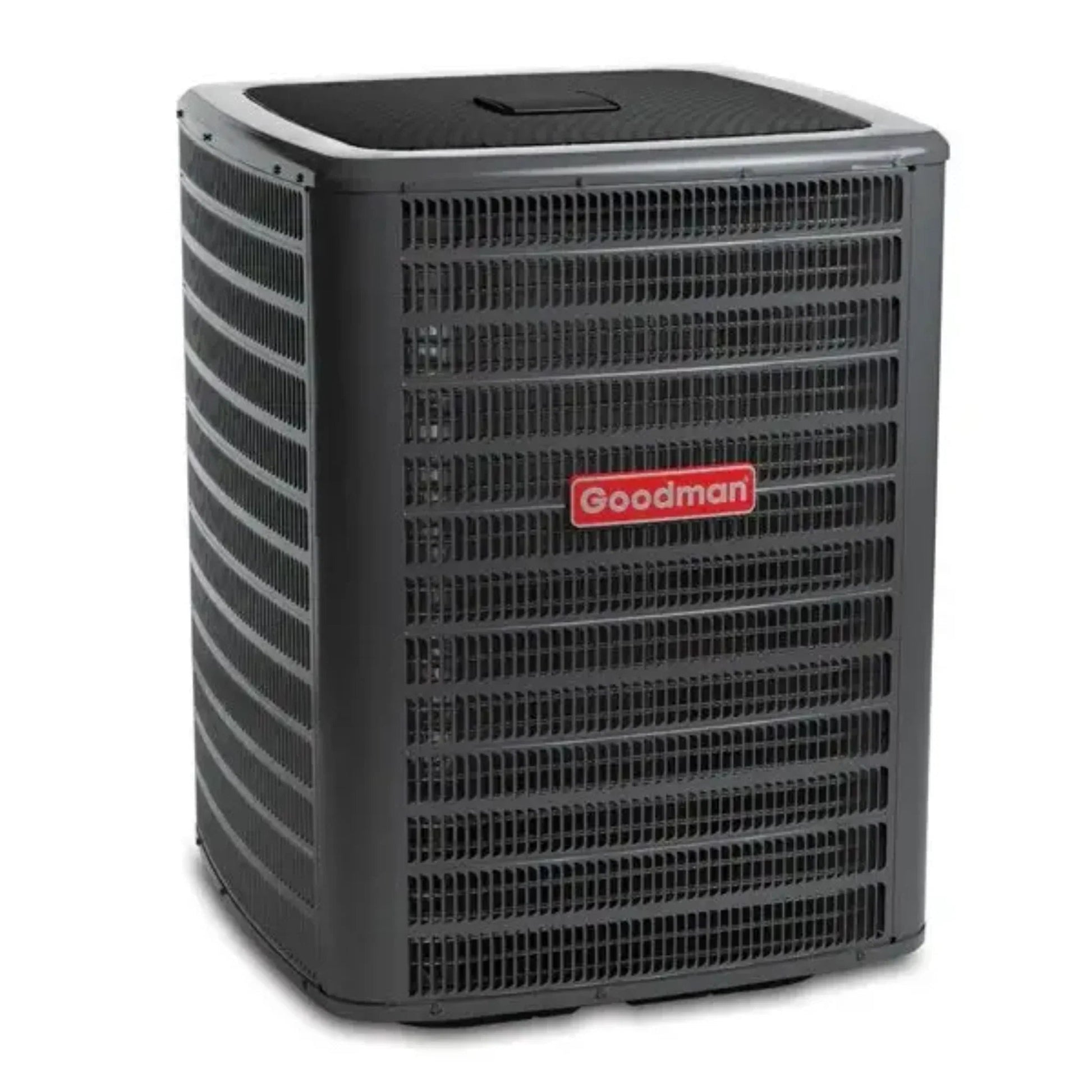

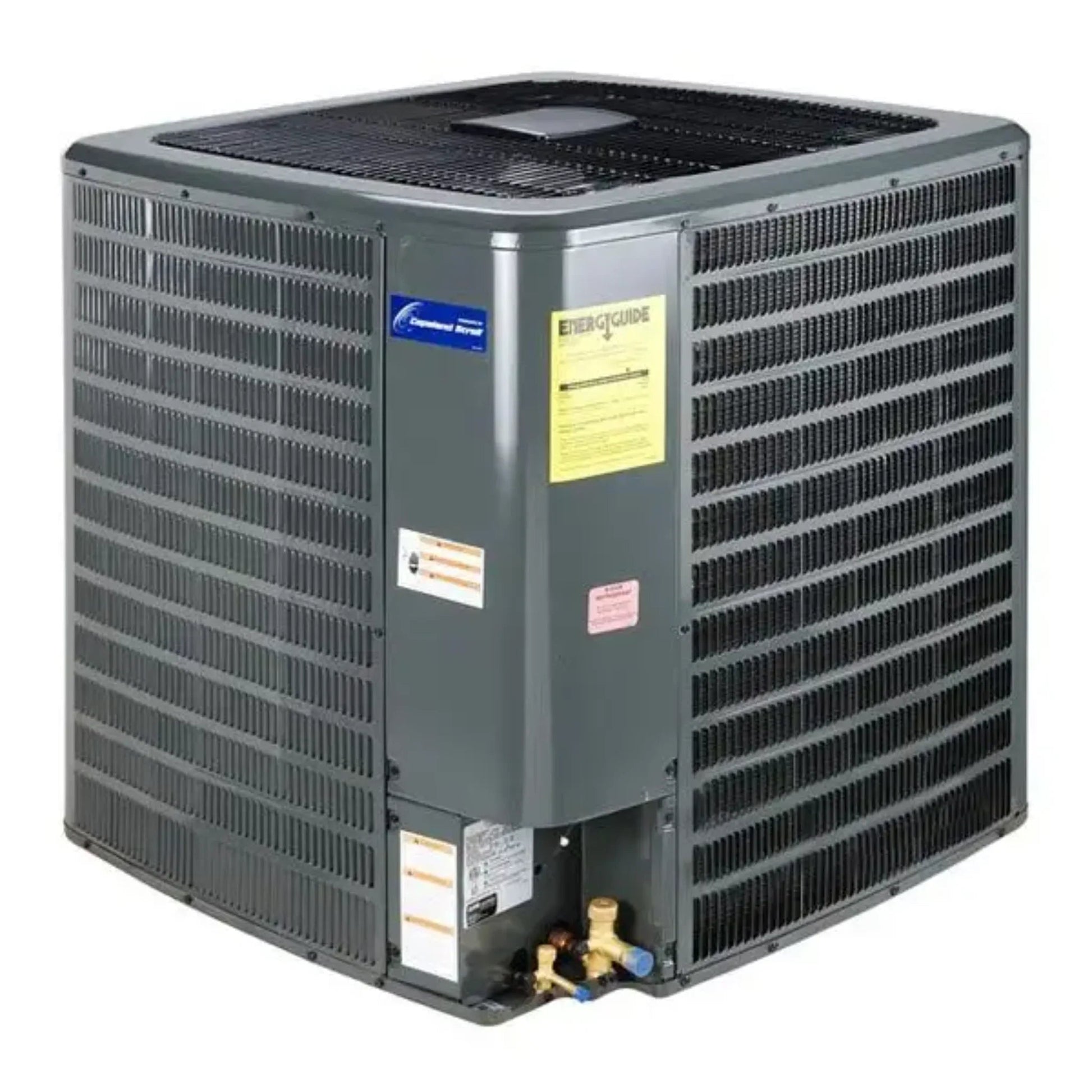

Goodman - 5.0 Ton/60,000 BTU Air Conditioner Condenser - SEER2 15.2 - Two stage - R32 - GLXS5BA6010

Goodman - 5.0 Ton/60,000 BTU Air Conditioner Condenser - SEER2 15.2 - Two stage - R32 - GLXS5BA6010

The Goodman 5 Ton 15.2 SEER2 Air Conditioner Condenser (R-32) - GLXS4BA6010 uses the environmentally friendly refrigerant R-32 and features the unique Goodman sound control top design for quiet operation. In addition, the unit has an attractive louvered metal guard that protects the coil from damage plus a powder-paint finish that provides premium durability and improved UV protection.

Features

• Energy-efficient compressor

• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor
• High-pressure switch
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed


Specifications

Manual

• Specifications
• Installation Manual

What our Experts Think

• 5.0 Ton / 60,000 BTU Cooling Capacity – Delivers strong cooling output for larger homes and high‑demand residential spaces.

• 15.2 SEER2 Efficiency Rating – Meets modern energy standards, helping lower utility costs versus older units.

• Two‑Stage Scroll Compressor – Provides more precise temperature control and improved performance, reducing wear during varying load conditions.

• R‑32 Refrigerant – Uses a next‑generation refrigerant with lower global warming potential, supporting eco‑friendly operation.

• Durable Outdoor Cabinet – Heavy‑gauge galvanized steel and powder‑coat finish resist corrosion and extend long‑term outdoor durability.

• Factory‑Installed Protection & Service Features – Includes filter drier, high‑pressure switch, ease‑access service ports, simplifying service and improving reliability.

• Quiet & Certified Performance – AHRI certified with engineered airflow and sound‑optimized designs for stable, quieter cooling.

Q&A

Q: What size space is this 5‑ton AC condenser best for?
A: A 5 ton (60,000 BTU) condenser is ideal for large homes or commercial spaces ~2,500–3,500 sq ft, depending on insulation, climate, and layout.

Q: What does 15.2 SEER2 efficiency mean?
A: 15.2 SEER2 indicates solid seasonal energy efficiency that helps lower cooling costs compared to older or lower SEER systems while meeting current efficiency requirements.

Q: How does the two‑stage compressor benefit performance?
A: The two‑stage scroll compressor provides more balanced cooling, better comfort, quieter operation, and improved energy use versus single‑stage models.

Q: What refrigerant does this unit use?
A: This condenser uses R32 refrigerant, a modern, more environmentally friendly refrigerant with a lower global warming impact.

Q: Does this condenser include refrigerant pre‑charge?
A: Yes — it’s factory‑charged for up to ~15 ft of line set, simplifying installation by a licensed HVAC tech.

Q: What are key build and durability features?
A: Durable galvanized‑steel cabinet, powder‑coat finish with corrosion resistance, wire coil guard, and removable access panels make it reliable in outdoor conditions.

Q: How loud is the unit in operation?
A: Typical sound level is around 76 dBA, designed for acceptable residential outdoor noise.

Maintenance Tips

• Maintain Clearance Around Unit: Keep at least 24 inches of space free from debris, plants, or obstructions for proper airflow.

• Clean Condenser Coils: Rinse the outdoor coils every 3–6 months to remove dirt, dust, and buildup that can reduce cooling efficiency.

• Replace Indoor Air Filters: Change filters every 1–3 months to support airflow and protect the two-stage compressor.

• Inspect Refrigerant Lines: Ensure insulation is intact and lines are free from damage to maintain R32 refrigerant efficiency.

• Check Condensate Drain: Keep the drain line clear to prevent water buildup or system interruptions.

• Schedule Annual Professional Maintenance: Technicians should inspect electrical connections, refrigerant levels, fan motor, and two-stage compressor operation yearly.

• Monitor System Performance: Unusual noises, reduced cooling, or higher energy bills indicate the need for prompt service.
