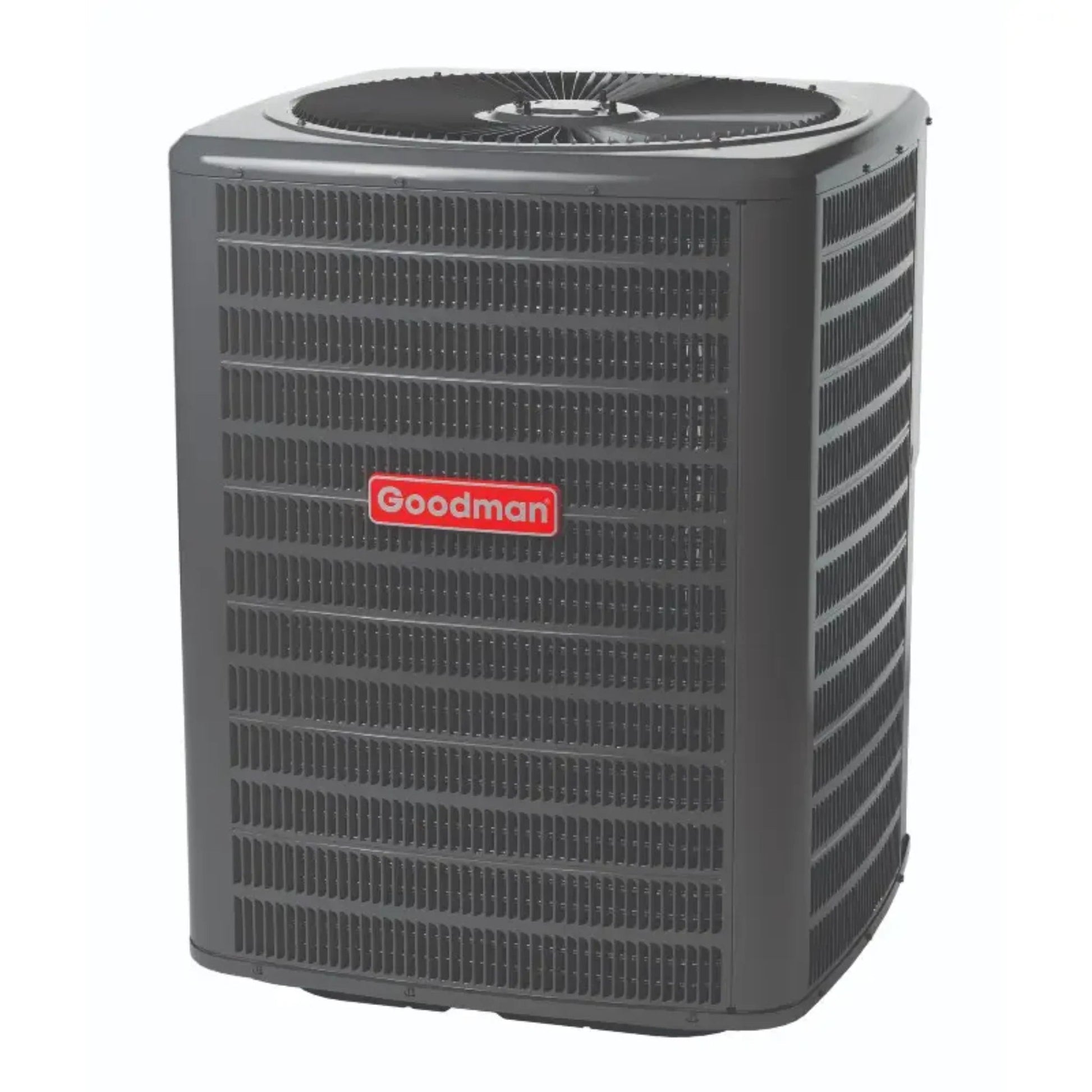

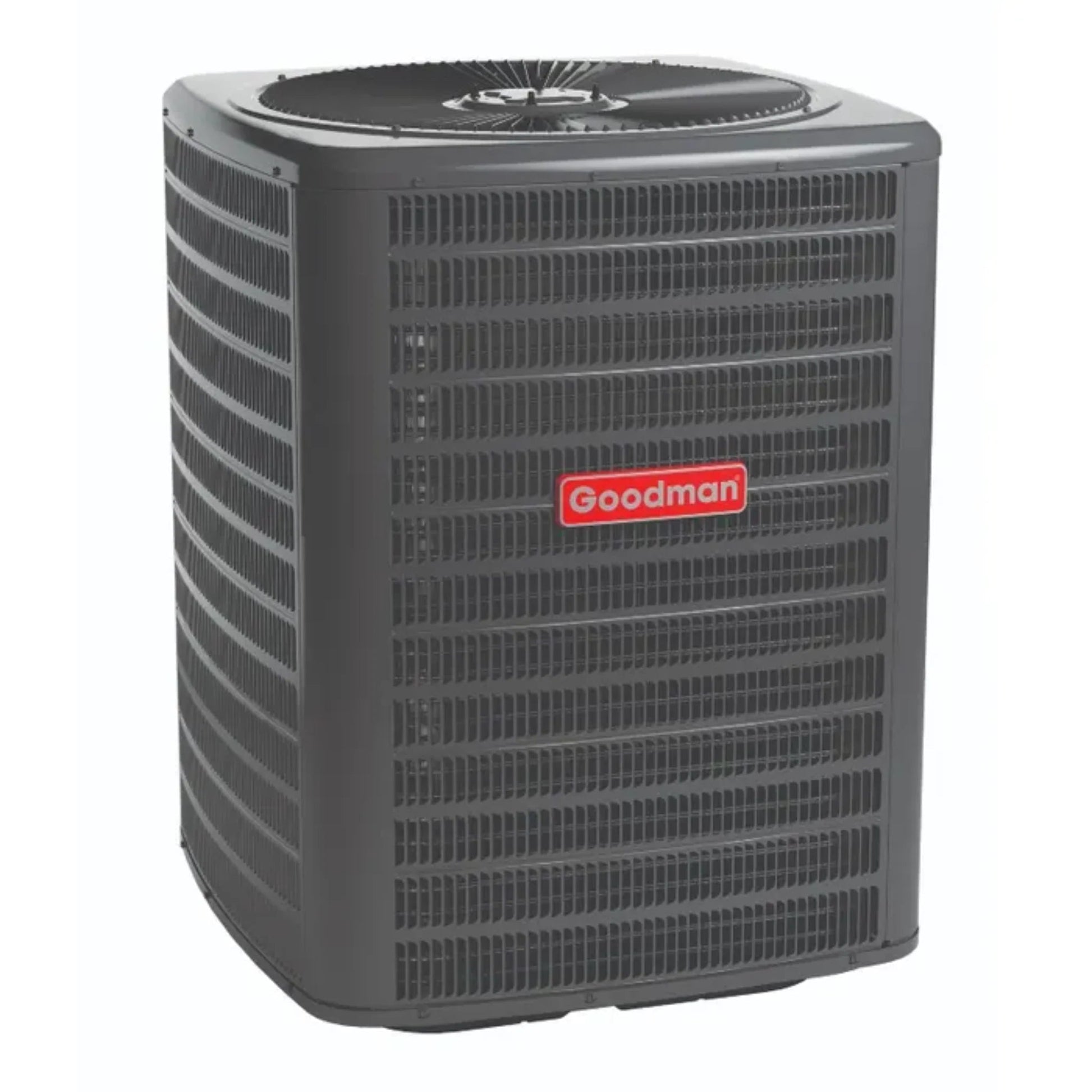

Goodman - 5 Ton/60,000 BTU Air Conditioner Condenser - SEER2 13.4 - Single Stage - R32 - GLXS3BN6010
The Goodman GLXS3BN6010 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the GLXS3BN6010 is an inexpensive condenser to cool your home when paired with an AC coil.
Features
- Ideal size to cover a medium-sized house
- 5 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
Specifications
| SKU |
GLXS3BN6010 |
| Weight (in lbs) |
244.000000 |
| Brand/Manufacturer |
Goodman |
| Replaces |
GSX130601 and GSXN3N6010 |
| Cooling BTU |
60,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/4 HP |
| Refrigerant |
R32 |
| SEER2 (Efficiency) |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
1 1/8" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
7/8" |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
50 Amps |
| Min. Breaker Size |
31.1 Amps |
| Tonnage |
5 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
35 1/2" |
| Depth |
35 1/2" |
Manual
What our Experts Think
-
Powerful Cooling: 5 Ton / 60,000 BTU output keeps large homes and spaces comfortable.
-
Energy Efficiency: SEER2 13.4 balances performance with reasonable electricity use.
-
Reliable Operation: Single-stage compressor delivers consistent cooling.
-
Eco-Friendly Refrigerant: Uses R32 to minimize environmental impact.
-
Installation Flexibility: Compact design fits standard condenser locations.
-
Quiet Performance: Engineered for low operational noise.
-
Durable Build: Built for long-term reliability in diverse climates.
Q&A
Q: What cooling capacity does this condenser provide?
A: This unit delivers 60,000 BTU (5 tons) of cooling — ideal for medium to larger homes when matched with a compatible indoor coil or air handler.
Q: What is its energy efficiency?
A: It’s rated 13.4 SEER2, offering solid seasonal cooling efficiency that meets current regional HVAC standards.
Q: What refrigerant does it use?
A: Uses R‑32 refrigerant, a newer option with lower global warming potential (GWP) compared with many older alternatives.
Q: What type and stage of compressor does it have?
A: It includes a single‑stage scroll compressor designed for reliable, straightforward cooling performance.
Q: What are the electrical requirements?
A: Requires 208/230 V single‑phase power with about 31.1 A minimum circuit ampacity and up to 50 A breaker protection.
Q: How loud is the condenser in operation?
A: The sound level is approximately 74 dBA, which is typical for residential outdoor AC units.
Maintenance Tips
-
Clean the outdoor condenser coil regularly to remove dirt, leaves, and debris for optimal cooling efficiency.
-
Maintain 2–3 feet of clearance around the unit for proper airflow.
-
Replace or clean indoor air filters every 1–3 months to maintain airflow and system performance.
-
Inspect refrigerant lines and insulation for damage or wear.
-
Keep the condenser fan and top grille clear of debris to prevent airflow restriction.
-
Check the condensate drain line periodically to prevent clogs and water buildup.
-
Ensure thermostat is functioning properly and set for efficient cooling cycles.
-
Listen for unusual noises like rattling, buzzing, or squealing, which may indicate mechanical issues.
-
After storms or high winds, inspect the outdoor unit for debris or damage.
-
Schedule annual professional HVAC maintenance to inspect refrigerant levels, electrical components, and overall system performance.
