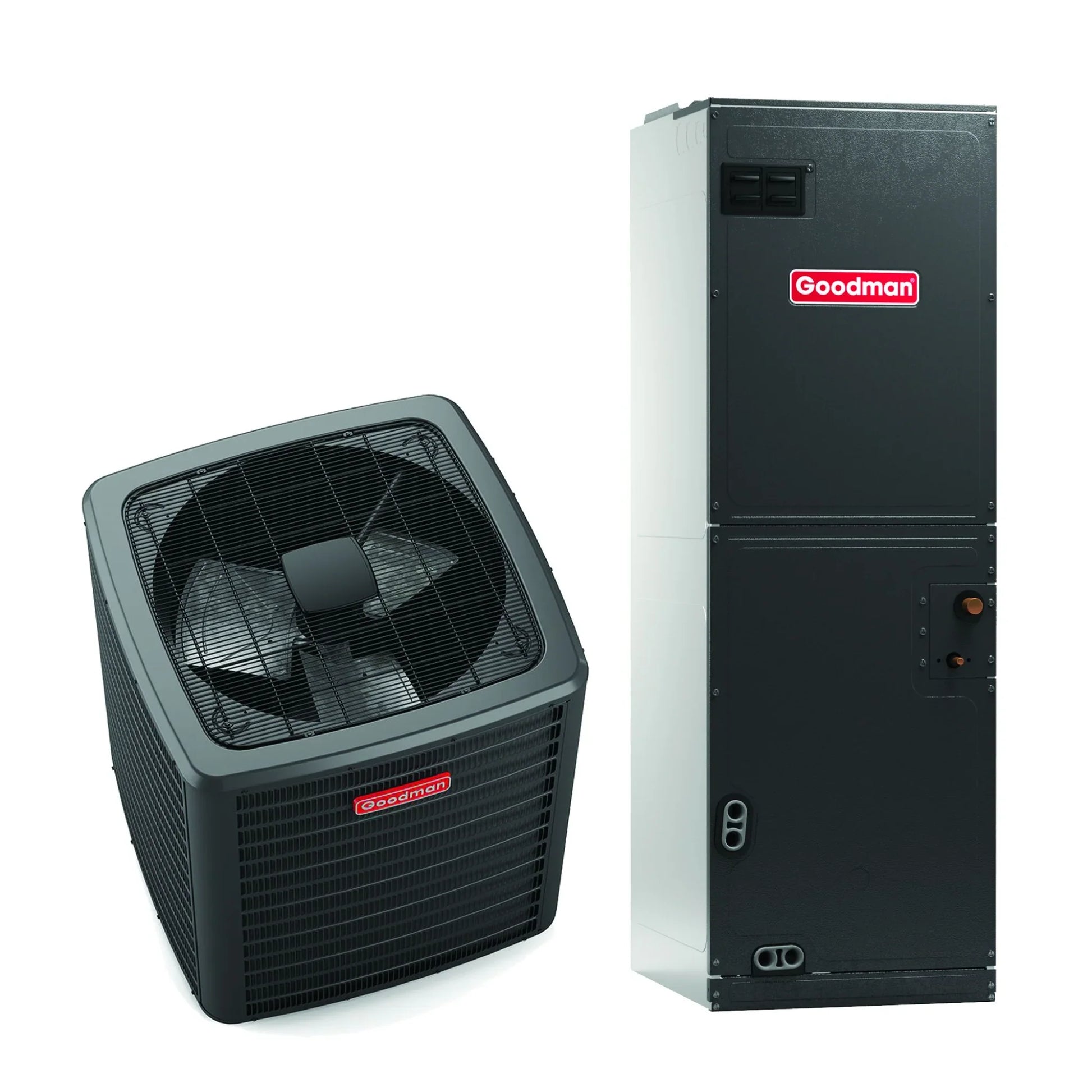

Goodman - 5 Ton/60,000 BTU - Multi-Positional - Air Conditioner Split System - 13.8 SEER2 - R32 - GLXS3BN6010
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman air conditioner split system is the perfect choice for all of your cooling needs.
Features
- Ideal size to cover a medium-sized house
- 5 ton, 13.4 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier

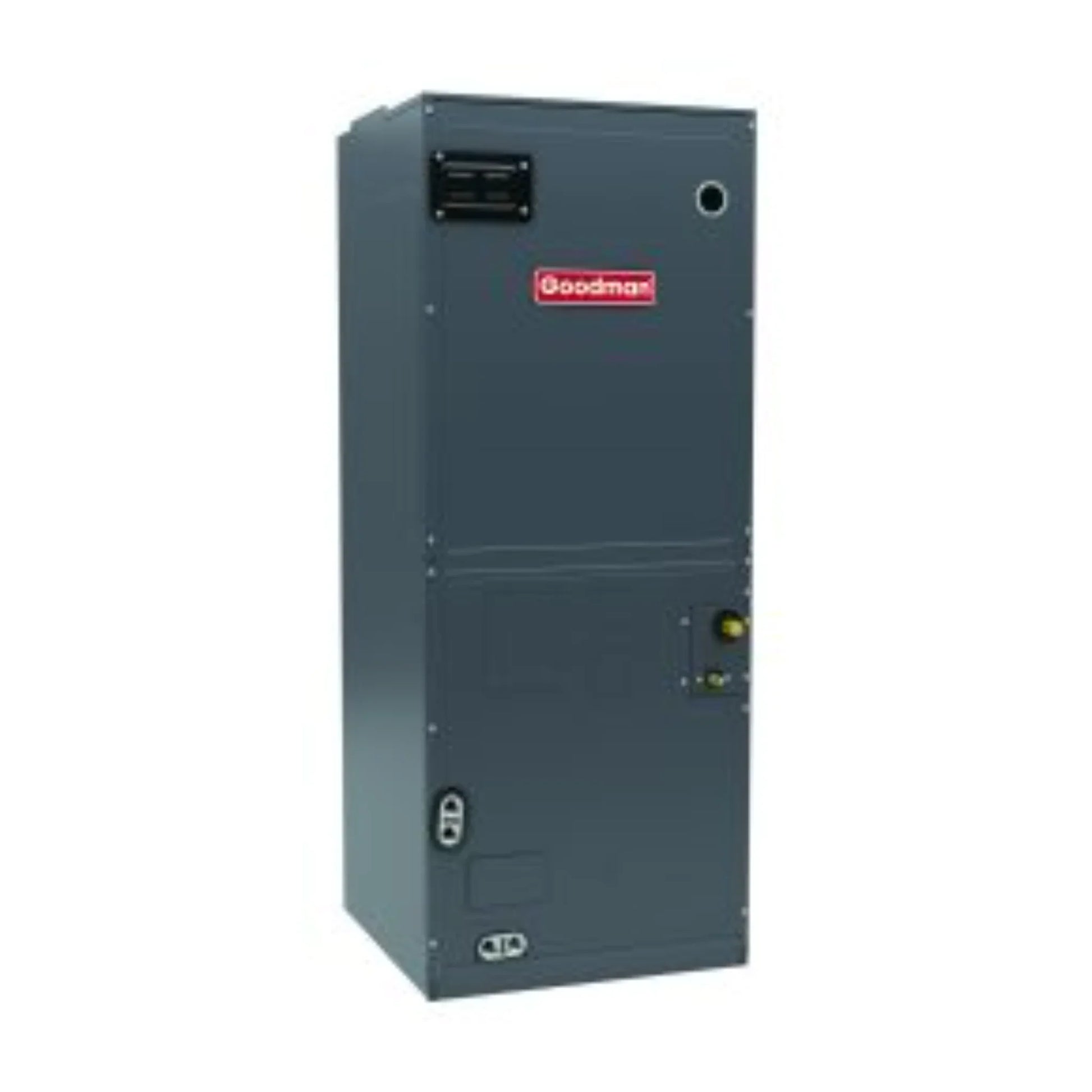

- Air Handler
- 5 ton air handler
- Electric heat compatible
- Optimized for use with R-32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
Specifications
| 5 Ton 13.4 SEER2 Goodman Air Conditioner Condenser - R32 |
| SKU |
GLXS3BN6010 |
| Weight |
244.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX130601 and GSXN3N6010 |
| Cooling BTU |
60,000 |
| Blower Motor |
Single Speed PSC Motor |
| Decibel Level (dBA) |
74 |
| Horsepower |
1/4 HP |
| Refrigerant |
R32 |
| SEER2 |
13.4 |
| Condenser Stages |
Single Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
1 1/8" |
| Liquid Valve Size |
3/8" |
| Suction Valve Size |
7/8" |
| Electrical |
208 / 230 V. 1 Phase 60 Hz |
| Max Breaker Size |
50 Amps |
| Min. Breaker Size |
31.1 Amps |
| Tonnage |
5 Ton |
| Connection |
Sweat |
| Height |
39 1/2" |
| Width |
35 1/2" |
| Depth |
35 1/2" |
Manual
What our Experts Think
-
5 Ton / 60,000 BTU Cooling Capacity – Designed for larger homes and high‑demand spaces, delivering steady cooling performance throughout summer.
-
13.8 SEER2 Efficiency with R‑32 Refrigerant – Meets modern efficiency standards while using eco‑friendly R‑32 refrigerant, balancing performance and environmental impact.
-
Single‑Stage Scroll Compressor – Simple, reliable operation with consistent cooling output and lower initial cost compared to multi‑stage units.
-
Multi‑Positional Air Handler – Install in upflow, downflow, or horizontal orientations, ideal for varied duct layouts and tight utility spaces.
-
ECM Motor with TXV – Enhanced blower efficiency and internal thermal expansion valve help optimize airflow and refrigerant control for steadier system performance.
-
Factory‑Installed Filter Drier & Service Valves – Simplifies maintenance and improves long‑term reliability by protecting the system from moisture and contaminants.
-
Durable Construction – Powder‑coat finish and robust coil guard resist outdoor wear and extend system lifespan.
-
Broad HVAC Compatibility – Works with compatible indoor coils or air handlers for flexible replacement or new installations.
Q&A
Q: What is this Goodman GLXS3BN6010 system?
A: It’s a 5‑ton (60,000 BTU) R32‑refrigerant split‑system air conditioner condenser and compatible multi‑positional indoor unit, built for large residential or light commercial cooling needs.
Q: What does a 13.8 SEER2 efficiency rating mean?
A: 13.8 SEER2 (often listed as 13.4 SEER2) reflects seasonal energy efficiency — it’s designed to help reduce cooling costs compared to older, lower SEER units while meeting current standards.
Q: What refrigerant does it use?
A: This system uses R32 refrigerant, a more efficient and environmentally responsible choice with lower global warming potential than many older refrigerants.
Q: What kind of compressor does it have?
A: The outdoor condenser features a single‑stage scroll compressor for reliable, consistent cooling performance.
Q: What is “multi‑positional” installation?
A: Multi‑positional design means the indoor air handler can be installed upflow, downflow, or horizontally, offering flexibility for different duct layouts and spaces.
Q: How loud is the unit?
A: Typical operating sound levels are around 74 dBA, which is average for a 5‑ton condenser.
Q: What size spaces is a 5‑ton AC suited for?
A: A 5 ton (60,000 BTU) capacity is ideal for large homes, bigger apartments, or commercial spaces that require high cooling output.
Maintenance Tips
-
Keep Outdoor Unit Clear: Maintain 24 inches of clearance around the condenser; remove leaves, dirt, and debris to ensure proper airflow.
-
Clean Condenser Coils: Rinse every 3–6 months to prevent dirt buildup that reduces SEER2 efficiency.
-
Replace Indoor Air Filters: Change filters every 1–3 months to protect the system and maintain airflow.
-
Inspect Refrigerant Lines & Insulation: Ensure lines are intact and insulation is not damaged for optimal R32 performance.
-
Check Condensate Drain: Keep the drain line clear to prevent water buildup or system interruptions.
-
Schedule Annual Professional Service: Technicians should inspect electrical connections, refrigerant levels, fan motor, and overall split system performance yearly.
-
Monitor System Performance: Unusual noises, weak cooling, or higher energy bills indicate the need for prompt service.
