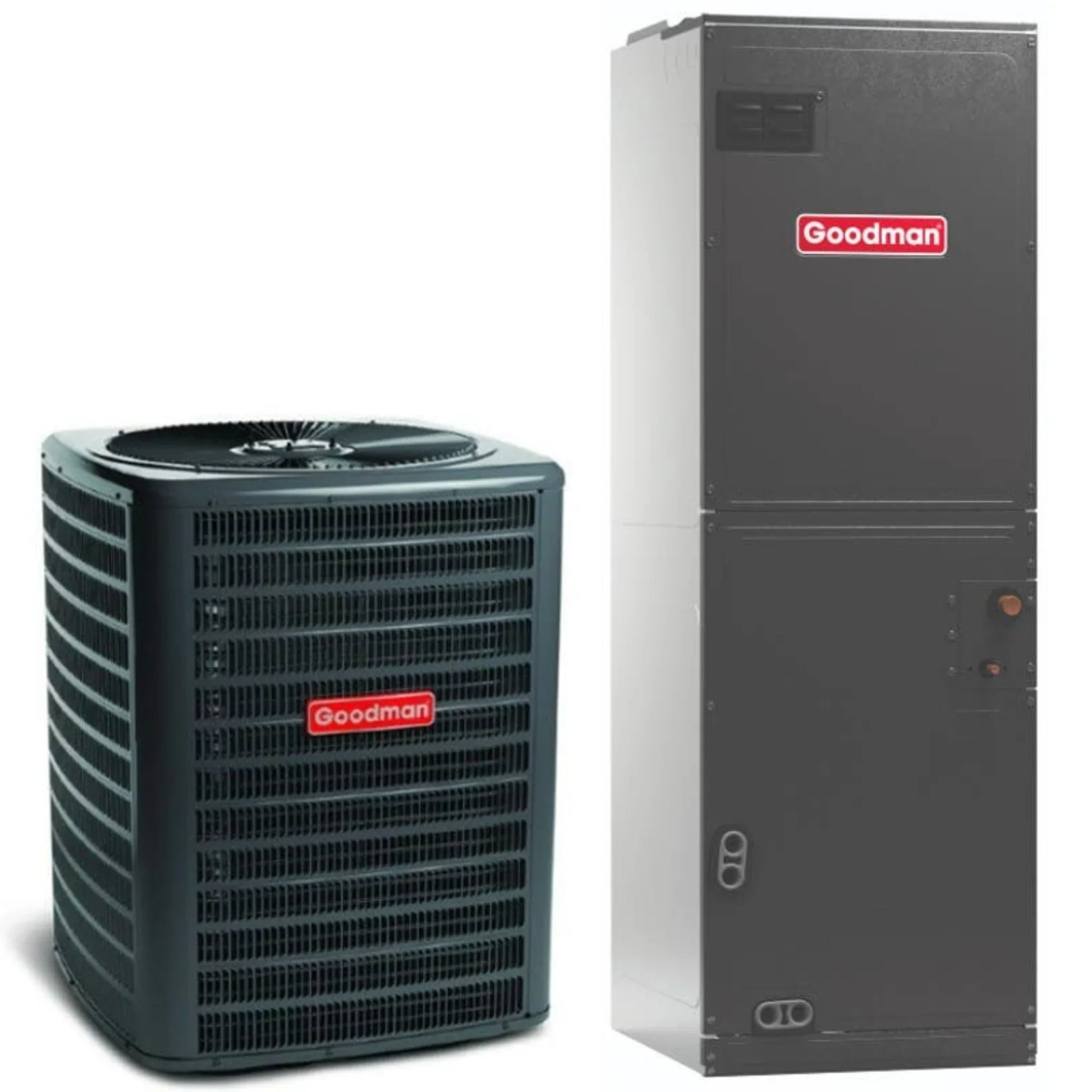

Goodman - 5 Ton/60,000 BTU - Multi-Positional - Air Conditioner Split System - 16.2 SEER2 - R32 - AMST60DU1300
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman air conditioner split system is the perfect choice for all of your cooling needs.
Features
- Ideal size to cover a smaller house in ideal climates
- 5 ton, 15.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Fully charged for up to 15' of line set
- Low sound output
- Factory-installed filter drier
-

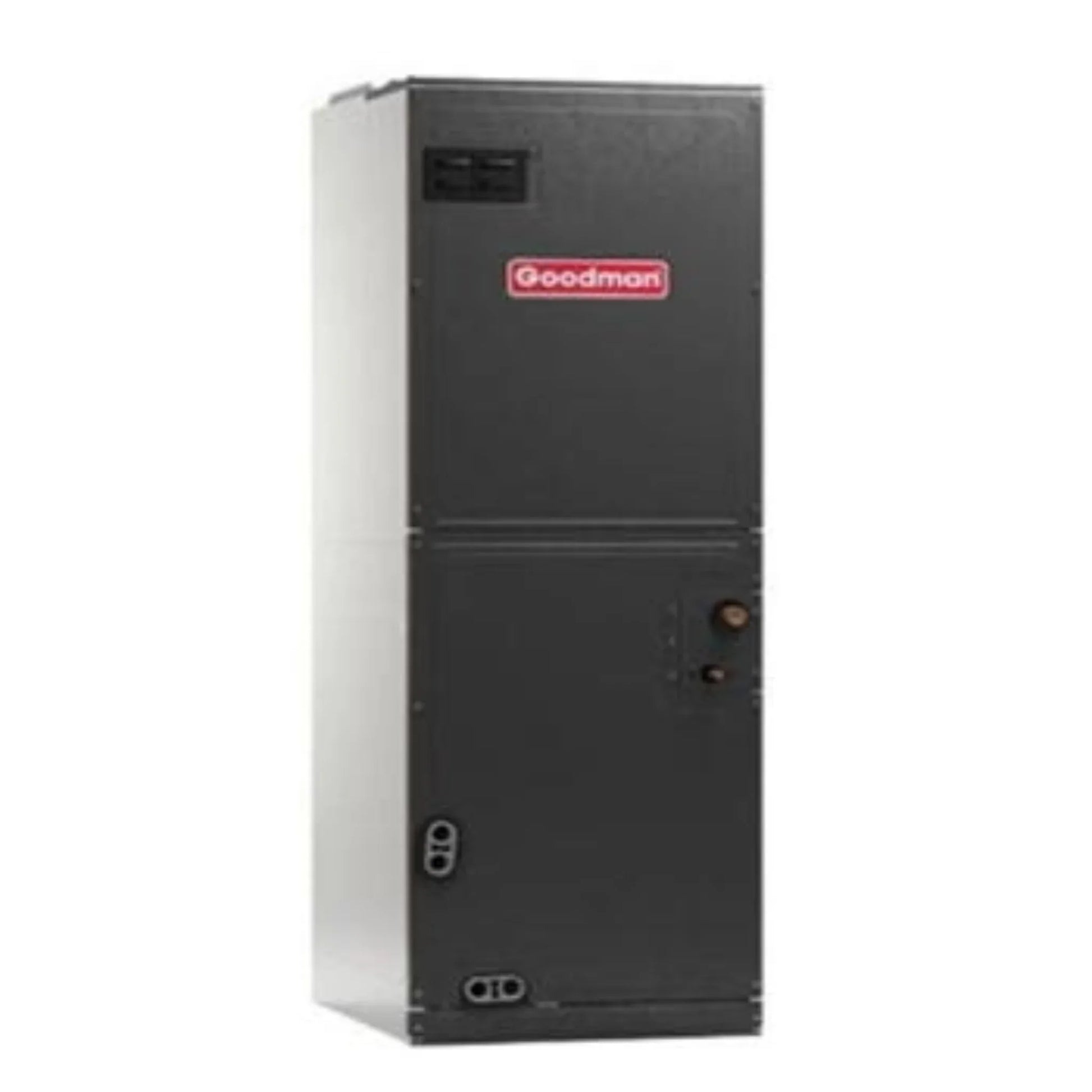

Air Handler
- 5 ton air handler
- Electric heat compatible
- Optimized for use with R-32 refrigerant
- Multi-speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
Specifications

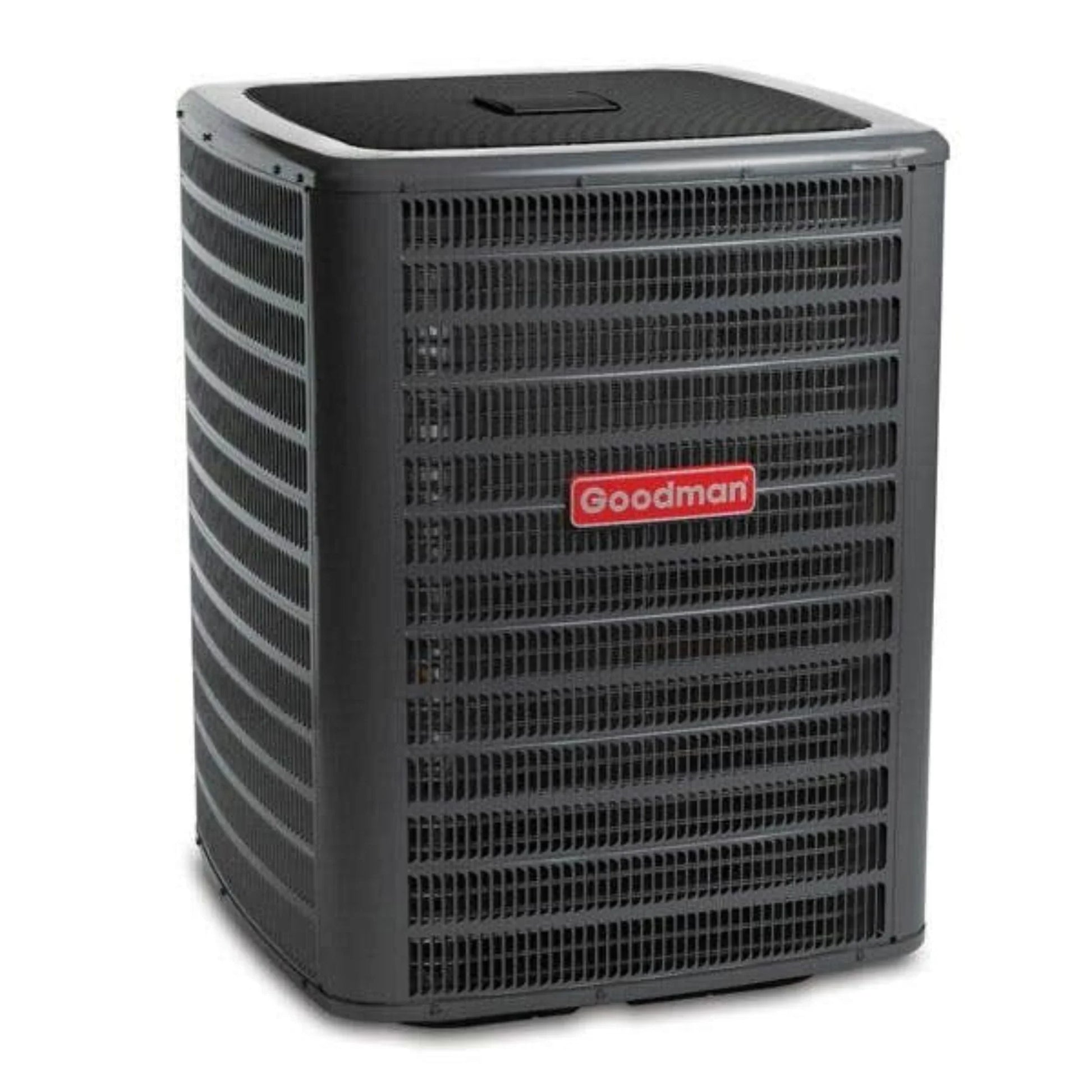

| 5 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser |
| SKU |
GLXS5BA6010 |
| Weight |
305.000000 |
| Manufacturer |
Goodman |
| Replaces |
GSX160601 |
| Cooling BTU |
60,000 |
| Blower Motor |
Two Speed ECM Motor |
| Decibel Level (dBA) |
76 |
| Horsepower |
0.33 HP |
| Refrigerant |
R32 |
| SEER2 |
15.2 |
| Condenser Stages |
Two Stage |
| Compressor Type |
Scroll |
| Liquid Line |
3/8" |
| Suction Line |
7/8" |
| Electrical |
208/230v 1 Phase 60Hz |
| Max Breaker Size |
50 Amps |
| Min. Breaker Size |
32.4 Amps |
| Tonnage |
5 Ton |
| Connection |
Sweat |
| Height |
41 1/2" |
| Width |
35 1/2" |
| Depth |
35 1/2" |
Manual
What our Experts Think
-
High‑Capacity Cooling: The Goodman AMST60DU1300 Air Conditioner Split System delivers 5 tons (60,000 BTU) of cooling power, making it ideal for large homes, open layouts, and high‑load spaces.
-
Strong Seasonal Efficiency: With 16.2 SEER2, this unit provides solid cooling efficiency, helping lower energy costs compared to lower‑rated systems.
-
Multi‑Positional Design: Flexible multi‑positional installation adapts to upflow, horizontal, or downflow configurations, simplifying setup in attics, basements, or tight mechanical rooms.
-
R32 Refrigerant for Better Performance: Uses R32 refrigerant, which enhances heat transfer efficiency and environmental performance vs older refrigerants.
-
Durable Construction: Built with rugged outdoor components and corrosion‑resistant finishes to withstand harsh weather and long service life.
-
Balanced Value & Performance: Combines high capacity, energy efficiency, and flexible installation, making it a top choice for residential HVAC upgrades and replacements.
Q&A
Q: What cooling capacity does this condenser provide?
A: This Goodman condenser delivers 4 tons (48,000 BTU) of cooling, making it suitable for medium to large homes or commercial spaces when paired with the correct indoor components.
Q: What does SEER2 15.2 mean?
A: SEER2 15.2 indicates improved seasonal energy efficiency under updated testing standards, helping lower cooling costs compared to lower SEER units.
Q: What type of operation and compressor does it use?
A: It uses a single‑stage scroll compressor, offering simple, reliable cooling performance.
Q: What refrigerant is used?
A: This unit uses R32 refrigerant, which is environmentally friendlier and more efficient than many older refrigerants.
Q: What are the installation and electrical requirements?
A: Designed for 208/230 V single‑phase power, pre‑charged for up to 15 ft of line set (indoor coil/air handler sold separately).
Q: What are the physical dimensions?
A: Approximate dimensions are 35.5″ W × 35.5″ D × 36.5″ H.
Q: How loud is the unit during operation?
A: Typical operating sound is around 73‑76 dBA, which is normal for residential outdoor AC condensers.
Maintenance Tips
-
Clean Outdoor Condenser Coil: Remove leaves, dirt, and debris regularly to maintain optimal heat transfer and cooling efficiency.
-
Ensure Proper Clearance: Keep at least 2–3 ft of open space around the condenser and air handler for airflow and safety.
-
Inspect Refrigerant Lines: Check liquid and suction lines for insulation damage, leaks, or wear.
-
Rinse Fins Gently: Use a garden hose to clean condenser fins without bending them, improving airflow and efficiency.
-
Check Electrical Connections: Inspect wiring, disconnects, and capacitors for secure, corrosion-free operation.
-
Monitor Performance & Noise: Normal operation is quiet; unusual sounds or reduced cooling may indicate maintenance is required.
-
Schedule Annual Professional Service: Have a certified HVAC technician inspect the compressor, fan motors, refrigerant charge, and system pressures yearly to maintain 16.2 SEER2 efficiency.
