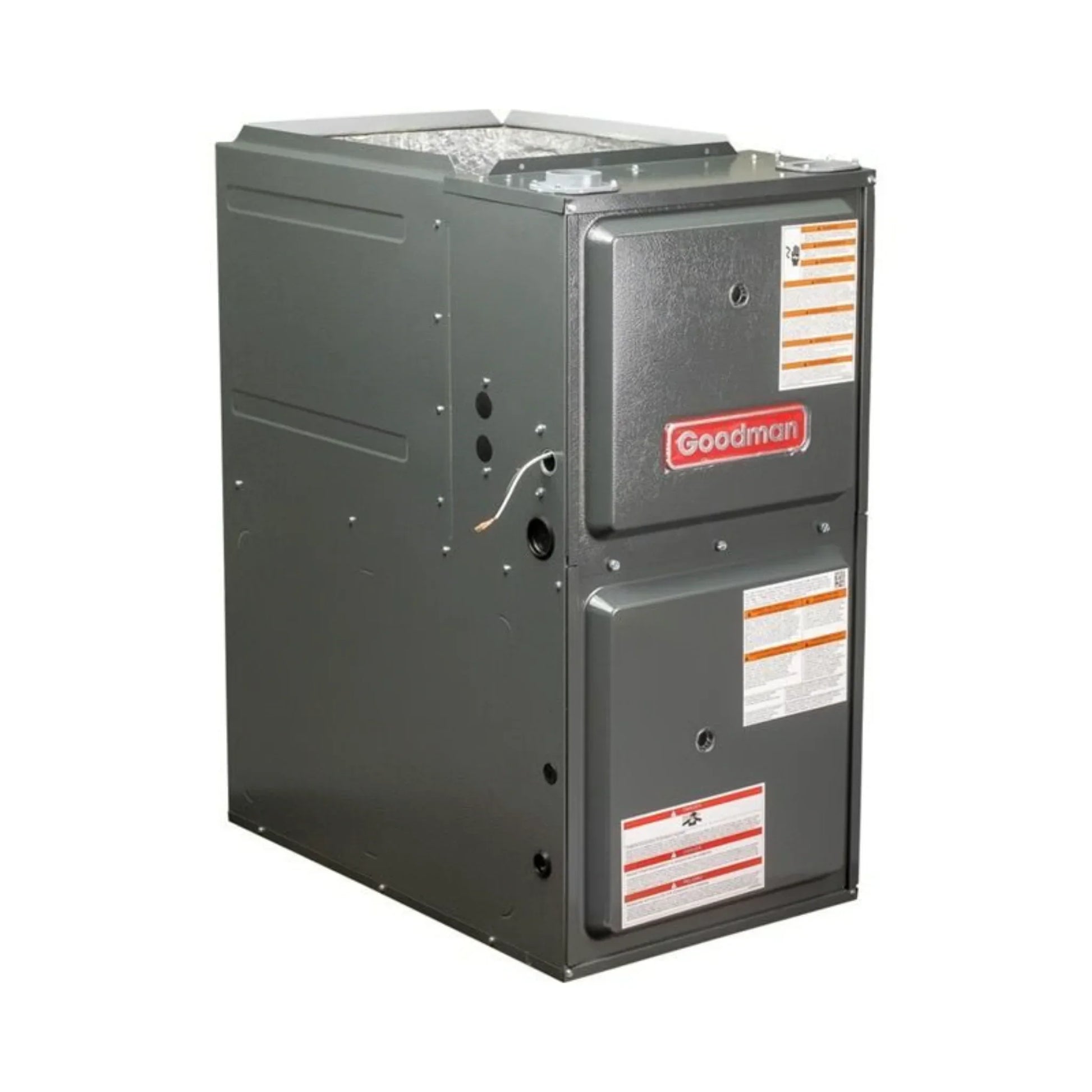

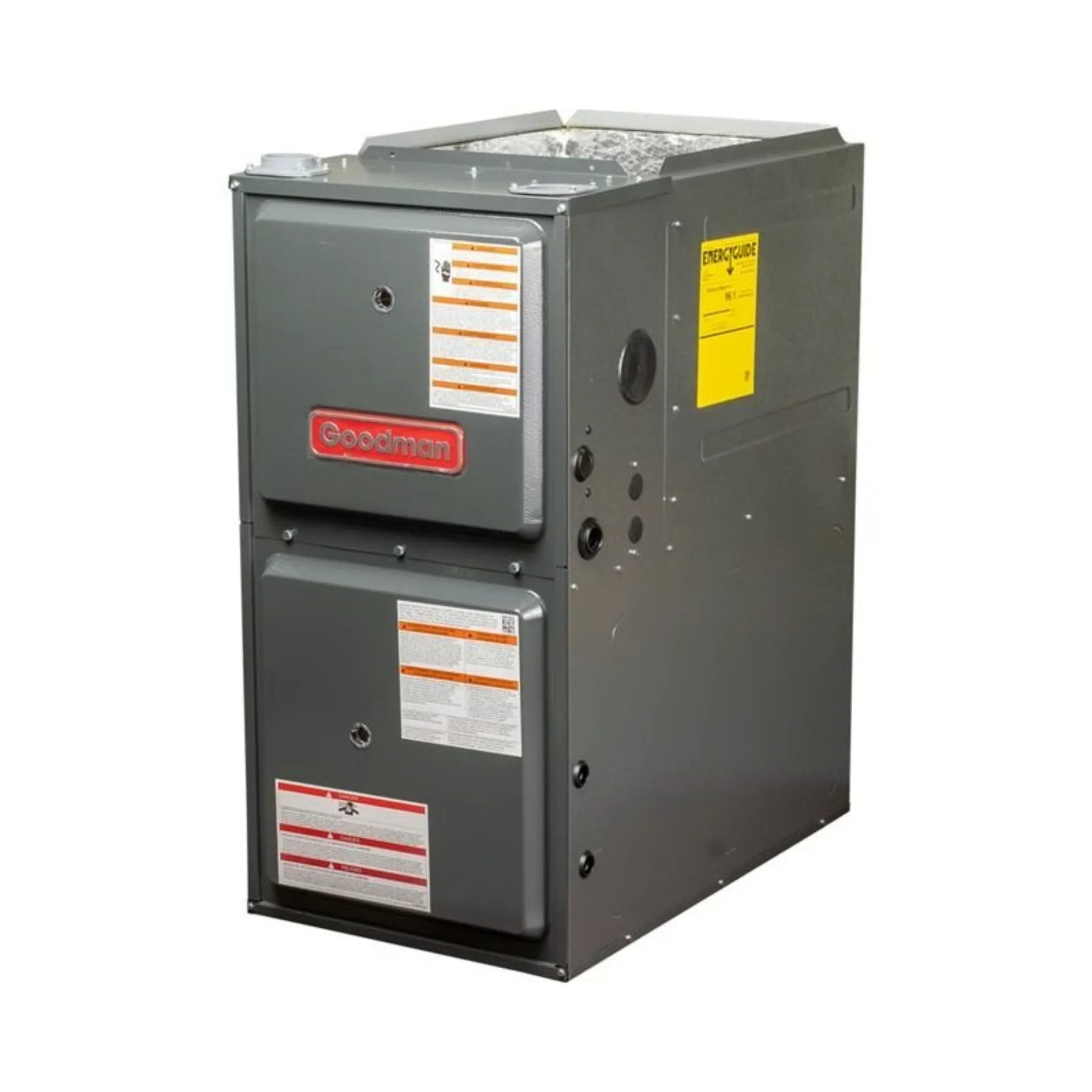

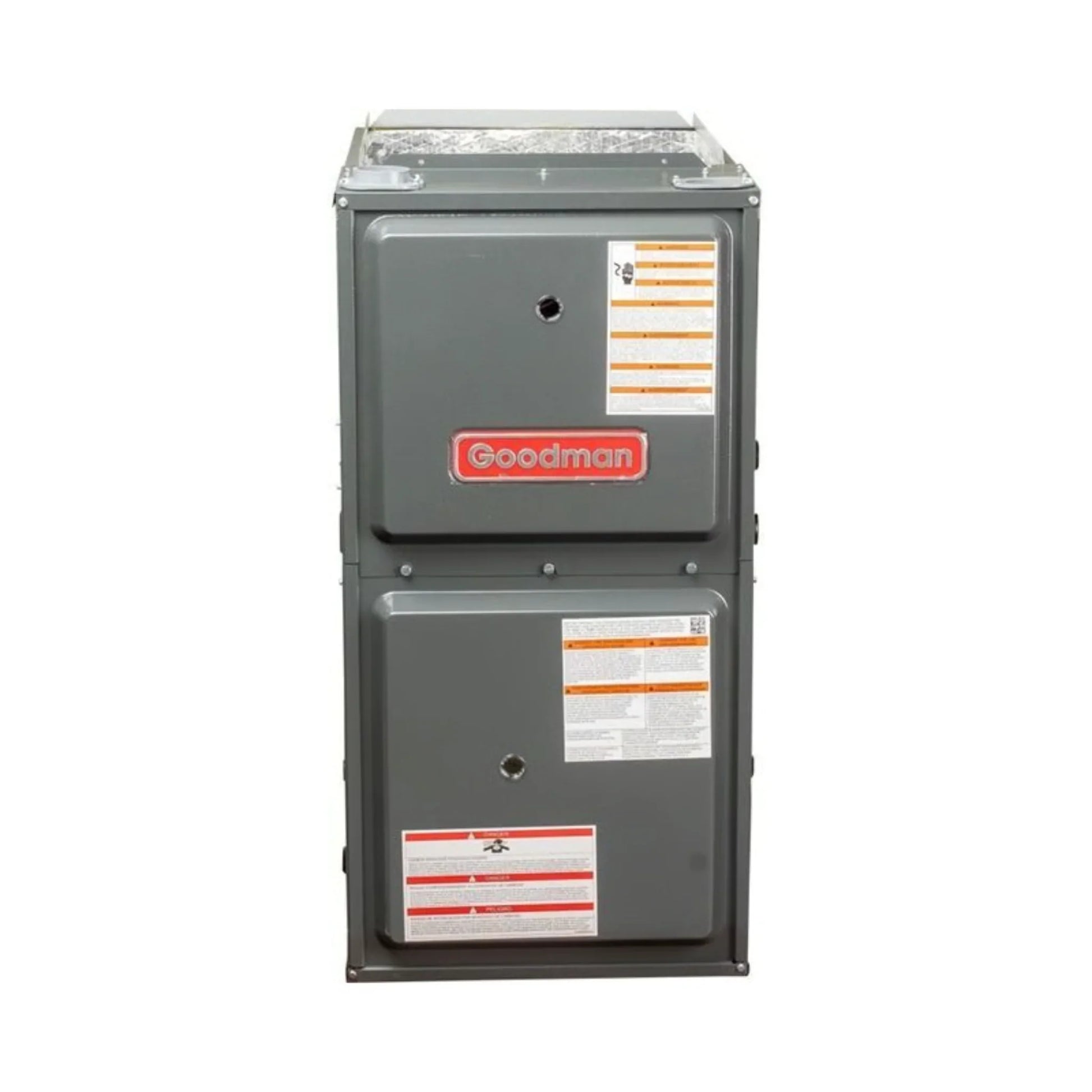

Goodman - 60,000 BTU 96% Variable Speed Ultra-Low NOx Gas Furnace - 17.5" Width - Upflow / Horizontal - Single Stage - 115V - R32 - GRVS960603BU
With a 96% efficiency rating, a variable-speed blower motor, and Single stage gas valves, the GRVS960603BU is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVS960603BU is an excellent choice, offering one of the best efficiency levels available on the market.
Features
- Ideal to heat a small to medium house (in an ideal climate)
- 60,000 BTU 96% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Innovative design for electrical efficiency, safety, and lower sound output
Specifications
| SKU |
GRVS960603BU |
| Weight (in lbs) |
122.000000 |
| Airflow Direction |
Upflow/Horizontal |
| Exhaust Flue Requirement |
Plastic / PVC |
| R-32 Compliant |
Yes |
| Brand/Manufacturer |
Goodman |
| Product Features |
New Refrigerant Compliant, Ultra-Low NOx |
| Furnace Efficiency / AFUE |
96% |
| Heating BTU |
60,000 |
| Horsepower |
1 / 2 HP |
| Configuration |
Upflow/Horizontal |
| Energy Star |
Yes |
| Filter Size |
16" x 25" |
| Fuel Type |
Propane, Natural Gas |
| Height |
34 1/2" |
| Width |
17 1/2" |
| Depth |
28 7/8" |
Manual
What our Experts Think
-
High‑efficiency heating: With 96% AFUE, this furnace converts nearly all fuel into heat, meaning lower energy costs and strong performance in cold climates.
-
Variable‑speed blower advantage: The variable‑speed blower delivers quieter operation, improved airflow, and better humidity control than single‑speed units, enhancing overall indoor comfort.
-
Ultra‑Low NOx emissions: Designed to meet stringent emissions standards, this model reduces nitrogen oxide output—better for local air quality than conventional furnaces.
-
Flexible installation: Supports both upflow and horizontal configurations, expanding fit options in attics, closets, crawl spaces, or tight mechanical rooms.
-
Compact yet capable: At just 17.5″ width, it’s easier to fit in space‑challenged installations without sacrificing performance.
-
Reliable Goodman engineering: Built with durable components and easy‑access service panels, helping ensure long‑term reliability and simpler maintenance.
Q&A
Q: What is the heating capacity and efficiency of the Goodman GRVS960603BU?
A: This gas furnace delivers 60,000 BTU heating capacity with a 96% AFUE rating, converting most fuel into usable heat to cut utility costs.
Q: What blower and performance features does it include?
A: It features a variable‑speed ECM blower motor for enhanced airflow, quieter operation, and improved comfort control.
Q: Is this furnace suitable for areas with strict emissions standards?
A: Yes — it is an Ultra‑Low NOx compliant gas furnace, designed to meet stringent emission requirements in regulated regions.
Q: What installation orientations are supported?
A: This model supports both upflow and horizontal installation, making it versatile for different HVAC configurations.
Q: What are the electrical and venting requirements?
A: The furnace operates on 115 V, 1‑phase power and requires PVC/plastic flue venting for condensing operation.
Q: What fuel types does it support?
A: It is compatible with natural gas or propane (convertible), offering flexibility based on local fuel availability.
Q: What are the physical dimensions?
A: The unit measures approximately 17.5″ wide × 28.875″ deep × 34.5″ high, fitting standard furnace closets or mechanical spaces.
Maintenance Tips
-
Replace or clean the air filter every 1–3 months to maintain airflow and protect the variable-speed blower.
-
Keep supply and return vents clear for consistent heating performance.
-
Check thermostat settings to ensure proper furnace operation.
-
Keep the furnace area clean and free of debris for safe ventilation.
-
Inspect venting system for blockages or leaks to maintain safe combustion.
-
Listen for unusual noises or odors and contact an HVAC professional if detected.
-
Schedule annual professional maintenance to inspect burners, heat exchanger, ignition system, and gas connections.
