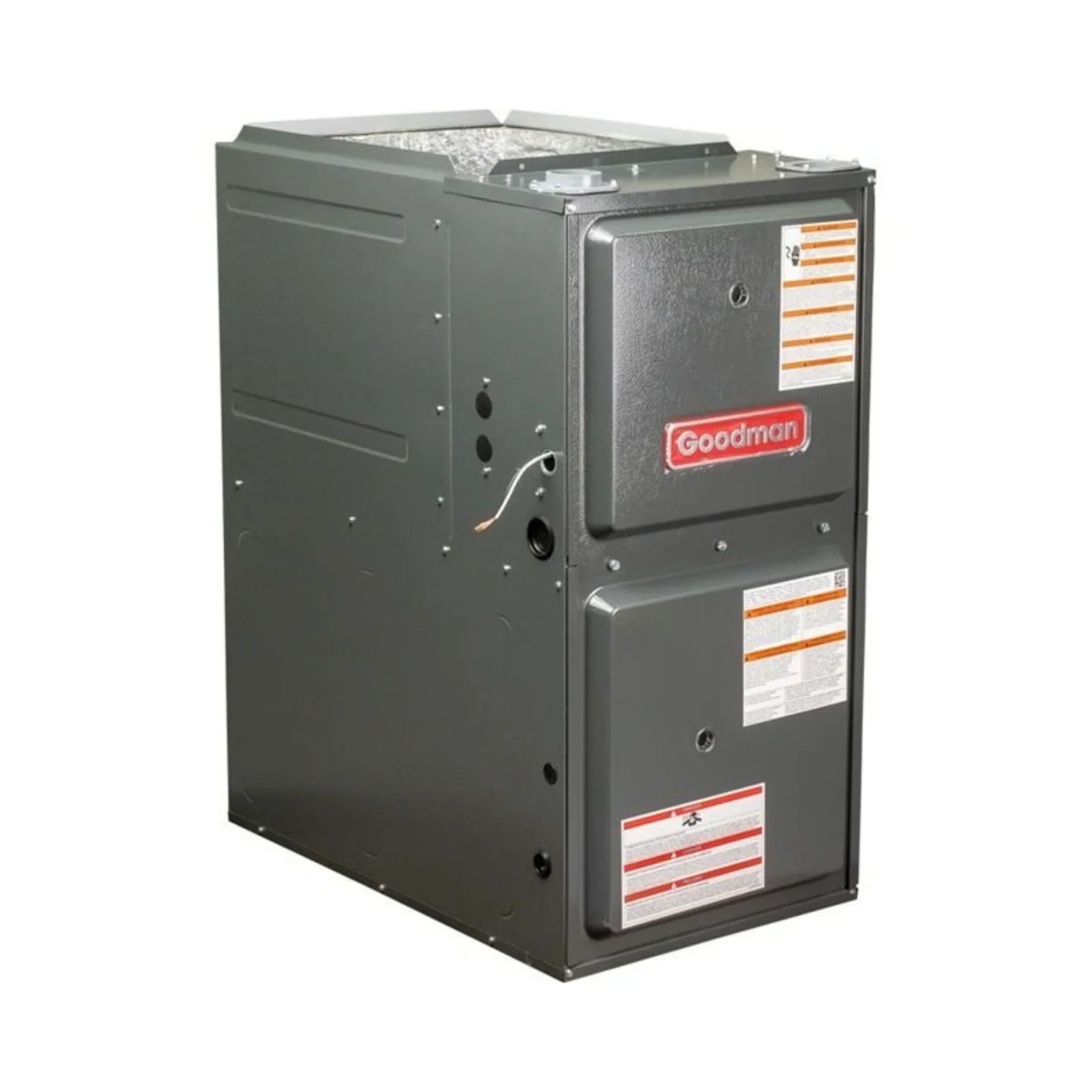

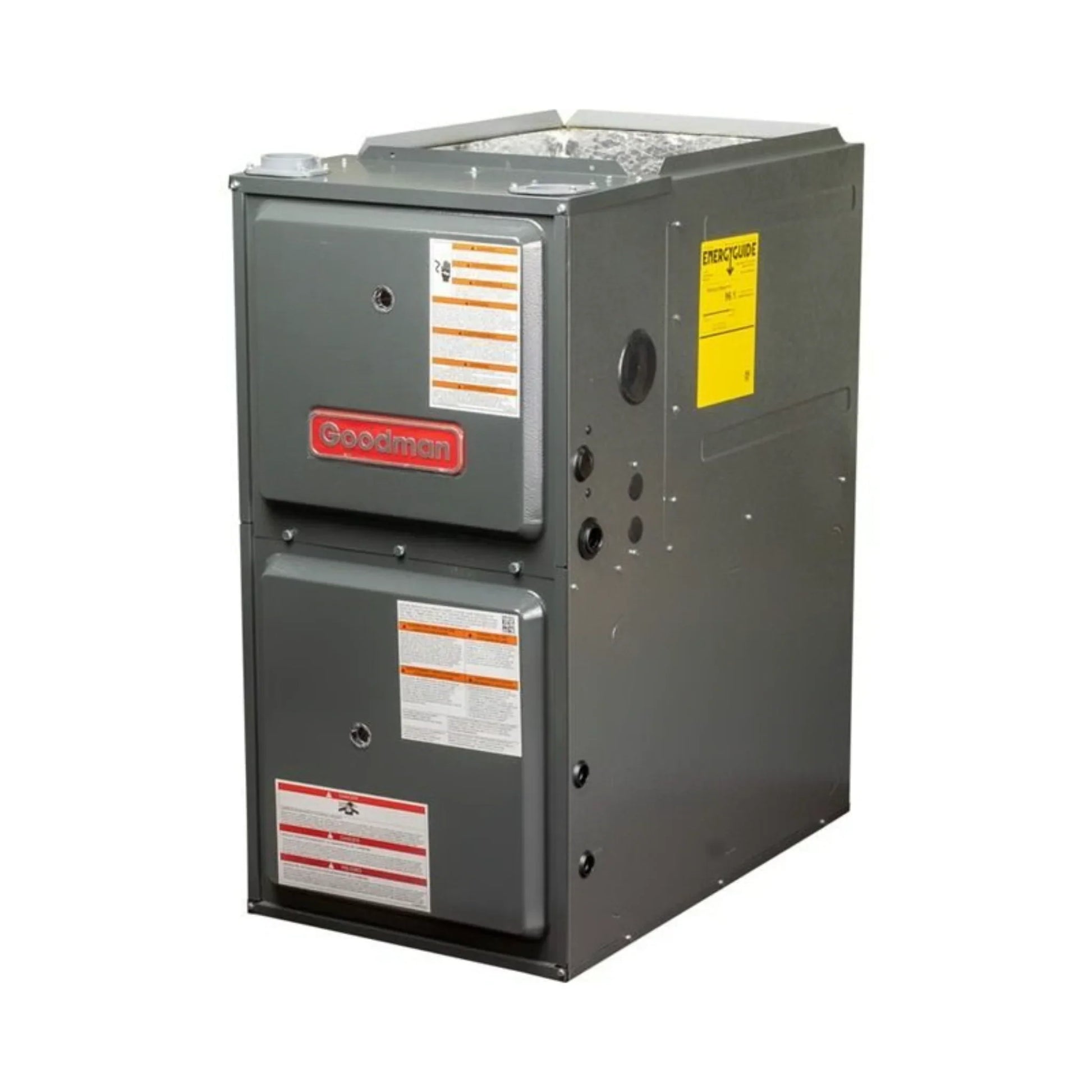

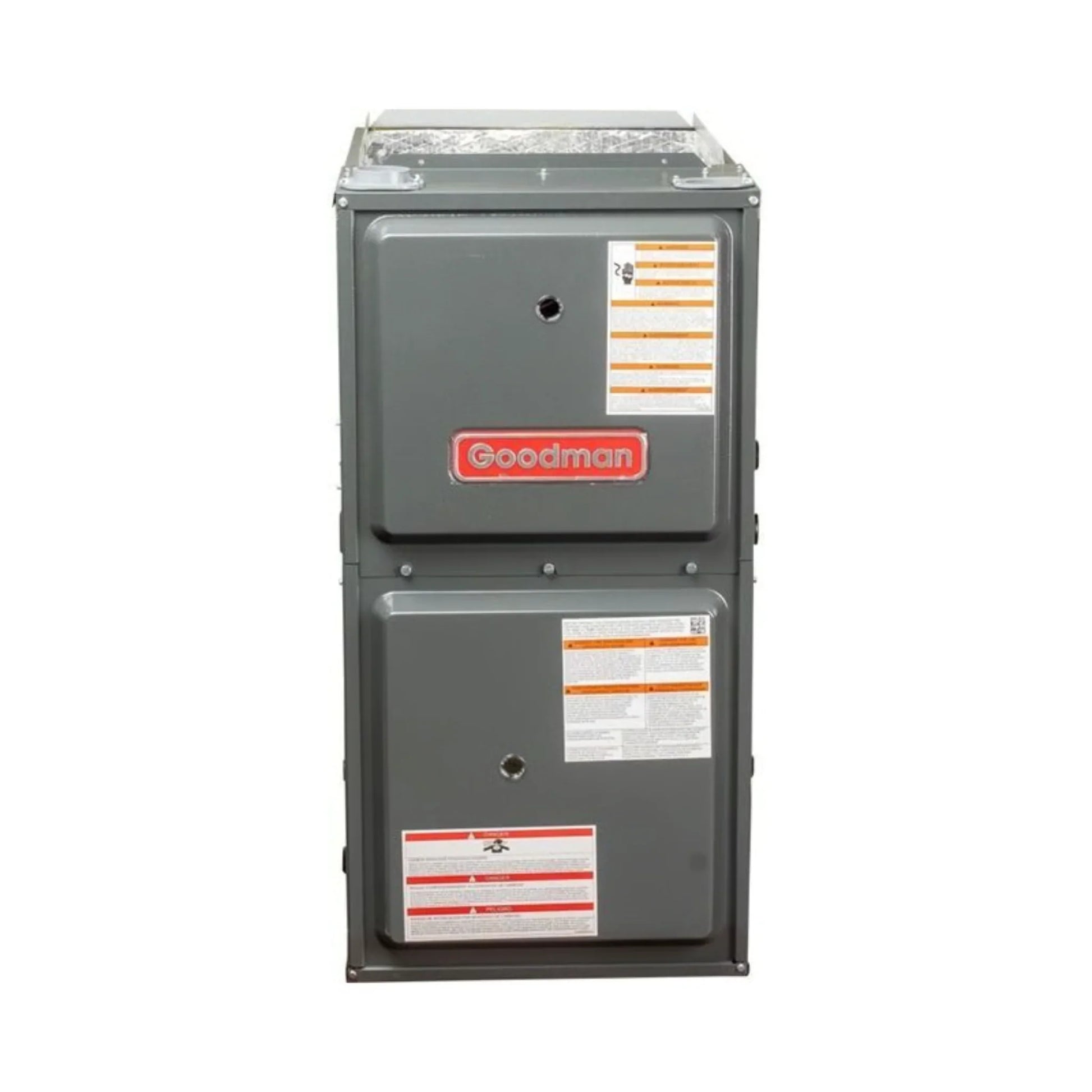

Goodman - 80,000 BTU 96% Gas Furnace - 17.5" Width - Upflow / Horizontal - Two Stage - 115V - R32 - GR9T960803BN

Goodman - 80,000 BTU 96% Gas Furnace - 17.5" Width - Upflow / Horizontal - Two Stage - 115V - R32 - GR9T960803BN

As a high-efficiency system, the GR9T960803BN Goodman gas furnace features many money saving features. The two-stage, 9-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GR9T960803BN is a good way to go if you want to lower your gas bill.

Features

• This furnace is ideal to heat a medium-sized house (depending on climate)
• 80,000 BTU 96% AFUE natural gas furnace
• Requires plastic/PVC flue venting
• Complies with Clean Air Act New Refrigerant Requirements
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with an optional conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output


Specifications

Manual

• Installation Manual
• Specifications Sheet


What our Experts Think

• High‑Efficiency Heating: With a 96 % AFUE rating, this furnace converts most fuel into usable heat—reducing gas costs and energy waste compared with standard 80 % models.

• Appropriate 80 k BTU Capacity: 80,000 BTU input makes it well‑suited for medium‑sized homes or larger living spaces needing consistent, robust heating output.

• Two‑Stage Comfort: The two‑stage gas valve allows quieter, more stable temperature delivery by running at a lower stage for mild weather and full capacity when demand rises.

• Multi‑Speed ECM Blower: 9‑speed ECM blower motor improves airflow control, enhances comfort distribution, lowers electricity use, and reduces operational noise.

• Flexible Installation Options: Designed for upflow or horizontal orientation, offering flexibility in tight mechanical spaces like basements, closets, or attics.

• Durable & Advanced Controls: Features heavy‑gauge steel construction, stainless secondary heat exchanger, silicon nitride igniter, and self‑diagnostic controls for reliable long‑term operation.

• Low NOx & R‑32 Compliance: Meets Low NOx emissions standards and is designed for compatibility with R‑32 refrigerant systems, aligning with modern environmental requirements.

Q&A

Q: What heating capacity and efficiency does the Goodman GR9S960803BN furnace deliver?
A: The Goodman GR9S960803BN provides 80,000 BTU input heat with 96% AFUE efficiency, meaning most fuel is converted into usable heat for dependable home comfort.

Q: What type of operation and stages does it have?
A: This model features a single‑stage gas valve with a multi‑speed (9‑speed) ECM blower motor for quieter, efficient airflow and consistent temperature.

Q: What installation orientations are supported?
A: Designed for upflow or horizontal (left/right) installation, offering flexible placement in attics, basements, or other indoor spaces.

Q: What electrical and venting requirements does it have?
A: Operates on 115 V single‑phase power and, as a high‑efficiency furnace, requires plastic/PVC flue venting.

Q: What materials and durability features are included?
A: Features include heavy‑gauge steel cabinet, aluminized and secondary stainless‑steel heat exchangers, durable silicon nitride igniter, and self‑diagnostic control board, for long‑term reliability and easier service.

Q: What fuel types are supported?
A: Factory‑configured for natural gas but can be converted to LP propane with the appropriate conversion kit (sold separately).

Q: What are the physical dimensions and airflow capacity?
A: Measures about 34.5″ H × 17.5″ W × 28.75″ D with a maximum airflow ~1200 CFM, fitting common residential duct systems.

Maintenance Tips

• Replace or clean air filters every 1–3 months to maintain airflow and prevent dust buildup on the heat exchanger and blower.

• Inspect the heat exchanger annually for cracks or corrosion to ensure safe and efficient operation.

• Clean burners, pilot assembly, and ignition system for reliable two-stage combustion.

• Check the blower motor and fan assembly for dust, debris, and lubrication needs.

• Inspect venting and flue pipe for obstructions or leaks to ensure safe exhaust of combustion gases.

• Test gas valves, two-stage operation, and thermostat for accurate temperature control.

• Verify 115V electrical connections and inspect wiring for wear or corrosion.

• Keep surrounding area clear to maintain airflow and reduce fire hazards.

• Schedule annual professional HVAC service for full inspection, cleaning, and safety testing.
