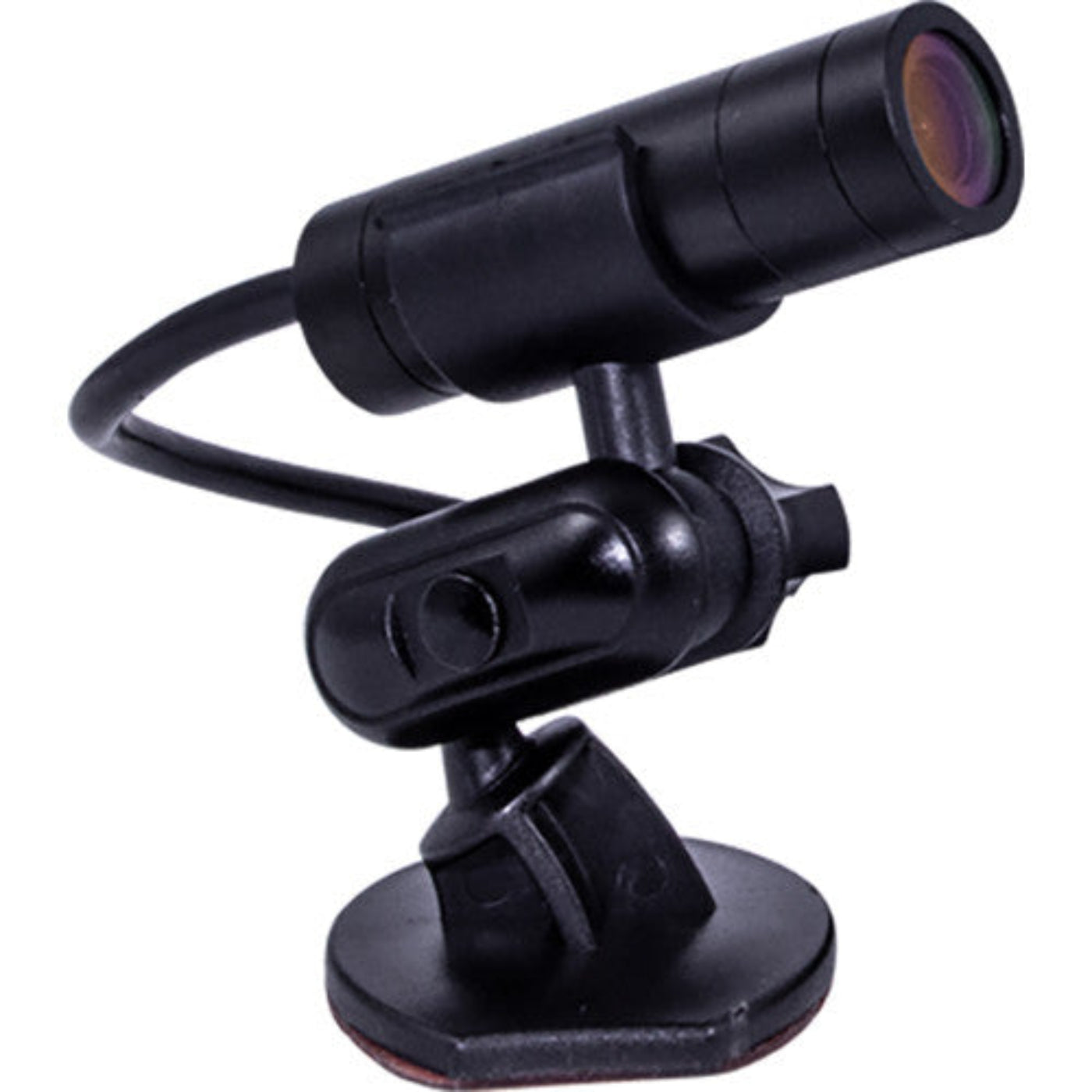

Marshall All-Weather HD Lipstick Camera - CV226
The Marshall Electronices CV226 All-Weather HD Lipstick Camera is small in size and can be mounted virtually anywhere. It features an IP67 rating for dust and water intrusion so you can use it in dirty and wet environments. The camera can capture at 1080p, 1080i, and 720p, outputting through a full-size BNC output. An interchangeable M12 3.6mm lens is included and provides a 72° horizontal angle of view; the lens is covered by a cap that enables the camera to maintain its IP67 rating.
The integrated 10' long breakout cable features a locking power cable connector, a full-size BNC cable, a Phoenix connector for RS-485 Visca control, and a built-in jostick that enables navigating the OSD menu system. The body of the camera incorporates a 1/4"-20 threaded mounting hole, allowing you to mount the camera to a variety of mounting systems.
Features
- 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
- IP67-rated weatherproof housing
- Full-HD resolutions: 1920 x 1080p
- RS-485 (Visca) or OSD menu joystick Control
- Full-sized 3G/HD-SDI (BNC) output
- 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
- 10' long breakout cable with BNC (3G-SDI), RS-485 remote adjust, and locking 12V power connector
- Interchangeable M12 3.6mm lens with IP67 cap included
- IP67-rated weatherproof housing allows you to submerge the camera in water up to 10-feet for several hours
- Full-HD resolutions: 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98, 1920 x 1080i 60/59.94/50, and 1280 x 720p 60/59.94/50/30/29.97/25/24/23.98 fps
- Remote adjustable through RS-485 (Visca) or OSD menu joystick
- CV-RCP-V2 touchscreen RCP compatible and free Camera Control Software option
- Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
What our Experts Think
-
Professional HDMI to USB Conversion – Converts HDMI 2.0 video sources into USB3.0/USB2.0 UVC format for seamless capture on computers.
-
Plug‑and‑Play Design – No drivers needed — works instantly with apps like Zoom, OBS, Teams, and Skype.
-
4K‑Ready Input – Supports up to 4096×2160p @30 fps (HDCP 1.4/2.2 compliant) on HDMI input.
-
Active Loop‑Through – HDMI input has loop‑out so you can monitor or record without losing the main feed.
-
Audio Flexibility – Embedded HDMI audio passed through to USB, plus an analog stereo line‑in jack.
-
USB Powered & Rugged – Powered by the host’s USB port with no external PSU, in a compact, durable body.
-
Expert‑Recommended – Ideal for livestreaming, conferencing, video production, or recording workflows needing reliable capture from HDMI sources.
Q&A
Q: What video quality does the CV226 deliver?
A: It captures Full‑HD 1080p/1080i and 720p video with a 2.5 MP sensor and 3G/HD‑SDI output for professional broadcast‑grade imaging.
Q: Is this camera weather‑proof?
A: Yes — it has an IP67‑rated housing that resists dust and water, including submersion up to around 10 ft for extended outdoor use.
Q: Does it come with a lens?
A: Yes — includes an interchangeable M12 3.6 mm lens with a protective cap that maintains the weatherproof rating.
Q: Can I adjust image settings?
A: Yes — image and exposure settings can be changed via RS‑485 (VISCA) remote control or on‑screen menu joystick, compatible with remote control software.
Q: What kind of cabling and connectors are included?
A: Comes with a long breakout cable featuring full‑size BNC SDI, RS‑485 control, and locking 12 V power connector.
Maintenance Tips
-
Clean Lens Gently – Use a soft, lint-free cloth to maintain clear HD images.
-
Check Weather Seals – Ensure all seals are intact for reliable all-weather performance.
-
Avoid Prolonged Sun Exposure – Protect the sensor from overheating and glare.
-
Secure Mounting – Confirm brackets and screws are tight to maintain camera alignment.
-
Stable Power Supply – Use recommended voltage to safeguard electronics.
-
Cable Management – Prevent sharp bends or tension on SDI and power cables.
-
Inspect Regularly – Check lens, housing, and connectors for wear or damage.
-
Store Properly – When not in use, keep in a dry, dust-free environment.
