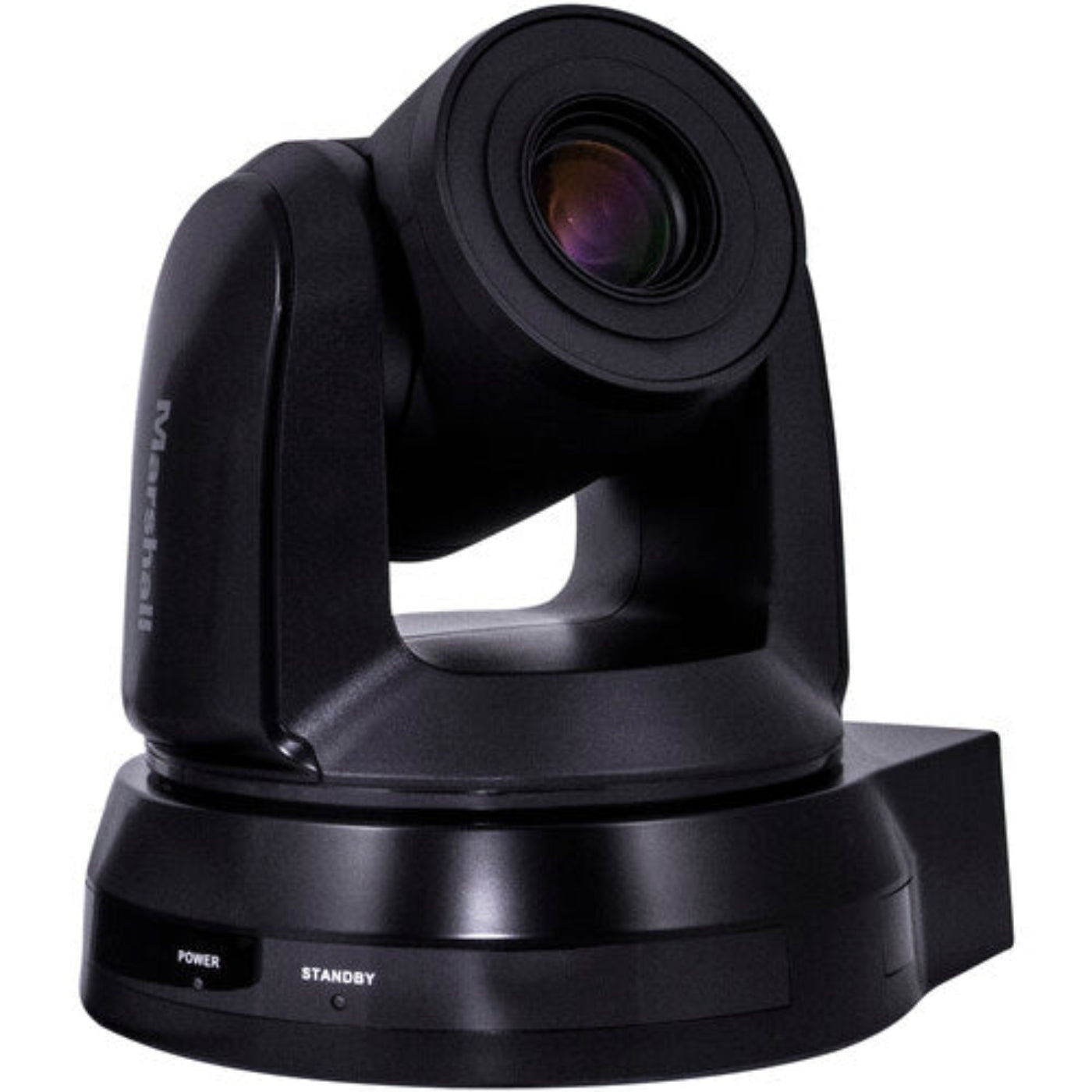

Marshall Electronics 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black) - CV620-BK4

Marshall Electronics  3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black) - CV620-BK4

The black CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.

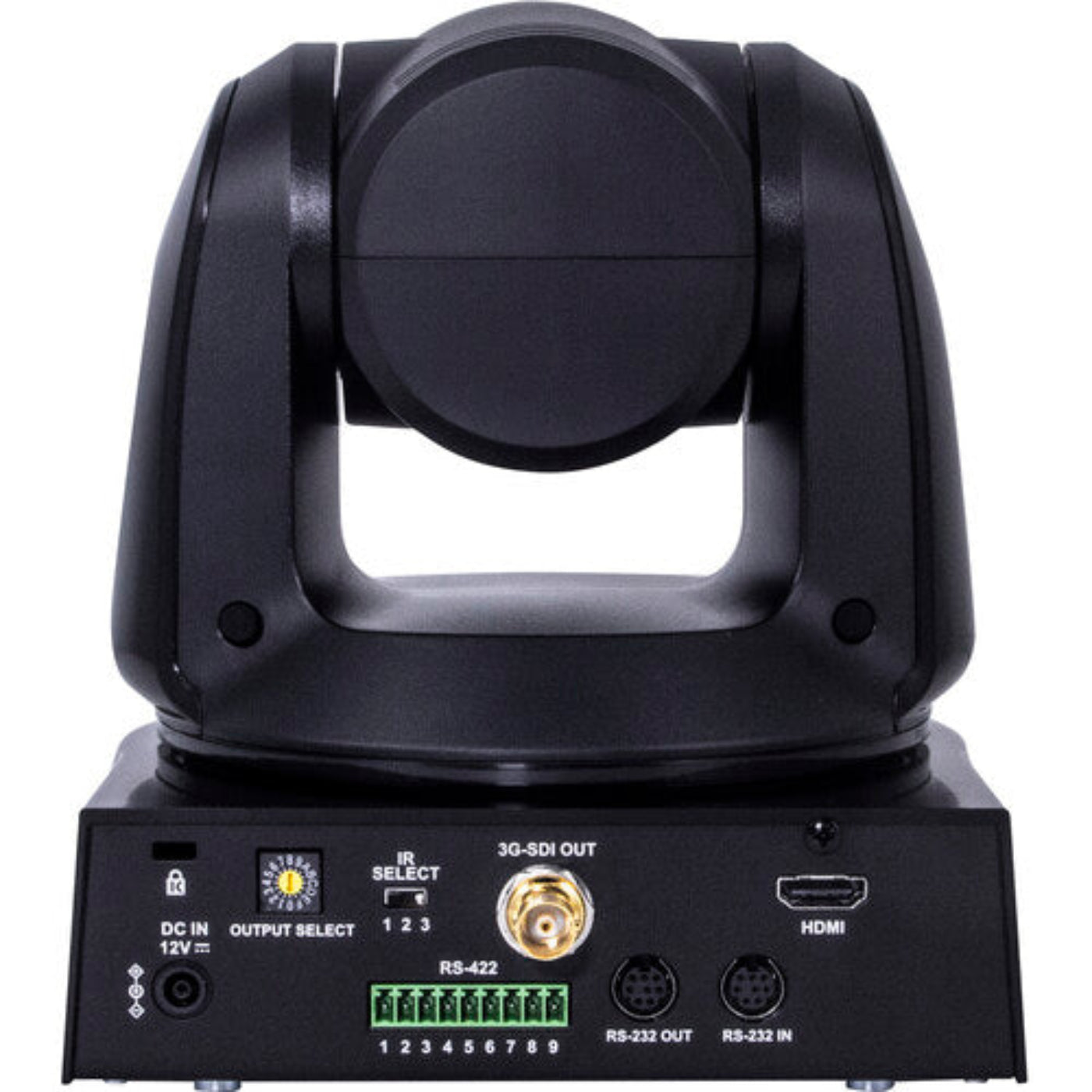

The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It's compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.

Features

• Capture up to 1080p60 Video
• 2MP 1/2.8" Sensor, 5.3 to 110mm Lens
• 20x Optical Zoom, 12x Digital Zoom
• 3G/HD-SDI and HDMI Outputs
• IR, RS-232, and RS-422 Serial Control
• 340° Pan, 120° Tilt

What our Experts Think

• Professional Full HD Broadcast‑Ready Quality
  Delivers crisp 1080p60 video via 3G‑SDI and HDMI outputs, perfect for live production, corporate AV, and broadcast workflows.

• Powerful 20× Optical Zoom
  The 20× optical zoom (5.3–110 mm) combined with 12× digital zoom captures detailed wide and tight shots without sacrificing clarity.

• Smooth & Quiet PTZ Movement
  Fluid 340° pan and 120° tilt operation with professional synchronous motors enables precise, silent camera positioning for live events.

• Flexible Control Options
  Supports RS‑232, RS‑422, Pelco, VISCA, and IR remote control, and integrates with control systems like the Marshall VS‑PTC‑IP for easy multi‑camera management.

• Versatile Installation
  Includes ceiling mount and supports table, wall, or ceiling mounting, making it adaptable for studios, houses of worship, education, and corporate spaces.

• Reliable Professional Performance
  Robust build with industry‑standard outputs and smooth transitions makes it ideal for 24/7 AV, broadcast, and live production operation.

• Expert Verdict
  A dependable, feature‑rich HD PTZ camera that combines strong optical zoom, broadcast‑friendly connectivity, and precise PTZ control—excellent for professionals who need versatile HD capture without 4K complexity.

Q&A

Q1: What video resolution does the CV620-BK4 support?
A: It delivers Full HD 1080p at 60fps, providing clear and smooth professional-quality video.

Q2: Does this PTZ camera have optical zoom?
A: Yes, it features 20x optical zoom, allowing detailed close-ups without losing image quality.

Q3: What outputs are available?
A: Supports 3G-SDI and HDMI outputs, compatible with broadcast, AV, and streaming workflows.

Q4: Can it stream over a network?
A: No, this model is HD-SDI/HDMI only and does not support IP streaming.

Q5: How precise is the PTZ movement?
A: Provides smooth, quiet pan-tilt-zoom operation, ideal for live productions and automated camera setups.

Q6: What control protocols are supported?
A: Compatible with VISCA, Pelco-D/P, RS-232, and RS-422, allowing integration with professional PTZ controllers.

Q7: Does it support audio input?
A: No built-in audio; external audio systems can be synchronized with the video feed.

Q8: What are common use cases?
A: Perfect for live streaming, corporate events, broadcast studios, lecture capture, and houses of worship.

Q9: Is it easy to install?
A: Yes, the compact black design and standard mounts make installation straightforward in studios or AV setups.

Q10: Why choose the CV620-BK4?
A: It offers Full HD quality, 20x optical zoom, and reliable PTZ control in a sleek black design, ideal for professional AV environments.

Maintenance Tips

• Clean Lens & Body Safely
  Wipe the lens and exterior with a soft microfiber cloth to remove dust and smudges—crucial for sharp Full HD imaging and reliable autofocus/zoom.

• Secure Video Cables (3G‑SDI & HDMI)
  Check all BNC and HDMI connections frequently to prevent signal interruptions during live production.

• Exercise PTZ Mechanisms Regularly
  Move pan, tilt, and 20× optical zoom periodically to keep motors smooth; verify presets operate correctly to avoid missed recall positions.

• Update Firmware When Available
  Install the latest firmware via supported interfaces to improve performance and compatibility with control systems.

• Maintain Airflow Around Camera
  Keep vents unobstructed and avoid tight enclosures to reduce heat buildup during extended use.

• Stable Power & Surge Protection
  Use a reliable power source and surge protector or UPS to guard against voltage fluctuations and ensure continuous operation.

• Organize and Protect Control Cables
  Ensure RS‑232/RS‑422 or IR control wiring is strain‑relieved and free of sharp bends for consistent PTZ responsiveness.

• Recalibrate Image Settings Periodically
  Adjust white balance, exposure, and gain as lighting changes to maintain consistent, accurate video quality.
